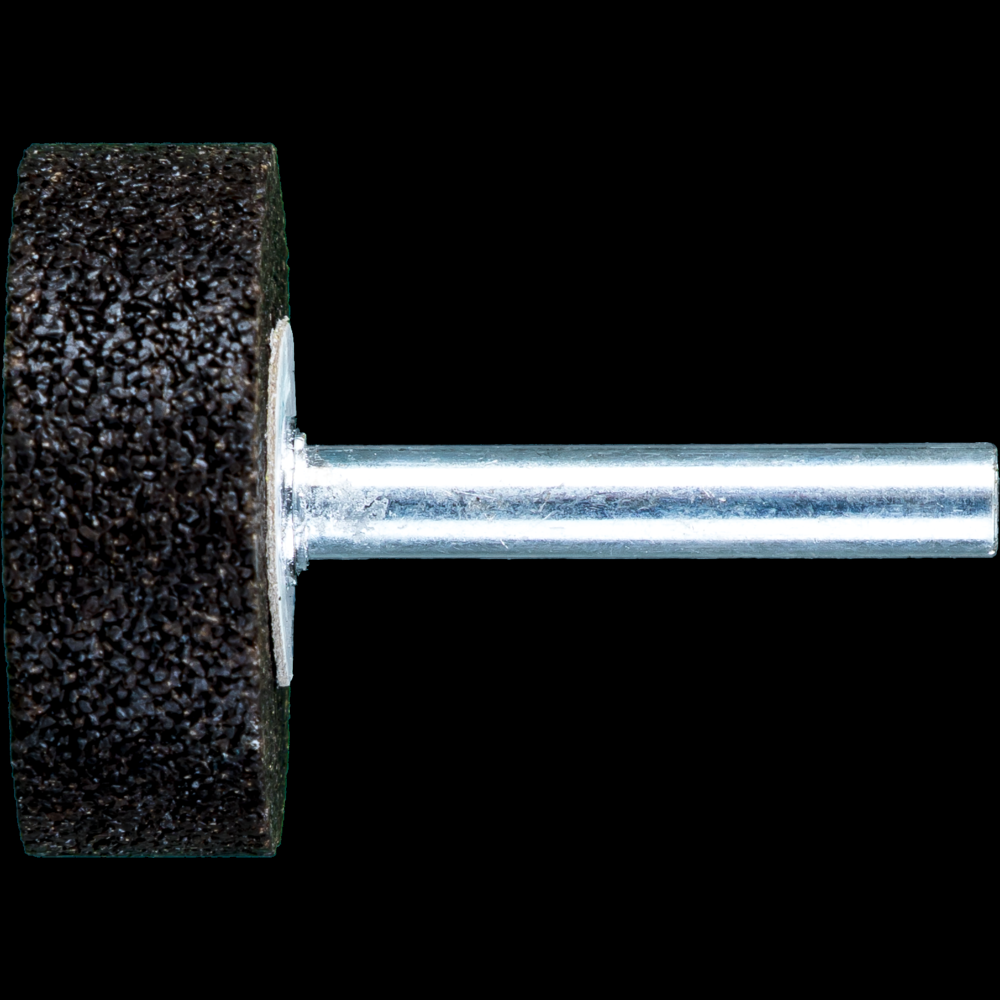

PFERD Resin Mounted Point, INOX EDGE, 1-1/2" x 1/2, 30 Grit, W236, AO, 1/4" Shank
Call For Price
- Part Number: 39101547
- UPC: 04007220397961
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

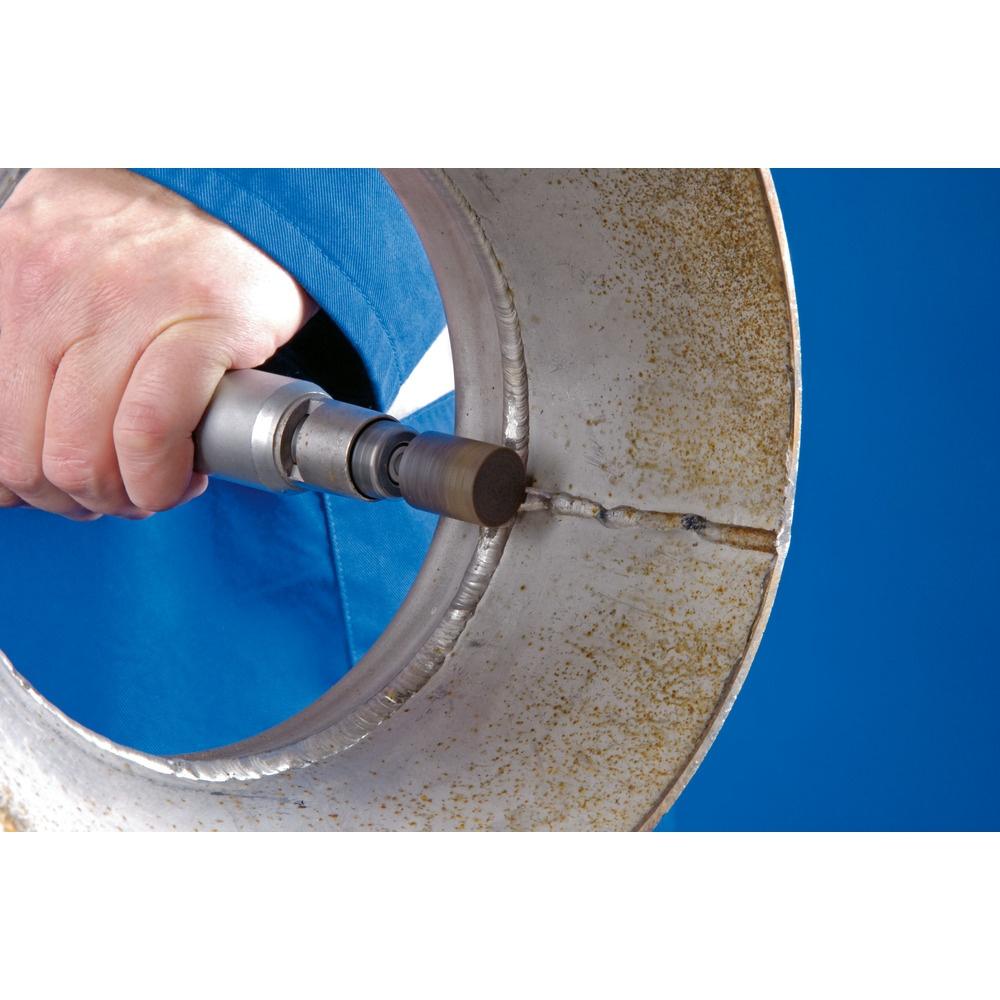

The INOX EDGE type is ideal for edge grinding on stainless steel (INOX). Applications include weld dressing on fillet welds on stainless steel components, removing burrs on molded parts made of high-temperature-resistant alloys, removing burrs on stainless steel castings, and grinding chamfers in preparation for welding stainless steel profiles. The cylindrical shape is ideal for grinding bores, radii and contours.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Customs Number:
6804221000
Diameter External (In):
1.50
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220397961
EDP:
35410
Grit Size:
30
Item Quantity:
5
Item Weight (kgs):
0.057
MANUFACTURER_TYPE_DESCR:
W 236 6,3 AN 30 N 5B INOX EDGE
Materials that can be worked:
Stainless steel (INOX)
Max. 1-2 Inch Overhang (RPM):
25470
Optimum 1-2 Inch Overhang (RPM):
22900
Order Quanityt:
310
Prop 65:
View
Recommendations for use:
INOX EDGE mounted points perform best at a peripheral speed of 6,900-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
25470
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Shank Length:
1.50
Shape:
W 236
UNSPNC:
23131500
UPC Code:
97758354103
Other Details
Cost-effective due to high edge stability, even on low-speed power tools.
High dimensional stability on edges.
Ideal for use on temperature-sensitive materials due to cool-grinding properties.
Increased operator comfort due to low vibration grinding
