![PFERD Resin Mounted Point, INOX, 1" x 2-3/4, 30 Grit, A3, Aluminum Oxide, 1/4" Shank](/vendors/6924/large/39101659-rgb.png "PFERD Resin Mounted Point, INOX, 1" x 2-3/4, 30 Grit, A3, Aluminum Oxide, 1/4" Shank")

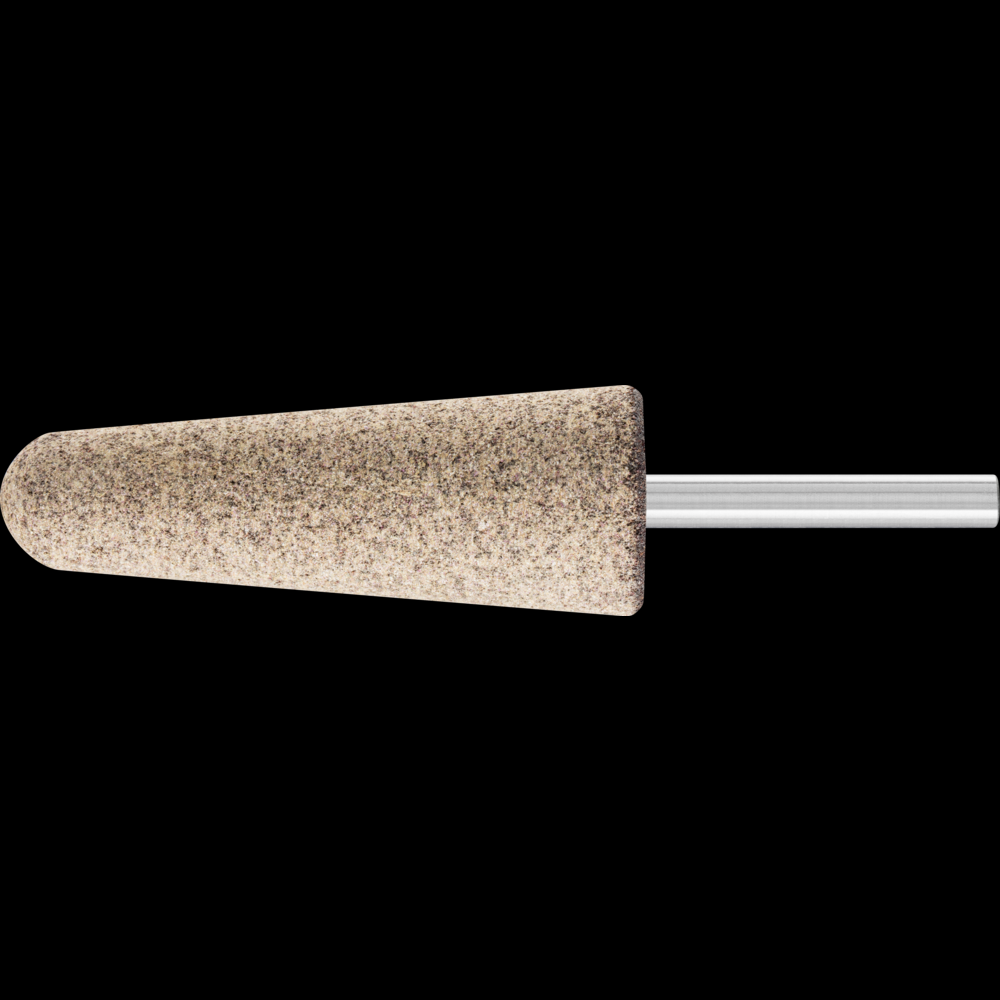

PFERD Resin Mounted Point, INOX, 1" x 2-3/4, 30 Grit, A3, Aluminum Oxide, 1/4" Shank
Call For Price
- Part Number: 39101659
- UPC: 04007220451304
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The INOX type is specifically designed for surface work on stainless steel (INOX) and for universal use on non-ferrous metals and bronze. These products are used for rough grinding of stainless steel (INOX) castings and grinding of molded parts made of high temperature-resistant alloys. Series A mounted points are generally used on larger, stainless steel components, such as in container construction. Due to the special shapes, it is possible to grind in a variety of contours. Applications include grinding in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Customs Number:
6804221000
Diameter External (In):
1.00
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220451304
EDP:
35104
Grit Size:
30
Item Quantity:
10
Item Weight (kgs):
0.073
MANUFACTURER_TYPE_DESCR:
A 3 6,3 ADW 30 L 6B INOX
Materials that can be worked:
Bronze
Materials that can be worked 1:
Hard non-ferrous metal
Materials that can be worked 2:
Stainless steel (INOX)
Max. 1-2 Inch Overhang (RPM):
16100
Optimum 1-2 Inch Overhang (RPM):
16100
Order Quanityt:
50
Prop 65:
View
Recommendations for use:
INOX mounted points perform best at a peripheral speed of 6,900-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
13080
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Shank Length:
1.50
Shape:
A 3
UNSPNC:
23131500
UPC Code:
97758351041
Other Details
Ideal for use on temperature-sensitive materials due to cool-grinding properties.
Increased operator comfort due to low vibration grinding
