![PFERD Power Tube Brush 3/8" Dia. .004 BraStainless Steel Wire 1/8" Stem SS/SS](/vendors/6924/large/79183412-rgb.png "PFERD Power Tube Brush 3/8" Dia. .004 BraStainless Steel Wire 1/8" Stem SS/SS")

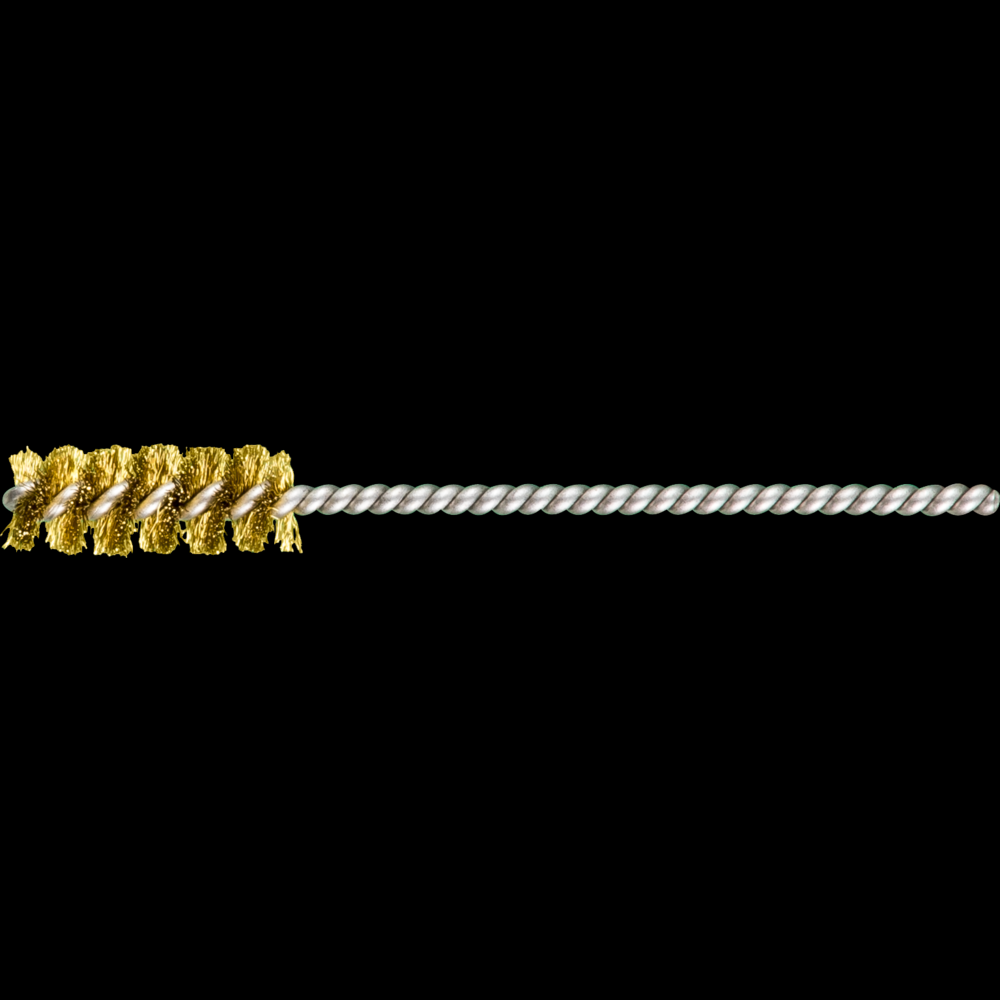

PFERD Power Tube Brush 3/8" Dia. .004 BraStainless Steel Wire 1/8" Stem SS/SS
Call For Price
- Part Number: 79183412
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
For light cleaning and deburring work on threaded holes or recesses, e.g. keyways. Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD uses wire quality CuZn37. Brass wire is temperature-resistant up to 350°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Spiral and Tube Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Removing oxide layers
Country of Origin:
US
Diameter External (In):
0.38
Diameter Filament Material (In):
0.01
Diameter Shank:
5/32 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Manual application
Drive Types 2:
Power drill
EDP:
83412
Filament Material:
Brass wire (MES)
Item Length (inches):
3.50
Item Quantity:
36
Item Weight (kgs):
0.005
MANUFACTURER_TYPE_DESCR:
3/8" PWR TUBE BRUSH SS/SS .004BR
Materials that can be worked:
Brass
Materials that can be worked 1:
Copper
Materials that can be worked 2:
Other non-ferrous metals
Materials that can be worked 3:
Zinc
Mounting System:
Shank
Optimum RPM:
500 - 1500 RPM
Order Quanityt:
10
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use with clockwise rotation.
Safety notes:
For safe use, guide the brush into the workpiece before beginning work.
Safety notes 1:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
UNSPNC:
27113002
Other Details
Creates fine surfaces.
Highly flexible, enabling optimal adaptation to the workpiece contour.
In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.
Longer service life due to the design of the stem.
Non-sparking.
The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.
