![PFERD Power Tube Brush 1-1/4" Dia. .005 Stainless Steel Wire 1/4" Stem SS/SS](/vendors/6924/large/79183406-rgb.png "PFERD Power Tube Brush 1-1/4" Dia. .005 Stainless Steel Wire 1/4" Stem SS/SS")

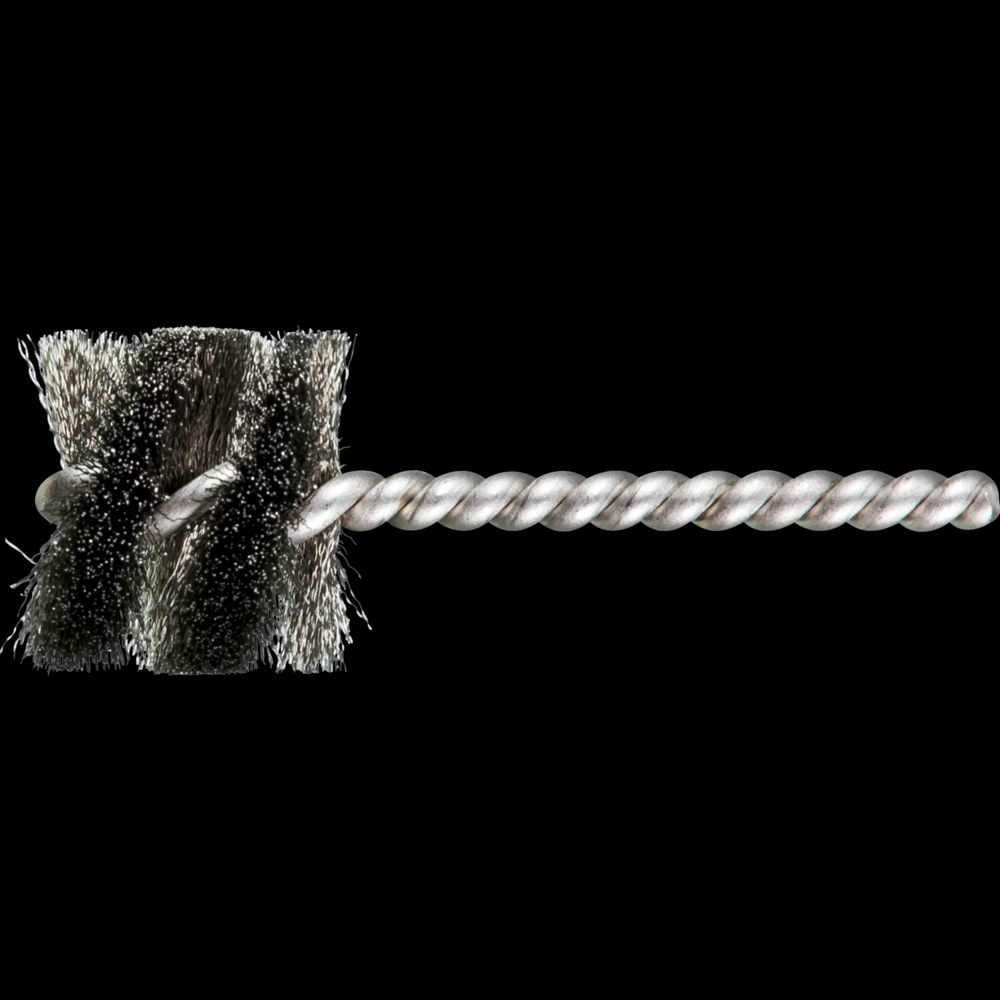

PFERD Power Tube Brush 1-1/4" Dia. .005 Stainless Steel Wire 1/4" Stem SS/SS
Call For Price
- Part Number: 79183406
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
For light cleaning and deburring work on threaded holes or recesses, e.g. keyways. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Spiral and Tube Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Derusting
Applications 3:
Removing heat discolouration
Applications 4:
Removing oxide layers
Applications 5:
Paint stripping
Applications 6:
Roughening
Country of Origin:
US
Diameter External (In):
1.25
Diameter Filament Material (In):
0.01
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Manual application
Drive Types 2:
Power drill
EDP:
83406
Filament Material:
Stainless steel wire (INOX)
Item Length (inches):
3.50
Item Quantity:
36
Item Weight (kgs):
0.029
MANUFACTURER_TYPE_DESCR:
1-1/4" PWR TUBE BRUSH SS/SS.005SS
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Titanium
Materials that can be worked 11:
Titanium alloys
Materials that can be worked 2:
Cobalt-based alloys
Materials that can be worked 3:
Hard non-ferrous metal
Materials that can be worked 4:
High-temperature-resistant materials
Materials that can be worked 5:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 6:
Nickel or titanium-based superalloys
Materials that can be worked 7:
Other non-ferrous metals
Materials that can be worked 8:
Soft titanium alloys (tensile strength 500 N/mm²)
Materials that can be worked 9:
Stainless steel (INOX)
Mounting System:
Shank
Optimum RPM:
500 - 1500 RPM
Order Quanityt:
230
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use with clockwise rotation.
Safety notes:
For safe use, guide the brush into the workpiece before beginning work.
Safety notes 1:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
1.00
UNSPNC:
27113002
Other Details
Highly flexible, enabling optimal adaptation to the workpiece contour.
In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.
Longer service life due to the design of the stem.
The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.
Very corrosion-resistant.
