![PFERD Power Tube Brush 1-1/2" Dia. .008 Carbon Steel Wire 1/4" Stem SS/SS](/vendors/6924/large/79183377-rgb.png "PFERD Power Tube Brush 1-1/2" Dia. .008 Carbon Steel Wire 1/4" Stem SS/SS")

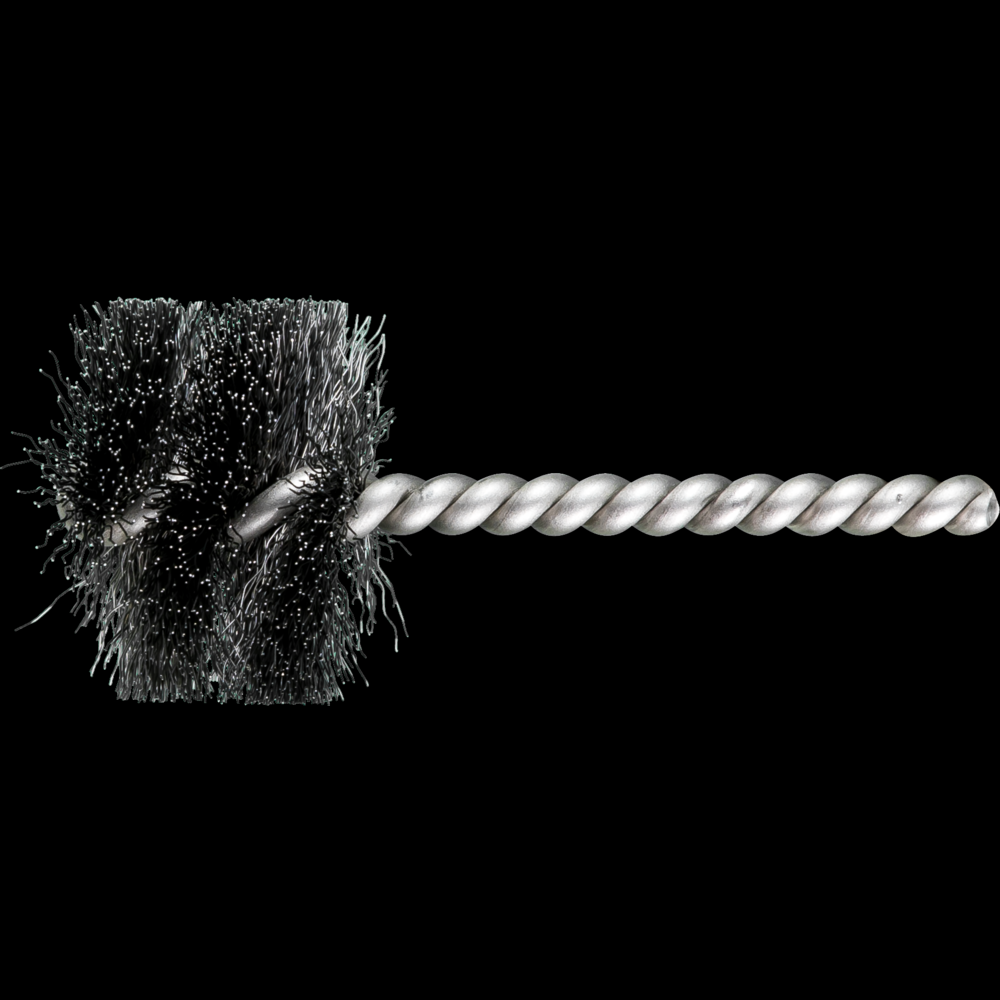

PFERD Power Tube Brush 1-1/2" Dia. .008 Carbon Steel Wire 1/4" Stem SS/SS
Call For Price
- Part Number: 79183377
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
For light cleaning and deburring work on threaded holes or recesses, e.g. keyways. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Spiral and Tube Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Derusting
Applications 3:
Removing oxide layers
Applications 4:
Paint stripping
Applications 5:
Roughening
Country of Origin:
US
Customs Number:
9603908050
Diameter External (In):
1.50
Diameter Filament Material (In):
0.01
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Manual application
Drive Types 2:
Power drill
EDP:
83377
Filament Material:
Steel wire (ST)
Item Length (inches):
3.50
Item Quantity:
36
Item Weight (kgs):
0.031
MANUFACTURER_TYPE_DESCR:
1-1/2" PWR TUBE BR SS/SS .008CS
Materials that can be worked:
Cast iron
Materials that can be worked 1:
Cast steel
Materials that can be worked 2:
Thermosetting plastics
Materials that can be worked 3:
Steel, cast steel
Materials that can be worked 4:
Steel materials with a hardness > 54 HRC
Materials that can be worked 5:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 6:
Thermoplastics
Materials that can be worked 7:
Wood
Mounting System:
Shank
Optimum RPM:
500 - 1500 RPM
Order Quanityt:
340
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use with clockwise rotation.
Safety notes:
For safe use, guide the brush into the workpiece before beginning work.
Safety notes 1:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
UNSPNC:
27113002
Other Details
Creates fine surfaces.
Highly flexible, enabling optimal adaptation to the workpiece contour.
In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.
Long service life through use of PFERD special wire.
Longer service life due to the design of the stem.
The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.
