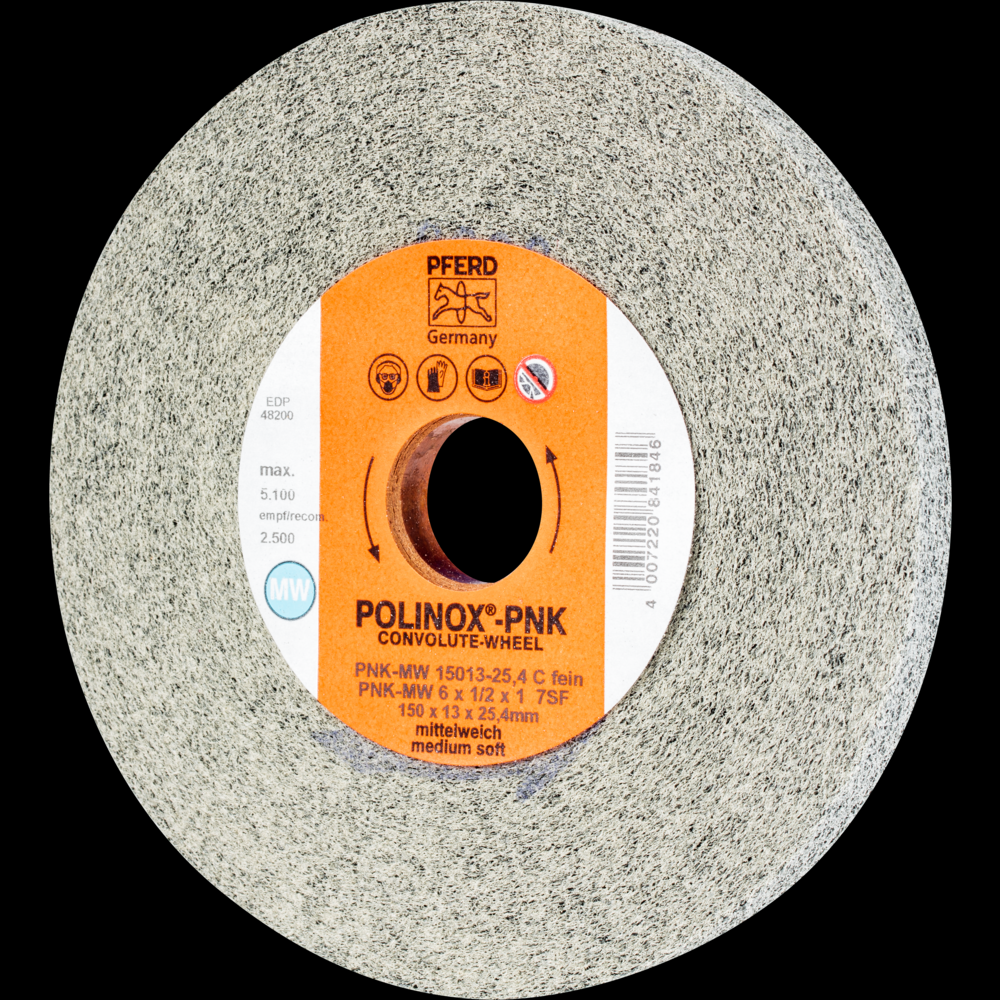

PFERD POLINOX® Convolute Wheel, 6" x 1/2 x 1, Fine, Medium-Soft, 7SF, Silicon carbide
Call For Price
- Part Number: 47802637
- UPC: 04007220841846
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
POLINOX® convolute wheels produce matte surface finishes. POLINOX® convolute wheels are made of spiral-shaped, non-woven abrasive which is wound around a core and foamed up. The foam supports the non-woven component and positively impacts its service life and abrasive performance. This particular bond results in non-woven wheels with a very good surface finish, high stock removal rate and long service life. These properties are particularly apparent when deburring, blending, finishing and polishing soft metals, alloyed and high-alloy steels, in addition to titanium alloys.;The wheels can be used on stationary machines and bench grinders, as well as portable power tools like straight grinders. Dressing the wheels allows them to adapt to different workpiece geometries. Medium-soft variant with increased flexibility and extended service life, for tough blending and polishing applications. Well suited to machining contours.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Convolute Non-Woven Wheels
Abrasive:
Silicon carbide SiC
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Step-by-step fine grinding
Applications 3:
Roughening
Applications 4:
Structuring (matt finishing, brush matting and satin finishing)
Applications 5:
Surface work
Country of Origin:
DE
Customs Number:
6805301000
Diameter External (In):
6.00
Diameter Hole:
1 Inch
Drive Types:
Bench grinder
Drive Types 1:
Flexible shaft drive
Drive Types 2:
Straight grinder
EAN:
4007220841846
EDP:
48200
Grit Size:
fine
Item Quantity:
1
Item Weight (kgs):
0.213
MANUFACTURER_TYPE_DESCR:
PNK-MW 15013-25,4 SiC F
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Steel materials with a hardness > 54 HRC
Materials that can be worked 11:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 12:
Thermoplastics
Materials that can be worked 13:
Titanium
Materials that can be worked 14:
Titanium alloys
Materials that can be worked 15:
Zinc
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Copper
Materials that can be worked 6:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 7:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 8:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 9:
Stainless steel (INOX)
Order Quanityt:
10
Pferdergonomics:
PFERDERGONOMICS recommends POLINOX® convolute wheels to reduce vibration, noise, and dust produced during use and to improve comfort when working.
Prop 65:
View
Recommendations for use:
Considerably reduce peripheral speed for work on materials with poor heat-conducting properties, e.g. titanium and stainless steel.
Recommendations for use 1:
For the best performance, use with a recommended peripheral speed of 4,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
Safety notes:
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
Safety notes 1:
The spiral-wound construction requires that these wheels only be run in a single indicated direction. Failure to do so will lead to destruction of the wheel and increased risk of accidents.
Specification:
7SF
UNSPNC:
31191600
UPC Code:
97758482004
Version:
MW (medium-soft)
Other Details
Can be profiled as desired, enabling optimal adjustment to the contour.
Cost-effective due to high abrasive performance and durability.
Produces very good surface quality.
