![PFERD Miniature End Brush 1/4" Dia. .005 Brass Wire 1/8" Stem](/vendors/6924/large/79183267-rgb.png "PFERD Miniature End Brush 1/4" Dia. .005 Brass Wire 1/8" Stem")

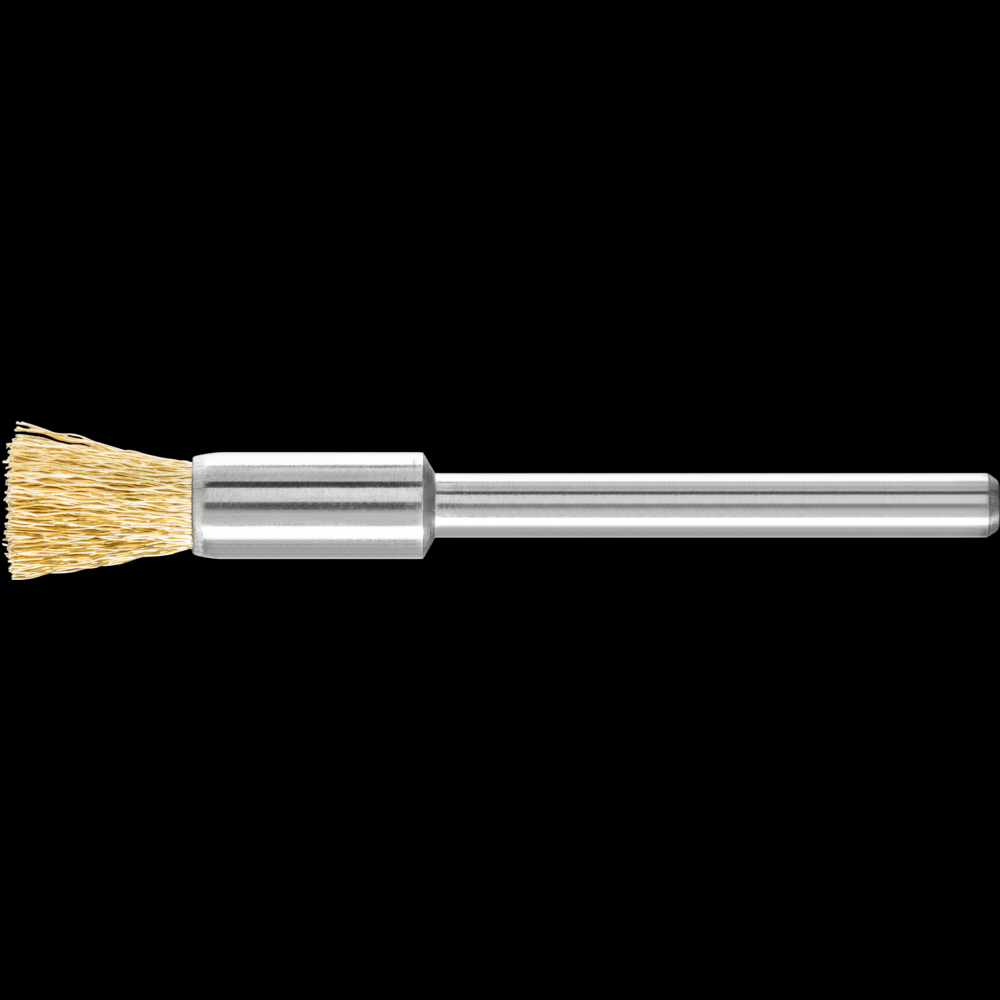

PFERD Miniature End Brush 1/4" Dia. .005 Brass Wire 1/8" Stem
Call For Price
- Part Number: 79183267
- UPC: 04007220046777
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Designed for light brushing such as deburring, cleaning and polishing. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD uses wire quality CuZn37. Brass wire is temperature-resistant up to 350°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
End Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Removing oxide layers
Country of Origin:
US
Customs Number:
9603500000
Diameter External (In):
0.25
Diameter Filament Material (In):
0.01
Diameter Shank:
1/8 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220046777
EDP:
83267
Filament Material:
Brass wire (MES)
Item Quantity:
36
Item Weight (kgs):
0.003
MANUFACTURER_TYPE_DESCR:
PBU 0606/3,18 MES 0,12
Materials that can be worked:
Brass
Materials that can be worked 1:
Copper
Materials that can be worked 2:
Other non-ferrous metals
Materials that can be worked 3:
Stainless steel (INOX)
Materials that can be worked 4:
Zinc
Mounting System:
Shank
Optimum RPM:
3000 - 10000 RPM
Order Quanityt:
10
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
0.44
UNSPNC:
27111907
Other Details
Creates fine surfaces.
Maximum precision and efficiency on delicate workpieces.
Non-sparking.
Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.
