![PFERD Miniature Cup Brush 9/16" Dia. .005](/vendors/6924/large/79183250-rgb.png "PFERD Miniature Cup Brush 9/16" Dia. .005")

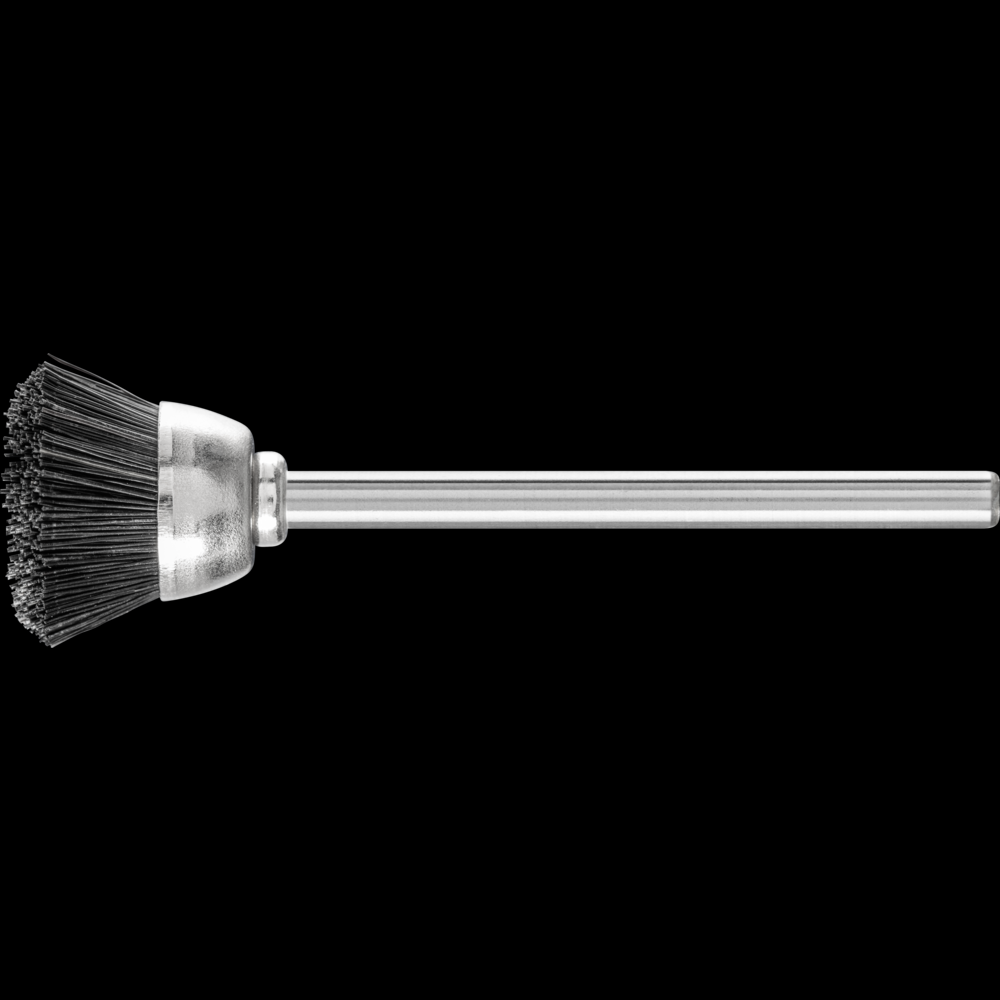

PFERD Miniature Cup Brush 9/16" Dia. .005
Call For Price
- Part Number: 79183250
- UPC: 04007220046586
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

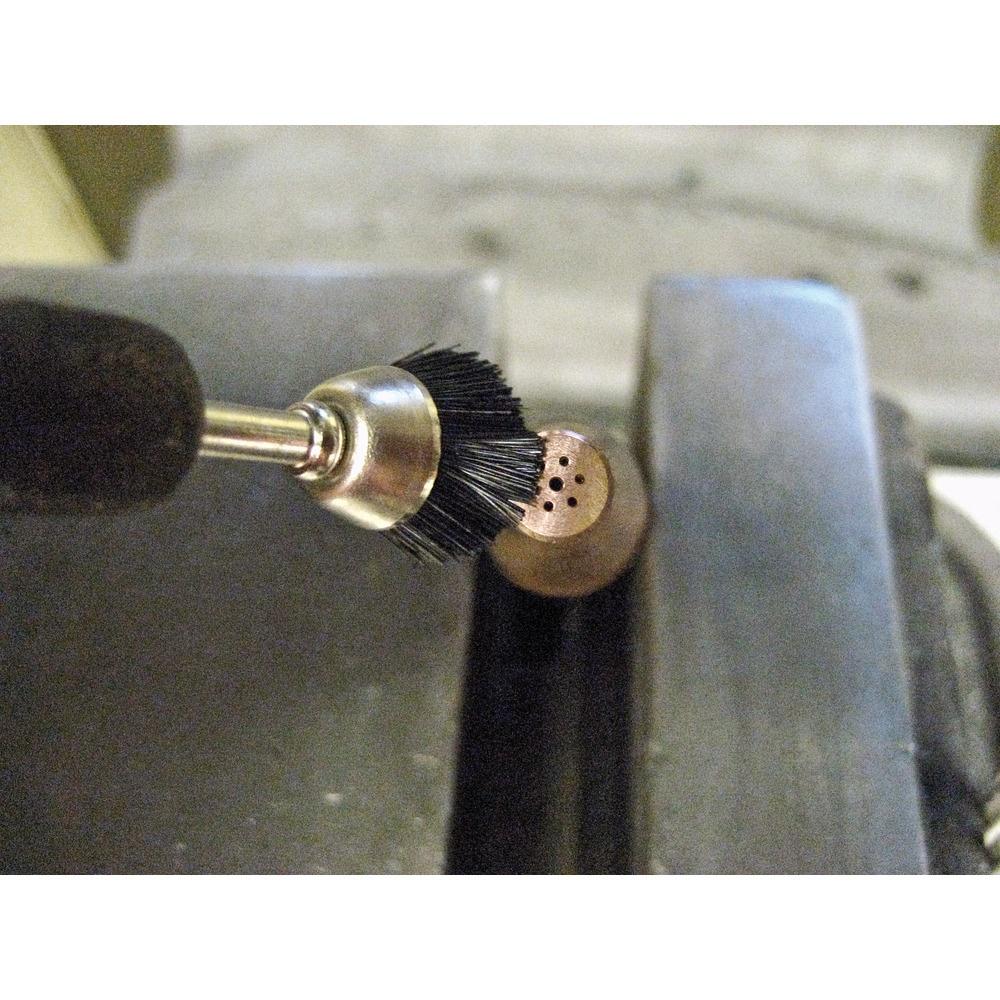

Designed for light brushing such as deburring, cleaning and polishing. Ideal for brushing on small surfaces due to face-down use with the entire brush face applied to the workpiece. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. Brushes with natural bristles (animal hair) are designed for light cleaning and dust removal, as well as for polishing (in combination with polishing pastes). These bristles are harder and less flexible than other natural bristle types. Natural bristles are temperature-resistant up to 300°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Cup Brushes
Applications:
Cleaning
Applications 1:
Polishing
Country of Origin:
US
Customs Number:
9603500000
Diameter External (In):
0.56
Diameter Shank:
1/8 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220046586
EDP:
83250
Filament Material:
Bristle, black
Item Quantity:
36
Item Weight (kgs):
0.007
MANUFACTURER_TYPE_DESCR:
TBU 1803/3,18 SBS
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Nickel or titanium-based superalloys
Materials that can be worked 11:
Other non-ferrous metals
Materials that can be worked 12:
Soft titanium alloys (tensile strength 500 N/mm²)
Materials that can be worked 13:
Stainless steel (INOX)
Materials that can be worked 14:
Steel, cast steel
Materials that can be worked 15:
Steel materials with a hardness > 54 HRC
Materials that can be worked 16:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 17:
Titanium
Materials that can be worked 18:
Titanium alloys
Materials that can be worked 19:
Zinc
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Cast iron
Materials that can be worked 4:
Cast steel
Materials that can be worked 5:
Cobalt-based alloys
Materials that can be worked 6:
Copper
Materials that can be worked 7:
Hard non-ferrous metal
Materials that can be worked 8:
High-temperature-resistant materials
Materials that can be worked 9:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Mounting System:
Shank
Optimum RPM:
5000 - 10000 RPM
Order Quanityt:
10
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use brush with polishing paste to achieve the best polishing result.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
0.25
UNSPNC:
27111907
Other Details
Highly flexible, enabling optimal adaptation to the workpiece contour.
Maximum precision and efficiency on delicate workpieces.
