![PFERD Microabrasive Aluminum Oxide Tube Brush .165 Dia. 600 Grit 5" OAL](/vendors/6924/large/79184078-rgb.png "PFERD Microabrasive Aluminum Oxide Tube Brush .165 Dia. 600 Grit 5" OAL")

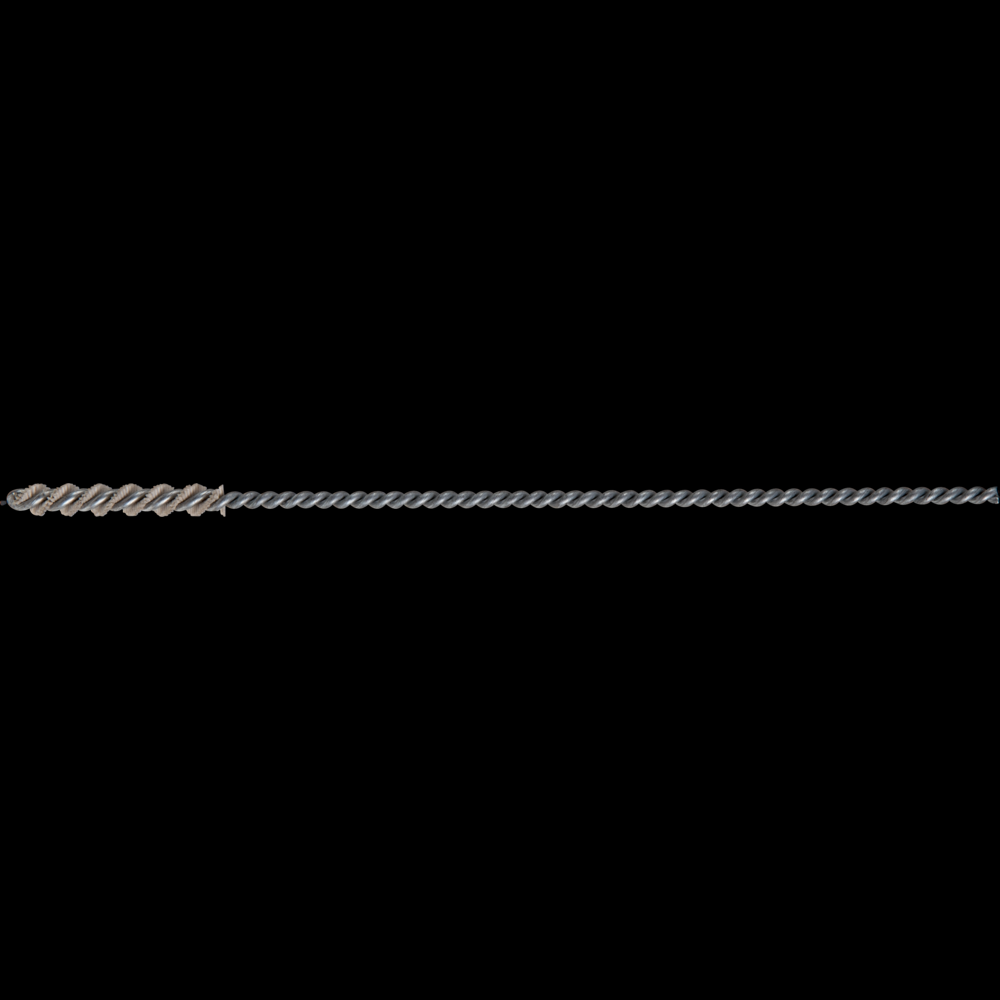

PFERD Microabrasive Aluminum Oxide Tube Brush .165 Dia. 600 Grit 5" OAL
Call For Price
- Part Number: 79184078
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
For light deburring, cleaning of holes and cross holes and for work on surfaces. Brushes with aluminum oxide (AO) are less sharp-edged and aggressive than those with SiC. These brushes are designed for polishing and smoothing finishes on soft metals. Platstic filaments are temperature-resistant up to 410°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Spiral and Tube Brushes
Applications:
Cleaning
Applications 1:
Deburring
Country of Origin:
US
Diameter External (In):
0.17
Diameter Filament Material (In):
0.01
Diameter Shank:
0.087 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Manual application
Drive Types 2:
Power drill
EDP:
84078
Filament Material:
Aluminum oxide (AO)
Grit Size:
600
Item Length (inches):
5.00
Item Quantity:
10
Item Weight (kgs):
0.005
MANUFACTURER_TYPE_DESCR:
M-BRAD PWR MICRO 600 A/O 0.165
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 2:
Cast iron
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Other non-ferrous metals
Materials that can be worked 6:
Steel, cast steel
Materials that can be worked 7:
Steel materials with a hardness > 54 HRC
Materials that can be worked 8:
Steels up to 370 HV (< 38 HRC)
Mounting System:
Shank
Order Quanityt:
190
Prop 65:
View
Recommendations for use:
Use coolant for applications where large amounts of heat are produced.
Recommendations for use 1:
Please observe the recommended rotational speeds.
Recommendations for use 2:
Use with clockwise rotation.
Safety notes:
For safe use, guide the brush into the workpiece before beginning work.
Safety notes 1:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
UNSPNC:
27113002
Other Details
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Highly flexible, enabling optimal adaptation to the workpiece contour.
In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.
Maximum precision and efficiency when working on delicate workpieces.
The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.
The dimensional accuracy of the workpieces remains unchanged.
