![PFERD M-BRAD® Power Tube Brush - 1/4" Dia. .022/320 Grit Silicon Carbide 5/32" Stem](/vendors/6924/large/79184011-rgb.png "PFERD M-BRAD® Power Tube Brush - 1/4" Dia. .022/320 Grit Silicon Carbide 5/32" Stem")

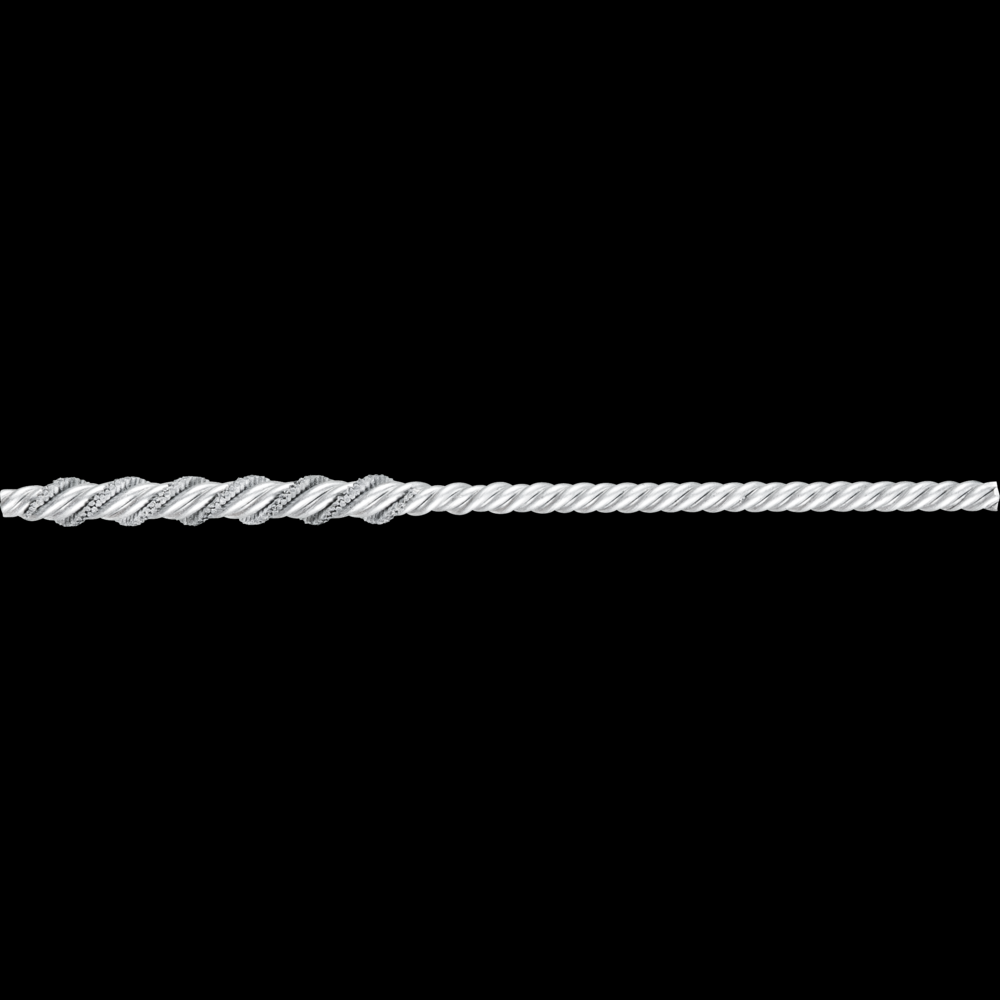

PFERD M-BRAD® Power Tube Brush - 1/4" Dia. .022/320 Grit Silicon Carbide 5/32" Stem
Call For Price
- Part Number: 79184011
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
High-performance tube brush for deburring and cleaning threads, holes and cross holes. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Platstic filaments are temperature-resistant up to 410°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Spiral and Tube Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Roughening
Applications 3:
Structuring (matt finishing, brush matting and satin finishing)
Country of Origin:
US
Diameter External (In):
0.25
Diameter Filament Material (In):
0.02
Diameter Shank:
5/32 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Manual application
Drive Types 2:
Power drill
EDP:
84011
Filament Material:
Silicon carbide (SiC)
Grit Size:
320
Item Length (inches):
5.00
Item Quantity:
10
Item Weight (kgs):
0.012
MANUFACTURER_TYPE_DESCR:
1/4" M-BRAD PWR TUBE .022/320GRT
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 11:
Thermoplastics
Materials that can be worked 12:
Wood
Materials that can be worked 2:
Cast iron
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Thermosetting plastics
Materials that can be worked 6:
Other non-ferrous metals
Materials that can be worked 7:
Stainless steel (INOX)
Materials that can be worked 8:
Steel, cast steel
Materials that can be worked 9:
Steel materials with a hardness > 54 HRC
Mounting System:
Shank
Order Quanityt:
30
Prop 65:
View
Recommendations for use:
Use coolant for applications where large amounts of heat are produced.
Recommendations for use 1:
Please observe the recommended rotational speeds.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Safety notes 1:
When using tube brushes inside pipes, bores, grooves, etc., consult PFERD about deviations from the specified maximum permitted rotational speed.
Safety notes 2:
For safe use, guide the brush into the workpiece before beginning work.
UNSPNC:
27113002
Other Details
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Highly flexible, enabling optimal adaptation to the workpiece contour.
The dimensional accuracy of the workpieces remains unchanged.
