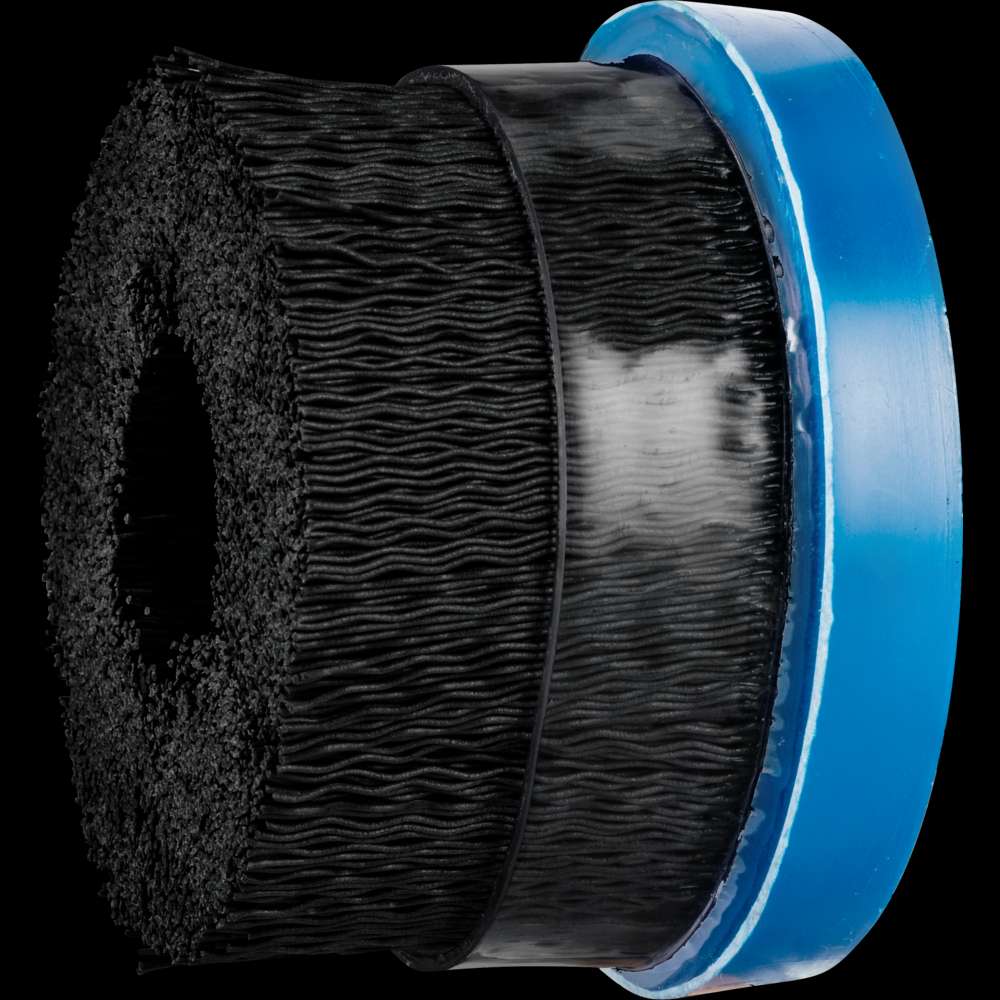

PFERD M-BRAD® Mounted Disc Brush 4" Dia. .016 Nylon 1/4" Shank Bridled
Call For Price
- Part Number: 79184268
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Particularly flexible brush. Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Nylon filament brushes are designed for working on materials that would otherwise be scratched or damaged, e.g. soft plastics. Platstic filaments are temperature-resistant up to 410°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Cup Brushes
Applications:
Cleaning
Applications 1:
Deburring
Country of Origin:
US
Diameter Arbor Hole With Adapter:
7/8 Inch
Diameter External (In):
4.00
Diameter Filament Material (In):
0.02
Diameter Hole:
7/8 Inch
Drive Types:
Tool machine
Drive Types 1:
Robot
Drive Types 2:
Stationary machines
EDP:
84268
Filament Material:
Nylon
Grit Size:
No information
Item Quantity:
1
Item Weight (kgs):
0.156
MANUFACTURER_TYPE_DESCR:
DBU 100/22,2 BLK NYLON 0,40
Materials that can be worked:
Thermosetting plastics
Materials that can be worked 1:
Other non-ferrous metals
Materials that can be worked 2:
Thermoplastics
Mounting System:
Centre hole
Optimum RPM:
1400 - 2300 RPM
Order Quanityt:
10
Pferdefficiency:
PFERDEFFICIENCY recommends composite brushes to achieve maximum stock removal as quickly as possible.
Pferdergonomics:
PFERDERGONOMICS recommends composite brushes to sustainably reduce the vibrations produced during use.
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use coolant for applications where large amounts of heat are produced.
Trim Length (In):
1.50
UNSPNC:
31191521
Other Details
Extremely smooth operation due to evenly distributed filament material.
Long tool life and aggressive brushing action due to a very high filament density.
Special arrangement of the filament enables optimal adjustment to the workpiece contour, less heat build-up, and more efficient use of the coolant.
