![PFERD M-BRAD® Mounted Disc Brush 2-1/2" Dia. .040/120 Grit Ceramic Oxide 1/4" Shank](/vendors/6924/large/79184275-rgb.png "PFERD M-BRAD® Mounted Disc Brush 2-1/2" Dia. .040/120 Grit Ceramic Oxide 1/4" Shank")

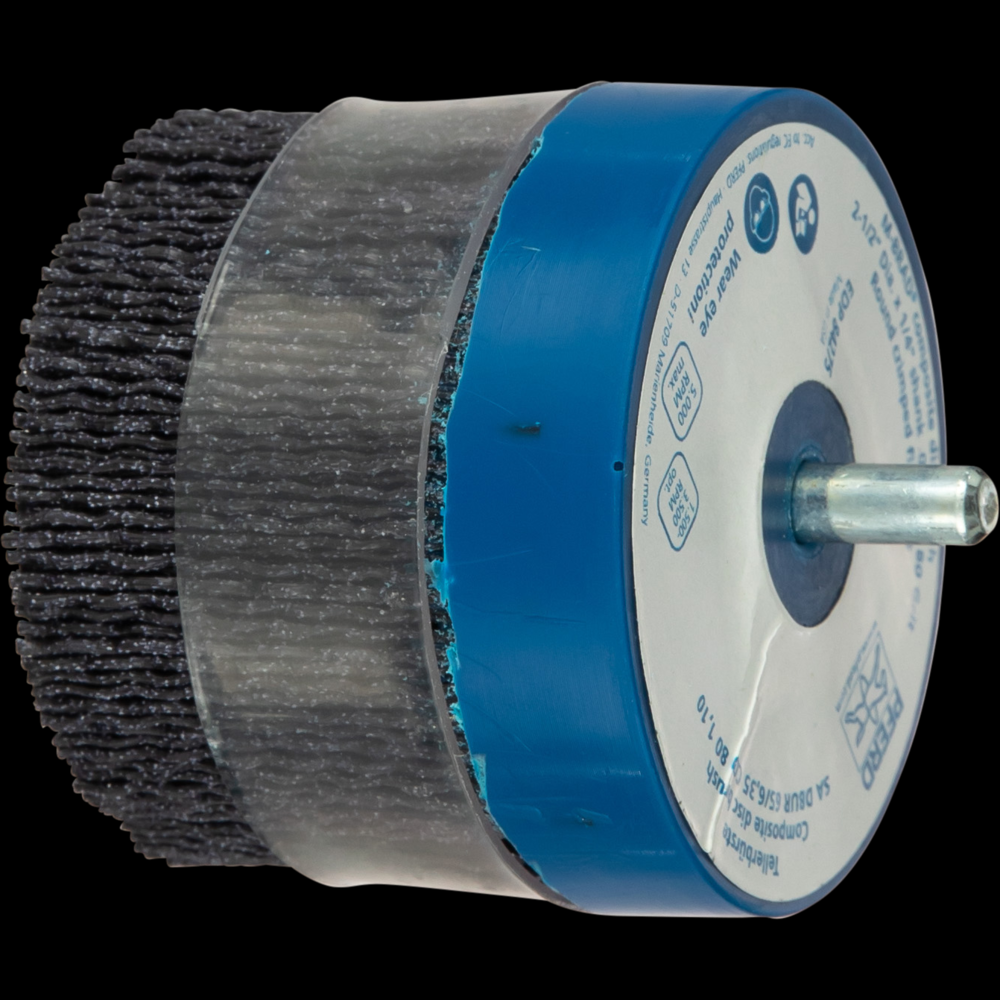

PFERD M-BRAD® Mounted Disc Brush 2-1/2" Dia. .040/120 Grit Ceramic Oxide 1/4" Shank
Call For Price
- Part Number: 79184275
- UPC: 04007220034101
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Particularly aggressive brush with bridle. Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Platstic filaments are temperature-resistant up to 410°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Cup Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Structuring (matt finishing, brush matting and satin finishing)
Country of Origin:
US
Diameter External (In):
2.50
Diameter Filament Material (In):
0.04
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Tool machine
Drive Types 2:
Robot
Drive Types 3:
Stationary machines
Drive Types 4:
Straight grinder
EAN:
4007220034101
EDP:
84275
Filament Material:
Ceramic oxide grain (CO)
Filament To Ring Length:
0.75
Grit Size:
80
Item Quantity:
1
Item Weight (kgs):
0.154
MANUFACTURER_TYPE_DESCR:
DBUR 65/6,35 CO 80 1,10
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Soft titanium alloys (tensile strength 500 N/mm²)
Materials that can be worked 11:
Steel, cast steel
Materials that can be worked 12:
Steel materials with a hardness > 54 HRC
Materials that can be worked 13:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 14:
Titanium
Materials that can be worked 15:
Titanium alloys
Materials that can be worked 2:
Cast iron
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Hard non-ferrous metal
Materials that can be worked 6:
High-temperature-resistant materials
Materials that can be worked 7:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 8:
Nickel or titanium-based superalloys
Materials that can be worked 9:
Other non-ferrous metals
Mounting System:
Shank
Optimum RPM:
1500 - 3500 RPM
Order Quanityt:
30
Pferdefficiency:
PFERDEFFICIENCY recommends composite brushes to achieve maximum stock removal as quickly as possible.
Pferdergonomics:
PFERDERGONOMICS recommends composite brushes to sustainably reduce the vibrations produced during use.
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
The CO filament material is designed for particularly aggressive machining and for achieving a high surface quality.
Recommendations for use 2:
Use coolant for applications where large amounts of heat are produced.
Recommendations for use 3:
Remove the bridle once the filament is worn down. Then the rest of the filament can be used.
Recommendations for use 4:
Remove the bridle before starting work if you would like to achieve a large spreading diameter or access hard-to-reach areas.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
1.50
UNSPNC:
31191521
Other Details
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Extremely smooth operation due to evenly distributed filament material.
For particularly aggressive machining and for creating a high surface quality.
If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behavior.
Long tool life and aggressive brushing action due to a very high filament density.
The bridle enables the spreading out and flexibility of the brush filament to be controlled.
The bridle prevents the wires spreading out sideways.
