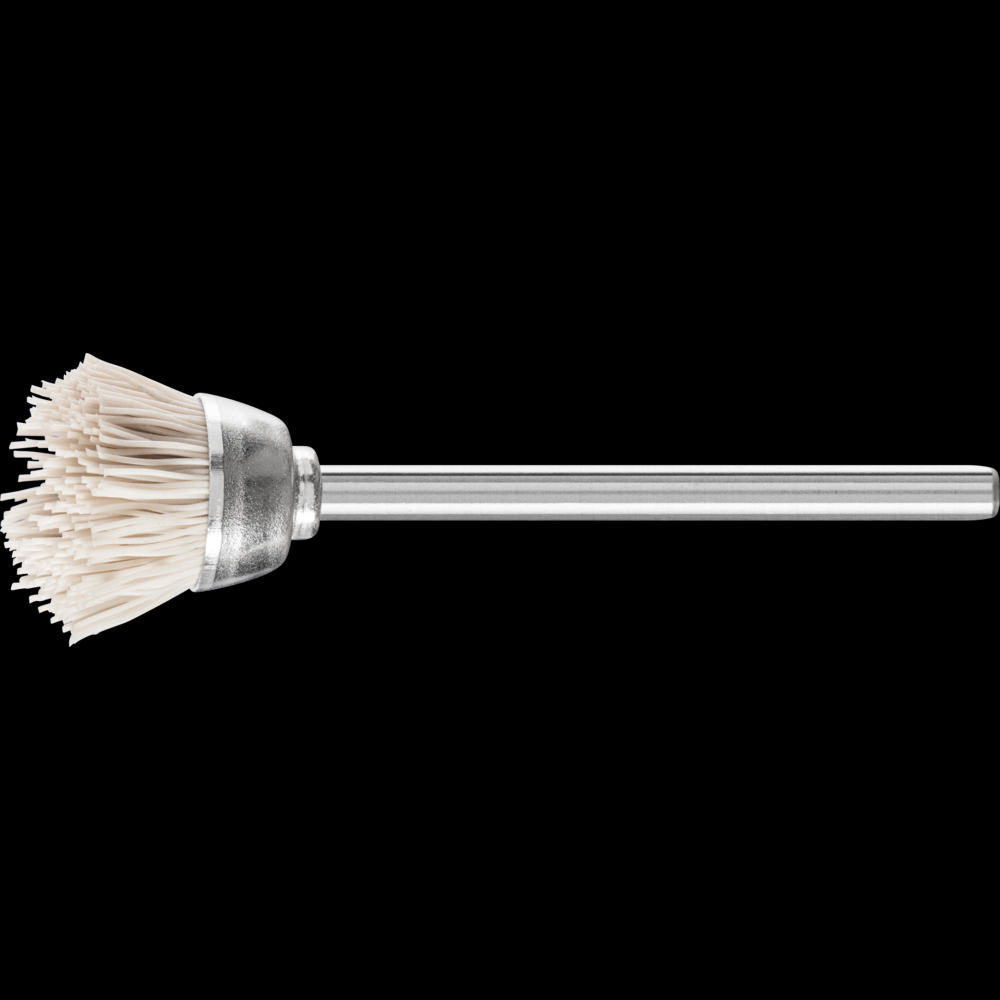

PFERD M-BRAD® Miniature Cup Brush 9/16" Dia.
Call For Price
- Part Number: 79183247
- UPC: 04007220046456
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Designed for light brushing such as deburring, cleaning and polishing. Ideal for brushing on small surfaces due to face-down use with the entire brush face applied to the workpiece. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. Brushes with aluminum oxide (AO) are less sharp-edged and aggressive than those with SiC. These brushes are designed for polishing and smoothing finishes on soft metals. Platstic filaments are temperature-resistant up to 410°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Cup Brushes
Applications:
Cleaning
Applications 1:
Deburring
Country of Origin:
US
Customs Number:
9603500000
Diameter External (In):
0.56
Diameter Filament Material (In):
0.01
Diameter Shank:
1/8 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220046456
EDP:
83247
Filament Material:
Aluminum oxide (AO)
Grit Size:
600
Item Quantity:
36
Item Weight (kgs):
0.002
MANUFACTURER_TYPE_DESCR:
TBU 1803/3,18 AO 600 0,30
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 2:
Cast iron
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Other non-ferrous metals
Materials that can be worked 6:
Steel, cast steel
Materials that can be worked 7:
Steel materials with a hardness > 54 HRC
Materials that can be worked 8:
Steels up to 370 HV (< 38 HRC)
Mounting System:
Shank
Optimum RPM:
1200 - 4000 RPM
Order Quanityt:
10
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use coolant for applications where large amounts of heat are produced.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
0.25
UNSPNC:
27111907
Other Details
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Highly flexible, enabling optimal adaptation to the workpiece contour.
Maximum precision and efficiency on delicate workpieces.
