![PFERD M-BRAD® End Brush - Banded 1/2" Dia. .040/120 Grit Silicon Carbide 1/4" Shank](/vendors/6924/large/79183996-rgb.png "PFERD M-BRAD® End Brush - Banded 1/2" Dia. .040/120 Grit Silicon Carbide 1/4" Shank")

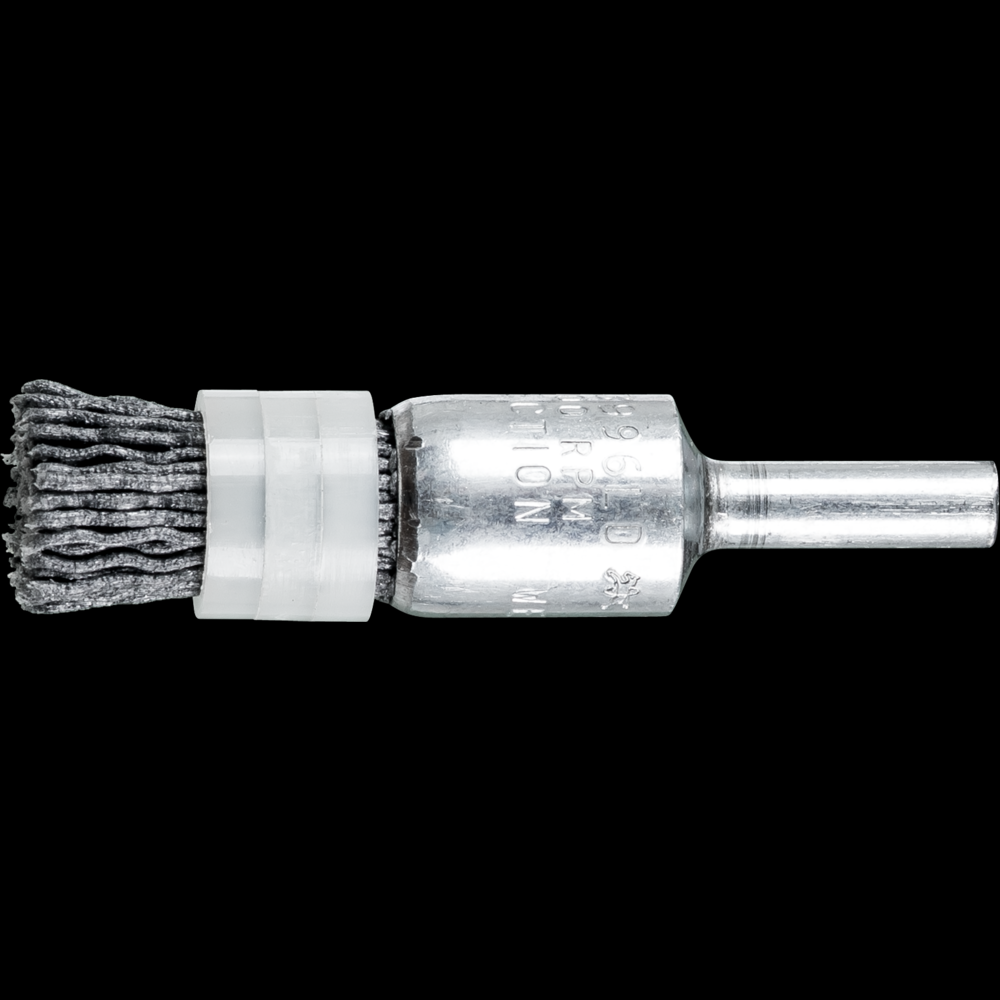

PFERD M-BRAD® End Brush - Banded 1/2" Dia. .040/120 Grit Silicon Carbide 1/4" Shank
Call For Price
- Part Number: 79183996
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Designed for light brushing such as deburring, cleaning and derusting. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Platstic filaments are temperature-resistant up to 410°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
End Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Roughening
Applications 3:
Structuring (matt finishing, brush matting and satin finishing)
Country of Origin:
US
Diameter Cup (In):
0.63
Diameter External (In):
0.50
Diameter Filament Material (In):
0.04
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Power drill
Drive Types 2:
Straight grinder
EDP:
83996
Filament Material:
Silicon carbide (SiC)
Filament To Ring Length:
0.50
Grit Size:
120
Item Quantity:
10
Item Weight (kgs):
0.039
MANUFACTURER_TYPE_DESCR:
1/2" M-BRAD END .040 SIC 120 BAND
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 11:
Thermoplastics
Materials that can be worked 12:
Wood
Materials that can be worked 2:
Cast iron
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Thermosetting plastics
Materials that can be worked 6:
Other non-ferrous metals
Materials that can be worked 7:
Stainless steel (INOX)
Materials that can be worked 8:
Steel, cast steel
Materials that can be worked 9:
Steel materials with a hardness > 54 HRC
Mounting System:
Shank
Optimum RPM:
5200 - 9000 RPM
Order Quanityt:
10
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use coolant for applications where large amounts of heat are produced.
Recommendations for use 2:
For best performance, use a power tool with a minimum output of 300 watts.
Recommendations for use 3:
Remove the bridle once the filament is worn down. Then the rest of the filament can be used.
Recommendations for use 4:
Remove the bridle before starting work if you would like to ensure particularly flexible working, achieve a large spreading diameter or access hard-to-reach areas.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
1.00
UNSPNC:
31191521
Other Details
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behaviour.
Optimal access to hard-to-reach areas such as recesses and drilled holes.
The bridle enables the spreading out and flexibility of the brush filament to be strictly controlled.
The bridle prevents the wires spreading out sideways.
