![PFERD M-BRAD® Disc Brush 6" Dia. .028/320 Grit Silicon Carbide 7/8" Arbor](/vendors/6924/large/dbu-150-22-2-sic-320-0-55-flex-rgb.png "PFERD M-BRAD® Disc Brush 6" Dia. .028/320 Grit Silicon Carbide 7/8" Arbor")

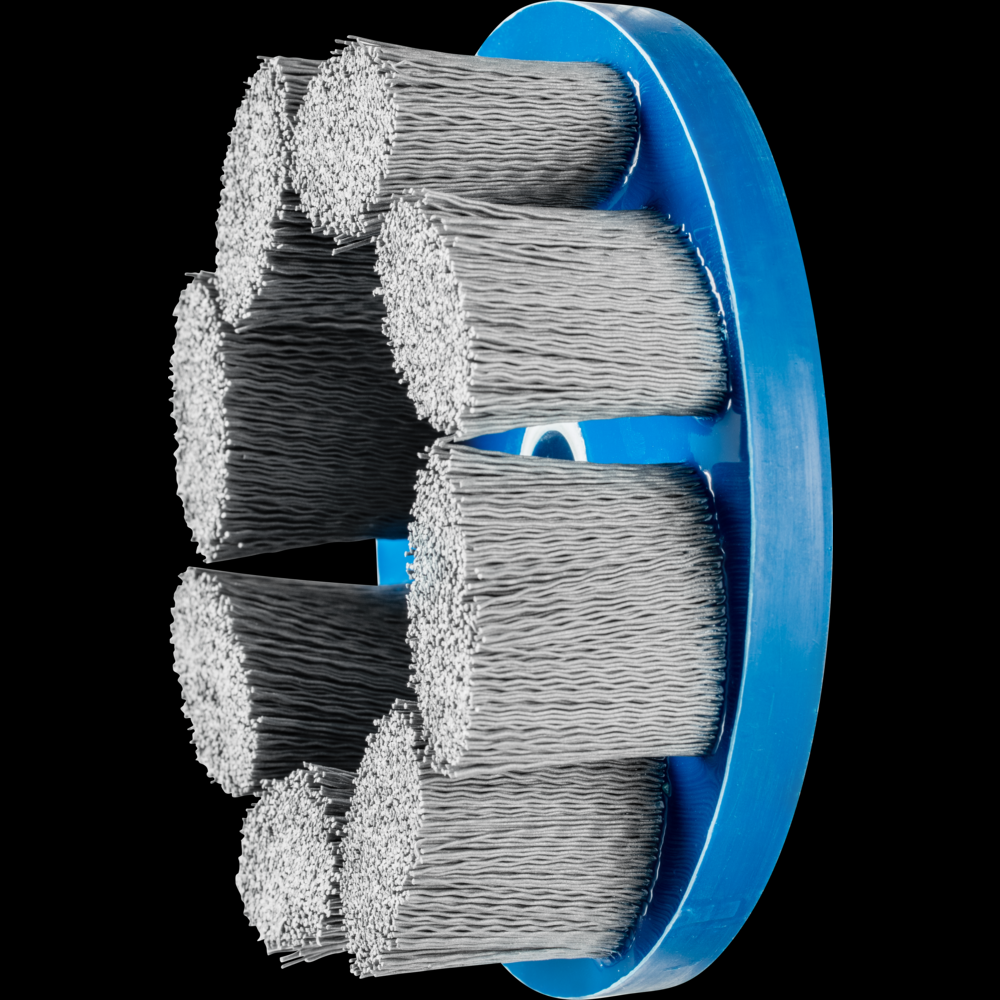

PFERD M-BRAD® Disc Brush 6" Dia. .028/320 Grit Silicon Carbide 7/8" Arbor
Call For Price
- Part Number: 79183952
- UPC: 04007220033821
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Particularly flexible brush. Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Platstic filaments are temperature-resistant up to 410°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Cup Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Roughening
Applications 3:
Structuring (matt finishing, brush matting and satin finishing)
Country of Origin:
US
Diameter Arbor Hole With Adapter:
7/8 Inch
Diameter External (In):
6.00
Diameter Filament Material (In):
0.02
Diameter Hole:
7/8 Inch
Drive Types:
Tool machine
Drive Types 1:
Robot
Drive Types 2:
Stationary machines
EAN:
4007220033821
EDP:
83952
Filament Material:
Silicon carbide (SiC)
Grit Size:
320
Item Quantity:
1
Item Weight (kgs):
0.298
MANUFACTURER_TYPE_DESCR:
DBU 150/22,2 SiC 320 0,55 FLEX
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 11:
Thermoplastics
Materials that can be worked 12:
Wood
Materials that can be worked 2:
Cast iron
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Thermosetting plastics
Materials that can be worked 6:
Other non-ferrous metals
Materials that can be worked 7:
Stainless steel (INOX)
Materials that can be worked 8:
Steel, cast steel
Materials that can be worked 9:
Steel materials with a hardness > 54 HRC
Mounting System:
Centre hole
Optimum RPM:
1000 - 1600 RPM
Order Quanityt:
120
Pferdefficiency:
PFERDEFFICIENCY recommends composite brushes to achieve maximum stock removal as quickly as possible.
Pferdergonomics:
PFERDERGONOMICS recommends composite brushes to sustainably reduce the vibrations produced during use.
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use coolant for applications where large amounts of heat are produced.
Trim Length (In):
1.50
UNSPNC:
31191521
Other Details
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Extremely smooth operation due to evenly distributed filament material.
Long tool life and aggressive brushing action due to a very high filament density.
Special arrangement of the filament enables optimal adjustment to the workpiece contour, less heat build-up, and more efficient use of the coolant.
