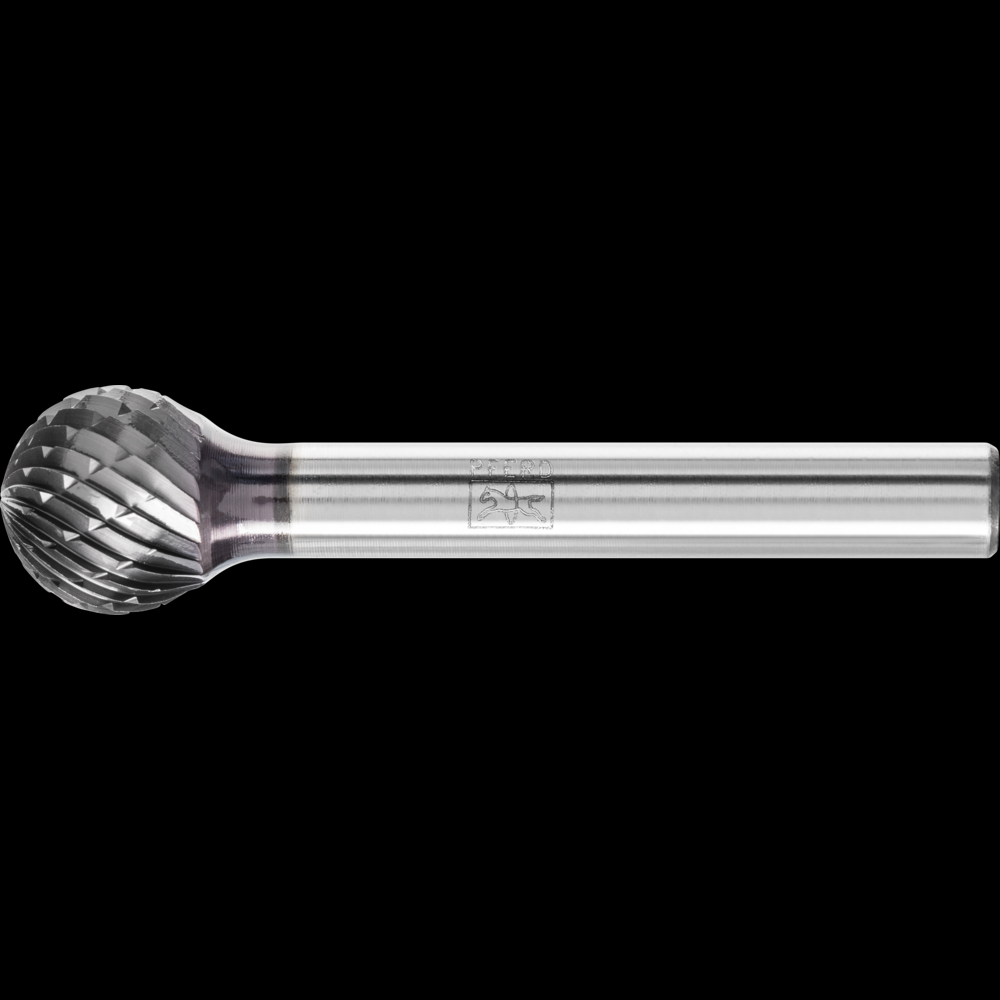

PFERD HICOAT® Carbide Bur SD-5 Ball Shape Double Cut 1/2" x 7/16" x 1/4" Shank
Call For Price
- Part Number: 21727227
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Double cut burs with HICOAT® coating HC-FEP have a high hardness and wear resistance. The coating enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer service life and use at higher peripheral speeds compared to uncoated burs. Ball-shaped bur, shape D.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Customs Number:
8207703030
Cut:
3
Cut Files Type:
Smooth
Drive Types:
Manual application
EDP:
27227
Item Length (inches):
2.19
Item Quantity:
1
Item Weight (kgs):
0.034
MANUFACTURER_TYPE_DESCR:
KUD 12,7x11,1x6,35 Z3P HC-FEP
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Black annealed cast iron (GTS, GJMB)
Materials that can be worked 10:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 11:
Stainless steel (INOX)
Materials that can be worked 12:
Steel
Materials that can be worked 13:
Steel, cast steel
Materials that can be worked 14:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 15:
Steels over 220 HV (> 95 HB)
Materials that can be worked 16:
Steels up to 220 HV (< 95 HB)
Materials that can be worked 17:
Tool steels
Materials that can be worked 18:
White annealed cast iron (GTW, GJMW)
Materials that can be worked 2:
Case-hardened steels
Materials that can be worked 3:
Cast iron
Materials that can be worked 4:
Cast steel
Materials that can be worked 5:
Cobalt-based alloys
Materials that can be worked 6:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 7:
Hard aluminium alloys
Materials that can be worked 8:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 9:
High-temperature-resistant materials
Order Quanityt:
130
Prop 65:
View
Recommendations for use:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
UNSPNC:
23251706
UPC Code:
97758272278
Other Details
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
