![PFERD HICOAT® Carbide Bur SD-3 Ball Shape ALU Cut 3/8" x 5/16" x 1/4" Shank](/vendors/6924/large/21724570-rgb.png "PFERD HICOAT® Carbide Bur SD-3 Ball Shape ALU Cut 3/8" x 5/16" x 1/4" Shank")

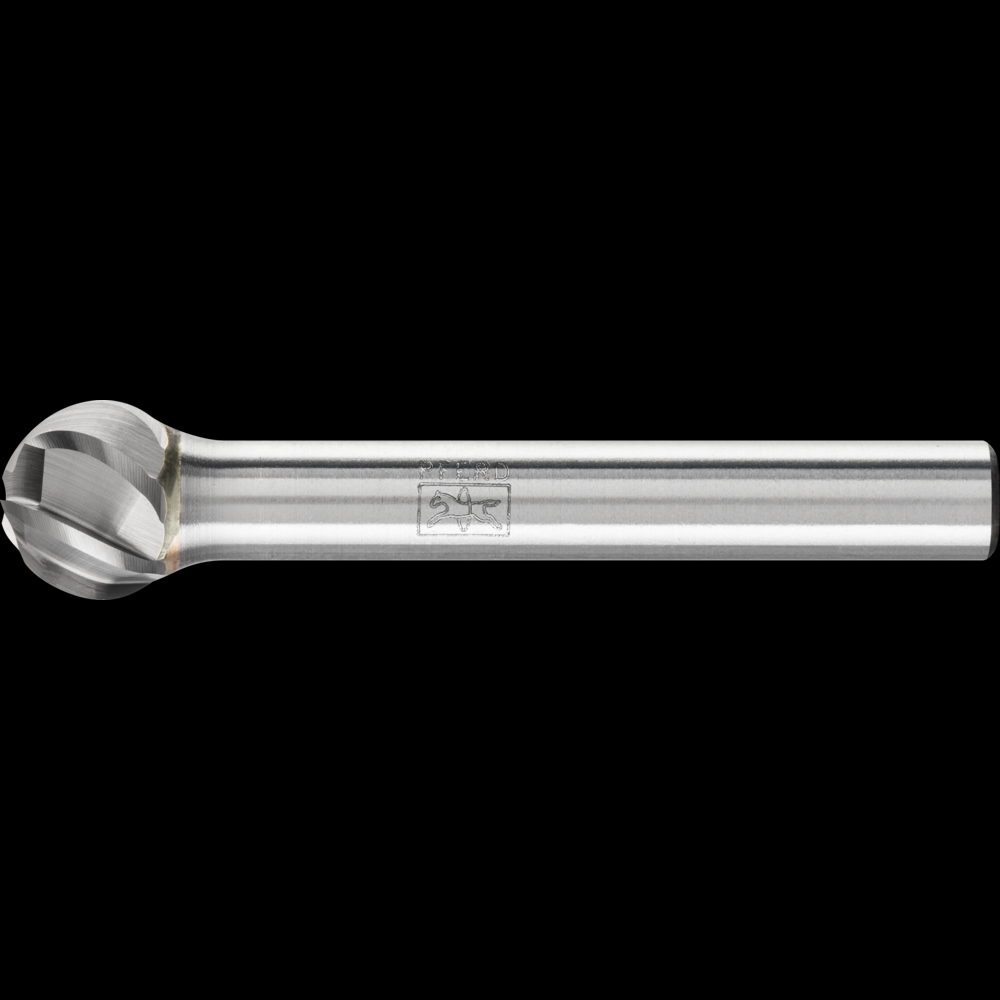

PFERD HICOAT® Carbide Bur SD-3 Ball Shape ALU Cut 3/8" x 5/16" x 1/4" Shank
Call For Price
- Part Number: 21724570
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The PFERD HICOAT® coating HC-NFE prevents chips from sticking during work on soft aluminum alloys. This increases the bur service life and improves the surface quality of the workpiece. Ball-shaped bur, shape D.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Customs Number:
8207703030
Cut:
3
Cut Files Type:
Smooth
Drive Types:
Manual application
EDP:
24570
Item Length (inches):
2.06
Item Quantity:
2
Item Weight (kgs):
0.019
MANUFACTURER_TYPE_DESCR:
KUD 9,5x7,9x6,3 ALU HC-NFE
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Thermoplastics
Materials that can be worked 11:
Tough aluminium alloys
Materials that can be worked 12:
Zinc
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Copper
Materials that can be worked 4:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 5:
Hard aluminium alloys
Materials that can be worked 6:
Hard non-ferrous metal
Materials that can be worked 7:
Plastics
Materials that can be worked 8:
Soft aluminium alloys
Materials that can be worked 9:
Soft non-ferrous metal
Prop 65:
View
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Recommendations for use 2:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
UNSPNC:
23251706
UPC Code:
97758245708
Other Details
Effective chip removal due to improved anti-adhesion properties.
Increased service life.
Lower thermal loads.
Maximum stock removal rate.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Used for removing material in long chips. Coating creates barrier between bur and workpiece which prevents loading of non-ferrous metals.
