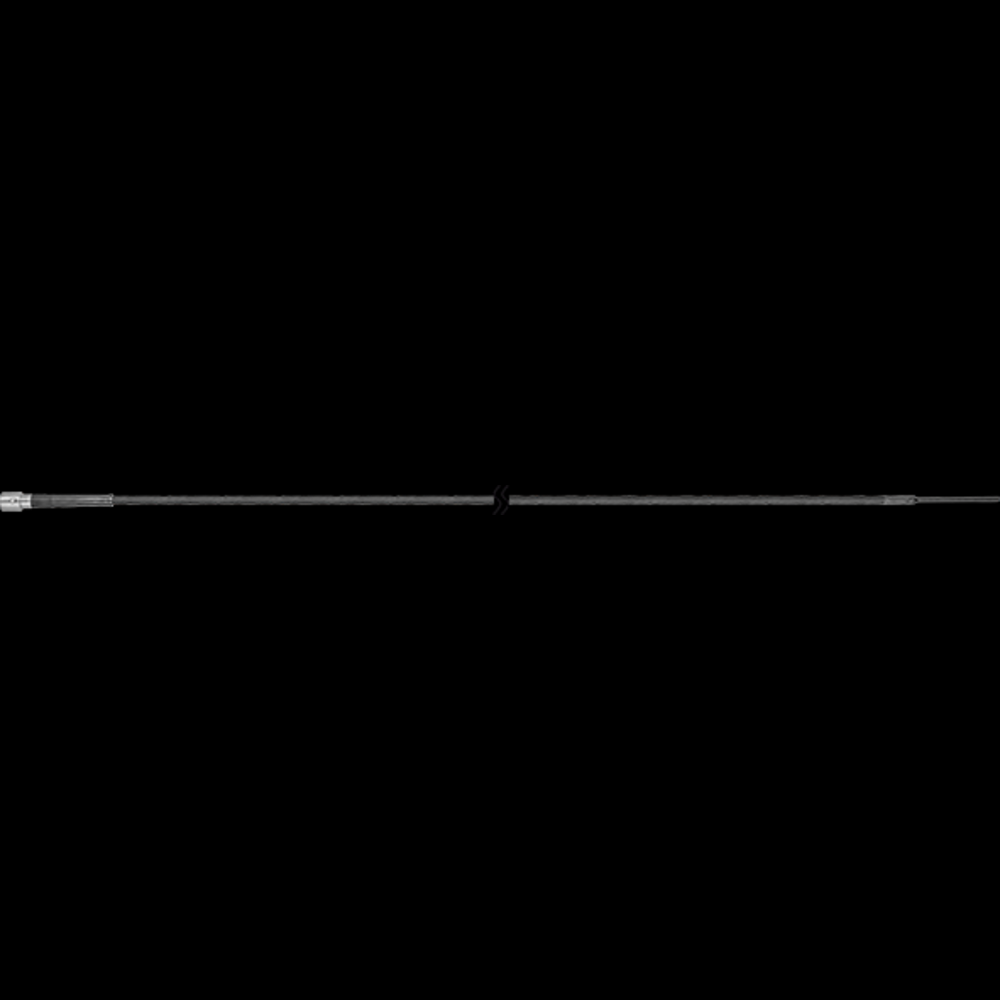

PFERD Flexible Shaft Case Replacement - 4 PST-T
Call For Price
- Part Number: 87101406
- UPC: 04007220835715
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
These special flexible shafts do not have a handpiece for mounting and are particularly flexible in the front section. The POLISTAR-TUBE grinding tools are attached directly to the core of the flexible shaft with screws (INOX type). POLINOX® cross buffs PNST are screwed on with adapter AD M4 or AD M5 (accessories). This combination is highly suitable for gradual fine grinding and cleaning of inner surfaces of pipes and pipe bends. Both pipe bend ends can be deburred from the entry side. The PST-T flexible shaft is designed for grinding the insides of pipes.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Rotary Tools
Category Level 4:
Rotary Tool Accessories
Country of Origin:
DE
Drive-Side Coupling, Din:
DIN 10
EAN:
4007220835715
EDP:
94775
Item Quantity:
1
Item Weight (kgs):
0.383
MANUFACTURER_TYPE_DESCR:
SCH 4 PST-T DIN10/M4 1,5M
Prop 65:
View
Recommendations for use:
Flexible shaft motors with stepless rotational speed regulation are recommended as tool drives.
Recommendations for use 1:
Before inserting the POLISTAR-TUBE and shaft into the pipe, preform and adjust to fit the pipe diameter.
Recommendations for use 2:
Reduce the rotational speed of the product during insertion.
Recommendations for use 3:
For pipes with more than three bends, it is best to grind from both ends if possible.
Recommendations for use 4:
When the product emerges from the pipe end, it can be pulled back while still in rotation. The rear of the POLISTAR-TUBE deburrs the pipe end and also grinds the inside of the pipe during the backward movement.
Recommendations for use 5:
All flexible shaft drives a speed range of 7,650–1,500 RPM and flexible shaft connection DIN 10 can be used.
Safety notes:
Observe the recommended and maximum permitted rotational speeds of the products for the rotational speed setting of the motor.
UNSPNC:
27112800
UPC Code:
97758947756
