![PFERD Crimped Wire End Brush 1" Dia. .020 Carbon Steel 1/4" Shank](/vendors/6924/large/pbu-3029-6-st-0-50-rgb.png "PFERD Crimped Wire End Brush 1" Dia. .020 Carbon Steel 1/4" Shank")

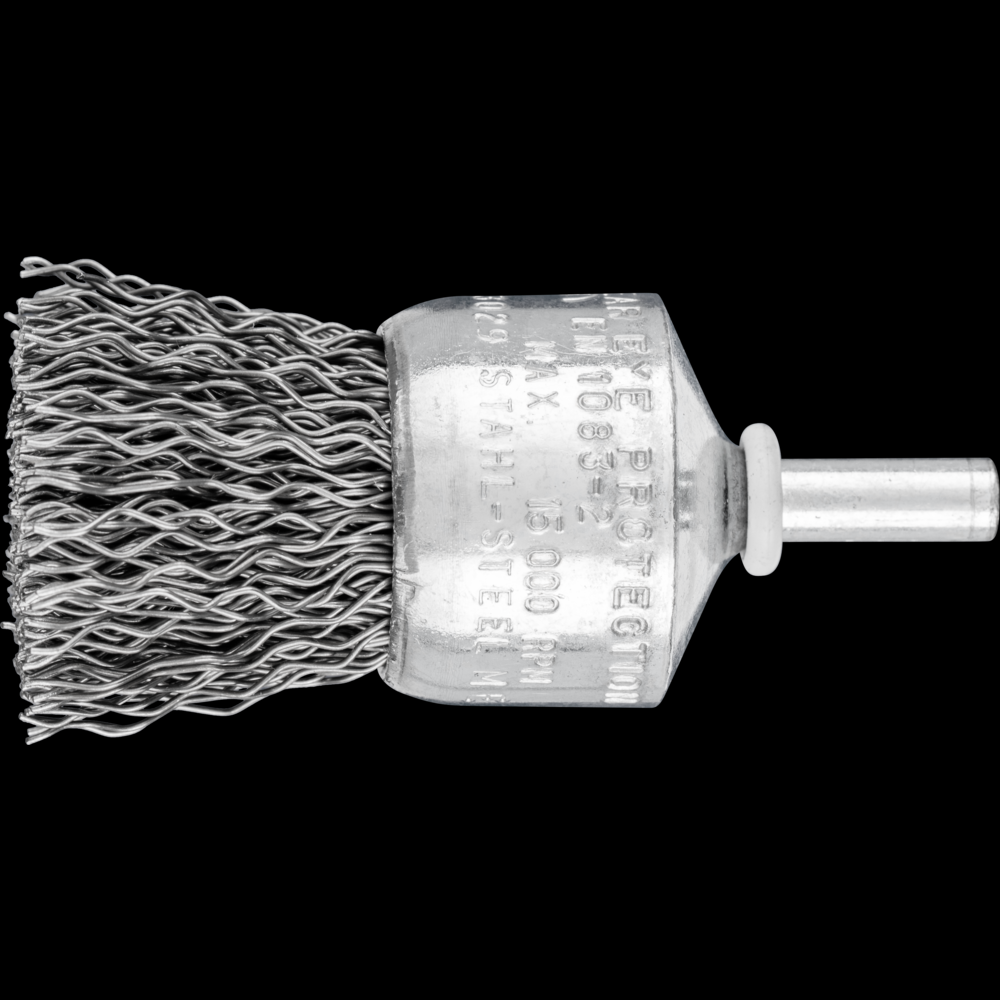

PFERD Crimped Wire End Brush 1" Dia. .020 Carbon Steel 1/4" Shank
Call For Price
- Part Number: 79182976
- UPC: 04007220518762
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Designed for light brushing such as deburring, cleaning and derusting. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
End Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Derusting
Applications 3:
Removing oxide layers
Applications 4:
Paint stripping
Applications 5:
Roughening
Country of Origin:
US
Diameter Cup (In):
1.25
Diameter External (In):
1.00
Diameter Filament Material (In):
0.02
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Power drill
Drive Types 2:
Straight grinder
EAN:
4007220518762
EDP:
82976
Filament Material:
Steel wire (ST)
Item Quantity:
10
Item Weight (kgs):
0.091
MANUFACTURER_TYPE_DESCR:
1" CRIMPED WIRE END BRUSH .020CS
Materials that can be worked:
Cast iron
Materials that can be worked 1:
Cast steel
Materials that can be worked 2:
Elastomers
Materials that can be worked 3:
Steel, cast steel
Materials that can be worked 4:
Steel materials with a hardness > 54 HRC
Materials that can be worked 5:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 6:
Wood
Mounting System:
Shank
Optimum RPM:
10000 - 15000 RPM
Order Quanityt:
160
Packaging:
Industrial packaging
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
For best performance, use a power tool with a minimum output of 300 watts.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
1.00
UNSPNC:
27111907
Other Details
Creates fine surfaces.
Long service life through use of PFERD special wire.
Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.
