![PFERD CORINOX® Needle File 7" Half Round Cut 2](/vendors/6924/large/corinox-2302-180-h2-rgb.png "PFERD CORINOX® Needle File 7" Half Round Cut 2")

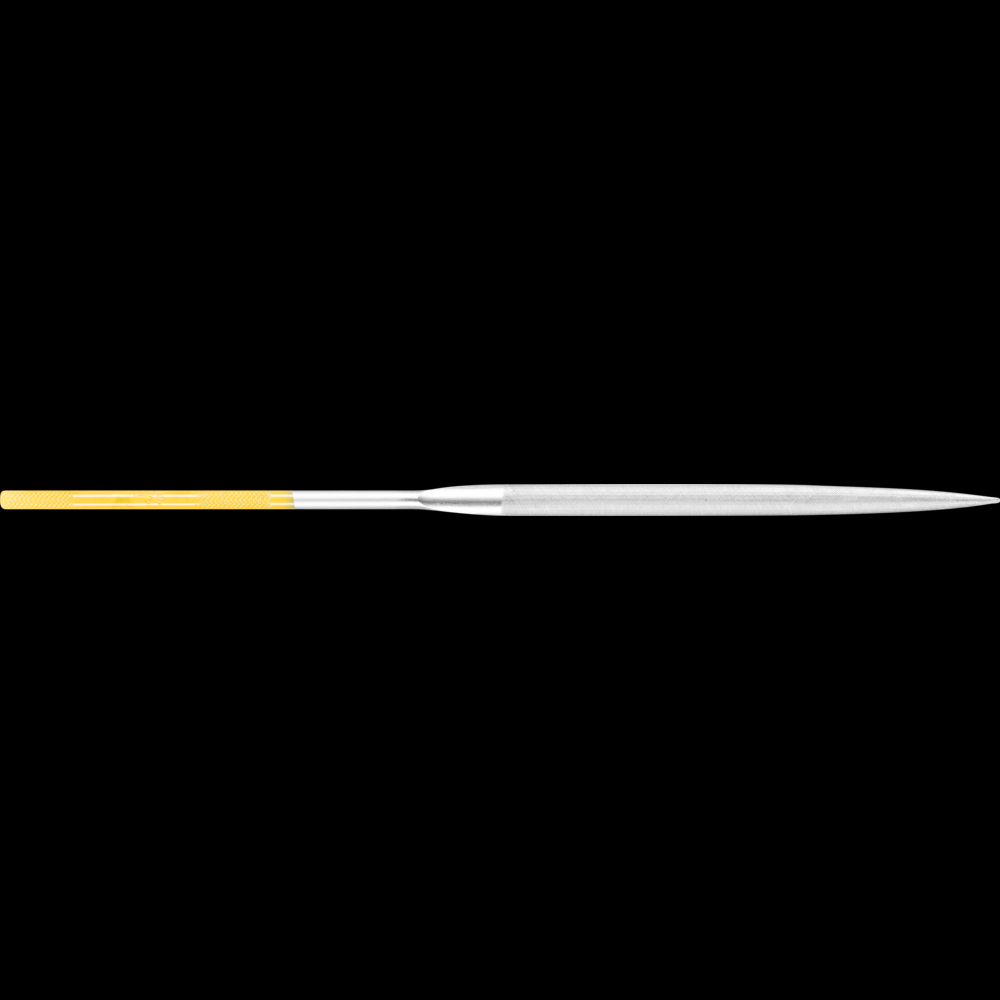

PFERD CORINOX® Needle File 7" Half Round Cut 2
Call For Price
- Part Number: 12478184
- UPC: 04007220346716
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
CORINOX needle files have an exceptional surface hardness grade of 1,200 HV (Vickers scale) and can be used to precisely file very small and delicate components. Swiss cut 2 for medium-fine precision work.
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Files
Industrial Subtype:
Hand Files and Rasps
Applications:
Chamfering
Applications 1:
Deburring
Applications 2:
Finishing
Applications 3:
Rounding
Applications 4:
Surface work
Applications 5:
Working on edges (chamfering, rounding)
Country of Origin:
IT
Customs Number:
8203109000
Cut:
OMNI
Cut Length:
5/8
Diameter External (In):
0.25
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Tool machine
Drive Types 2:
Robot
Drive Types 3:
Stationary machines
Drive Types 4:
Straight grinder
EAN:
4007220346716
EDP:
15253
Grey Cast Iron, White Cast Iron:
24000 - 48000 RPM
Hard-Heat-Treated Steels Over 370 Hv:
13000 - 24000
Item Length (inches):
7.00
Item Quantity:
12
Item Weight (kgs):
0.013
MANUFACTURER_TYPE_DESCR:
COR 2302 180 H2
Materials that can be worked:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 1:
Hard non-ferrous metal
Materials that can be worked 2:
High-temperature-resistant materials
Materials that can be worked 3:
Stainless steel (INOX)
Order Quanityt:
20
Pferdefficiency:
PFERDEFFICIENCY recommends OMNI cut burs for preventing fatigue, saving resources, and producing excellent work.
Pferdergonomics:
PFERDERGONOMICS recommends OMNI cut burs as an innovative solution for comfortable working and significantly reduced vibration and noise.
Prop 65:
View
Rpm From, Hard Non-Ferrous Metals:
24000 - 32000 RPM
Rust And Acid-Resistant Steels:
24000 - 32000 RPM
Scti-No.:
SA-1
Soft Non-Ferrous Metals:
27000 - 40000 RPM
Steels Up To 370 Hv (38 Hrc):
24000 - 40000 RPM
UNSPNC:
27111931
UPC Code:
97758152532
Other Details
Can be used on materials that are difficult to file.
Can be used with or without an additional file handle due to the tang shape.
Chips can easily be removed by knocking the tool gently against a hard object.
Does not clog.
Extremely wear-resistant and sturdy due to high surface hardness.
