![PFERD COMBICLICK® Surface Conditioning Disc Hard,4-1/2",100 Grit Coarse,Aluminum Oxide](/vendors/6924/large/cc-vrh-115-a-100-g-kombi-rgb.png "PFERD COMBICLICK® Surface Conditioning Disc Hard,4-1/2",100 Grit Coarse,Aluminum Oxide")

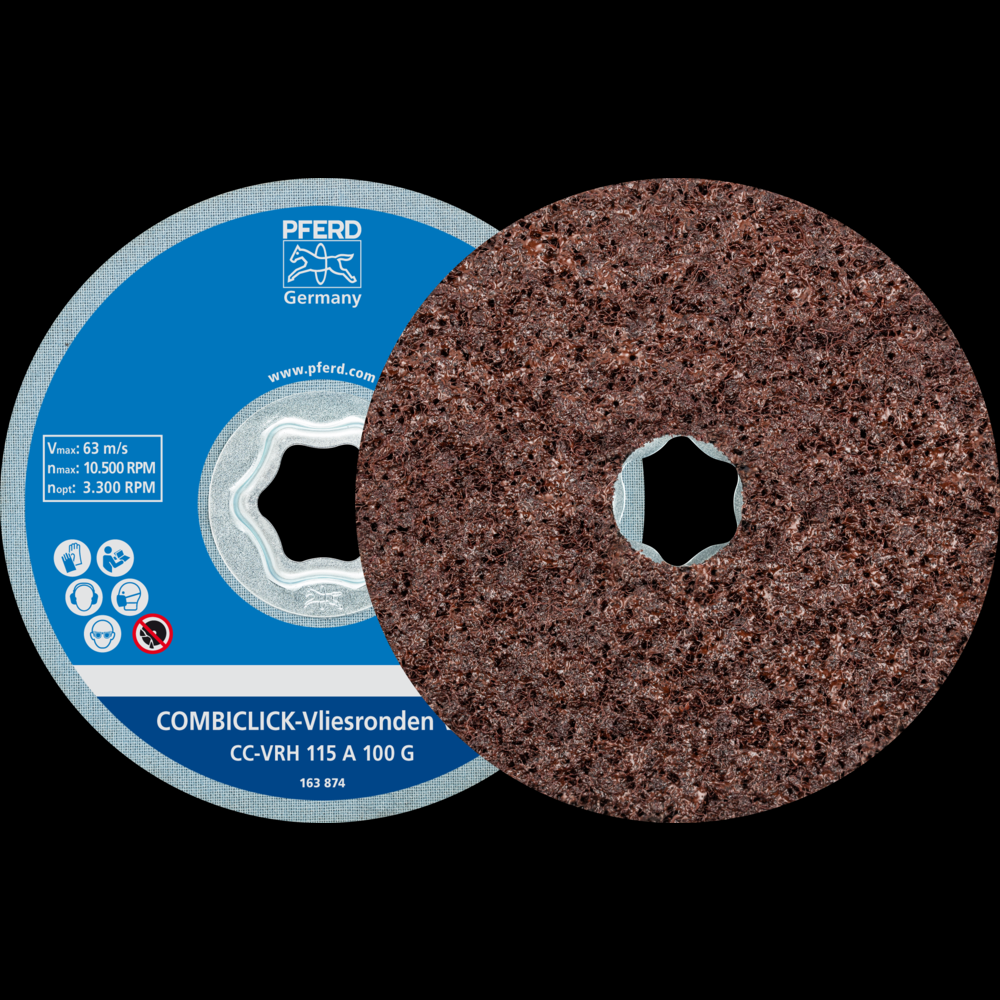

PFERD COMBICLICK® Surface Conditioning Disc Hard,4-1/2",100 Grit Coarse,Aluminum Oxide
Call For Price
- Part Number: 42000052
- UPC: 04007220935880
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The COMBICLICK® system consists of a specially developed backing pad and a rugged mounting system at the back of the disc. The backing pad allows COMBICLICK® discs to be used on most available angle grinders. The special geometry of the cooling slots ensures high air throughput, which considerably reduces the thermal load on the abrasive material and the workpiece. The quick-mounting system, rugged fixture, secure attachment of the disc and optimized cooling system help to provide up to 30% lower workpiece temperature, up to 25% increased stock removal, up to 30% longer disc life and improved utilization of the abrasive. Designed for universal work on small and medium-sized metal surfaces, e.g. removing rough grinding traces, removing oxidation, and light deburring work. Achieve matte and satin-finished surfaces.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Sanding Discs and Kits
Category Level 4:
Quick Change Discs
Abrasive:
Aluminium oxide A
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Step-by-step fine grinding
Applications 3:
Roughening
Applications 4:
Structuring (matt finishing, brush matting and satin finishing)
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Customs Number:
6805301000
Diameter External (In):
4.50
Drive Types:
Angle grinder
Drive Types 1:
Cordless angle grinder
EAN:
4007220935880
EDP:
48100
Grit Size:
100 G
Item Quantity:
10
Item Weight (kgs):
0.049
MANUFACTURER_TYPE_DESCR:
CC-VRH 115 A 100 G
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Steel materials with a hardness > 54 HRC
Materials that can be worked 11:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 12:
Thermoplastics
Materials that can be worked 13:
Titanium
Materials that can be worked 14:
Titanium alloys
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Copper
Materials that can be worked 6:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 7:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 8:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 9:
Stainless steel (INOX)
Order Quanityt:
30
Pferdefficiency:
PFERDEFFICIENCY recommends COMBICLICK® for long, fatigue-free and resource-saving work in the shortest possible time. The patented quick-mounting system reduces disc changes and setup times.
Pferdergonomics:
PFERDERGONOMICS recommends COMBICLICK® as an innovative solution to reduce vibration, noise and dust produced during use and to improve comfort when working.
Prop 65:
View
Recommendations for use:
Use COMBICLICK® non-woven discs with COMBICLICK® backing pads on variable speed angle grinders.
Recommendations for use 1:
For the best performance, use with a recommended peripheral speed of 3,000-4,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
Recommendations for use 2:
Adding oil or water during grinding results in a finer finish, cooler grinding, and longer service life.
Safety notes:
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
UNSPNC:
31191506
UPC Code:
97758481007
Other Details
Extremely quick and easy disc changes reduce process costs.
Innovative quick-mounting system guarantees convenient handling and cool grinding
Low wear due to high tear strength.
The open structure of the non-woven material prevents loading.
With COMBICLICK®, scratches caused by protruding clamping parts are prevented and very high utilization of the available abrasive is attained.
