![PFERD Carbide Bur SL-4L 14° Taper TOUGH Double Cut 1/2" x 1-1/8" x 1/4" Shank](/vendors/6924/large/21722774-rgb.png "PFERD Carbide Bur SL-4L 14° Taper TOUGH Double Cut 1/2" x 1-1/8" x 1/4" Shank")

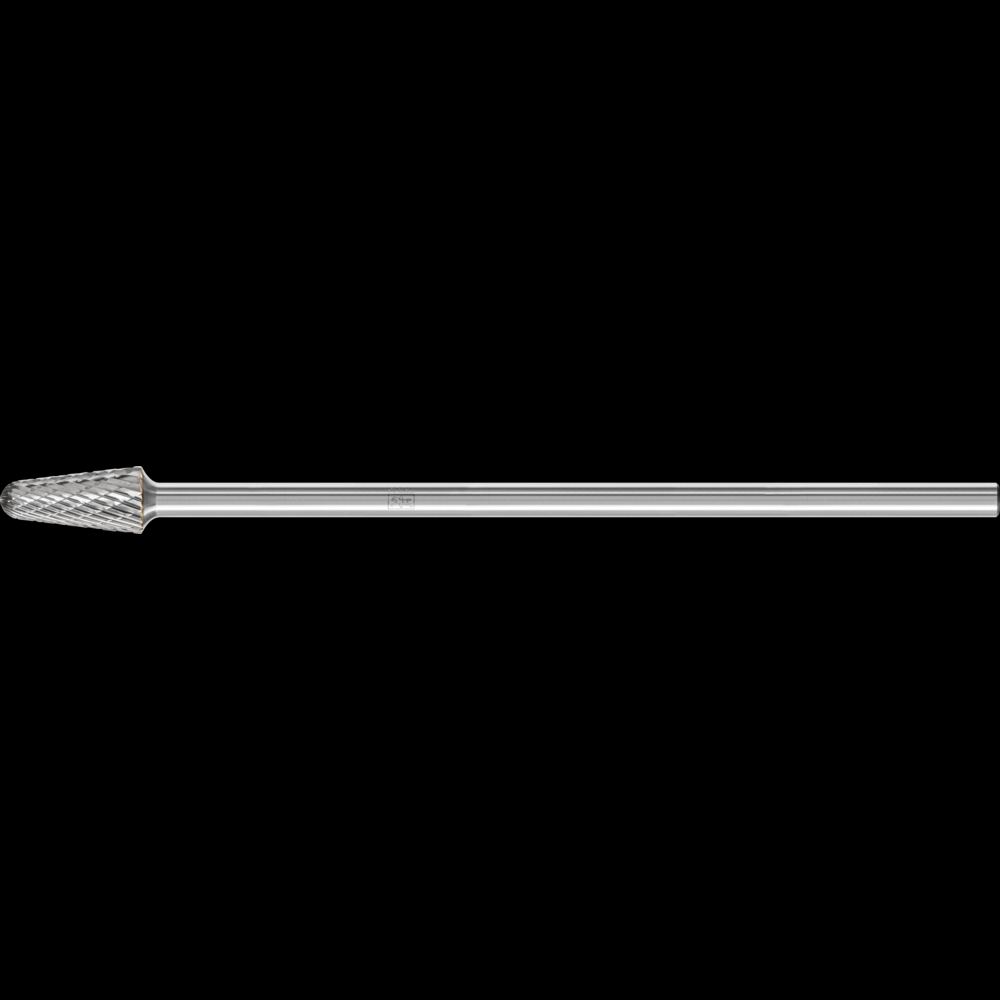

PFERD Carbide Bur SL-4L 14° Taper TOUGH Double Cut 1/2" x 1-1/8" x 1/4" Shank
Call For Price
- Part Number: 21722774
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The TOUGH cut has been specially designed for tough operating conditions such as in shipyards, foundries and steel construction. It is also ideal for all demanding production environments where frequent tooth breakages and other damage to conventional burs occur. 14° Taper bur with round radius end, shape L. Tungsten carbide burs with extended shanks are ideal for efficiently machining small, hard-to-reach areas. The shanks can be shortened if required. This bur has a long steel shank.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Country of Origin:
DE
Customs Number:
8207703030
Cutting Depth, Max (In):
1.25
Diameter External (In):
4.13
Drive Types:
Column drill
Drive Types 1:
Power drill
EDP:
22774
Item Length (inches):
7.19
Item Quantity:
1
Item Weight (kgs):
0.069
MANUFACTURER_TYPE_DESCR:
KEL 1225/6,35 TOUGH SL150
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Black annealed cast iron (GTS, GJMB)
Materials that can be worked 10:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 11:
Steels over 220 HV (> 95 HB)
Materials that can be worked 12:
Steels up to 220 HV (< 95 HB)
Materials that can be worked 13:
Tool steels
Materials that can be worked 14:
White annealed cast iron (GTW, GJMW)
Materials that can be worked 2:
Case-hardened steels
Materials that can be worked 3:
Cast iron
Materials that can be worked 4:
Cast steel
Materials that can be worked 5:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 6:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 7:
Steel
Materials that can be worked 8:
Steel, cast steel
Materials that can be worked 9:
Steel materials with a hardness > 54 HRC
Prop 65:
View
Recommendations for use:
Observe the recommended rotational speed.
Recommendations for use 1:
The TOUGH cut can be used on materials up to 580 HV (54 HRC). For hard materials, it is recommended to test the bur on the same material before using on the actual workpiece.
Recommendations for use 2:
TOUGH cut carbide burs are also designed for high-impact applications when using shank extensions, for applications with a high surface contact angle, for work on narrow contours, and for applications where slower rotational speeds are used.
Recommendations for use 3:
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
Recommendations for use 4:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Safety notes:
For safety reasons, the maximum application speeds with contact with the workpiece require a reduction in the recommended speed of tungsten carbide burs with standard shanks. Observe the reduced speeds outlined in the product details.
Safety notes 1:
When working with longer shanks, it is crucial that the bur is in contact with the workpiece (or inserted in the hole or slot to be machined) before the power tool is turned on. As a rule, the bur must remain in contact with the workpiece for as long as th
Safety notes 2:
Not designed for robotic or stationary applications due to risk of bending. Use only rigid clamping systems/power tools.
UNSPNC:
23251706
UPC Code:
97758227742
Other Details
Can also be used at a lower rotational speed.
Due to their extreme impact resistance, they are an ideal option when an extended-shank bur is needed.
Innovative quick-mounting system guarantees convenient handling and cool grinding
Minimized tooth chipping/breakage, splintering, and bur failures due to very robust, high-performance cut.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
