![PFERD Carbide Bur SG-3 L6 Pointed Tree Shape OMNI Double Cut 3/8" x 3/4" x 1/4" Shank](/vendors/6924/large/21728031-rgb.png "PFERD Carbide Bur SG-3 L6 Pointed Tree Shape OMNI Double Cut 3/8" x 3/4" x 1/4" Shank")

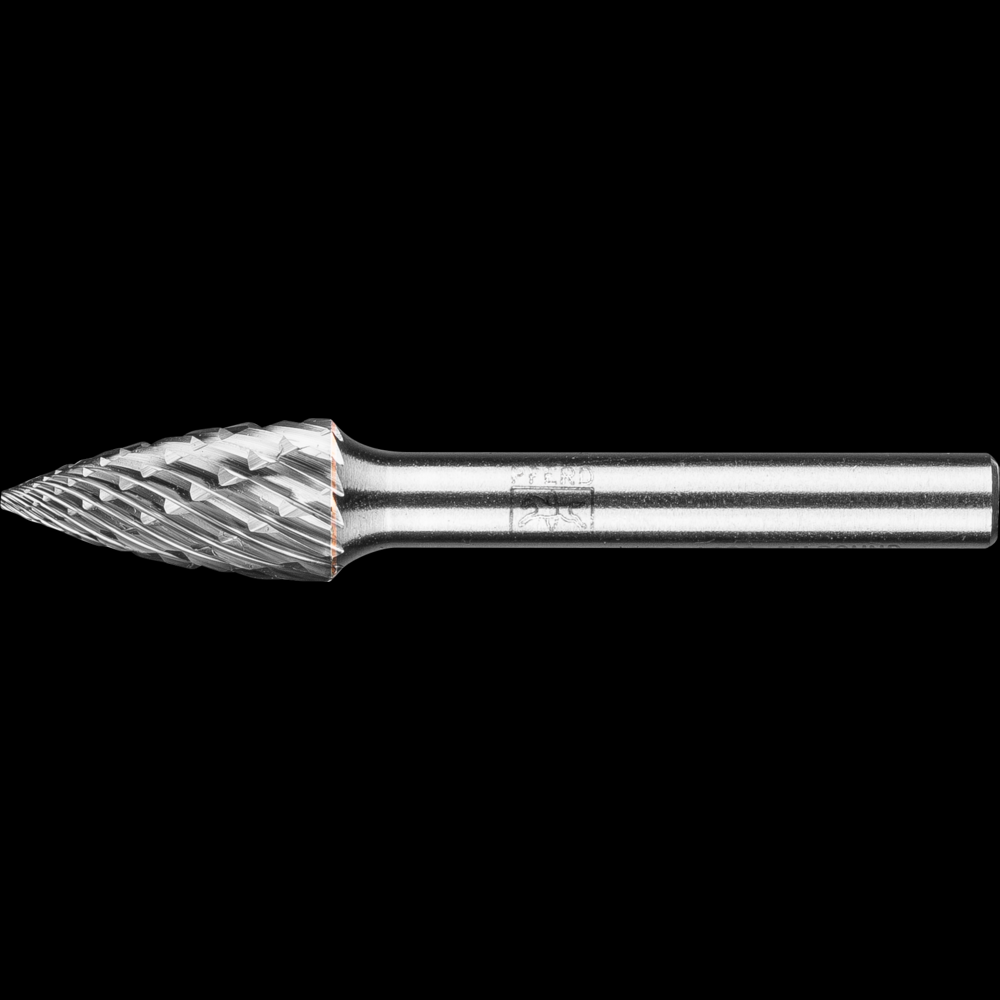

PFERD Carbide Bur SG-3 L6 Pointed Tree Shape OMNI Double Cut 3/8" x 3/4" x 1/4" Shank
Call For Price
- Part Number: 21728031
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
With the innovative OMNI cut, PFERD has developed unique burs for versatile use on key materials such as steel and cast steel, stainless steel (INOX), non-ferrous metals and cast iron. The OMNI cut offers all the benefits of the tried-and-tested double cut, but its stock removal rate is up to 30% higher for steel. It enables comfortable working with reduced vibration and less noise. The OMNI cut also offers significant time savings and a high economic value. Tree bur with pointed end, shape G. Tungsten carbide burs with extended shanks are ideal for efficiently machining small, hard-to-reach areas. The shanks can be shortened if required. This bur has a long steel shank.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Customs Number:
8207703030
Cut:
1
Cut Files Type:
Bastard
Drive Types:
Manual application
EDP:
28031
Handle Included:
FH 5/1
Item Length (inches):
6.75
Item Quantity:
1
Item Weight (kgs):
0.056
MANUFACTURER_TYPE_DESCR:
SPG 9,5x19x6,35-150 ALLROUND
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Black annealed cast iron (GTS, GJMB)
Materials that can be worked 10:
Hard non-ferrous metal
Materials that can be worked 11:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 12:
Soft non-ferrous metal
Materials that can be worked 13:
Stainless steel (INOX)
Materials that can be worked 14:
Steel
Materials that can be worked 15:
Steel, cast steel
Materials that can be worked 16:
Steel materials with a hardness > 54 HRC
Materials that can be worked 17:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 18:
Steels over 220 HV (> 95 HB)
Materials that can be worked 19:
Steels up to 220 HV (< 95 HB)
Materials that can be worked 2:
Brass
Materials that can be worked 20:
Titanium
Materials that can be worked 21:
Titanium alloys
Materials that can be worked 22:
Tool steels
Materials that can be worked 23:
White annealed cast iron (GTW, GJMW)
Materials that can be worked 24:
Zinc
Materials that can be worked 3:
Bronze
Materials that can be worked 4:
Case-hardened steels
Materials that can be worked 5:
Cast iron
Materials that can be worked 6:
Cast steel
Materials that can be worked 7:
Copper
Materials that can be worked 8:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 9:
Hard aluminium alloys
Pferdergonomics:
PFERDERGONOMICS recommends the ergonomic file handle for comfortable work.
Prop 65:
View
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Recommendations for use 2:
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
Recommendations for use 3:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Safety notes:
Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.
Safety notes 1:
For safety reasons, the maximum application speeds with contact with the workpiece require a reduction in the recommended speed of tungsten carbide burs with standard shanks. Observe the reduced speeds outlined in the product details.
Safety notes 2:
When working with longer shanks, it is crucial that the bur is in contact with the workpiece (or inserted in the hole or slot to be machined) before the power tool is turned on. As a rule, the bur must remain in contact with the workpiece for as long as th
Safety notes 3:
Not designed for robotic or stationary applications due to risk of bending. Use only rigid clamping systems/power tools.
UNSPNC:
23251706
UPC Code:
97758280310
Other Details
Comfortable working with reduced vibration and less noise.
Saves time and money with very high stock removal rate on key materials.
Significantly better stock removal rate than conventional double cut burs.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
