![PFERD Carbide Bur SF-42 Tree Shape INOX Cut 1/8" x 1/2" x 1/8" Shank](/vendors/6924/large/21823317-rgb.png "PFERD Carbide Bur SF-42 Tree Shape INOX Cut 1/8" x 1/2" x 1/8" Shank")

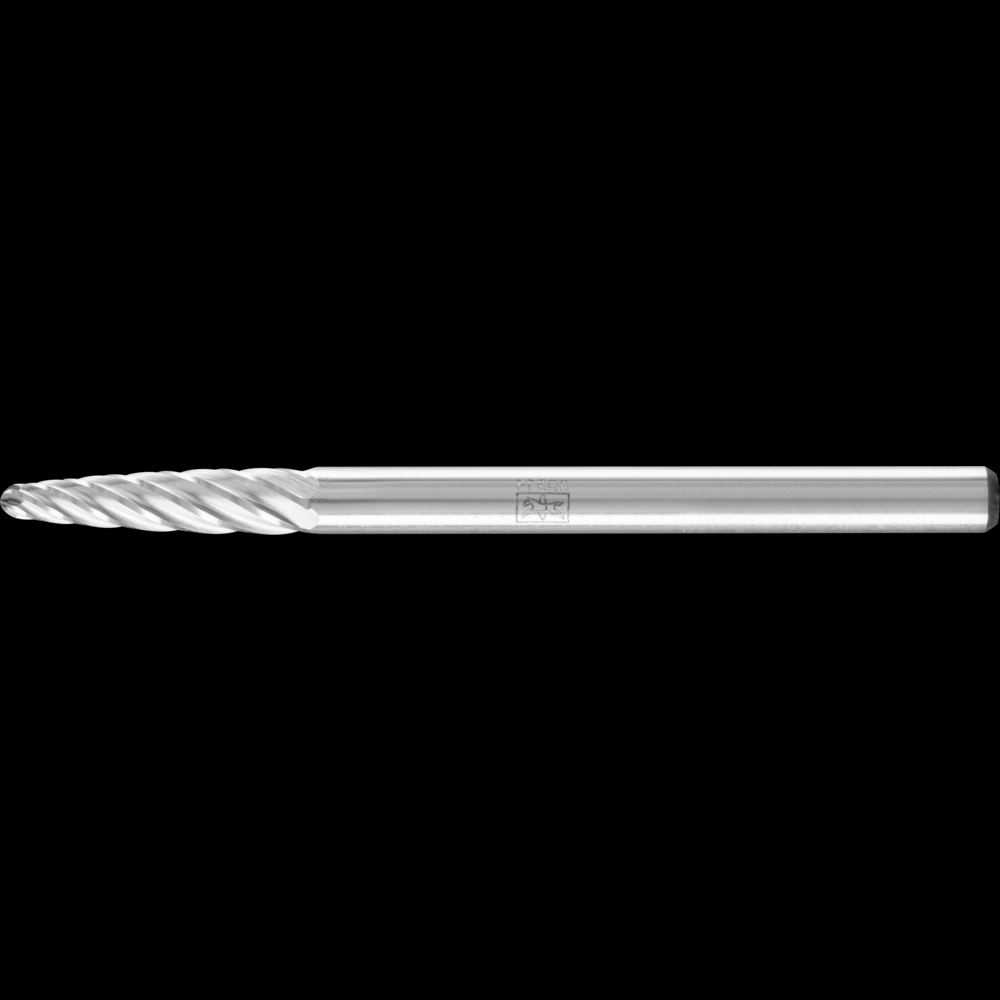

PFERD Carbide Bur SF-42 Tree Shape INOX Cut 1/8" x 1/2" x 1/8" Shank
Call For Price
- Part Number: 21823317
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

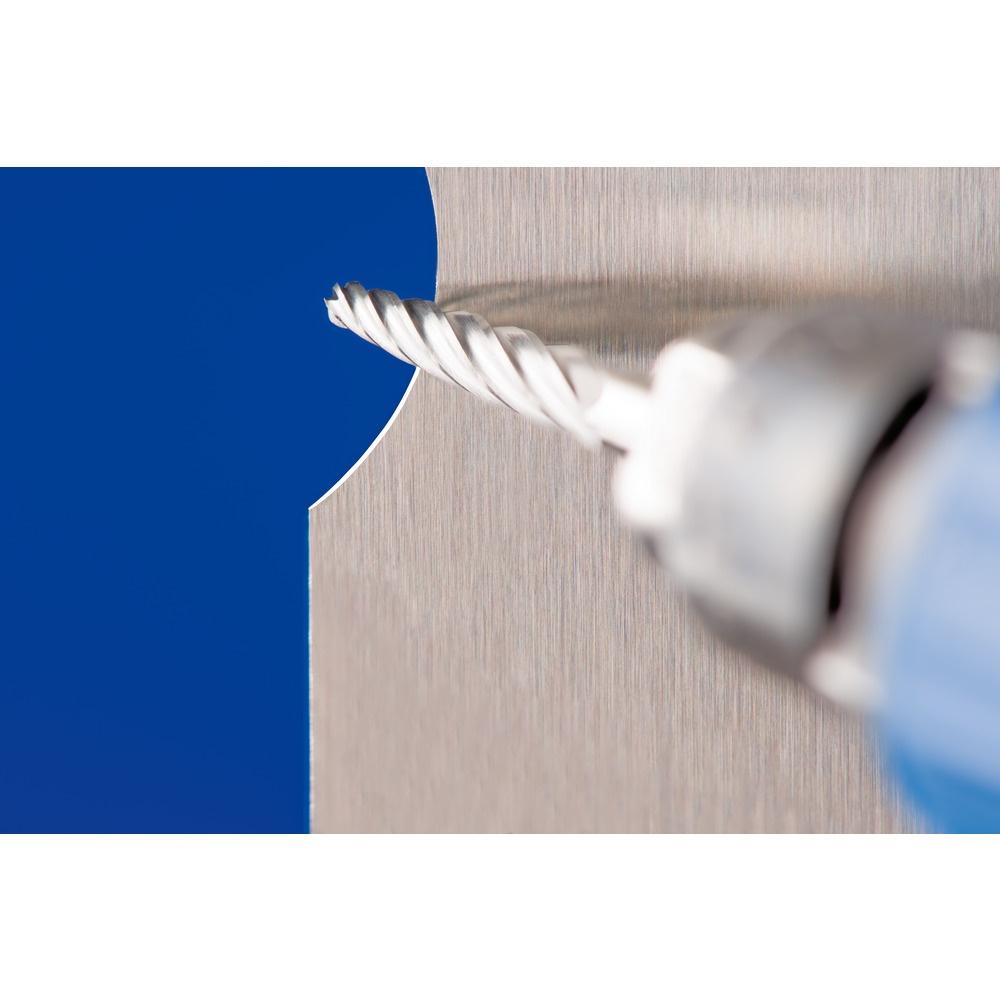

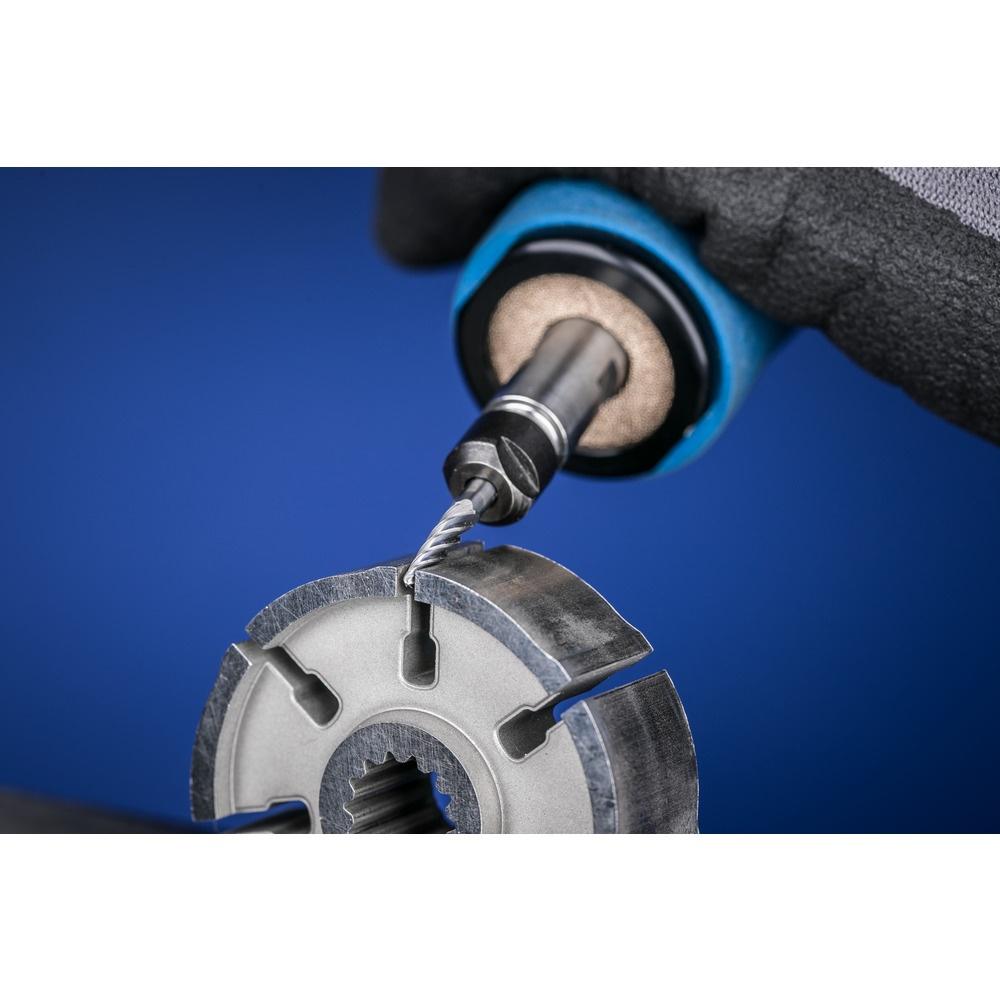

With the INOX cut, PFERD has developed innovative burs specifically for stainless steel (INOX). They achieve incredibly high stock removal on all austenitic steels, as well as rust- and acid-resistant steels. The INOX cut generates significantly less vibration in comparison to a double cut bur. Tree bur with radius end, shape F.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Customs Number:
8207703030
Cut:
0
Drive Types:
Manual application
EDP:
23317
Item Length (inches):
1.50
Item Quantity:
1
Item Weight (kgs):
0.005
MANUFACTURER_TYPE_DESCR:
RBF 3,17x12,7x3,17 INOX
Materials that can be worked:
Hard non-ferrous metal
Materials that can be worked 1:
Stainless steel (INOX)
Materials that can be worked 2:
Titanium
Materials that can be worked 3:
Titanium alloys
Prop 65:
View
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Recommendations for use 2:
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
Recommendations for use 3:
To ensure costÂeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 1/8" with drives with a power output of 75 to 300 watts.
Safety notes:
Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.
Shape:
Flat, thin
UNSPNC:
23251706
UPC Code:
97758233170
Other Details
Creates high quality surface finish with optimized material chipping.
Excellent stock removal rate and service life due to innovative tooth design.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Workpiece is protected through much lower thermal load.
