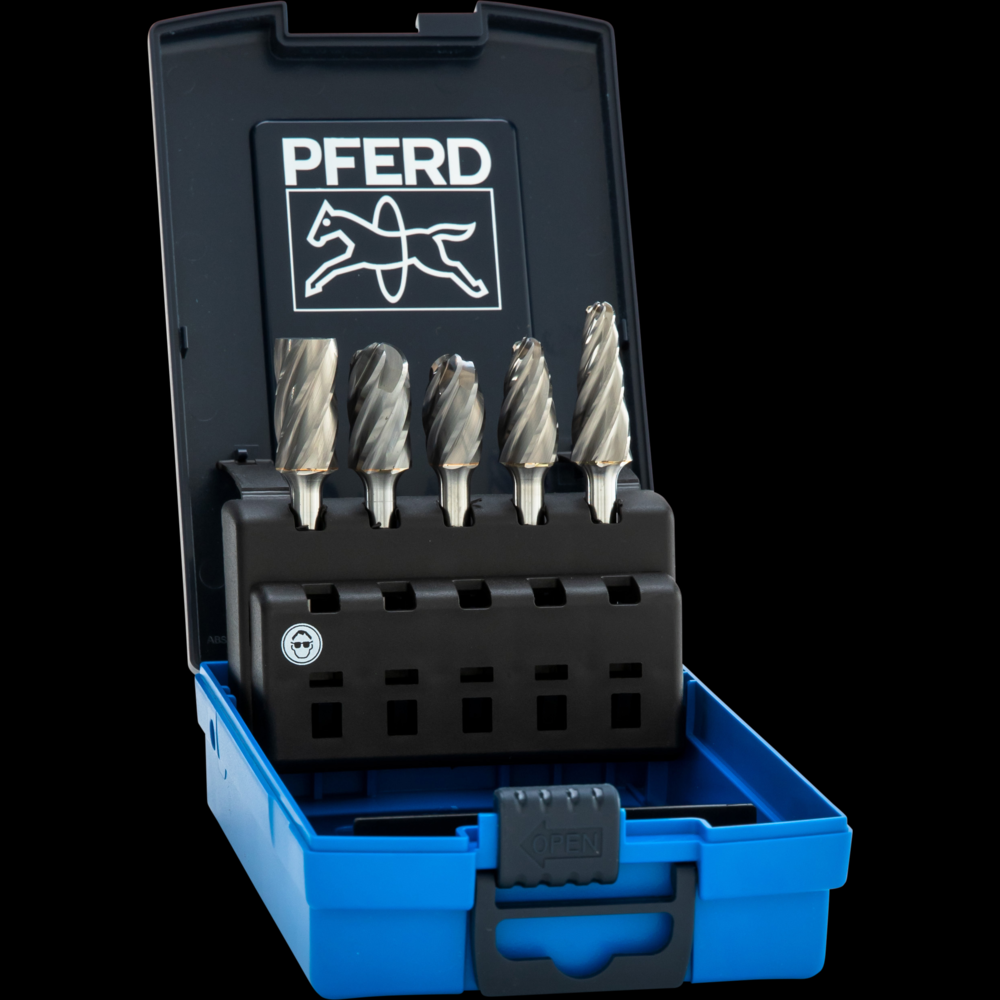

PFERD Carbide Bur Set 5 Piece ALU Cut/Non-ferrous 1/4" Shank Plastic Case
Call For Price
- Part Number: 21726550
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The 5-piece ALU cut bur set contains five tungsten carbide burs for processing aluminum. These burs are the most common shapes and dimensions. The sturdy plastic box protects the burs against dirt and damage. The burs are secured at the shanks, facilitating their selection and withdrawal. The box also has five unusaed slots for additional burs.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Bur Sets
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:

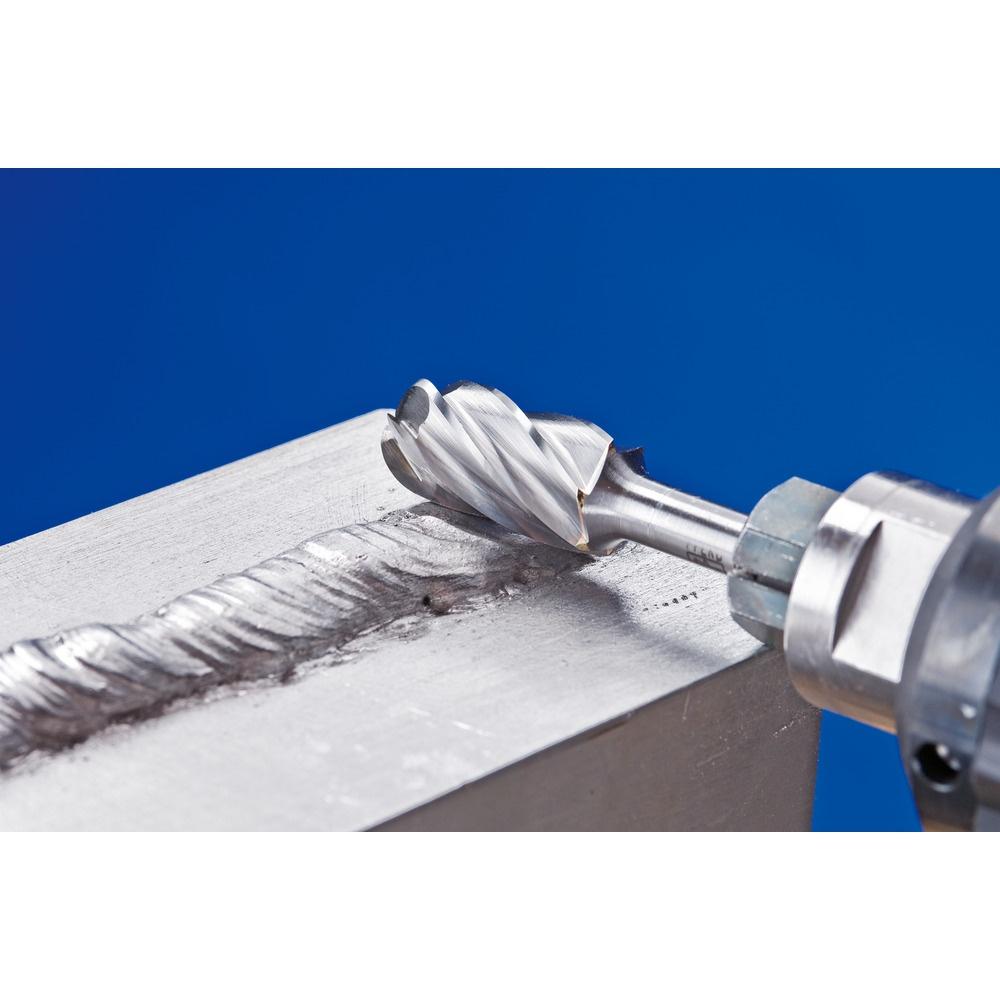

Work on weld seams
Country of Origin:
DE
Customs Number:
8207703030
Cut:
3
Drive Types:
Manual application
EDP:
26550
Item Quantity:
1
Item Weight (kgs):
0.397
MANUFACTURER_TYPE_DESCR:
TC-SET 5-piece ALU
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Thermoplastics
Materials that can be worked 11:
Tough aluminium alloys
Materials that can be worked 12:
Zinc
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Copper
Materials that can be worked 4:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 5:
Hard aluminium alloys
Materials that can be worked 6:
Hard non-ferrous metal
Materials that can be worked 7:
Plastics
Materials that can be worked 8:
Soft aluminium alloys
Materials that can be worked 9:
Soft non-ferrous metal
Order Quanityt:
30
Prop 65:
View
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Teeth Per Inch:
12
UNSPNC:
23251706
UPC Code:
97758265508
Version:
fine
Other Details
Can be used with peripheral speeds of up to 3,600 SFPM.
Creates large chips.
Extremely high stock removal rate.
Long service life and smooth running.
Reduced material adhesion.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
