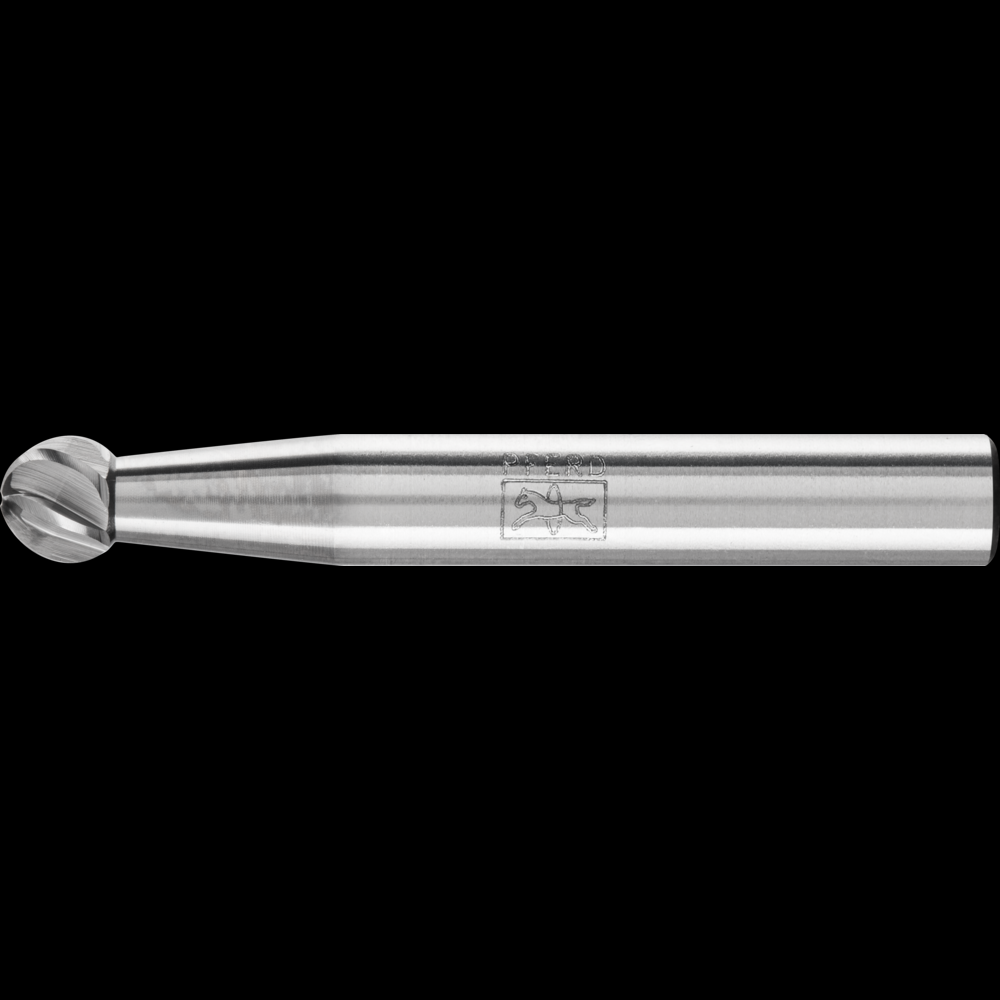

PFERD Carbide Bur SD-1 Ball Shape INOX Cut 1/4" x 3/16" x 1/4" Shank
Call For Price
- Part Number: 21724527
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
With the INOX cut, PFERD has developed innovative burs specifically for stainless steel (INOX). They achieve incredibly high stock removal on all austenitic steels, as well as rust- and acid-resistant steels. The INOX cut generates significantly less vibration in comparison to a double cut bur. Ball-shaped bur, shape D.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Cut:
2
Cut Files Type:
Second
Diameter External (In):
0.38
Drive Types:
Manual application
EDP:
24527
Handle Included:
without
Item Length (inches):
1.94
Item Quantity:
1
Item Weight (kgs):
0.021
MANUFACTURER_TYPE_DESCR:
KUD 6,35x4,8x6,35 INOX
Materials that can be worked:
Hard non-ferrous metal
Materials that can be worked 1:
Stainless steel (INOX)
Materials that can be worked 2:
Titanium
Materials that can be worked 3:
Titanium alloys
Prop 65:
View
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Recommendations for use 2:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Safety notes:
Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.
UNSPNC:
23251706
UPC Code:
97758245272
Other Details
Creates high quality surface finish with optimized material chipping.
Excellent stock removal rate and service life due to innovative tooth design.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Workpiece is protected through much lower thermal load.
