![PFERD Carbide Bur SC-3 Cylindrical Radius End CAST Cut 3/8" x 3/4" x 1/4" Shank](/vendors/6924/large/21724429-rgb.png "PFERD Carbide Bur SC-3 Cylindrical Radius End CAST Cut 3/8" x 3/4" x 1/4" Shank")

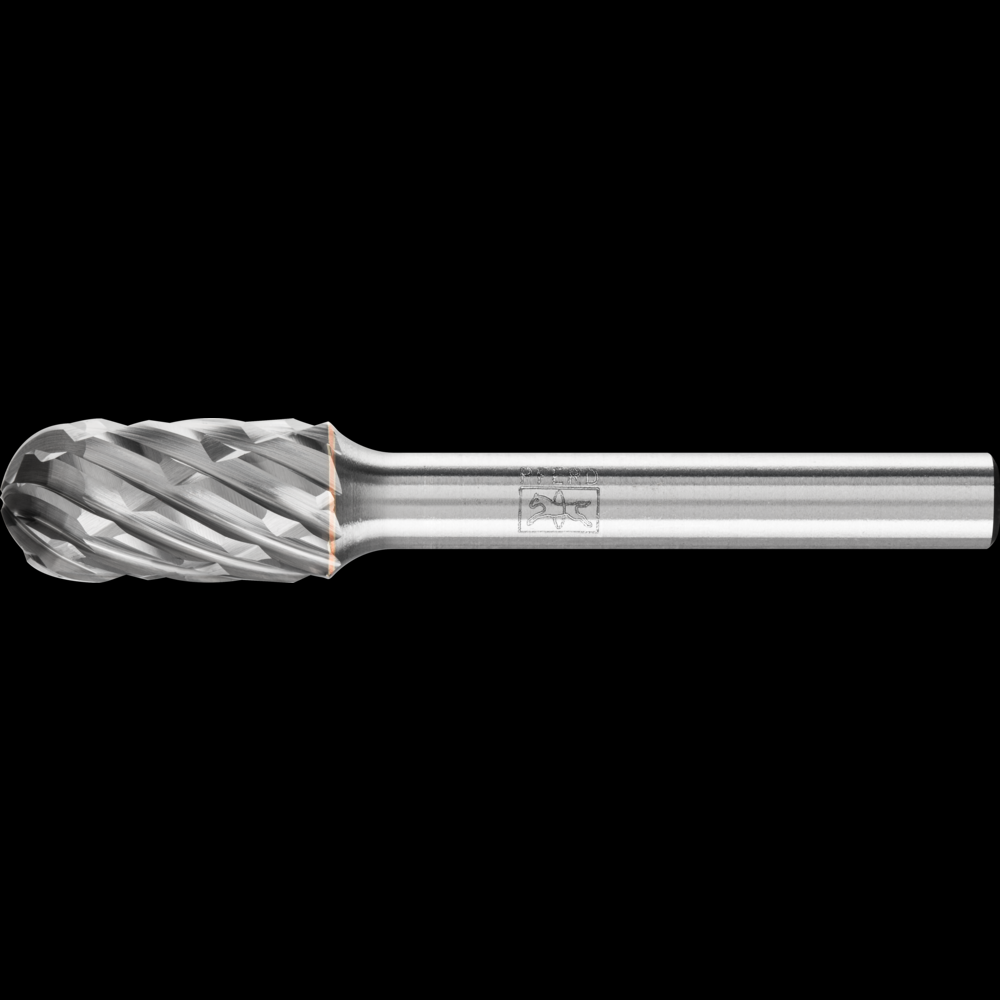

PFERD Carbide Bur SC-3 Cylindrical Radius End CAST Cut 3/8" x 3/4" x 1/4" Shank
Call For Price
- Part Number: 21724429
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

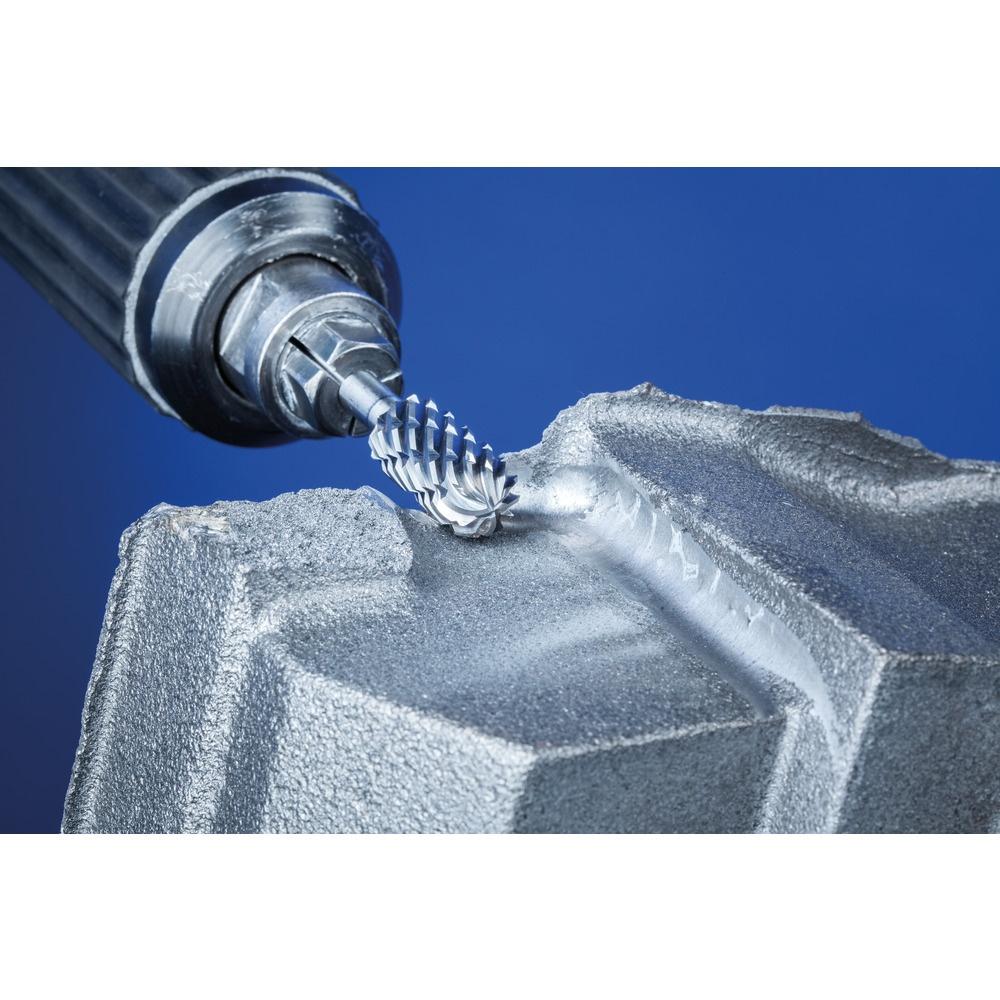

With the CAST cut, PFERD has developed innovative burs specifically for work on cast iron. These burs achieve incredibly high stock removal on cast iron and operate with significantly reduced vibration and noise. Cylindrical bur with rounded radius end, shape C.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Customs Number:
8207703030
Cut:
2
Cut Files Type:
Second
Drive Types:
Manual application
EDP:
24429
Handle Included:
without
Item Length (inches):
2.50
Item Quantity:
1
Item Weight (kgs):
0.028
MANUFACTURER_TYPE_DESCR:
WRC 9,5x19x6,35 CAST
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Black annealed cast iron (GTS, GJMB)
Materials that can be worked 2:
Cast iron
Materials that can be worked 3:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 4:
White annealed cast iron (GTW, GJMW)
Prop 65:
View
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Recommendations for use 2:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Safety notes:
Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.
UNSPNC:
23251706
UPC Code:
97758244299
Other Details
Comfortable to use due to reduced vibration and less noise.
Significantly increased aggressiveness, creates large chips, and has very good chip removal.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Up to 100% higher stock removal rate on cast iron than conventional double cut burs, due to an innovative tooth design.
