![PFERD Carbide Bur SB-5 Cylindrical End Cut OMNI Double Cut 1/2" x 1" x 1/4" Shank](/vendors/6924/large/21728010-rgb.png "PFERD Carbide Bur SB-5 Cylindrical End Cut OMNI Double Cut 1/2" x 1" x 1/4" Shank")

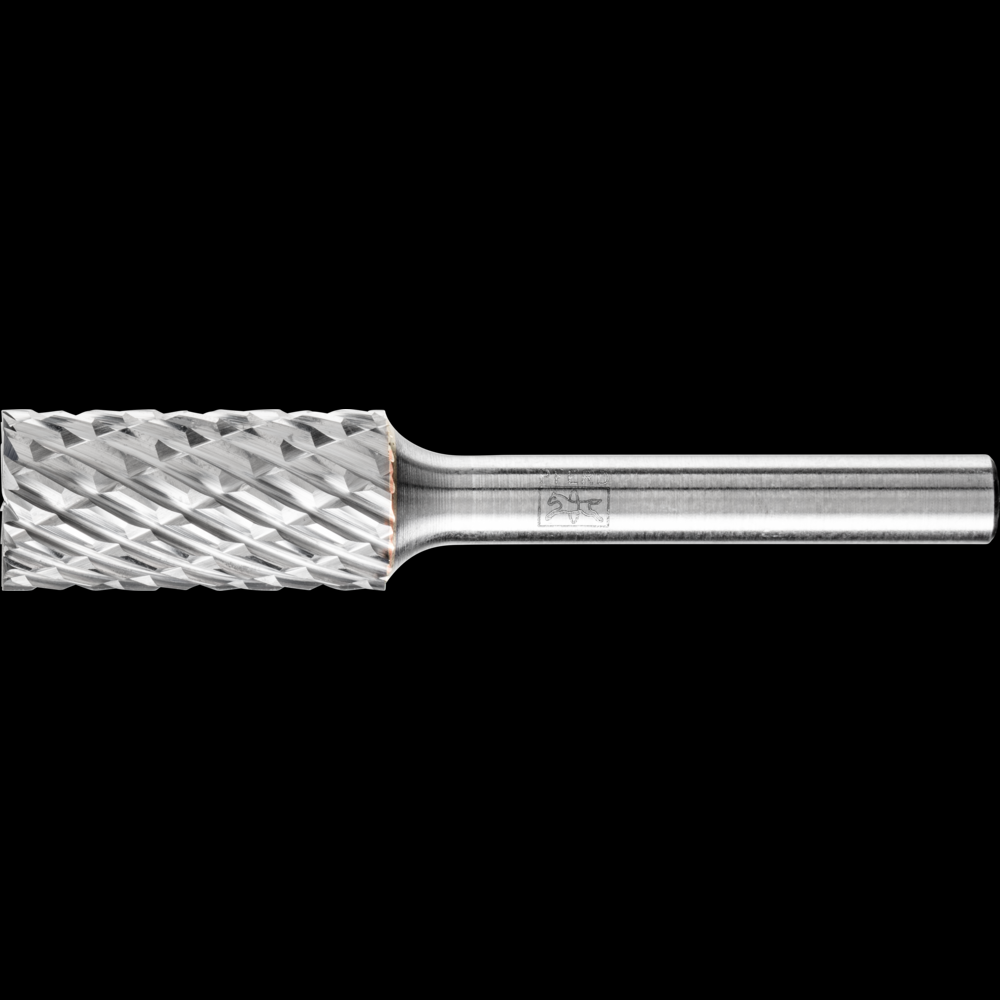

PFERD Carbide Bur SB-5 Cylindrical End Cut OMNI Double Cut 1/2" x 1" x 1/4" Shank
Call For Price
- Part Number: 21728010
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
With the innovative OMNI cut, PFERD has developed unique burs for versatile use on key materials such as steel and cast steel, stainless steel (INOX), non-ferrous metals and cast iron. The OMNI cut offers all the benefits of the tried-and-tested double cut, but its stock removal rate is up to 30% higher for steel. It enables comfortable working with reduced vibration and less noise. The OMNI cut also offers significant time savings and a high economic value. Cylindrical bur with end cut, shape B.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Coating Length:
2.75
Country of Origin:
DE
Customs Number:
8207703030
Drive Types:
Manual application
EDP:
28010
Grit Size:
D 91
Item Length (inches):
2.75
Item Quantity:
1
Item Weight (kgs):
0.06
MANUFACTURER_TYPE_DESCR:
ZYAS 12,7x25,4x6,35 ALLROUND
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Black annealed cast iron (GTS, GJMB)
Materials that can be worked 10:
Hard non-ferrous metal
Materials that can be worked 11:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 12:
Soft non-ferrous metal
Materials that can be worked 13:
Stainless steel (INOX)
Materials that can be worked 14:
Steel
Materials that can be worked 15:
Steel, cast steel
Materials that can be worked 16:
Steel materials with a hardness > 54 HRC
Materials that can be worked 17:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 18:
Steels over 220 HV (> 95 HB)
Materials that can be worked 19:
Steels up to 220 HV (< 95 HB)
Materials that can be worked 2:
Brass
Materials that can be worked 20:
Titanium
Materials that can be worked 21:
Titanium alloys
Materials that can be worked 22:
Tool steels
Materials that can be worked 23:
White annealed cast iron (GTW, GJMW)
Materials that can be worked 24:
Zinc
Materials that can be worked 3:
Bronze
Materials that can be worked 4:
Case-hardened steels
Materials that can be worked 5:
Cast iron
Materials that can be worked 6:
Cast steel
Materials that can be worked 7:
Copper
Materials that can be worked 8:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 9:
Hard aluminium alloys
Prop 65:
View
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Recommendations for use 2:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Safety notes:
Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.
Shape:
Crossing oval shape
UNSPNC:
23251706
UPC Code:
97758280105
Other Details
Comfortable working with reduced vibration and less noise.
Saves time and money with very high stock removal rate on key materials.
Significantly better stock removal rate than conventional double cut burs.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
