![PFERD Carbide Bur SB-4 Cylindrical End Cut Diamond Cut 7/16" x 1" x 1/4" Shank](/vendors/6924/large/21724273-rgb.png "PFERD Carbide Bur SB-4 Cylindrical End Cut Diamond Cut 7/16" x 1" x 1/4" Shank")

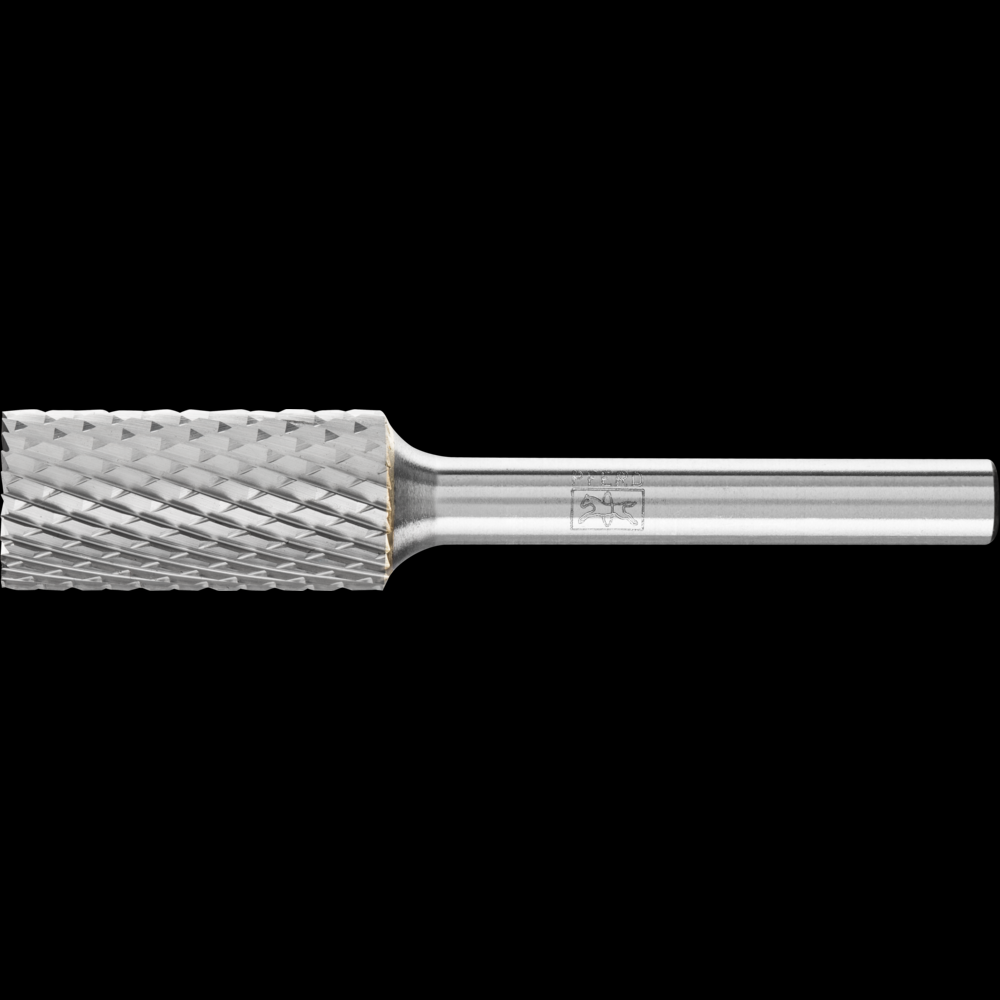

PFERD Carbide Bur SB-4 Cylindrical End Cut Diamond Cut 7/16" x 1" x 1/4" Shank
Call For Price
- Part Number: 21724273
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Diamond cut burs are designed for machining stainless steel (INOX), steel, and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. They have high stock removal with short chips, and achieve a good surface finish. Universal line burs are designed for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Cylindrical bur with end cut, shape B.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Customs Number:
8207703030
Cut:
0
Cut Files Type:
0
Drive Types:
Manual application
EDP:
24273
Item Length (inches):
2.75
Item Quantity:
1
Item Weight (kgs):
0.052
MANUFACTURER_TYPE_DESCR:
ZYAS 11,1x25,4x6,35 C4
Materials that can be worked:
Bronze
Materials that can be worked 1:
Case-hardened steels
Materials that can be worked 10:
Steel
Materials that can be worked 11:
Steel, cast steel
Materials that can be worked 12:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 13:
Steels over 220 HV (> 95 HB)
Materials that can be worked 14:
Steels up to 220 HV (< 95 HB)
Materials that can be worked 15:
Titanium
Materials that can be worked 16:
Titanium alloys
Materials that can be worked 17:
Tool steels
Materials that can be worked 2:
Cast steel
Materials that can be worked 3:
Cobalt-based alloys
Materials that can be worked 4:
Hard aluminium alloys
Materials that can be worked 5:
Hard non-ferrous metal
Materials that can be worked 6:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 7:
High-temperature-resistant materials
Materials that can be worked 8:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 9:
Stainless steel (INOX)
Prop 65:
View
Recommendations for use:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
UNSPNC:
23251706
UPC Code:
97758242738
Other Details
Durable.
Good stock removal rate due to high quality tungsten carbide, bur shape, cut, and optional coating.
High surface quality.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
