![PFERD Carbide Bur SA-3 Cylindrical Uncut End TOUGH Double Cut 3/8" x 3/4" x 1/4" Shank](/vendors/6924/large/21722152-rgb.png "PFERD Carbide Bur SA-3 Cylindrical Uncut End TOUGH Double Cut 3/8" x 3/4" x 1/4" Shank")

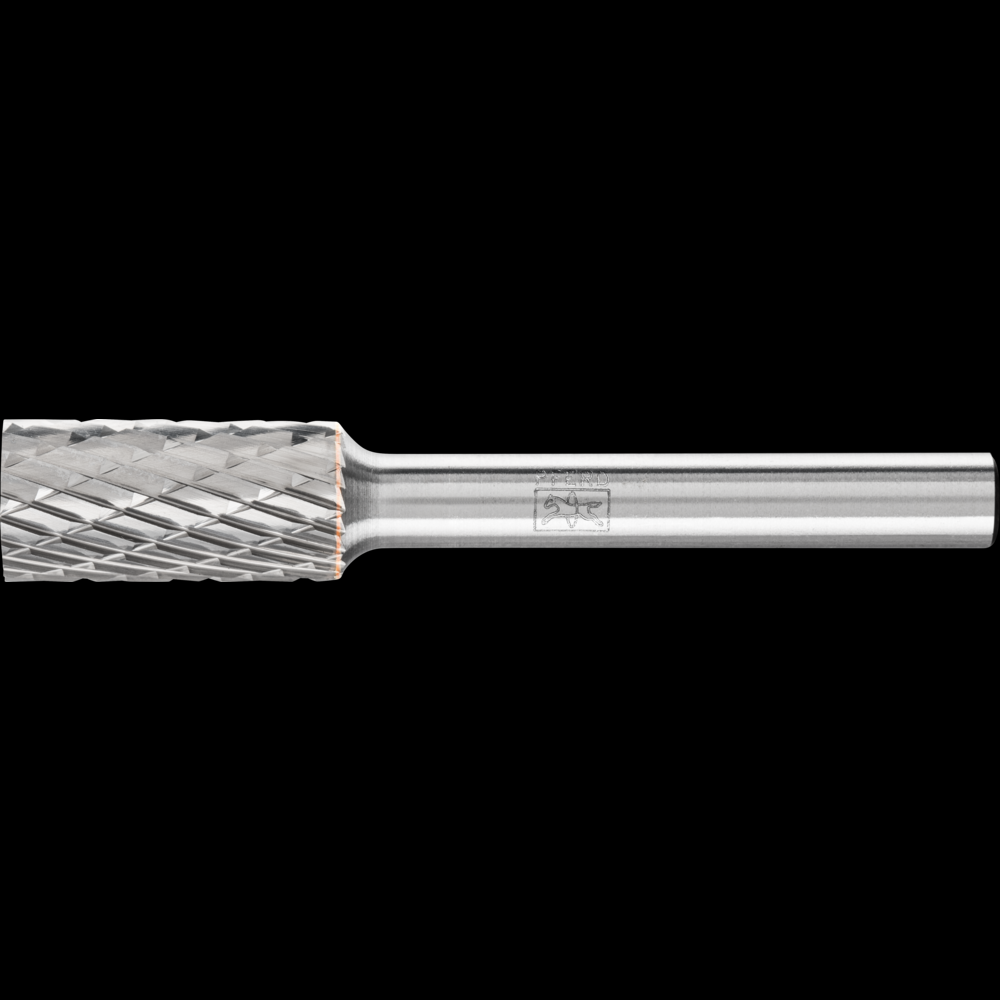

PFERD Carbide Bur SA-3 Cylindrical Uncut End TOUGH Double Cut 3/8" x 3/4" x 1/4" Shank
Call For Price
- Part Number: 21722152
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

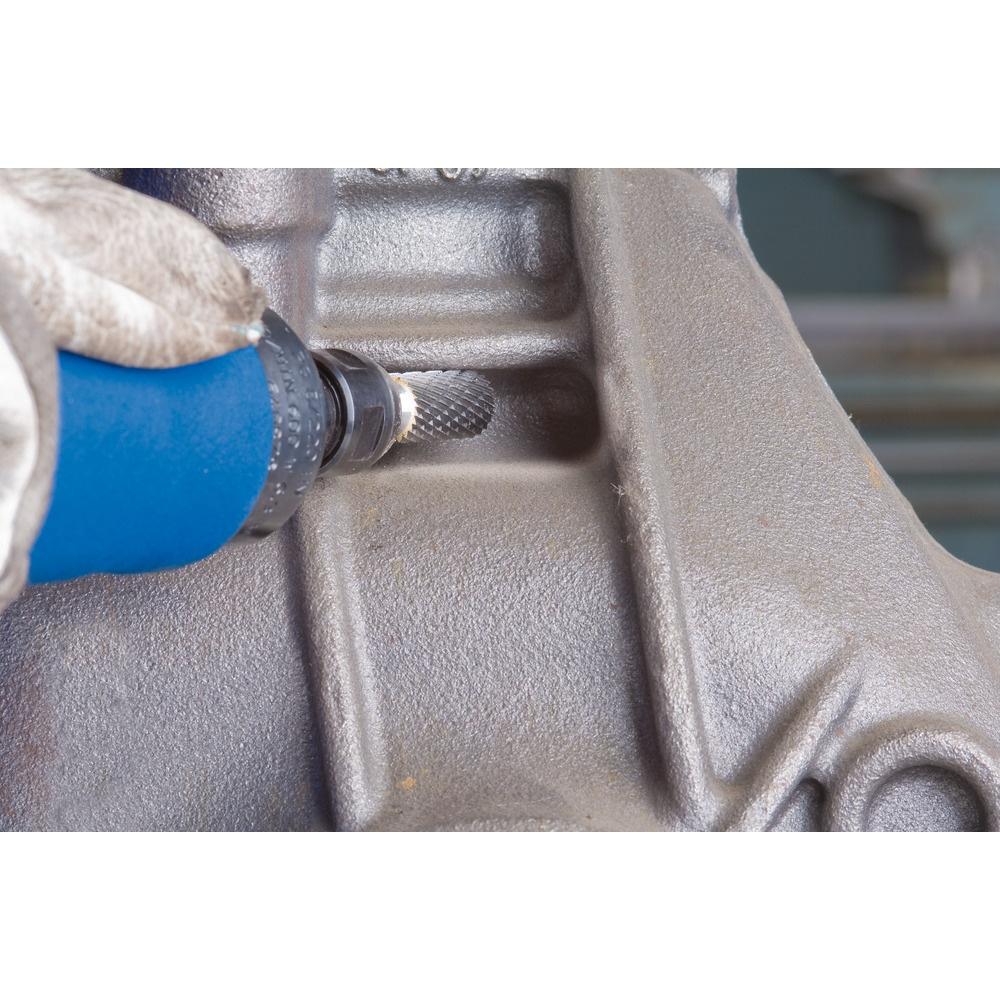

The TOUGH cut has been specially designed for tough operating conditions such as in shipyards, foundries and steel construction. It is also ideal for all demanding production environments where frequent tooth breakages and other damage to conventional burs occur. Cylindrical bur
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Country of Origin:
DE
Customs Number:
8207703030
Cutting Depth, Max (In):
1.44
Diameter External (In):
1.19
Drive Types:
Column drill
Drive Types 1:
Power drill
EDP:
22152
Item Length (inches):
2.50
Item Quantity:
1
Item Weight (kgs):
0.035
MANUFACTURER_TYPE_DESCR:
ZYA 1020/6,35 TOUGH
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Black annealed cast iron (GTS, GJMB)
Materials that can be worked 10:
Tool steels
Materials that can be worked 11:
White annealed cast iron (GTW, GJMW)
Materials that can be worked 2:
Case-hardened steels
Materials that can be worked 3:
Cast iron
Materials that can be worked 4:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 5:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 6:
Steel
Materials that can be worked 7:
Steel, cast steel
Materials that can be worked 8:
Steel materials with a hardness > 54 HRC
Materials that can be worked 9:
Steels over 220 HV (> 95 HB)
Prop 65:
View
Recommendations for use:
Observe the recommended rotational speed.
Recommendations for use 1:
The TOUGH cut can be used on materials up to 580 HV (54 HRC). For hard materials, it is recommended to test the bur on the same material before using on the actual workpiece.
Recommendations for use 2:
TOUGH cut carbide burs are also designed for high-impact applications when using shank extensions, for applications with a high surface contact angle, for work on narrow contours, and for applications where slower rotational speeds are used.
Recommendations for use 3:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
UNSPNC:
23251706
UPC Code:
97758221528
Other Details
Can also be used at a lower rotational speed.
Due to their extreme impact resistance, they are an ideal option when an extended-shank bur is needed.
Innovative quick-mounting system guarantees convenient handling and cool grinding
Minimized tooth chipping/breakage, splintering, and bur failures due to very robust, high-performance cut.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
