![PFERD Carbide Bur SA-1 Cylindrical Uncut End STEEL Cut 1/4" x 5/8" x 1/4" Shank](/vendors/6924/large/21724038-rgb.png "PFERD Carbide Bur SA-1 Cylindrical Uncut End STEEL Cut 1/4" x 5/8" x 1/4" Shank")

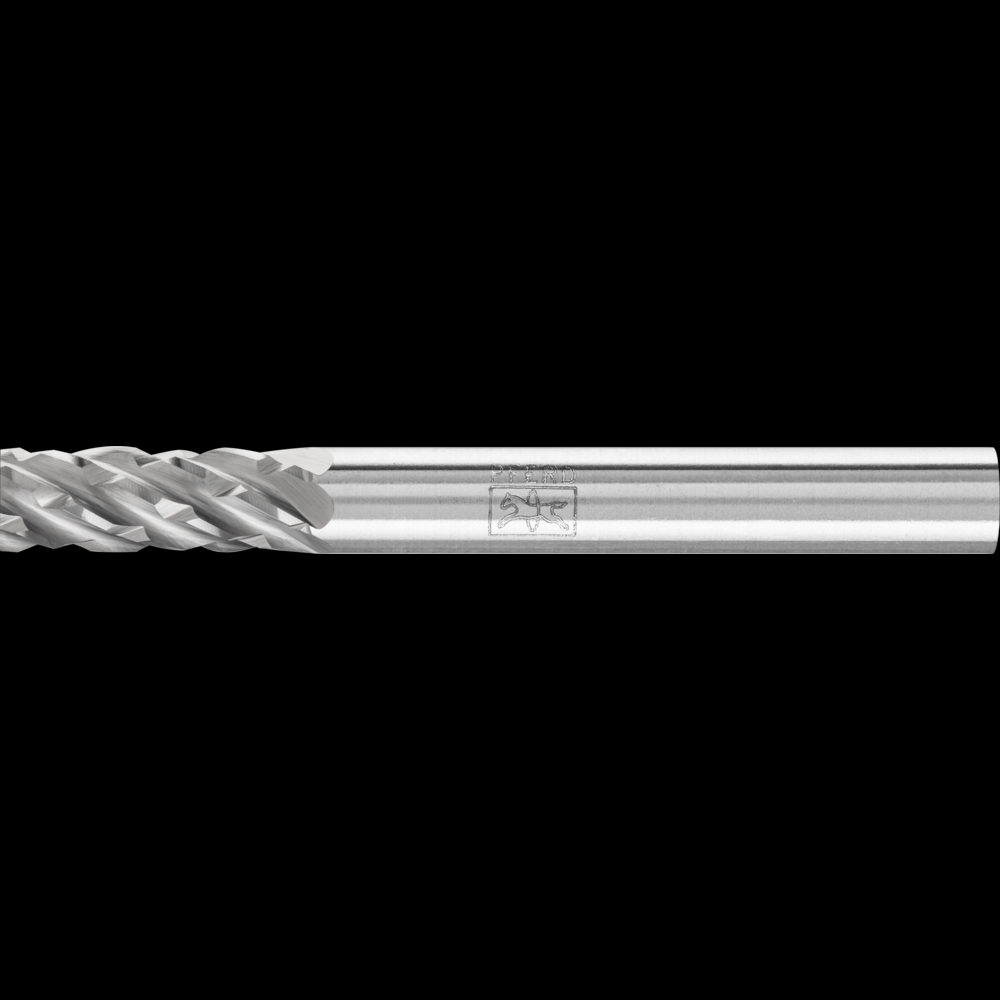

PFERD Carbide Bur SA-1 Cylindrical Uncut End STEEL Cut 1/4" x 5/8" x 1/4" Shank
Call For Price
- Part Number: 21724038
- UPC: 04007220017753
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

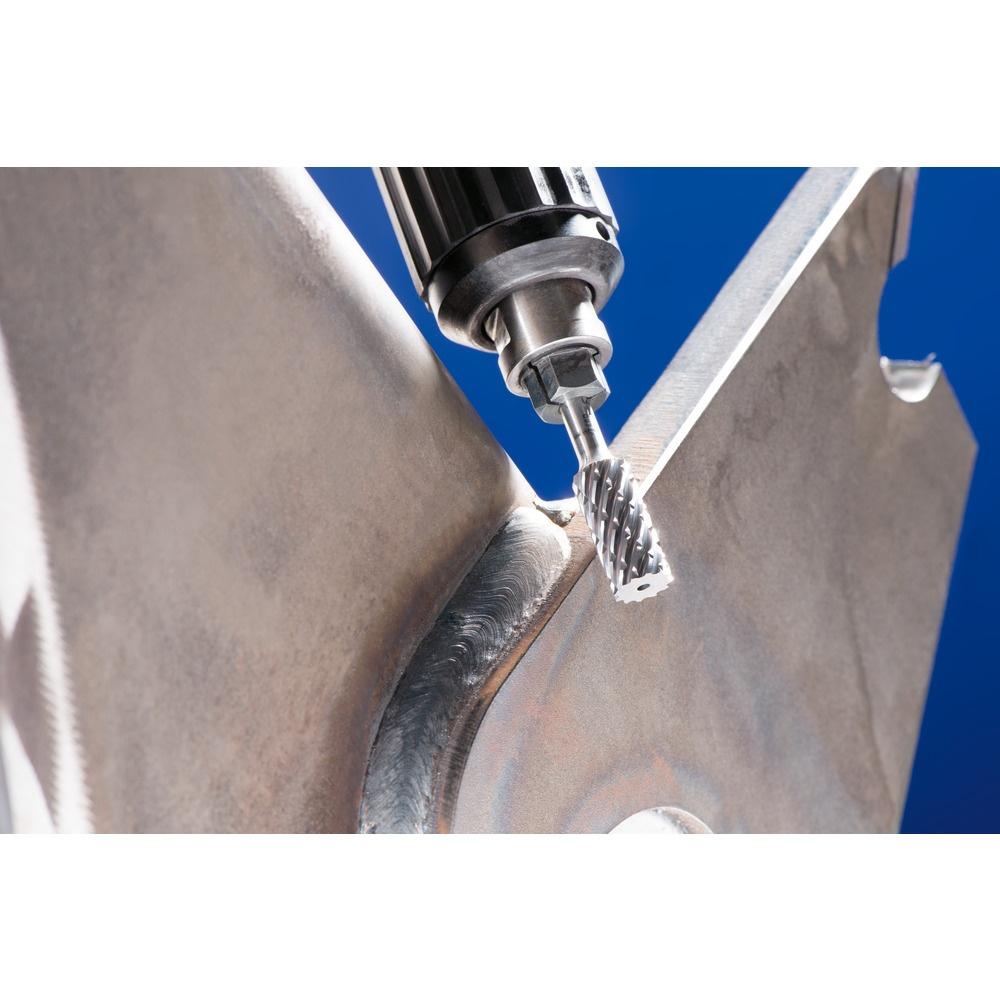

With the innovative STEEL cut, PFERD has developed unique burs for steel and cast steel. These burs feature significantly increased aggressiveness and easy control for safe and precise work. Due to their incredibly high stock removal rate, STEEL cut burs help users save considerable time and money. Cylindrical bur
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
Country of Origin:
DE
Customs Number:
8207703030
Cutting Depth, Max (In):
1.25
Diameter External (In):
2.75
Drive Types:
Column drill
Drive Types 1:
Power drill
EAN:
4007220017753
EDP:
24038
Item Length (inches):
1.94
Item Quantity:
1
Item Weight (kgs):
0.023
MANUFACTURER_TYPE_DESCR:
ZYA 6,35x15,9x6,35 STEEL
Materials that can be worked:
Case-hardened steels
Materials that can be worked 1:
Cast steel
Materials that can be worked 2:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 3:
Steel
Materials that can be worked 4:
Steel, cast steel
Materials that can be worked 5:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 6:
Steels over 220 HV (> 95 HB)
Materials that can be worked 7:
Steels up to 220 HV (< 95 HB)
Materials that can be worked 8:
Tool steels
Prop 65:
View
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Recommendations for use 2:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Safety notes:
Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.
UNSPNC:
23251706
UPC Code:
97758240383
Other Details
Significantly increased aggressiveness, creates large chips, and has very good chip removal due to its innovative tooth design.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Up to 50% higher stock removal rate on steel and cast steel in comparison to conventional double cut burs.
Workpieces are protected due to significantly lower thermal load.
