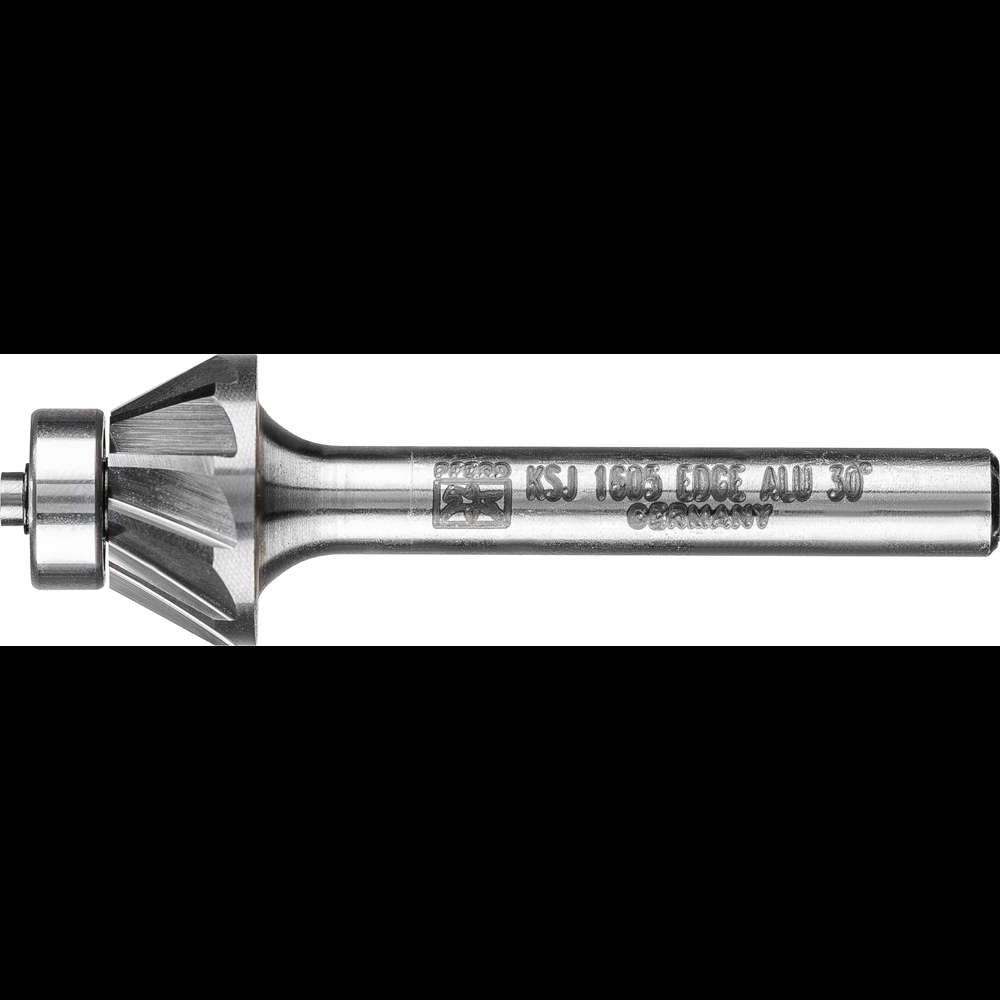

![PFERD Bearing Carbide Bur SJ-6 EDGE Cut 30° 5/8" x 3/16", 1/4](/vendors/6924/large/21725175-rgb.png "PFERD Bearing Carbide Bur SJ-6 EDGE Cut 30° 5/8" x 3/16", 1/4")
PFERD Bearing Carbide Bur SJ-6 EDGE Cut 30° 5/8" x 3/16", 1/4
Call For Price
- Part Number: 21725175
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
EDGE cut tungsten carbide burs have been specifically developed for precise work on edges. The special design allows the bur to run directly along edges without damaging the workpiece. Exact edges can be created in a single step - with either defined chamfers of 30° or 45°, or to a defined radius of 1/8". Rounding edges is a precautionary measure against corrosion according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198). Cone counterbore bur for producing precisely defined chamfers. Designed for counterboring and chamfering of defined 30° chamfer angles.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Chamfering
Applications 1:
Deburring
Applications 2:
Milling
Applications 3:
Rounding
Applications 4:
Working on edges
Applications 5:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Customs Number:
8207703030
Cut:
2
Diameter Shank:
7/64 Inch
Drive Types:
Manual filing tool
Drive Types 1:
Manual application
EDP:
25175
Item Length (inches):
2.25
Item Quantity:
1
Item Weight (kgs):
0.037
MANUFACTURER_TYPE_DESCR:
KSJ 1605/6,35 EDGE ALU 30°
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 2:
Copper
Materials that can be worked 3:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 4:
Hard aluminium alloys
Materials that can be worked 5:
Hard non-ferrous metal
Materials that can be worked 6:
Plastics
Materials that can be worked 7:
Soft aluminium alloys
Materials that can be worked 8:
Thermoplastics
Materials that can be worked 9:
Zinc
Prop 65:
View
Recommendations for use:
Use the burs counterrotationally for quick stock removal. For a fine surface finish, run the bur back over the edges in the same direction of rotation.
Recommendations for use 1:
If possible, use burs with the EDGE cut with the PFERD compressed-air straight grinder PG 3/210 with the matching guide sleeve EFH PG 3/210.
Recommendations for use 2:
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
Shape:
Hand
UNSPNC:
23251706
UPC Code:
97758251754
Other Details
Creates exact edge shapes in one single step.
Safe and comfortable to guide.
Special design allows for precise handling.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
