![PFERD Bearing Carbide Bur SJ-6 EDGE Cut 30° 5/8" x 3/16", 1/4" Shank](/vendors/6924/large/21725045-rgb.png "PFERD Bearing Carbide Bur SJ-6 EDGE Cut 30° 5/8" x 3/16", 1/4" Shank")

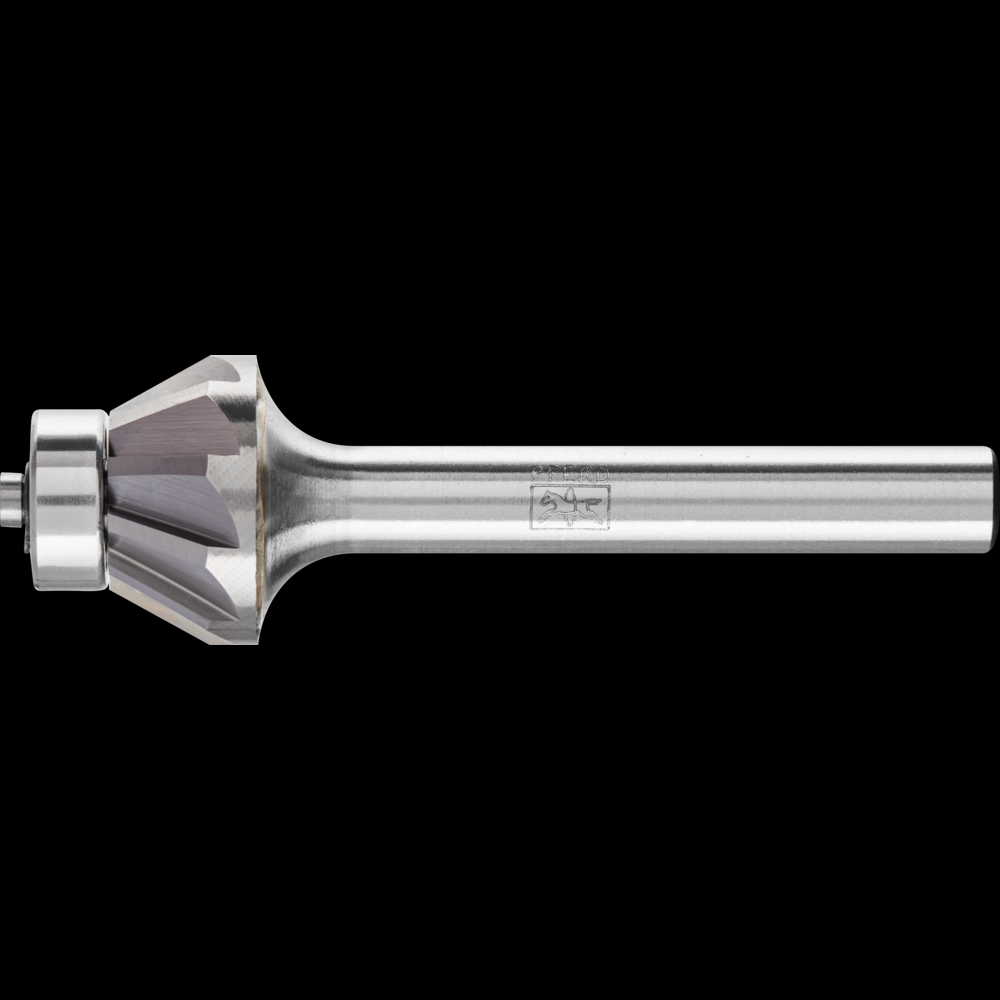

PFERD Bearing Carbide Bur SJ-6 EDGE Cut 30° 5/8" x 3/16", 1/4" Shank
Call For Price
- Part Number: 21725045
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
EDGE cut tungsten carbide burs have been specifically developed for precise work on edges. The special design allows the bur to run directly along edges without damaging the workpiece. Exact edges can be created in a single step - with either defined chamfers of 30° or 45°, or to a defined radius of 1/8". Rounding edges is a precautionary measure against corrosion according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198). Cone counterbore bur for producing precisely defined chamfers. Designed for counterboring and chamfering of defined 30° chamfer angles.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Chamfering
Applications 1:
Deburring
Applications 2:
Milling
Applications 3:
Working on edges
Applications 4:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Cut:
1
Cut Files Type:
Bastard
Drive Types:
Manual application
EDP:
25045
Item Length (inches):
2.25
Item Quantity:
1
Item Weight (kgs):
0.037
MANUFACTURER_TYPE_DESCR:
KSJ 1605/6,35 SP EDGE 30°
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Black annealed cast iron (GTS, GJMB)
Materials that can be worked 10:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 11:
Hard non-ferrous metal
Materials that can be worked 12:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 13:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 14:
Plastics
Materials that can be worked 15:
Steel
Materials that can be worked 16:
Steel, cast steel
Materials that can be worked 17:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 18:
Steels over 220 HV (> 95 HB)
Materials that can be worked 19:
Steels up to 220 HV (< 95 HB)
Materials that can be worked 2:
Brass
Materials that can be worked 20:
Thermoplastics
Materials that can be worked 21:
Titanium
Materials that can be worked 22:
Titanium alloys
Materials that can be worked 23:
Tool steels
Materials that can be worked 24:
White annealed cast iron (GTW, GJMW)
Materials that can be worked 3:
Bronze
Materials that can be worked 4:
Case-hardened steels
Materials that can be worked 5:
Cast iron
Materials that can be worked 6:
Cast steel
Materials that can be worked 7:
Cobalt-based alloys
Materials that can be worked 8:
Copper
Materials that can be worked 9:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Order Quanityt:
180
Prop 65:
View
Recommendations for use:
Use the burs counterrotationally for quick stock removal. For a fine surface finish, run the bur back over the edges in the same direction of rotation.
Recommendations for use 1:
If possible, use burs with the EDGE cut with the PFERD compressed-air straight grinder PG 3/210 with the matching guide sleeve EFH PG 3/210.
Recommendations for use 2:
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
UNSPNC:
23251706
UPC Code:
97758250450
Other Details
Creates exact edge shapes in one single step.
Safe and comfortable to guide.
Special design allows for precise handling.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
