![PFERD Bearing Carbide Bur 1/8" Radius EDGE Cut 1/8" Radius 5/8" x 1/8", 1/4" Sha](/vendors/6924/large/21725150-rgb.png "PFERD Bearing Carbide Bur 1/8" Radius EDGE Cut 1/8" Radius 5/8" x 1/8", 1/4" Sha")

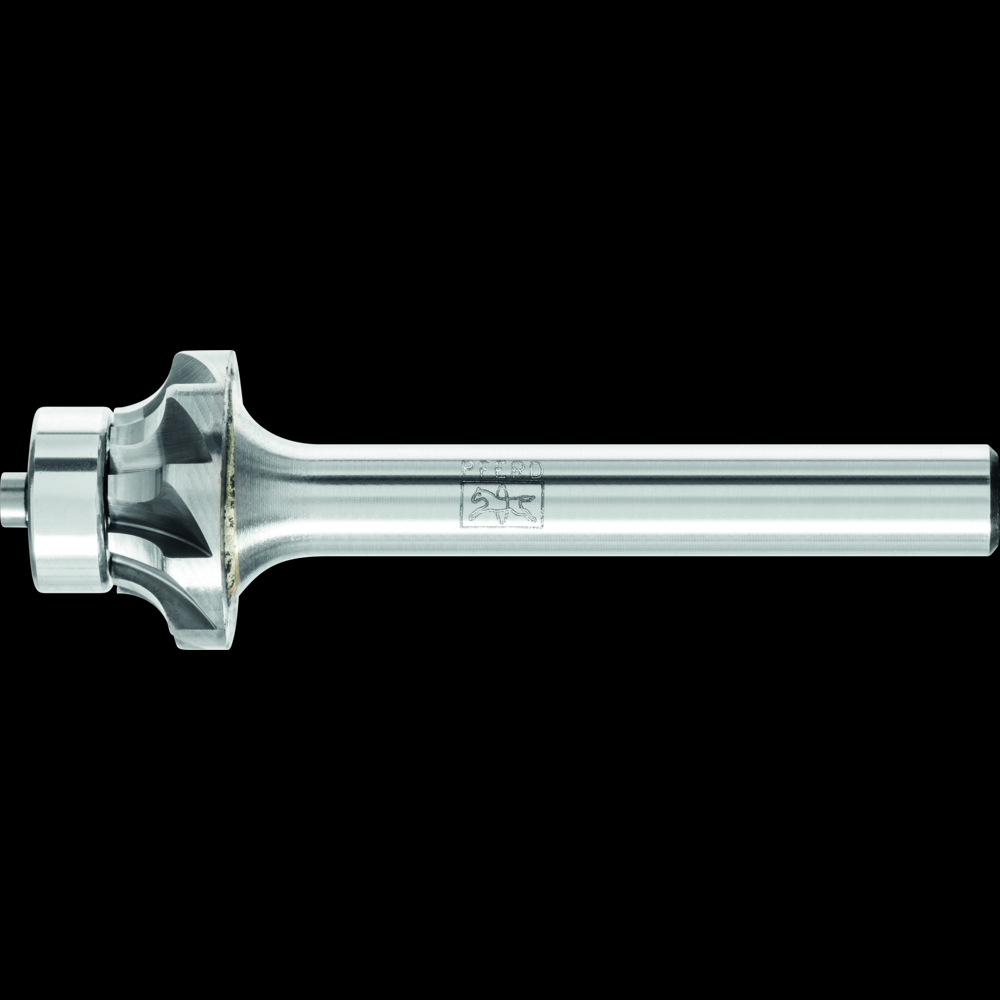

PFERD Bearing Carbide Bur 1/8" Radius EDGE Cut 1/8" Radius 5/8" x 1/8", 1/4" Sha
Call For Price
- Part Number: 21725150
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
EDGE cut tungsten carbide burs have been specifically developed for precise work on edges. The special design allows the bur to run directly along edges without damaging the workpiece. Exact edges can be created in a single step - with either defined chamfers of 30° or 45°, or to a defined radius of 1/8". Rounding edges is a precautionary measure against corrosion according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198). Concave radius bur for producing precise rounded edges. Cannot be re-sharpened. Designed for producing and finishing edges with an 1/8" outer radius.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Finishing Supplies
Industrial Subtype:
Carbide Burs
Applications:
Chamfering
Applications 1:
Deburring
Applications 2:
Milling
Applications 3:
Rounding
Applications 4:
Working on edges
Applications 5:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Customs Number:
8207703030
Drive Types:
Manual application
EDP:
25150
Item Length (inches):
2.00
Item Quantity:
1
Item Weight (kgs):
0.031
MANUFACTURER_TYPE_DESCR:
V 1612/6,35 SP EDGE R3,0
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Black annealed cast iron (GTS, GJMB)
Materials that can be worked 10:
Titanium
Materials that can be worked 11:
Titanium alloys
Materials that can be worked 12:
Tool steels
Materials that can be worked 13:
White annealed cast iron (GTW, GJMW)
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Cast iron
Materials that can be worked 4:
Cast steel
Materials that can be worked 5:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 6:
Hard non-ferrous metal
Materials that can be worked 7:
Steel
Materials that can be worked 8:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 9:
Steels up to 220 HV (< 95 HB)
Prop 65:
View
Recommendations for use:
Use the burs counterrotationally for quick stock removal. For a fine surface finish, run the bur back over the edges in the same direction of rotation.
Recommendations for use 1:
If possible, use burs with the EDGE cut with the PFERD compressed-air straight grinder PG 3/210 with the matching guide sleeve EFH PG 3/210.
Recommendations for use 2:
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
Suitable For Length:
5 1/2, 6 1/4, 7 Inch
UNSPNC:
23251706
UPC Code:
97758251501
Other Details
Creates exact edge shapes in one single step.
Safe and comfortable to guide.
Special design allows for precise handling.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
