![PFERD Banded Crimped Wire End Brush 1" Dia. .010 Stainless Steel 1/4" Shank](/vendors/6924/large/79183032-rgb.png "PFERD Banded Crimped Wire End Brush 1" Dia. .010 Stainless Steel 1/4" Shank")

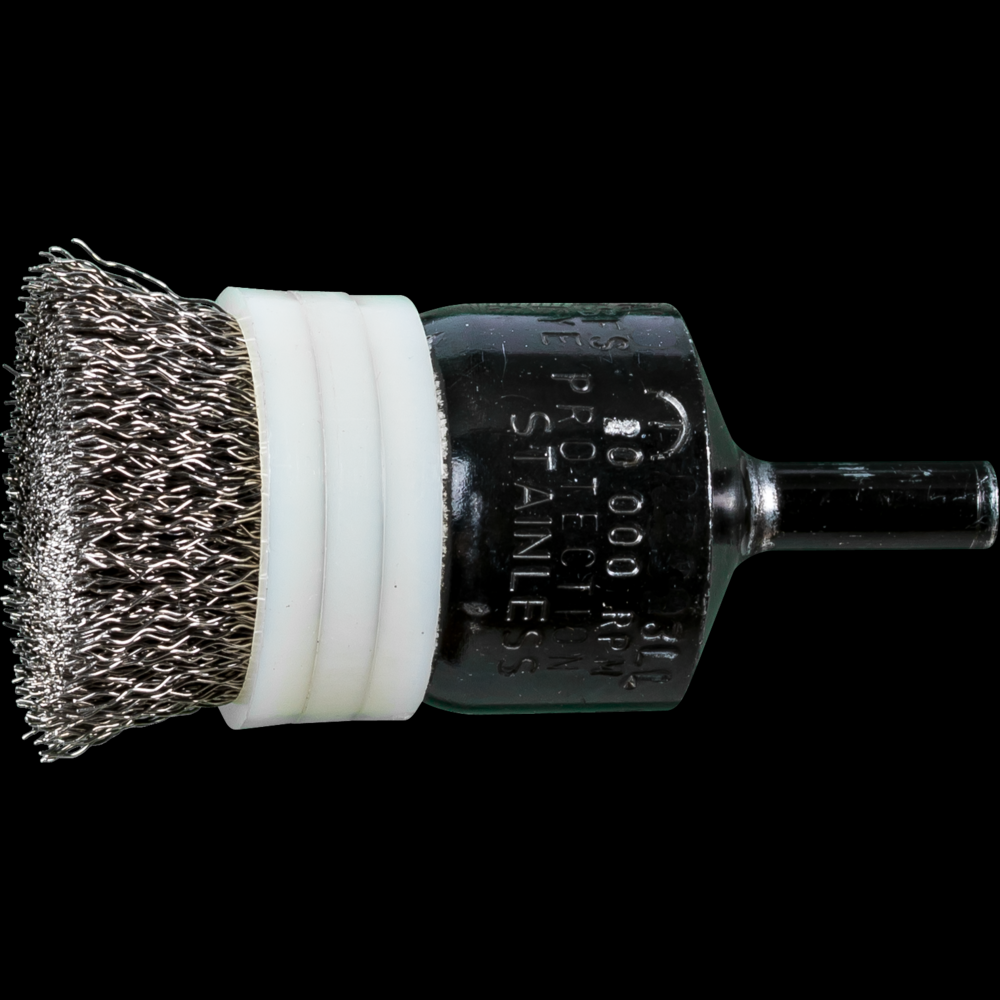

PFERD Banded Crimped Wire End Brush 1" Dia. .010 Stainless Steel 1/4" Shank
Call For Price
- Part Number: 79183032
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Designed for light brushing such as deburring, cleaning and derusting. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
End Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Derusting
Applications 3:
Removing heat discolouration
Applications 4:
Removing oxide layers
Applications 5:
Paint stripping
Applications 6:
Roughening
Country of Origin:
US
Diameter Cup (In):
1.13
Diameter External (In):
1.00
Diameter Filament Material (In):
0.01
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Power drill
Drive Types 2:
Straight grinder
EDP:
83032
Filament Material:
Stainless steel wire (INOX)
Filament To Ring Length:
0.50
Grit Size:
No information
Item Quantity:
10
Item Weight (kgs):
0.098
MANUFACTURER_TYPE_DESCR:
1" BANDED CRIMPED END BR .010SS
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Titanium
Materials that can be worked 11:
Titanium alloys
Materials that can be worked 2:
Cobalt-based alloys
Materials that can be worked 3:
Hard non-ferrous metal
Materials that can be worked 4:
High-temperature-resistant materials
Materials that can be worked 5:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 6:
Nickel or titanium-based superalloys
Materials that can be worked 7:
Other non-ferrous metals
Materials that can be worked 8:
Soft titanium alloys (tensile strength 500 N/mm²)
Materials that can be worked 9:
Stainless steel (INOX)
Mounting System:
Shank
Optimum RPM:
6000 - 10000 RPM
Order Quanityt:
60
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
For best performance, use a power tool with a minimum output of 300 watts.
Recommendations for use 2:
Remove the bridle once the filament is worn down. Then the rest of the filament can be used.
Recommendations for use 3:
Remove the bridle before starting work if you would like to ensure particularly flexible working, achieve a large spreading diameter or access hard-to-reach areas.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
1.00
UNSPNC:
27111907
Other Details
Creates fine surfaces.
If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behaviour.
Optimal access to hard-to-reach areas such as recesses and drilled holes.
The bridle enables the spreading out and flexibility of the brush filament to be strictly controlled.
The bridle prevents the wires spreading out sideways.
The brush is degreased and does not leave any oil residue on the workpiece.
Very corrosion-resistant.
