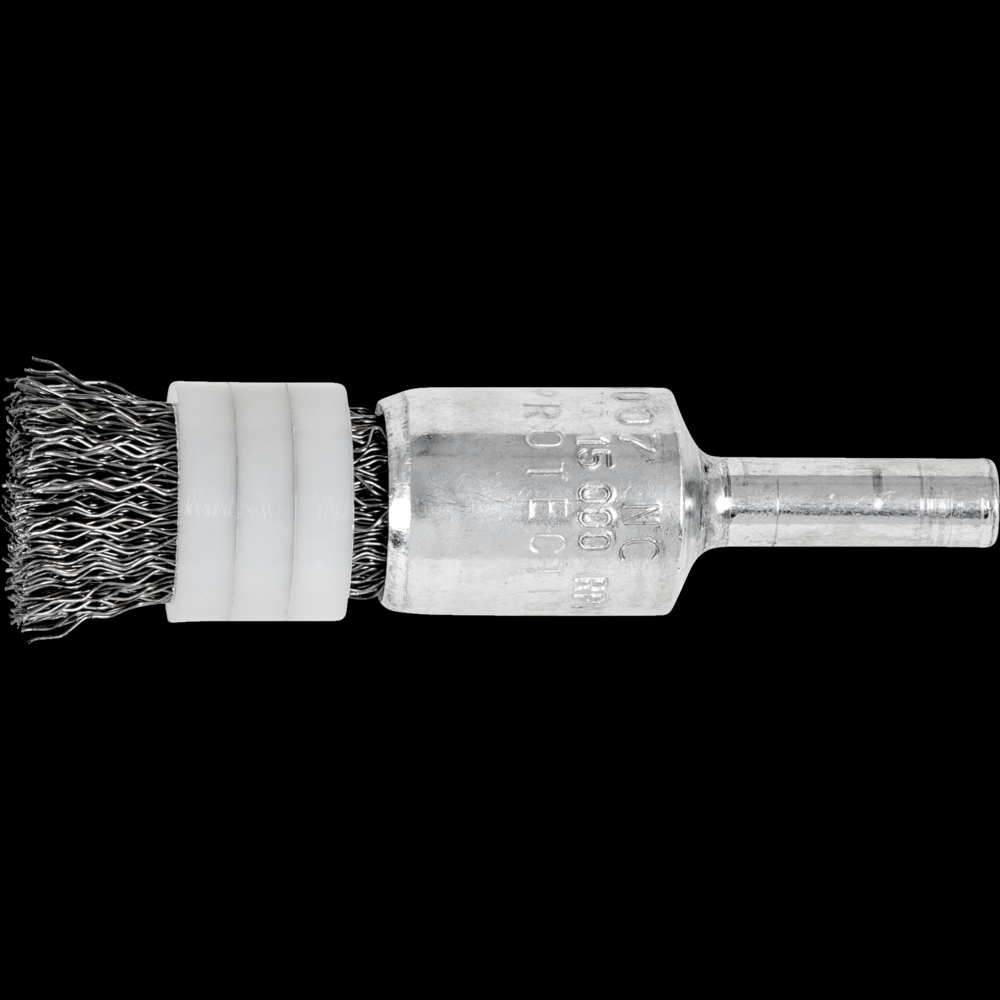

PFERD Banded Crimped Wire End Brush 1/2" Dia. .010 Carbon Steel 1/4" Shank
Call For Price
- Part Number: 79183007
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Designed for light brushing such as deburring, cleaning and derusting. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
End Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Derusting
Applications 3:
Removing oxide layers
Applications 4:
Paint stripping
Applications 5:
Roughening
Country of Origin:
US
Diameter Cup (In):
0.63
Diameter External (In):
0.50
Diameter Filament Material (In):
0.01
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Power drill
Drive Types 2:
Straight grinder
EDP:
83007
Filament Material:
Steel wire (ST)
Filament To Ring Length:
0.50
Grit Size:
No information
Item Quantity:
10
Item Weight (kgs):
0.049
MANUFACTURER_TYPE_DESCR:
1/2" BANDED CRIMPED END BR .010CS
Materials that can be worked:
Cast iron
Materials that can be worked 1:
Cast steel
Materials that can be worked 2:
Thermosetting plastics
Materials that can be worked 3:
Elastomers
Materials that can be worked 4:
Steel, cast steel
Materials that can be worked 5:
Steel materials with a hardness > 54 HRC
Materials that can be worked 6:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 7:
Thermoplastics
Materials that can be worked 8:
Wood
Mounting System:
Shank
Optimum RPM:
7500 - 11200 RPM
Order Quanityt:
20
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
For best performance, use a power tool with a minimum output of 300 watts.
Recommendations for use 2:
Remove the bridle once the filament is worn down. Then the rest of the filament can be used.
Recommendations for use 3:
Remove the bridle before starting work if you would like to ensure particularly flexible working, achieve a large spreading diameter or access hard-to-reach areas.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
1.00
UNSPNC:
27111907
Other Details
Creates fine surfaces.
If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behaviour.
Long service life through use of PFERD special wire.
Optimal access to hard-to-reach areas such as recesses and drilled holes.
The bridle enables the spreading out and flexibility of the brush filament to be strictly controlled.
The bridle prevents the wires spreading out sideways.
