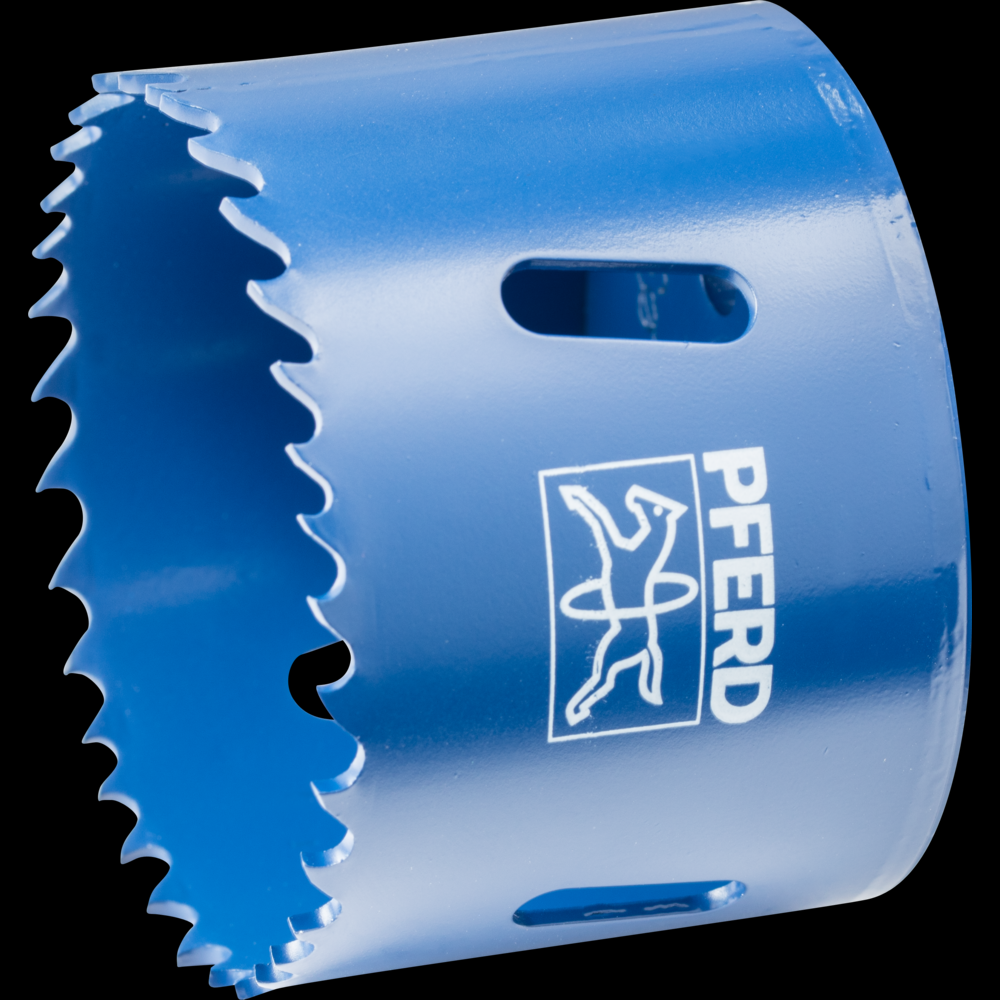

![PFERD 2-5/16" Bi-Metal Hole Saw](/vendors/6924/large/ls-59-59-mm-2-5-16-rgb.png "PFERD 2-5/16" Bi-Metal Hole Saw")
PFERD 2-5/16" Bi-Metal Hole Saw
Call For Price
- Part Number: 25101859
- UPC: 04007220319178
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Hole saws are made from tough, shatter-proof, sturdy HSS bi-metal. The saw teeth are made from high-quality M42 material. They are used for cutting out holes. The arbor with a 5/18-18 thread is part number 29034.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Drilling Accessories
Industrial Subtype:
Hole Saws and Cutters
Applications:
Cutting out holes
Applications 1:
Drilling
Country of Origin:
DE
Customs Number:
8207903085
Cut:
TOUGH
Diameter Shank:
1/4 Inch
EAN:
4007220319178
EDP:
29126
Item Quantity:
1
Item Weight (kgs):
0.175
MANUFACTURER_TYPE_DESCR:
LS 59 59 mm 2 5/16
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Soft non-ferrous metal
Materials that can be worked 11:
Soft wood
Materials that can be worked 12:
Stainless steel (INOX)
Materials that can be worked 13:
Steel
Materials that can be worked 14:
Steel, cast steel
Materials that can be worked 15:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 16:
Steels up to 220 HV (< 95 HB)
Materials that can be worked 17:
Tough aluminium alloys
Materials that can be worked 18:
Wood
Materials that can be worked 19:
Zinc
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Chipboard
Materials that can be worked 4:
Copper
Materials that can be worked 5:
Hard non-ferrous metal
Materials that can be worked 6:
Hardwood
Materials that can be worked 7:
Other non-ferrous metals
Materials that can be worked 8:
Plastics
Materials that can be worked 9:
Soft aluminium alloys
Order Quanityt:
160
Prop 65:
View
Recommendations for use:
Observe the recommended rotational speed.
Recommendations for use 1:
Clamp the pilot drill in the hole saw arbor and make sure that it projects at least 1/8" over the teeth of the hole saw.
Recommendations for use 2:
When cutting metals, use a high-quality cutting oil, if possible. This facilitates smooth running and extends the hole saw service life. Exception: when working on aluminum, use kerosene instead of cutting oil.
Recommendations for use 3:
Bi-metal hole saws are suitable for work on stainless steel (INOX). In order to avoid corrosion, remove any particles that develop from the workpiece during work. Clean the workpiece chemically or mechanically (etching/polishing, etc.).
Recommendations for use 4:
Make sure that all the teeth are applied evenly. To prevent tooth breakage, avoid swinging movements during sawing.
Recommendations for use 5:
Avoid overheating the saw.
Recommendations for use 6:
Observe the maximum cutting depth.
Safety notes:
When using shank extensions, the recommended hole saw rotational speed must not be exceeded in order to prevent accidents.
UNSPNC:
27112826
UPC Code:
97758291262
Other Details
Alternating tooth pitch prevents chattering during sawing.
Cost-effective sawing of round cut-outs.
Good chip removal.
High concentricity.
Hole saw arbor comes with an ejection spring for improved ejection of the cut material.
The hole saw is conveniently centred and guided via the replaceable bi-metal pilot drill.
