![18V Brushless 3/8" Angle Wrench 20-40 Nm, Tool Only](/vendors/4753/large/DFL404FZ_large.jpg "18V Brushless 3/8" Angle Wrench 20-40 Nm, Tool Only")

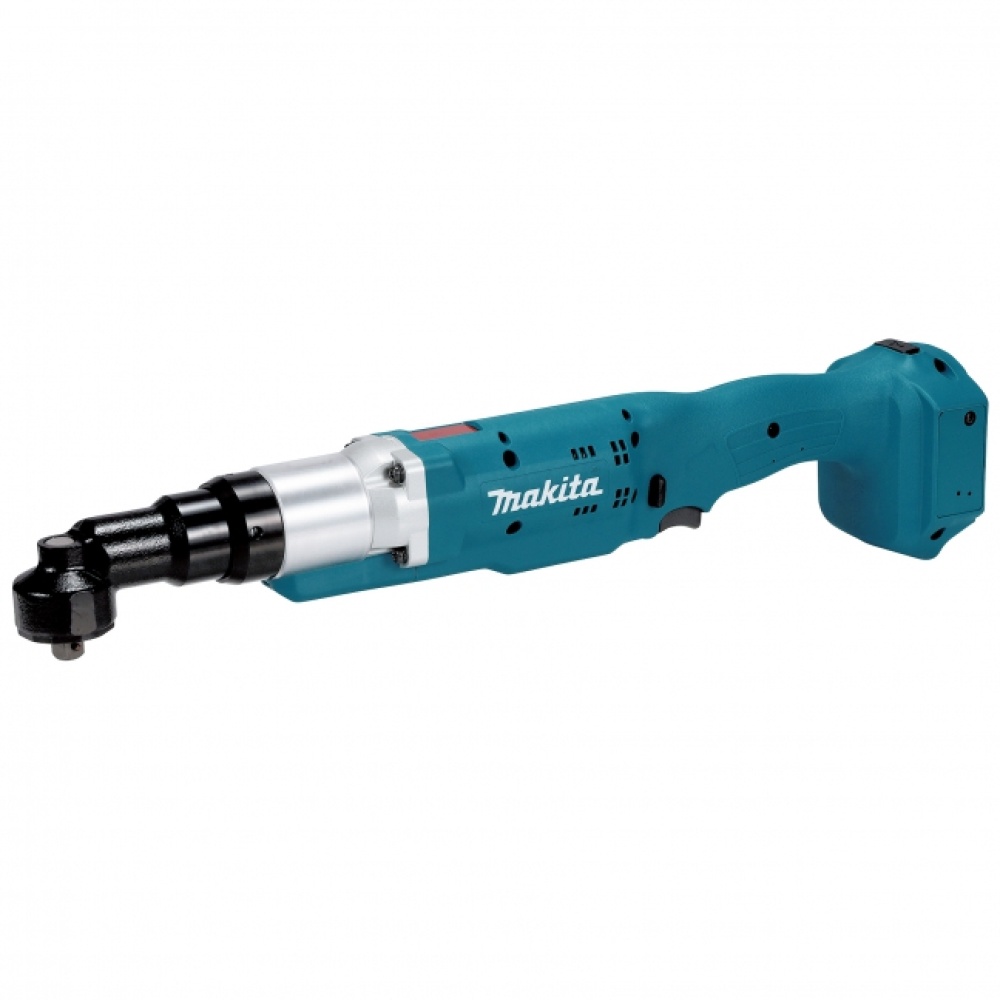

18V Brushless 3/8" Angle Wrench 20-40 Nm, Tool Only
Call For Price
- Part Number: DFL404FZ
- UPC: 00197050003881
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Fastening Tools and Accessories
Industrial Subtype:
Nutsetters
Cordless Impact Wrenches
Power Saw Blades
Battery Capacities:
18V Li-Ion
Country of Origin:
JP
Fastening torque:
20 - 40 Nm.(177 - 354 in./lbs)
Height (with battery):
3-3/4'' (95 mm)
Inside Edge:
16-3/4'' (426 mm)
Item Height inches:
3.6
Item Length inches:
20
Item Weight lbs:
3.8
Item Width inches:
4.5
Shipping Weight (lbs):
4.23
Tariff Code:
8467.29.00.20
Type:
Cordless
Other Details
18V cordless 3/8" angle wrench powered by an 18V LXT Li-Ion battery and developed for fastening tasks in assembly lines.

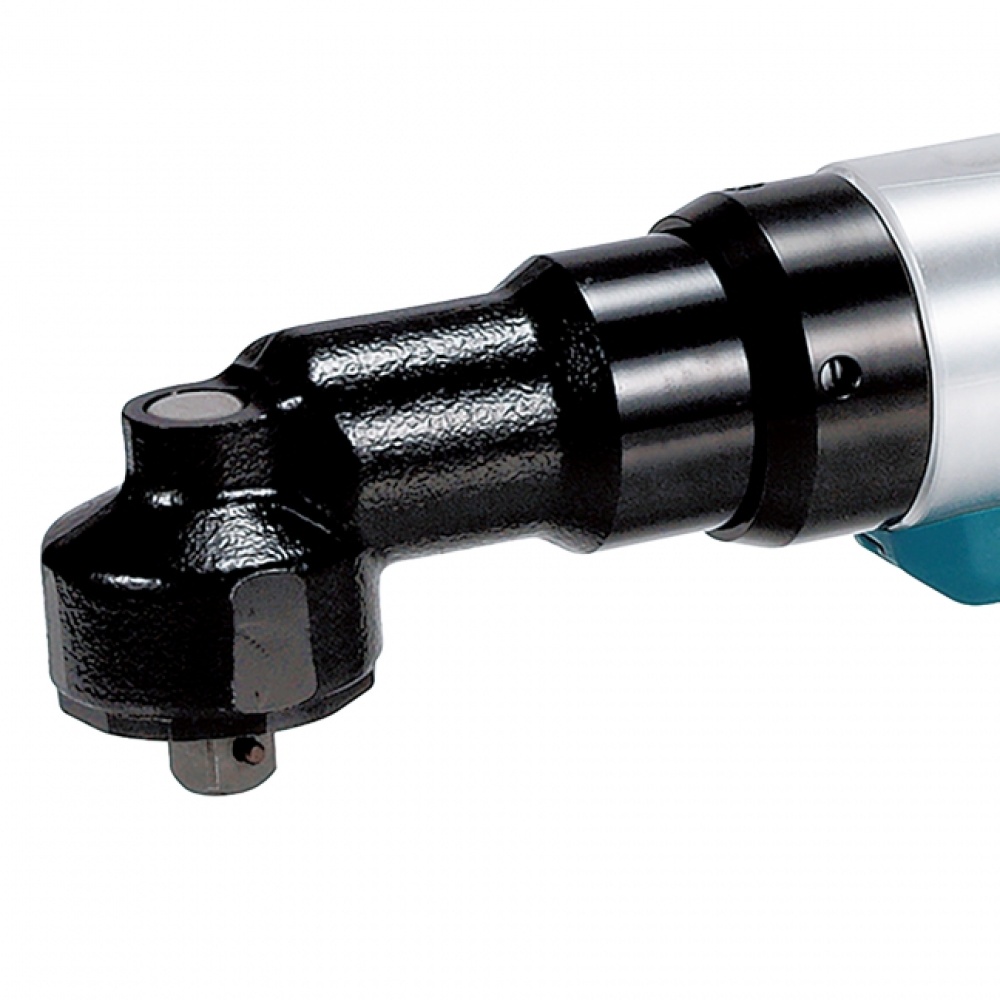

3/8" (9.5mm) square drive

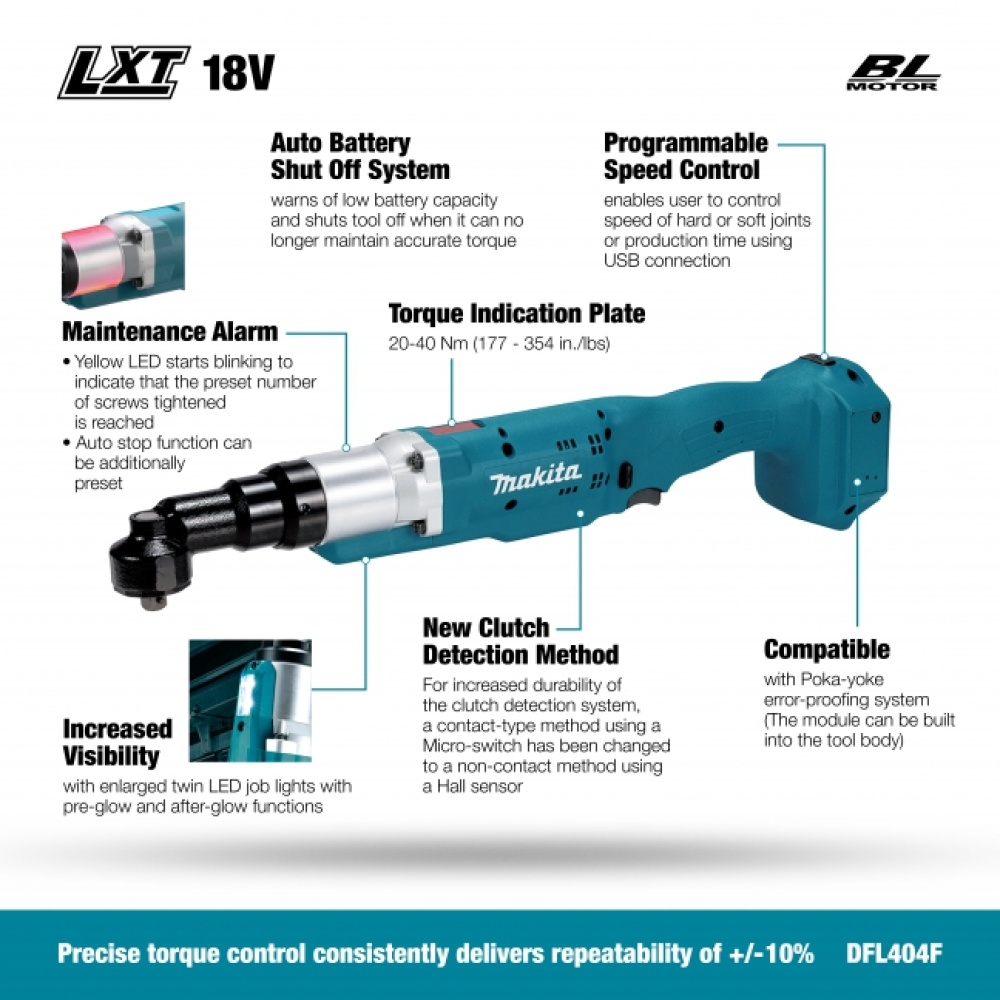

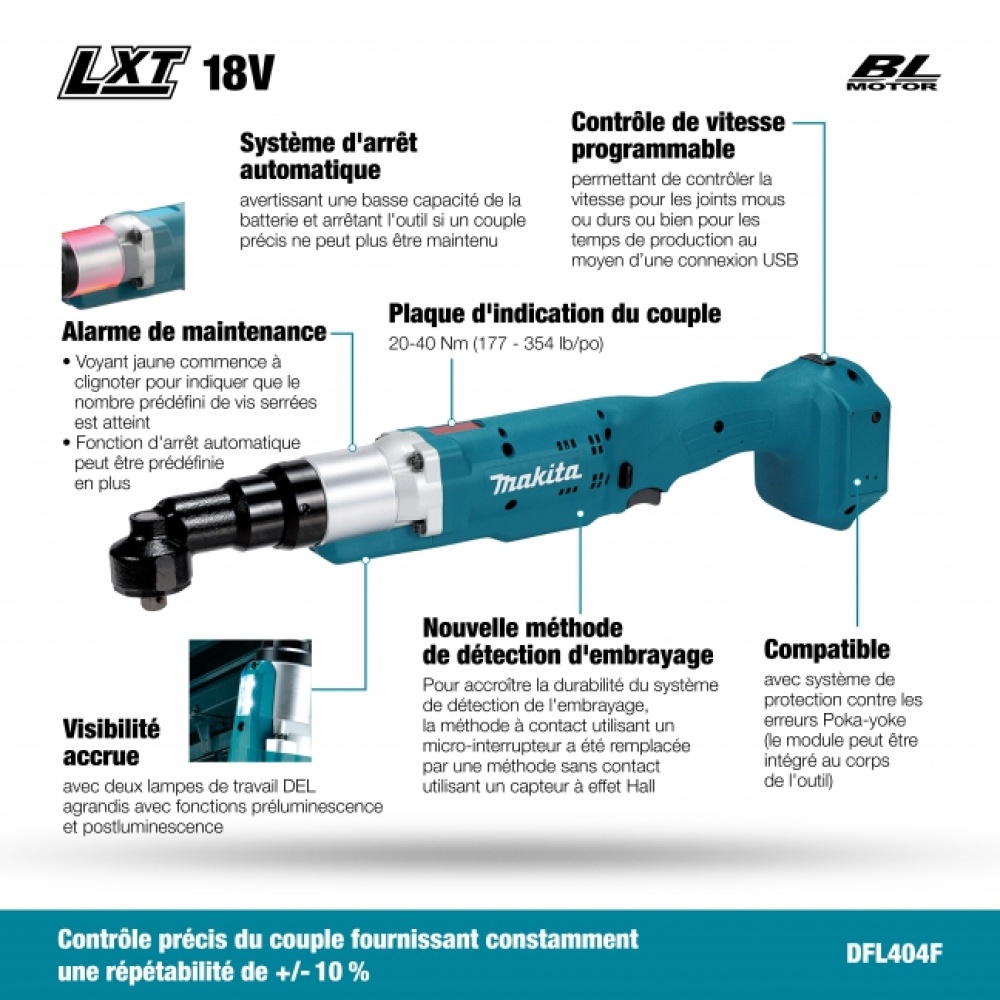

Auto battery shut off system warns of low battery capacity and shuts tool off when it can no longer maintain accurate torque
Auto-stop system: Indication lamp and beeper warn assembly worker visually and audibly of battery power reduction. If battery power reduces further, the motor automatically stops to minimize incomplete fastening.
Compatible with application software Ver. 3.0.1 to make settings for the tool.
Compatible with Poka-yoke (error-proofing) system (The module can be built into the tool body.)
Designed to meet homologation requirements: Torque accuracy value: 10%, 3?, Cm?1.67 obtained from internal testing performed in accordance with VDI/VDE2647.
Maneuverability has been improved by the compact design and by revising the mechanical parts of the previous DFL403F series, resulting in a shortened overall length.
Precise torque control consistently delivers repeatability of +/- 10%
Programmable speed control enables user to control speed of hard or soft joints or production time using USB connection
Takt time has been reduced by increasing the maximum rotation speed.
The durability has been improved by switching the clutch detection from a contact-type using a microswitch to a non-contact type using a Hall sensor.
The LED blinks when it is time to carry out maintenance.
The visibility for the operator has been improved by positioning the indicator lamp in a ring shape at the tip of the tool and enlarging the lamp.
The working area has been expanded with an increased range of the rotation speed and tightening torque from previous model DFL403F.
Twin LED job light with preglow and afterglow functions works when trigger is pulled for low light conditions.
