![9" Crimping Pliers - Four-Mandrel For DT Contacts](/vendors/8243/large/975267DT-00-1.jpg "9" Crimping Pliers - Four-Mandrel For DT Contacts")

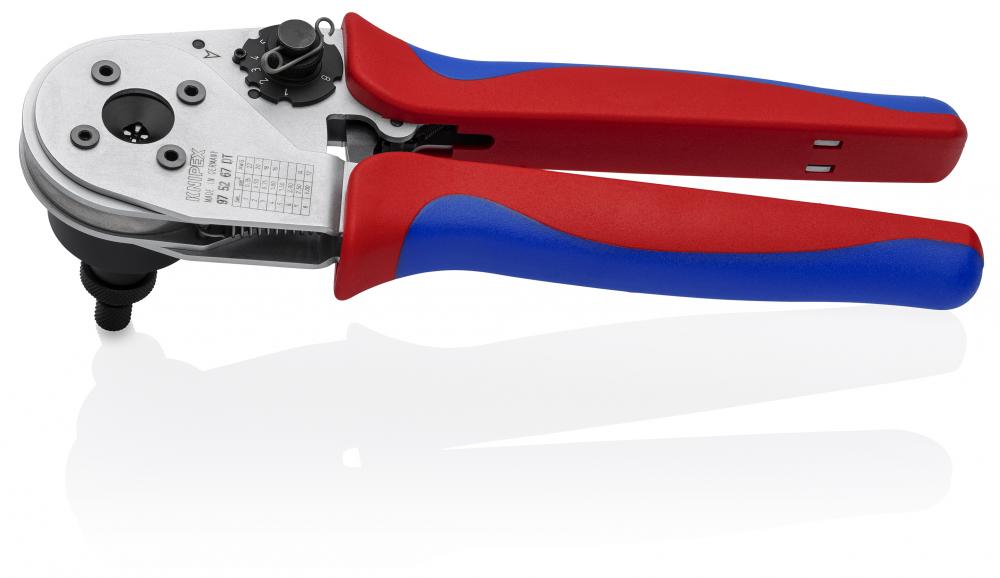

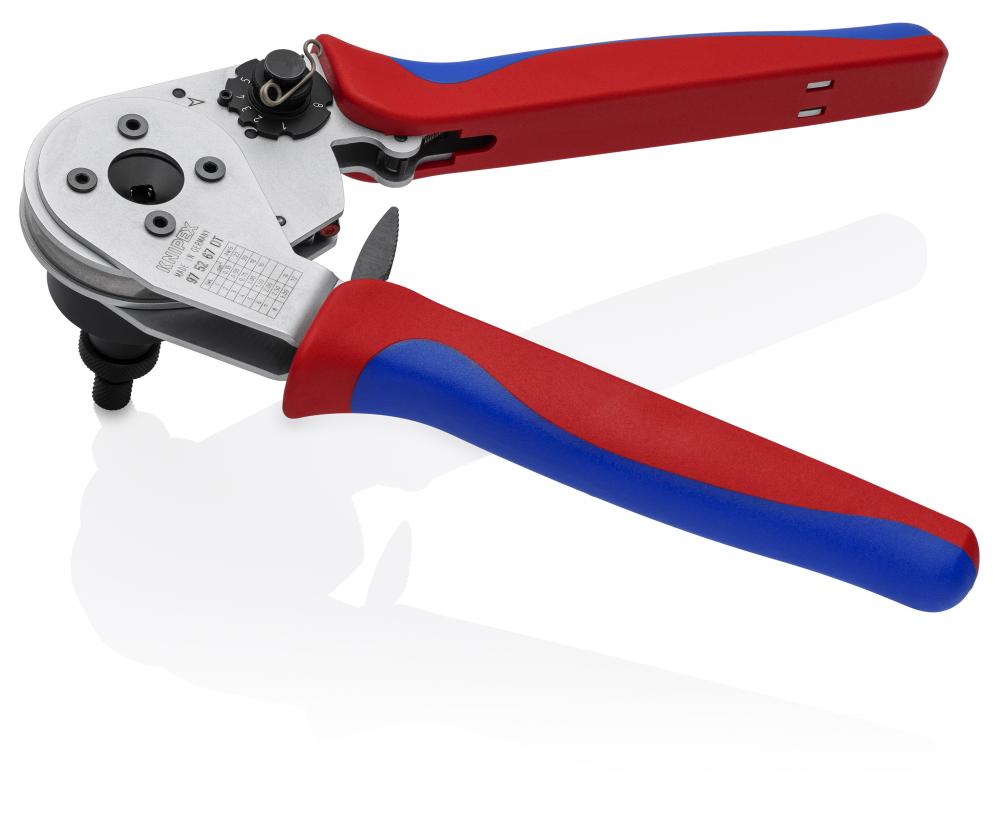

9" Crimping Pliers - Four-Mandrel For DT Contacts
Call For Price
- Part Number: 97 52 67 DT
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Crimping Tools
Industrial Subtype:
Cable and Wire Crimping Tools
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Chemical:
Lead
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Crimping Capacity - AWG:
22 to 12
Crimping Capacity - mm2:
0.35 to 3.0
Crimping Profile:
Four-Mandrel crimp
ECCN:
EAR99
ESD Indicator:
No
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6030
Item Length (inches):
9
Item Weight (lbs):
1.80
Material Type:
Chrome vanadium electric steel, oil-hardened
Prop 65 Conflict:
View
Prop 65 Language Indicator:
View
Prop 65 Warning English:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Spring Loaded:
Yes
Terminal Type:
DT, DTM, DTP
Unit Of Measure:
Each
UNSPSC:
27112147
UOM Qty:
1
UPC Code:
843221029364
Other Details
Comfortable multi-component grips

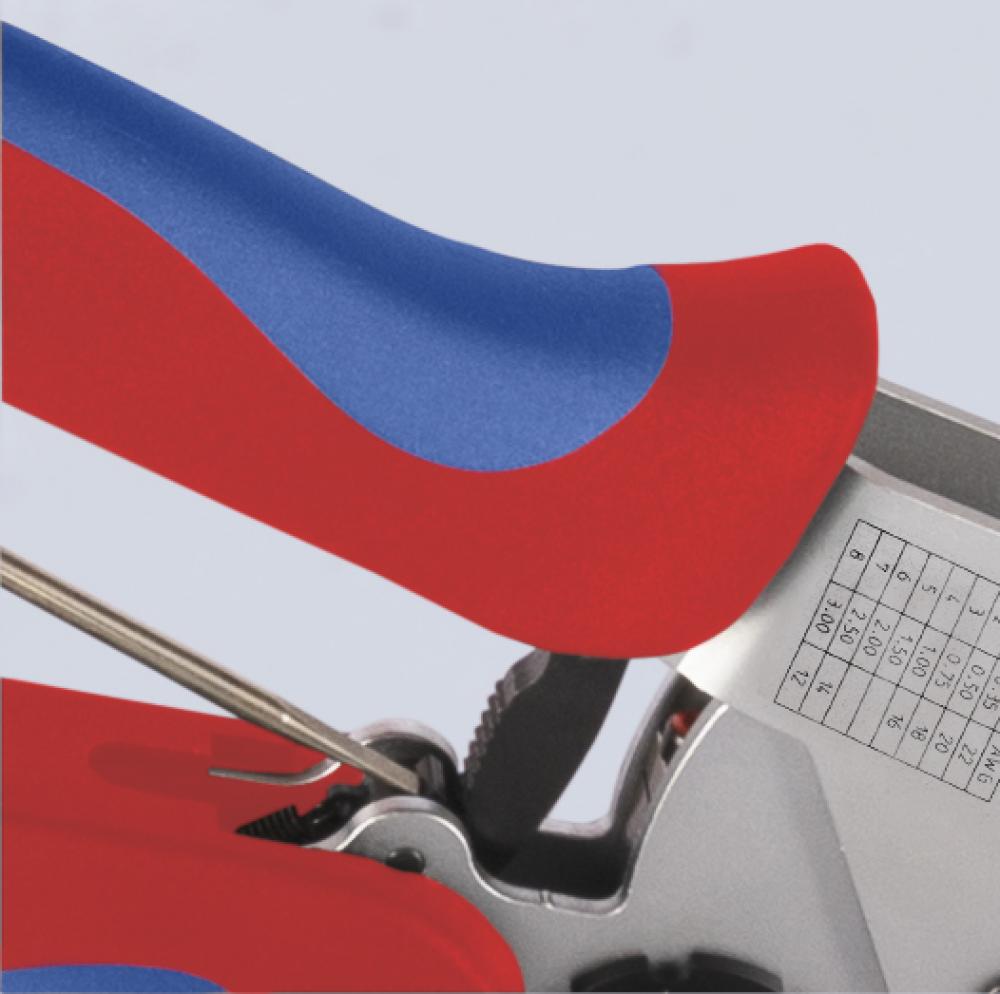

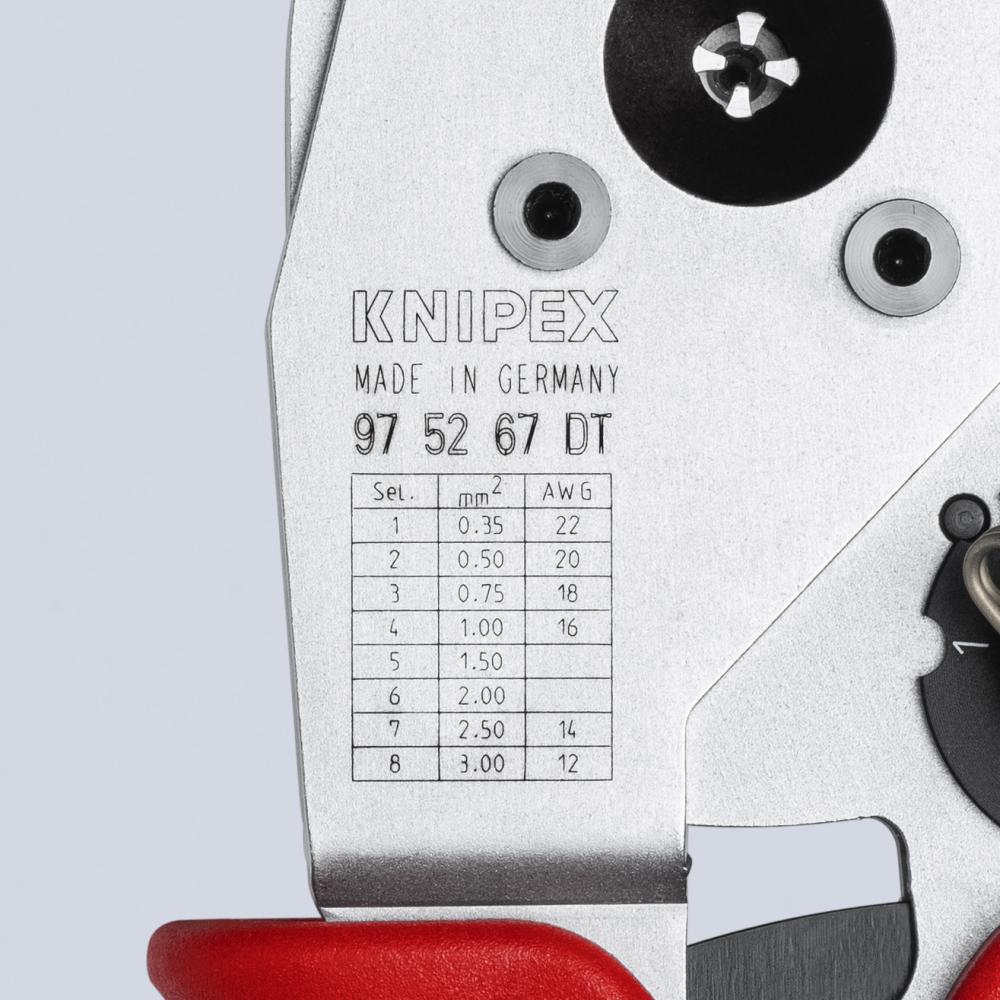

Crimp depth selector wheel with eight locking positions for the perfect crimp
Crimping capacity from 22-12 AWG (0.35 mm²-3.0 mm²)

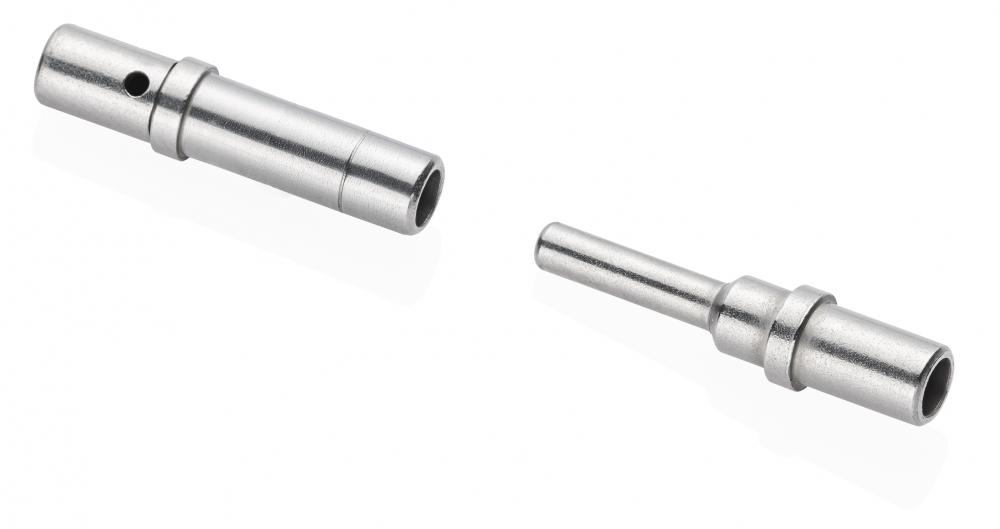

Crimps all turned male and female contacts of the DT, DTM and DTP series (DEUTSCH series)

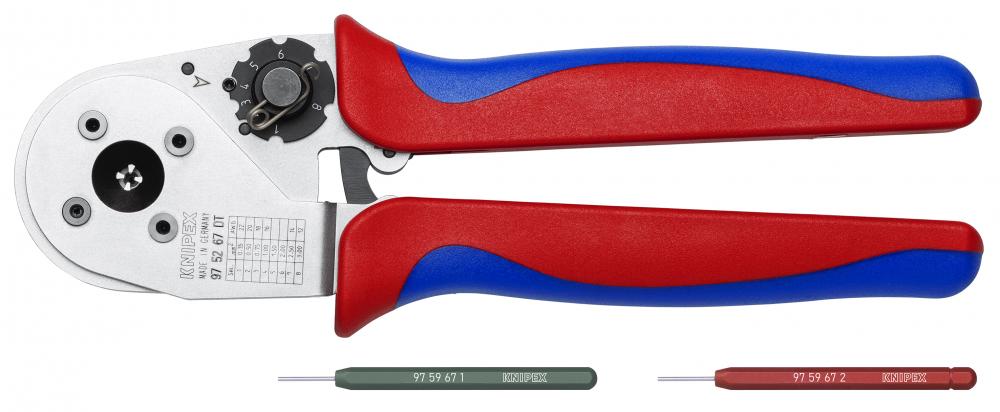

Go/No-Go gauges allow quick quality calibration control at any time. Go gauge must fit, No-Go gauge must not fit. Gauges (97 59 67 1 and 97 59 67 2) are sold separately
Low manual force required due to lever transmission
Position settings for the crimp depth can be clearly read on the pliers
Repetitive, high crimping quality due to ratchet mechanism (unlockable)

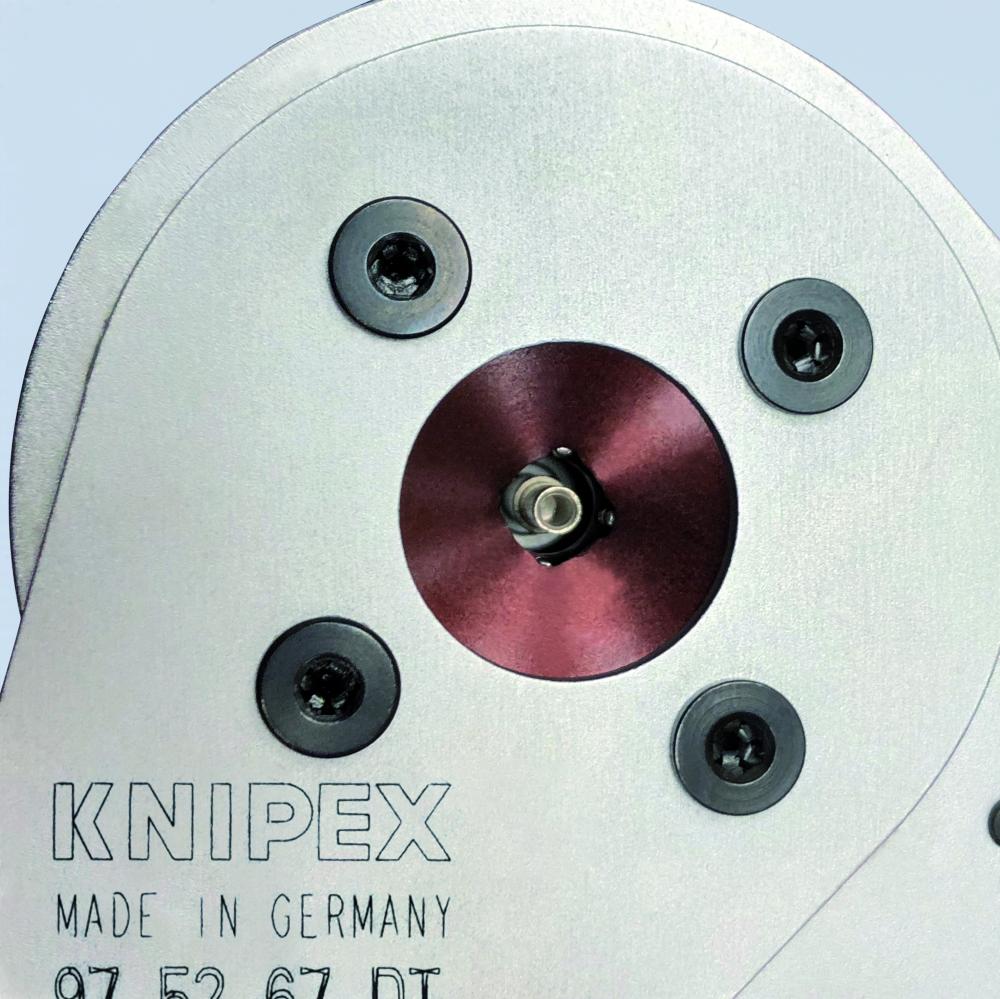

Synchronous feed of the four mandrels achieves optimum crimping results with eight indentations (4/8-Indent)

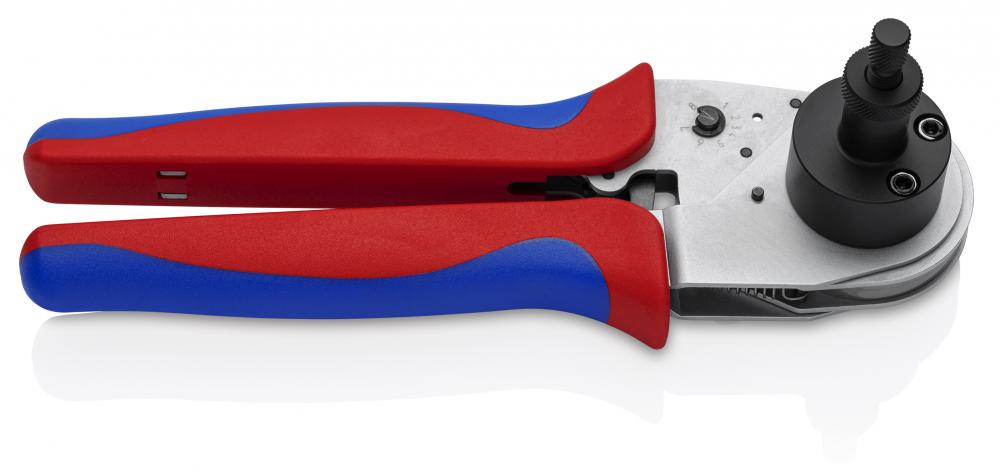

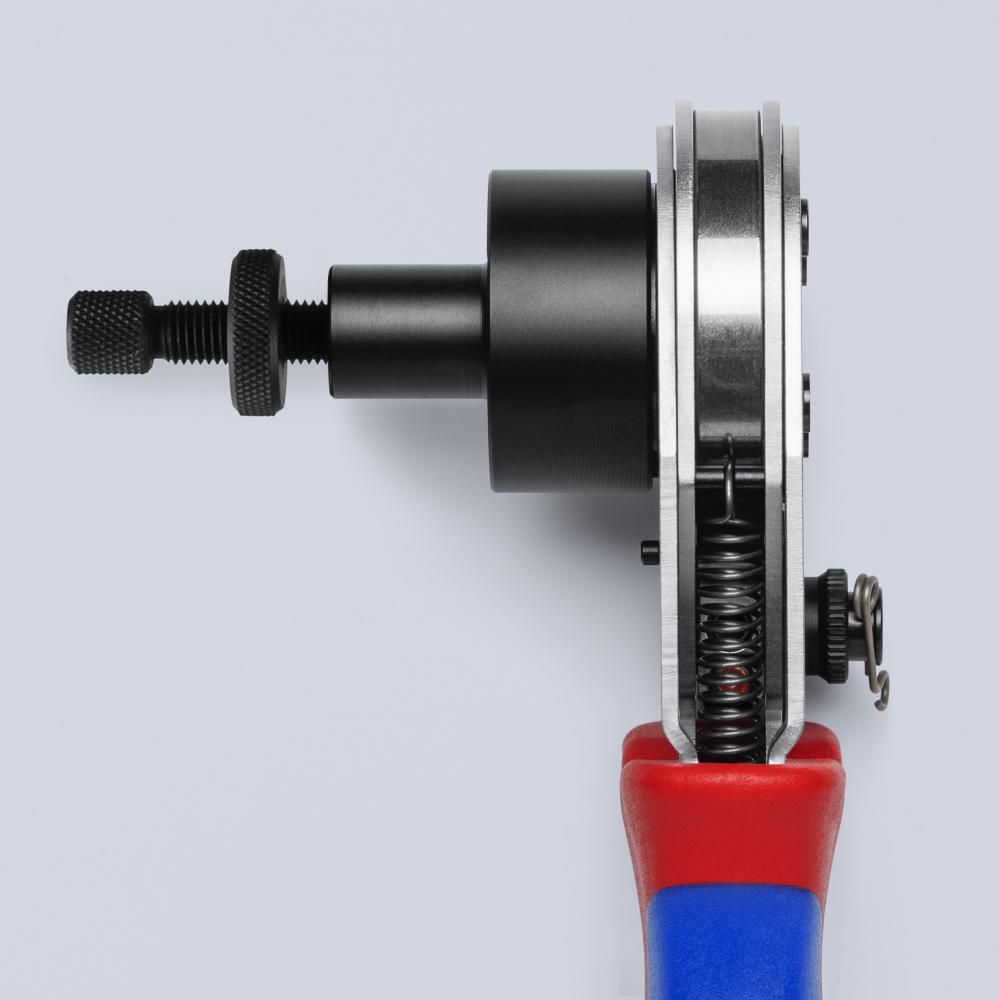

Universal positioning locator for flexible adjustment to all contact lengths
