![9 1/2" High Leverage Lineman's Pliers New England Head](/vendors/8243/large/0902240-02-3.jpg "9 1/2" High Leverage Lineman's Pliers New England Head")

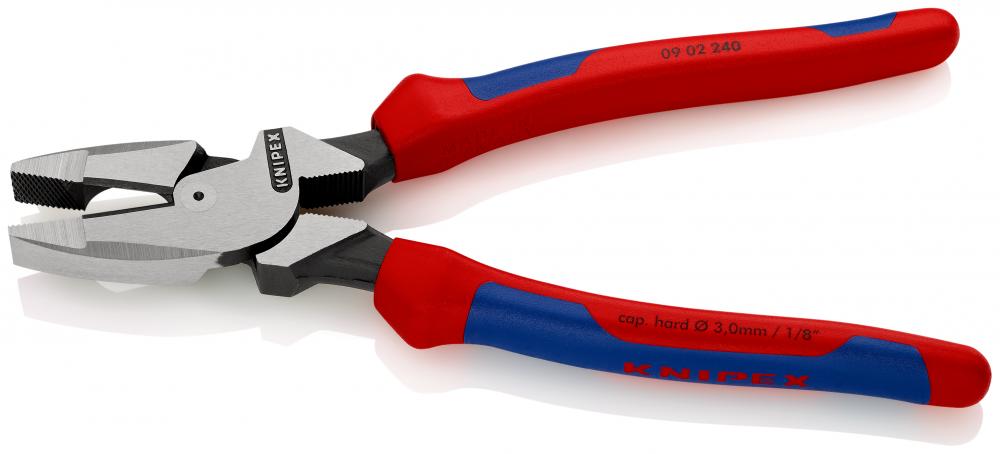

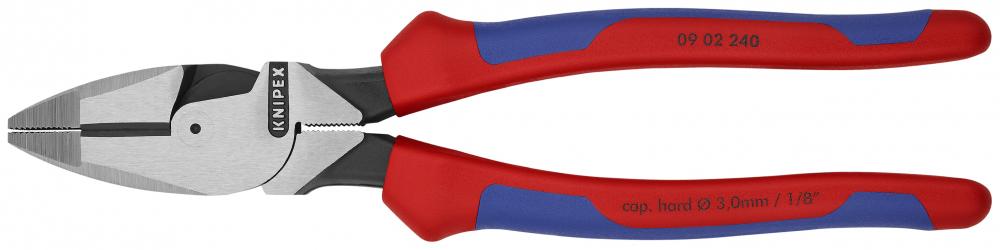

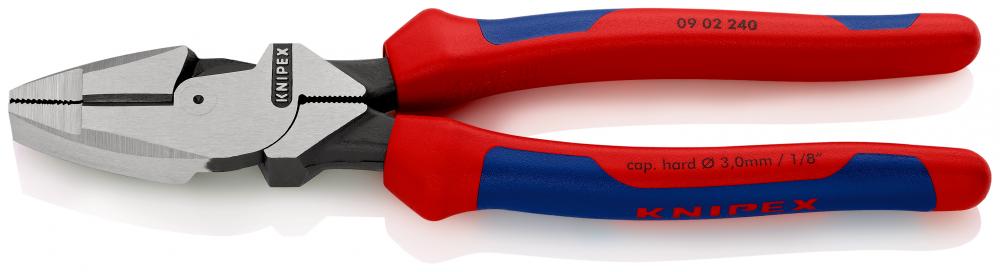

9 1/2" High Leverage Lineman's Pliers New England Head
Call For Price
- Part Number: 09 02 240 SBA
- UPC: 00843221000462
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (12)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Linemans Pliers
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
1/8"
Cutting Capacity - Medium Hard Wire (Nail):
3/16"
Cutting Capacity Hard Wire Steel Wire:
1/8"
Cutting Capacity Medium Hard Wire Nail:
3/16"
Cutting Edge HRC:
Approx. 61 HRC
Cutting Edge Shape:
Bevel
ECCN:
EAR99
Gripping Surface:
Cross-hatched
Handle Length:
11"
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Gripping Surface: Cross-hatched
Item Height (inches):
1"
Item Height inches:
1"
Item Length (inches):
9.5
Item Length inches:
9 1/2"
Item Quantity:
1
Item Weight (lbs):
1.005
Item Weight lbs:
1.005
Item Width (inches):
2 3/16"
Item Width inches:
2 3/16"
Joint Type:
Rivet
Joint Type 2:
Fixed Joint
Material Type:
Vanadium steel, forged, multi stage oil-hardened
Nomintal Length mm:
240
Other Surface Finish:
Black atramentized
Package Height (inches):
1.05"
Package Height inches:
1.05"
Package Length (inches):
12.25"
Package Length inches:
12.25"
Package Weight (lbs):
1.035
Package Weight lbs:
1.035
Package Width (inches):
3.3"
Package Width inches:
3.3"
Packaging Height mm:
92 mm
Packaging Length mm:
344 mm
Packaging Width mm:
115 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tool Attributes:
Cutting edge hardness approx. 64 HRC.

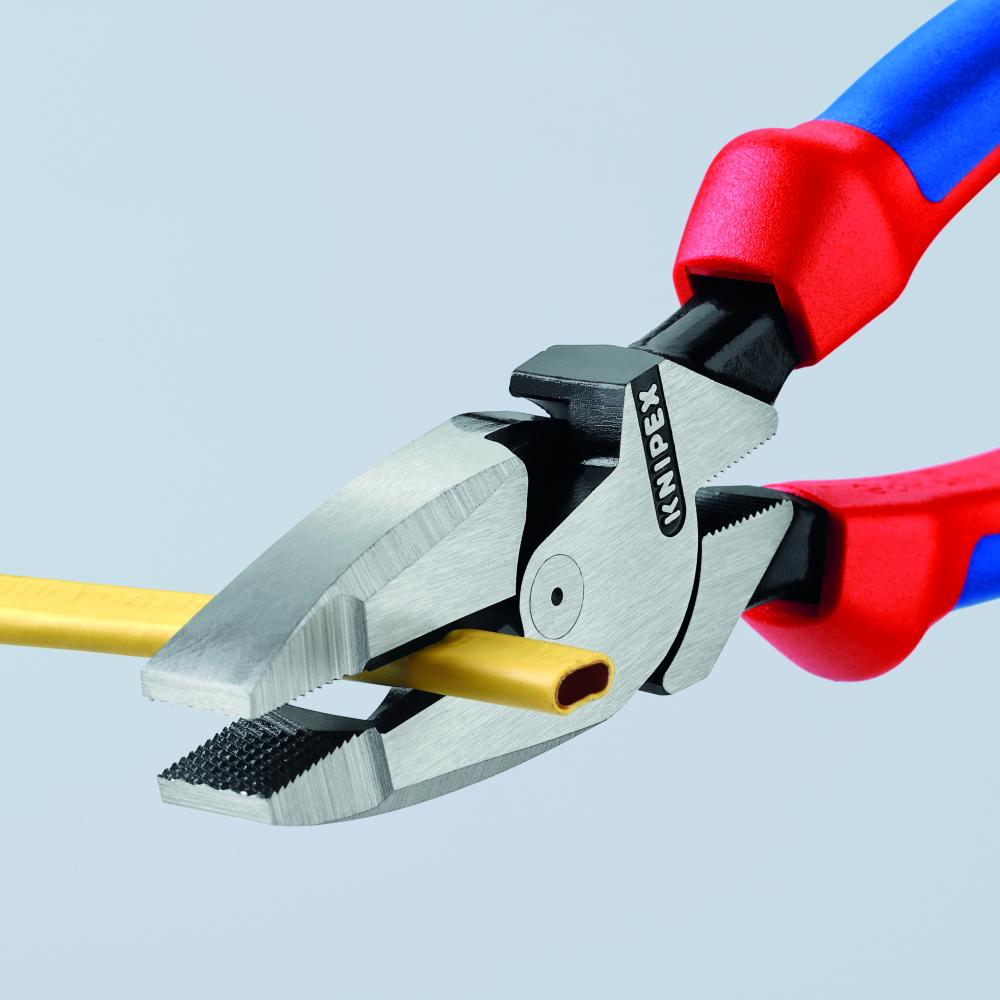

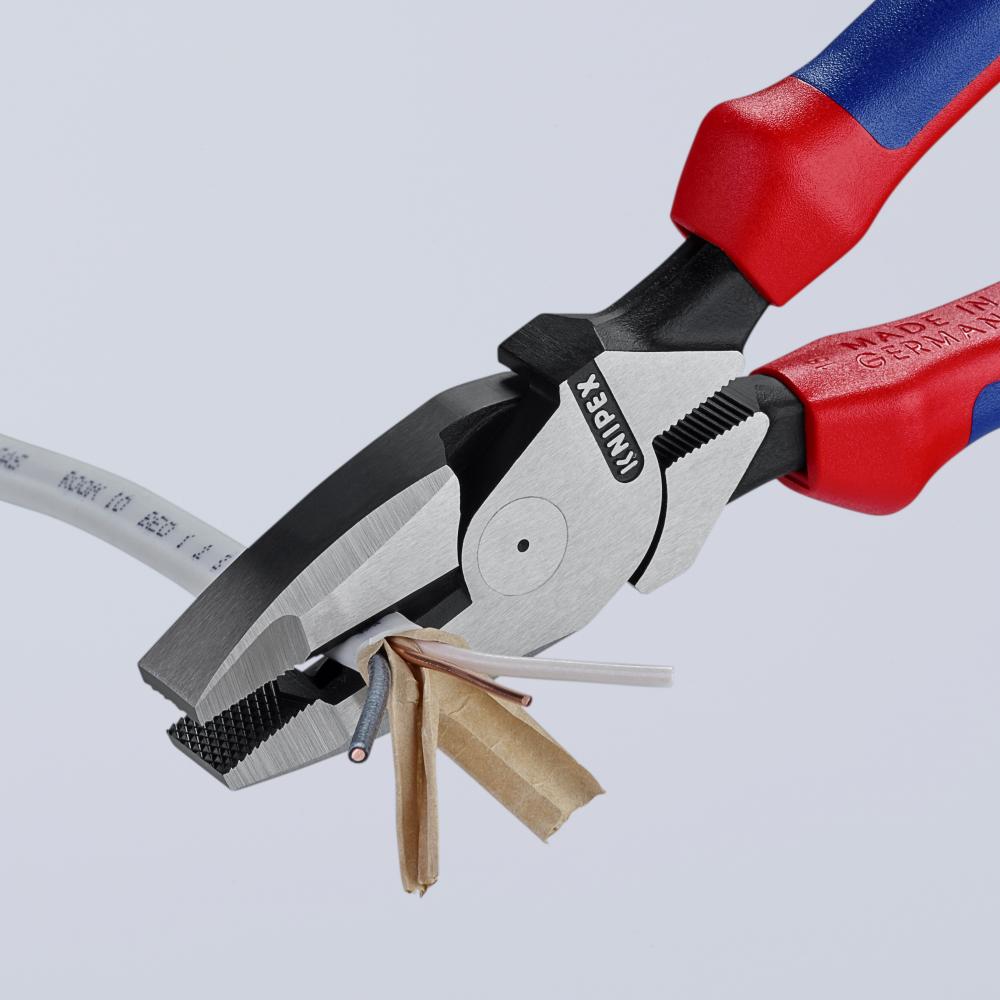

Cutting edges for soft and hard wire, nails, ACSR and piano wire.
Effective cross-hatched knurled gripping zone in jaws for strong gripping and pulling.
Ergonomically optimized handle shape for firm contact to the hand and fatigue reducing operation.
High leverage design requires 50% less effort compared to conventional combination pliers due to an optimized transmission ratio.
Serrated gripping zone below the joint for powerful leverage.
Vanadium steel, forged, multi stage oil-hardened.
Tool Height mm:
92 mm
Tool Weight grams:
490 g
Tool Width mm:
113 mm
Unit Of Measure:
Each
UNSPSC:
27112106
UNSPSC Number:
27112106
UOM Qty:
1
UPC Code:
843221000462
Other Details
Cutting edge hardness (approx. 64 HRC)
Cutting edges for soft and hard wire, nails and piano wire
Effective cross-hatched knurled gripping zone in the jaws for strong gripping and pulling

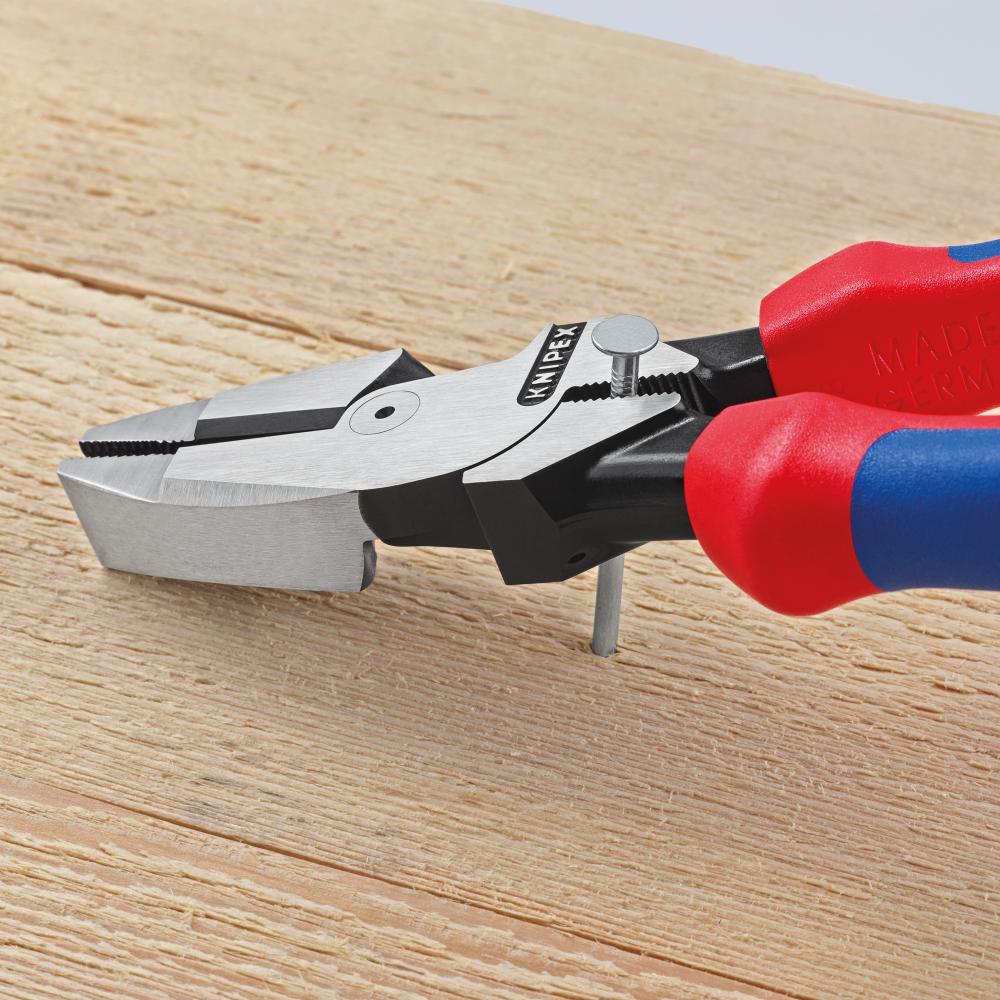

High leverage design requires 50% less effort compared to conventional combination pliers due to an optimized transmission ratio
High transmission ratio for easy cutting
Optimized handle shape for firm contact to the hand for easier operation
Serrated gripping zone below the joint for powerful leverage
Vanadium steel, forged, multi stage oil-hardened
