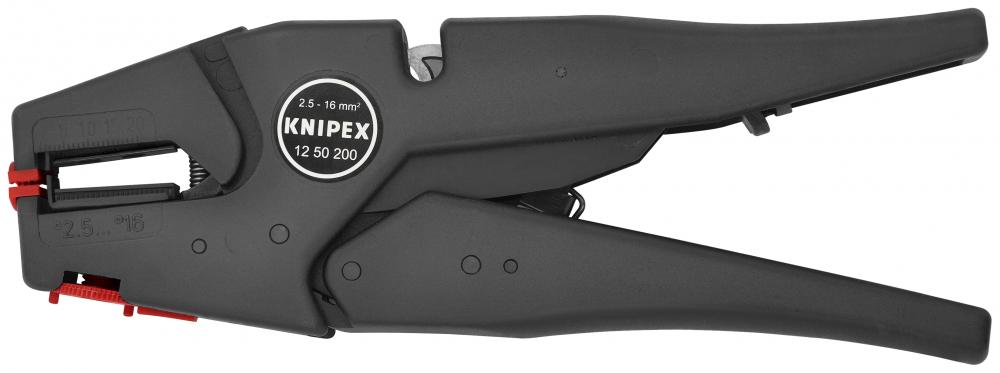

![8" Self-Adjusting Wire Stripper 6-14 AWG](/vendors/8243/large/1250200-00-3.jpg "8" Self-Adjusting Wire Stripper 6-14 AWG")

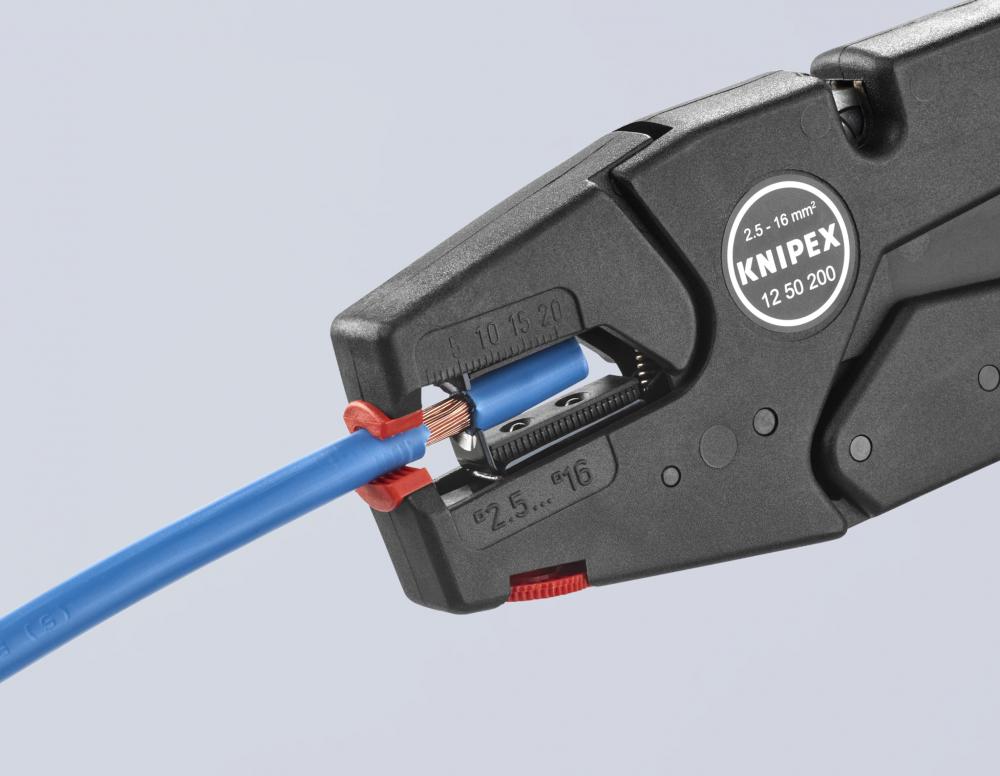

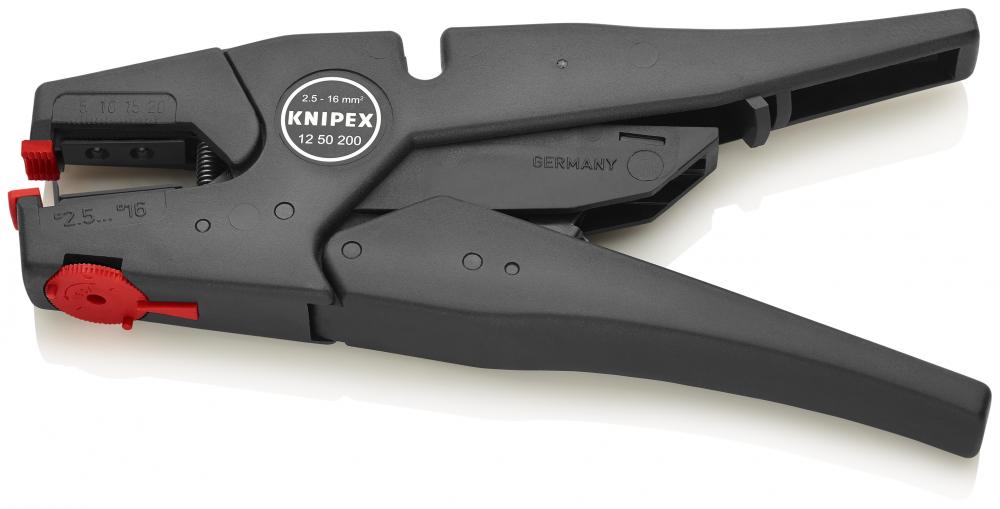

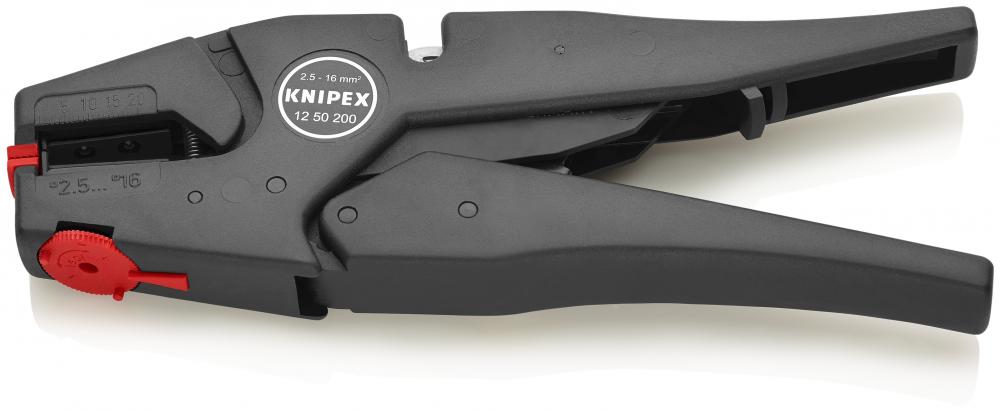

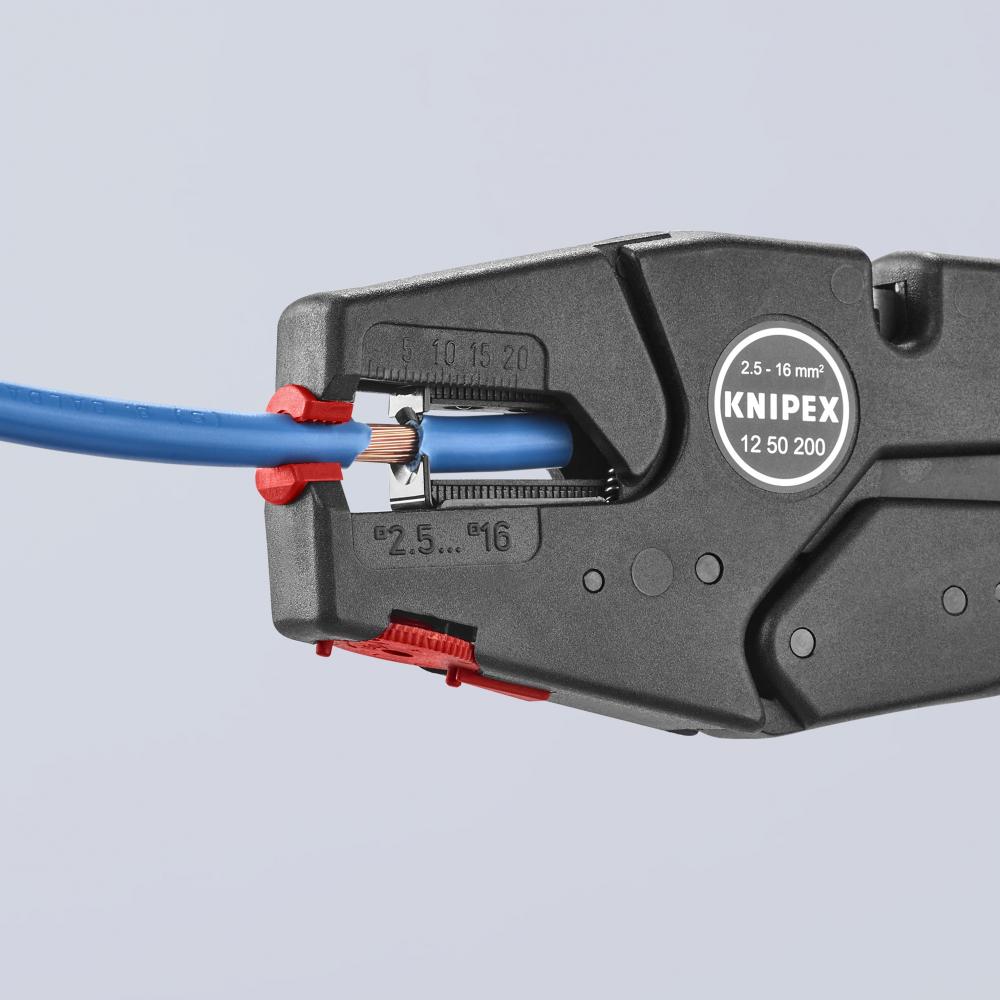

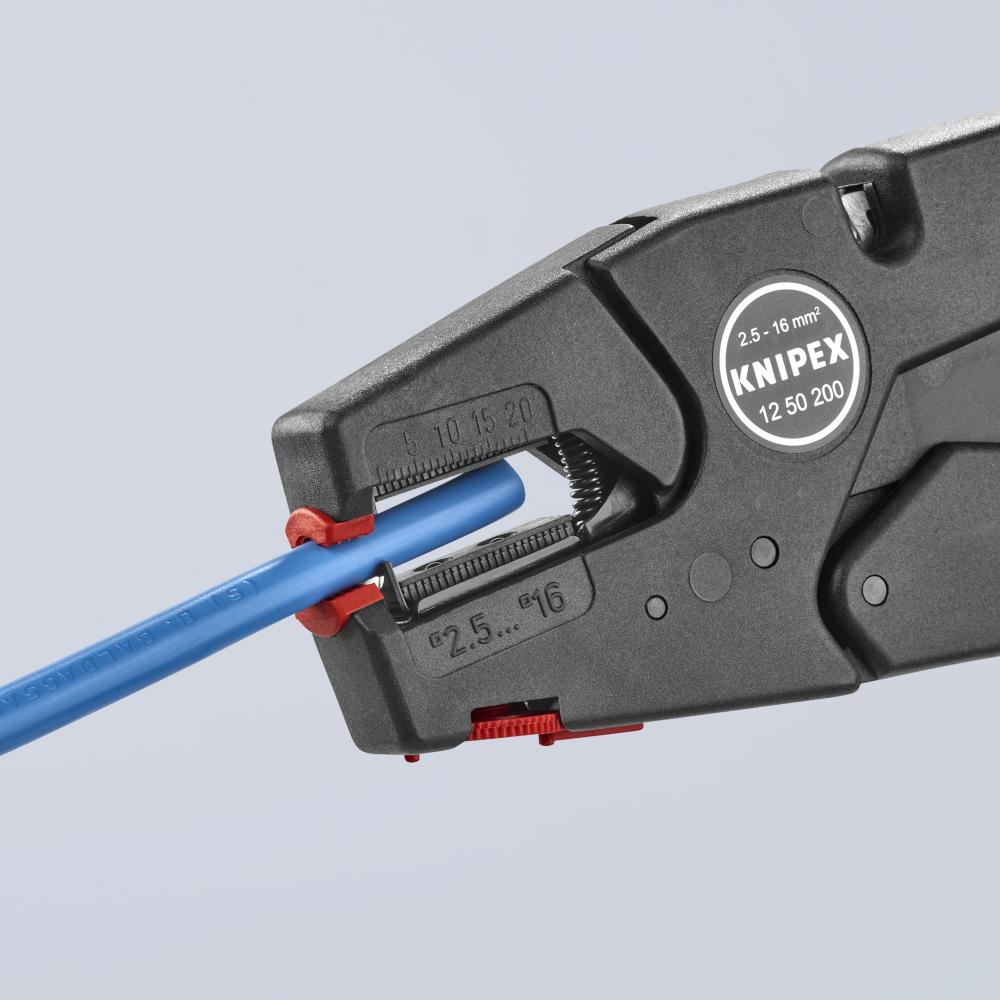

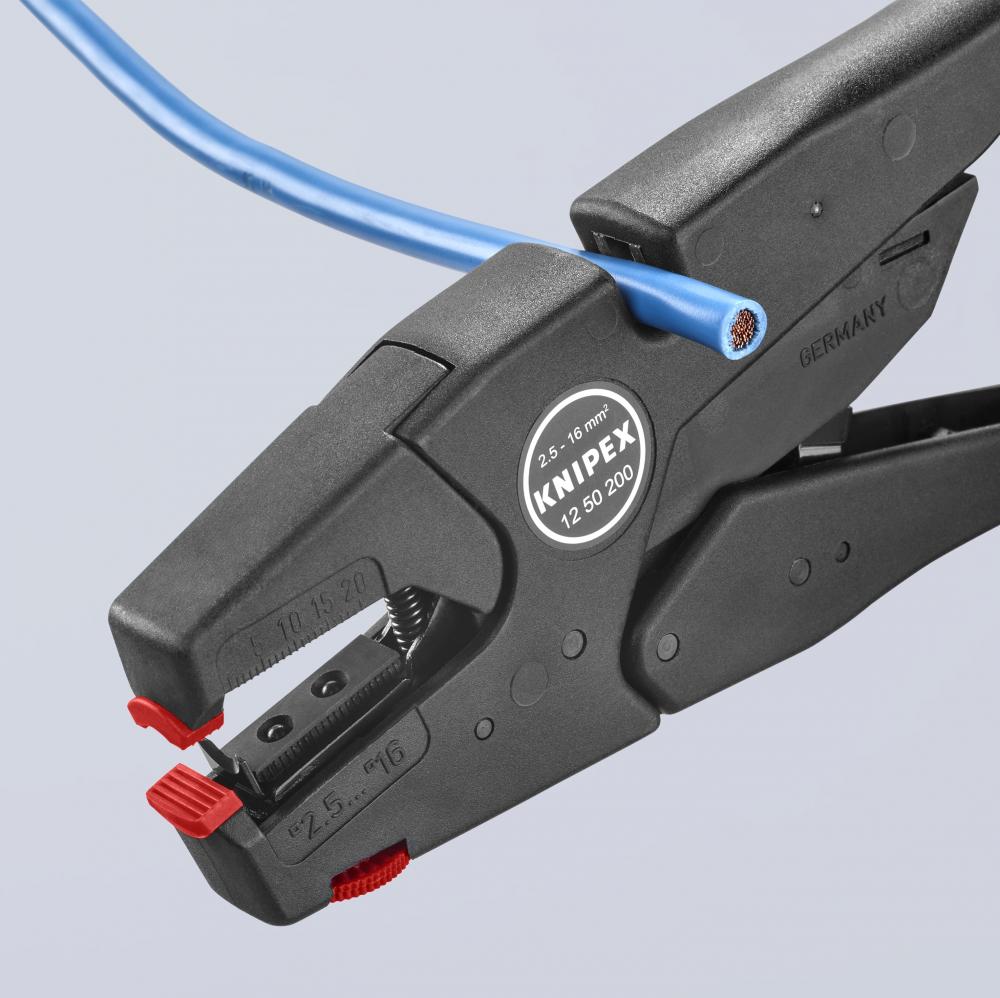

8" Self-Adjusting Wire Stripper 6-14 AWG
Call For Price
- Part Number: 12 50 200
- UPC: 00843221003951
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Wire Strippers and Cable Slitters
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Black
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
1250200_en.pdf
ECCN:
EAR99
Handle Type:
Bare plastic
Harmonized Tariff Code:
3926.90.9985
Included Products/Items:
Handle Type: Bare plastic
Item Height (inches):
1"
Item Height inches:
1"
Item Length (inches):
8
Item Length inches:
8"
Item Quantity:
1
Item Weight (lbs):
0.445
Item Weight lbs:
0.445
Item Width (inches):
2 7/16"
Item Width inches:
2 7/16"
Joint Type 2:
Fixed Joint
Material Type:
Blades: special tool steel, oil-hardened
Other Material Type:
Body: fiberglass reinforced plastic
Package Height (inches):
1"
Package Height inches:
1"
Package Length (inches):
8.5"
Package Length inches:
8.5"
Package Weight (lbs):
0.5
Package Weight lbs:
0.5
Package Width (inches):
2.7"
Package Width inches:
2.7"
Packaging Height mm:
26 mm
Packaging Length mm:
218 mm
Packaging Width mm:
71 mm
Prop 65 Conflict:
View
Reach:
contains SVHC
RoHS:
not applicable
Spare Part:
12 59 01|12 59 02
Stripping Capacity - AWG:
14 to 6
Stripping Capacity - mm2:
2.5 to 16.0
Tool Attributes:
Adjusts automatically to the respective cable cross-section which prevents damage to the conductor
Cutting depth can be adjusted for different insulation materials
For single, multiple and fine stranded conductors with plastic or rubber insulation. 5 to 13 AWG
Replacement blades part number 12 59 01
Replacement clamping jaw part number 12 59 02
Tool Height mm:
17 mm
Tool Length mm:
200 mm
Tool Weight grams:
200 g
Tool Width mm:
59 mm
Unit Of Measure:
Each
UNSPSC:
27112151
UNSPSC Number:
27112151
UOM Qty:
1
UPC Code:
843221003951
Other Details
Adapts automatically to the respective cable diameter preventing damage to the conductor
Blade is made of special tool steel, oil-hardened
Body is made of lightweight fiberglass-reinforced plastic
Cutting depth can be adjusted for different insulation by turning the red wheel
For single, multiple and fine stranded conductors with plastic or rubber insulation; especially useful with THHN coated wire
Includes wire cutter for copper and aluminum wires, multi-stranded up to 8 AWG (10 mm²) and single stranded up to 10 AWG (6 mm²)
Replacement blade and plastic clamping jaws
Replacement clamping jaw part number 12 59 02
Replacement pair of blades part number 12 59 01
Smooth operating mechanism
Suitable for 14 - 6 AWG
