![8" KNIPEX Twistor®16 Self-Adjusting Crimping Pliers For Wire Ferrules](/vendors/8243/large/975318-00-3.jpg "8" KNIPEX Twistor®16 Self-Adjusting Crimping Pliers For Wire Ferrules")

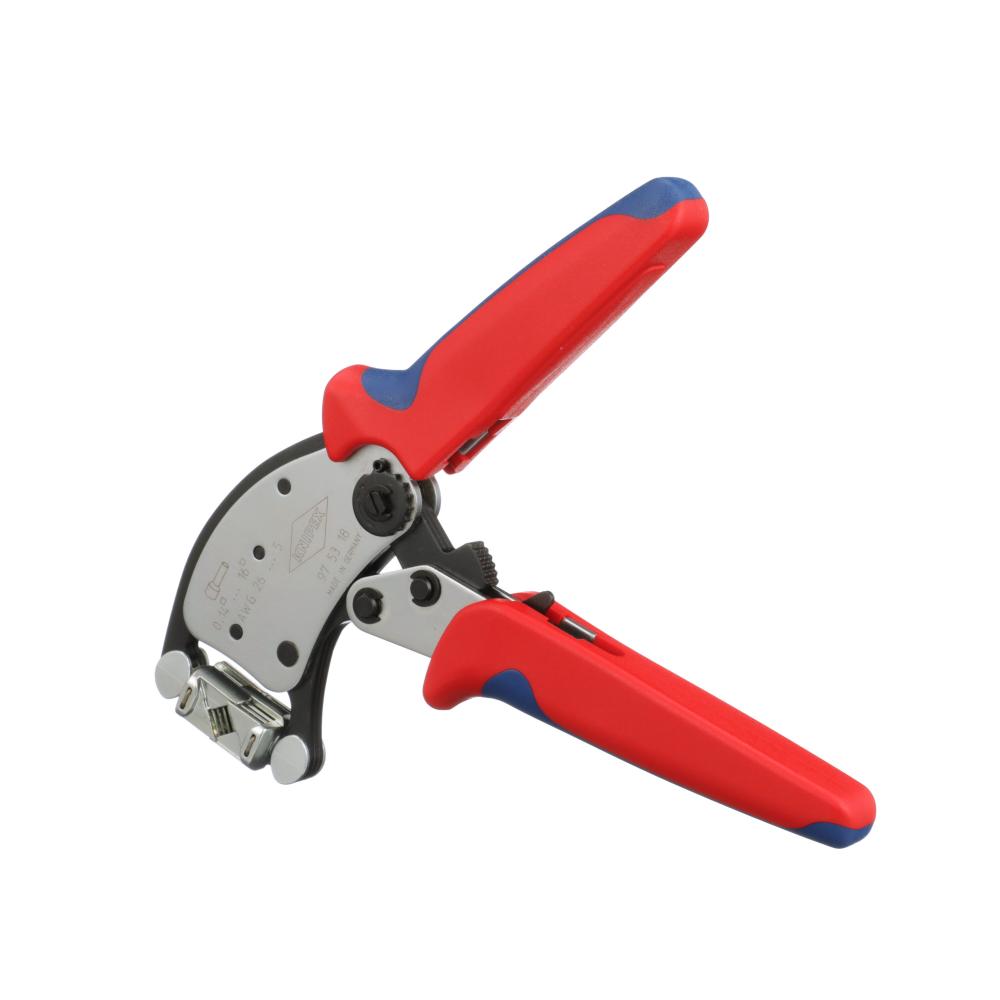

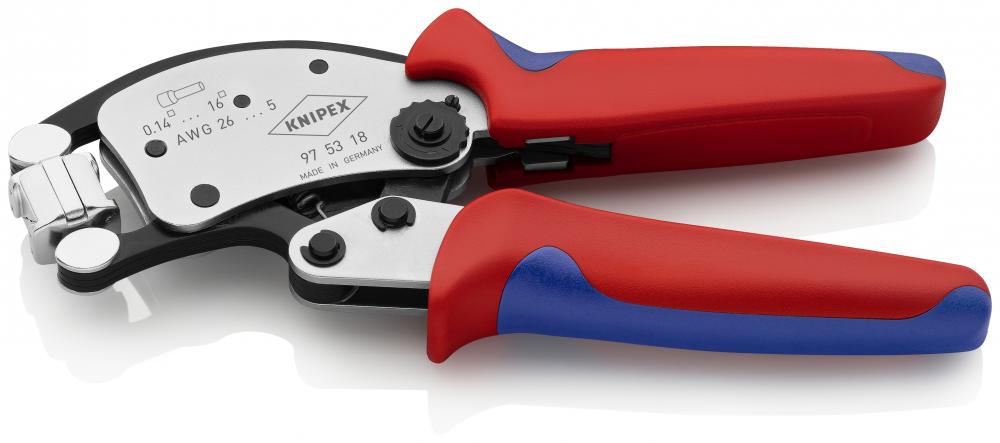

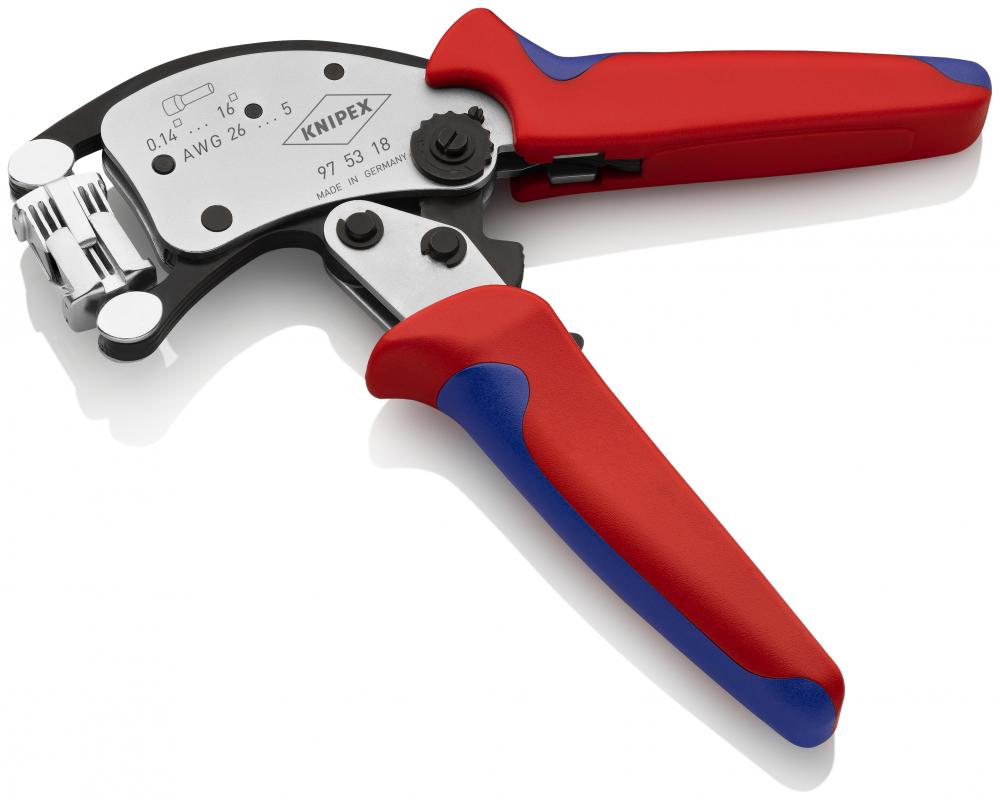

8" KNIPEX Twistor®16 Self-Adjusting Crimping Pliers For Wire Ferrules
Call For Price
- Part Number: 97 53 18
- UPC: 00843221023454
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Crimping Tools
Industrial Subtype:
Cable and Wire Crimping Tools
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Crimping Capacity - AWG:
26 to 6
Crimping Capacity - mm2:
0.14 to 16.0
Crimping Positions:
1
Crimping Profile:
Square crimp
Data Sheet Filename:
975318_en.pdf
ECCN:
EAR99
ESD Indicator:
No
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Surface Finish: Chrome Plated
Item Height (inches):
1"
Item Height inches:
1"
Item Length (inches):
8
Item Length inches:
8"
Item Quantity:
1
Item Weight (lbs):
0.268
Item Weight lbs:
0.268
Item Width (inches):
4"
Item Width inches:
4"
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium electric steel, oil-hardened
Package Height (inches):
1.01"
Package Height inches:
1.01"
Package Length (inches):
9.53"
Package Length inches:
9.53"
Package Weight (lbs):
1.129
Package Weight lbs:
1.129
Package Width (inches):
3.21"
Package Width inches:
3.21"
Packaging Height mm:
26 mm
Packaging Length mm:
240 mm
Packaging Width mm:
80 mm
Prop 65 Conflict:
View
Reach:
contains SVHC
RoHS:
not applicable
Spring Loaded:
No
Sub Brand Name:
Twistor16
Surface Finish:
Chrome Plated
Terminal Type:
End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)|End Ferrules-Twin
Tool Attributes:

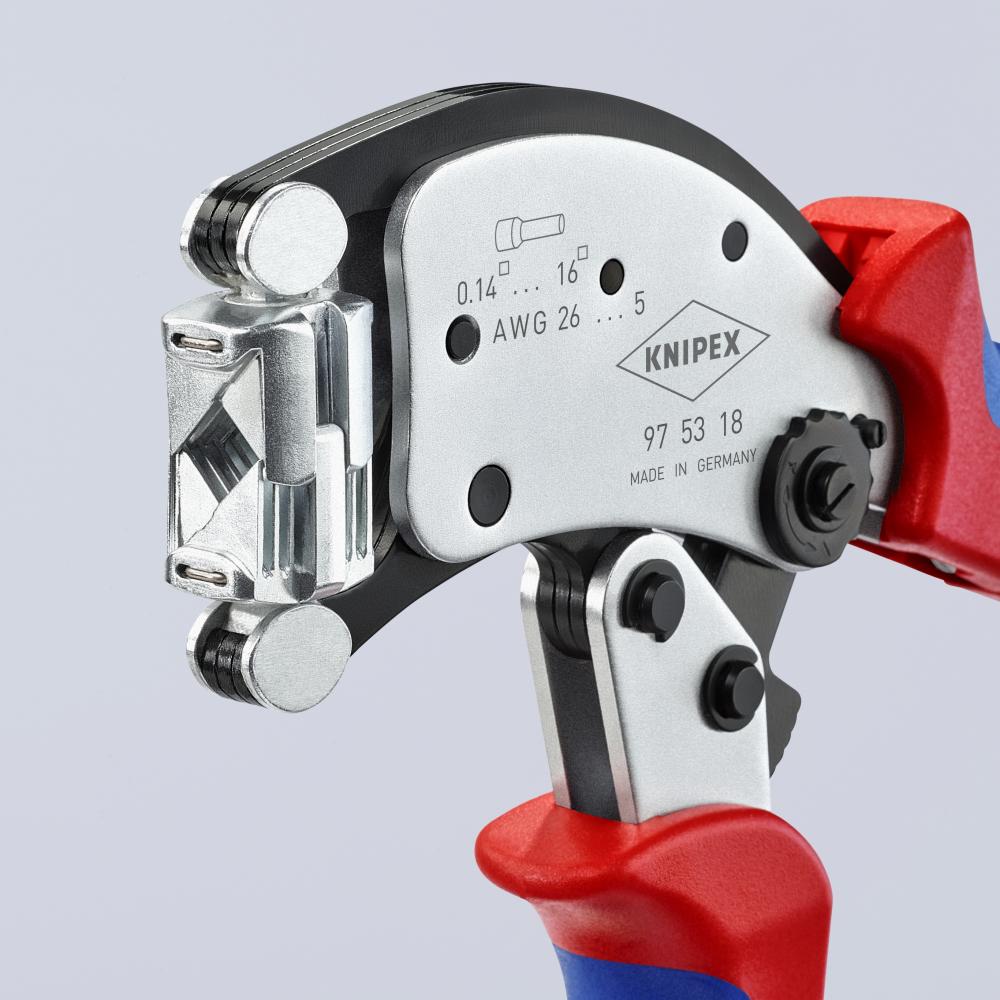

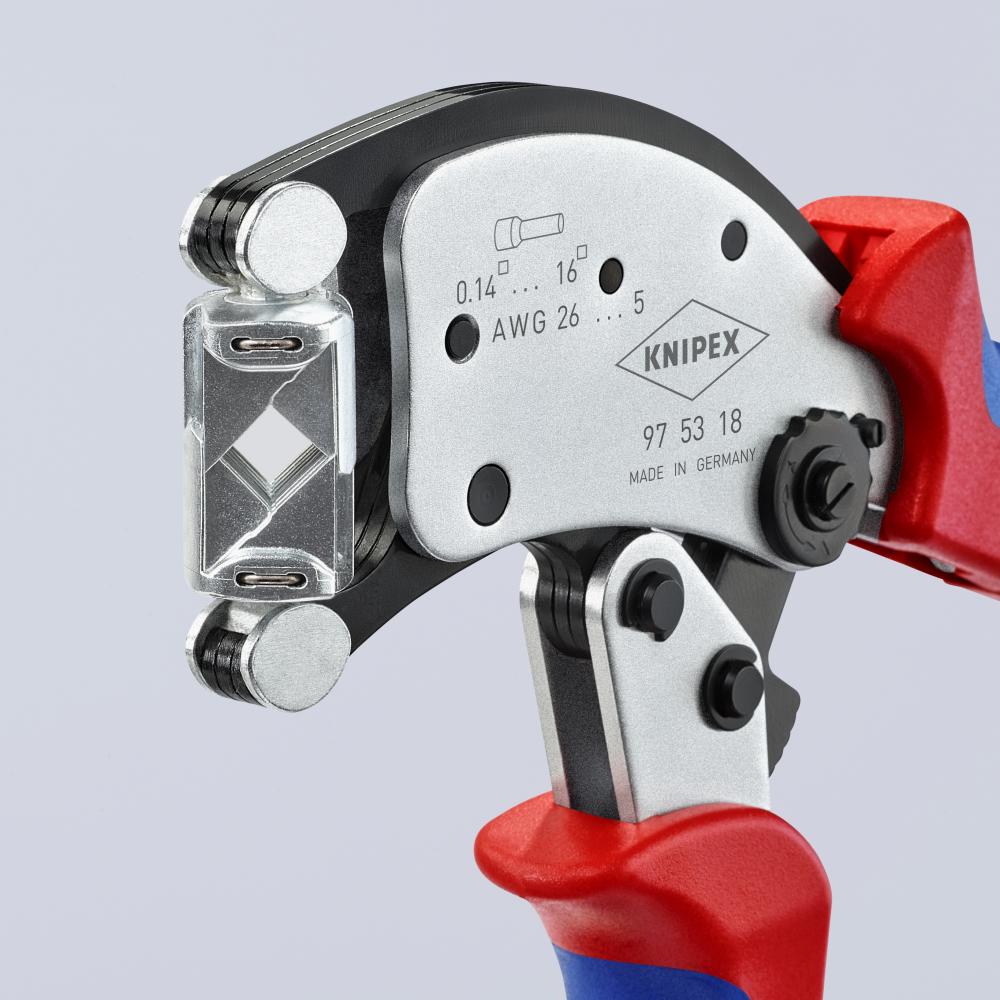

Creates a square crimp profile for wires sizes between 26 AWG and 6 AWG

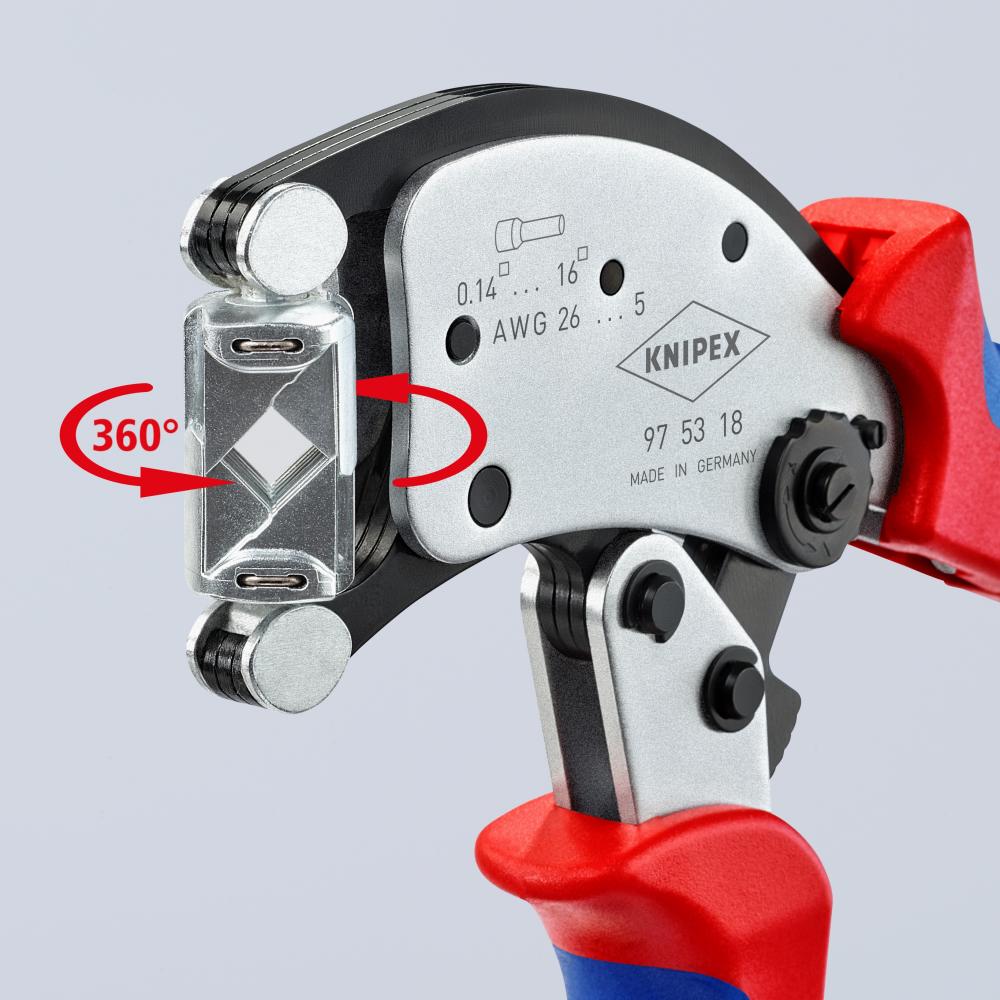

Crimping head can be rotated 360° and has 8 locking positions for a secure crimp in all positions

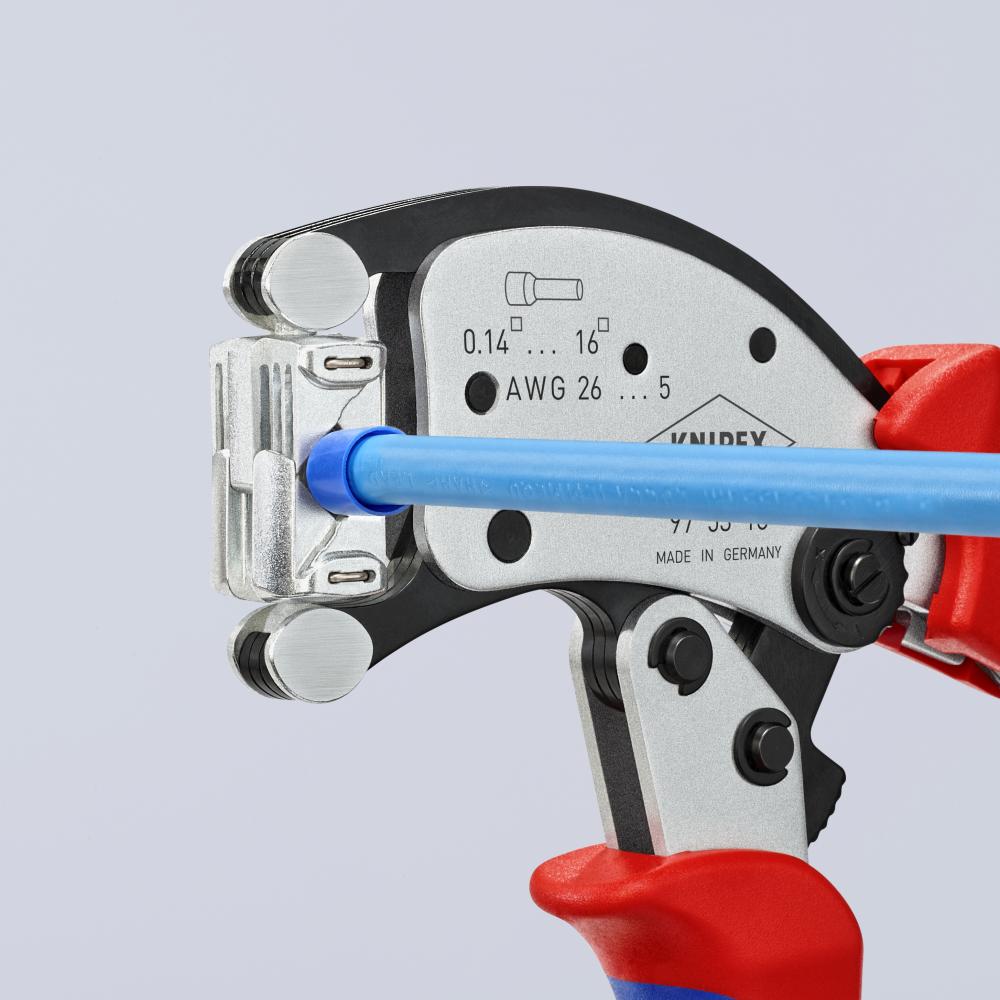

Crimps end sleeves (ferrules) fully automatically; no more guessing to determine if the wire is secure in the end sleeve
KNIPEX Twistor16 combines the features of a front and side crimper into 1 tool
Light and handy tool, manual force reinforced by toggle lever mechanism
Made of chrome vanadium electric steel in special quality, oil-hardened
Will also crimp twin end sleeves (ferrules)
Tool Height mm:
26 mm
Tool Length mm:
240 mm
Tool Weight grams:
478 g
Tool Width mm:
80 mm
Unit Of Measure:
Each
UNSPSC:
27112147
UNSPSC Number:
27112147
UOM Qty:
1
UPC Code:
843221023454
Other Details
Chrome vanadium electric steel in special quality; oil-hardened
Creates a square crimp profile for wires sizes between 26 to 6 AWG
Crimp head can be freely rotated 360°, with 8 locking positions

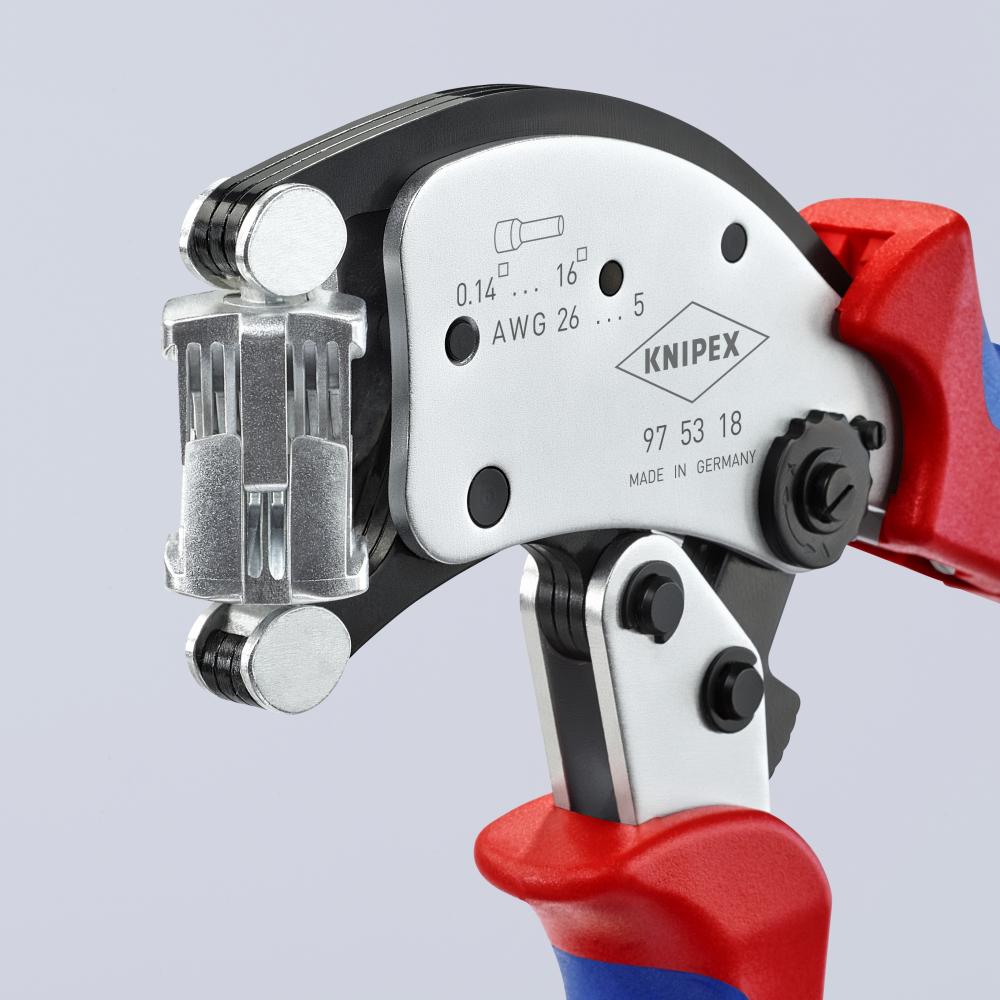

Crimp opening is accessible from both sides, extra-long end sleeves can be fed in
Crimping of twin end sleeves (ferrules) up to 2 x 6 mm² possible
Crimping pliers adjust automatically to different diameters

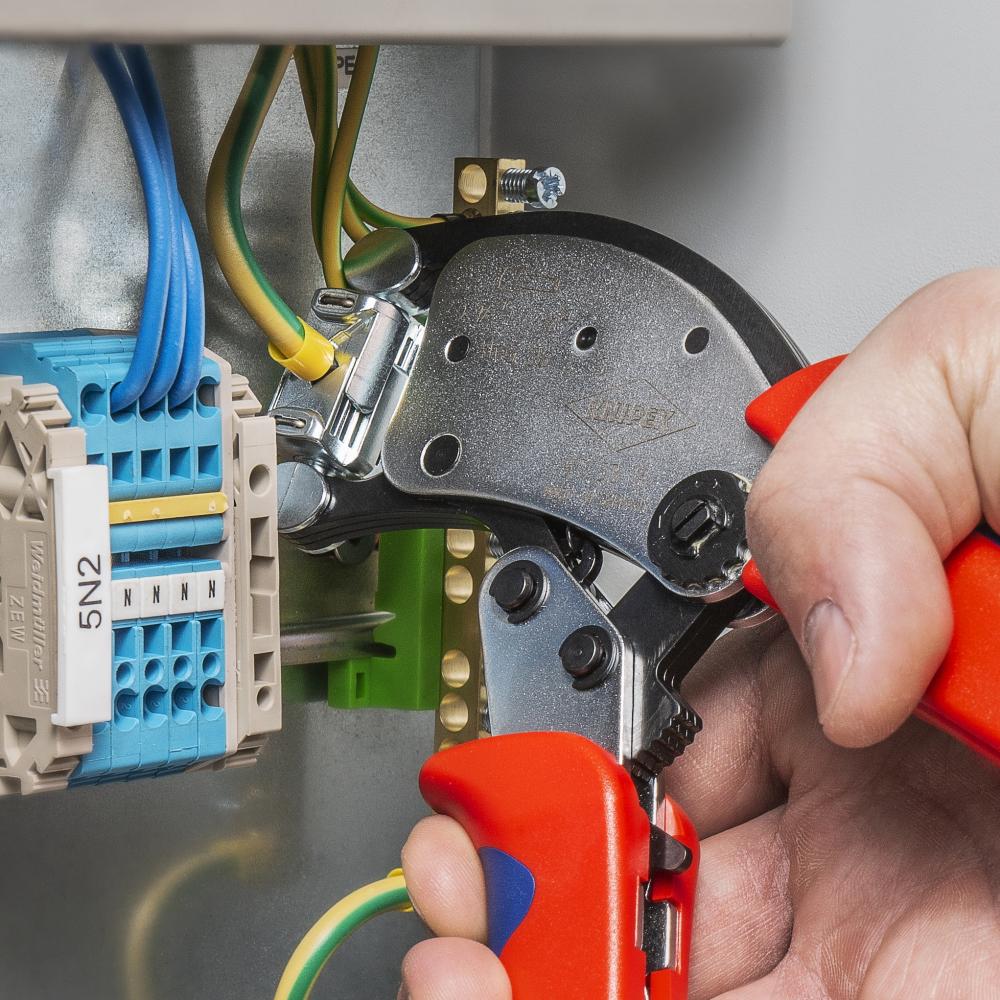

End sleeves (ferrules) can be crimped from almost any working position
KNIPEX Twistor®16 combines the features of a front and side crimper into 1 tool
Light and handy tool, manual force reinforced by toggle lever mechanism
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
