![8" CoBolt® High Leverage 20° Angled Compact Bolt Cutters](/vendors/8243/large/7122200-01-3.jpg "8" CoBolt® High Leverage 20° Angled Compact Bolt Cutters")

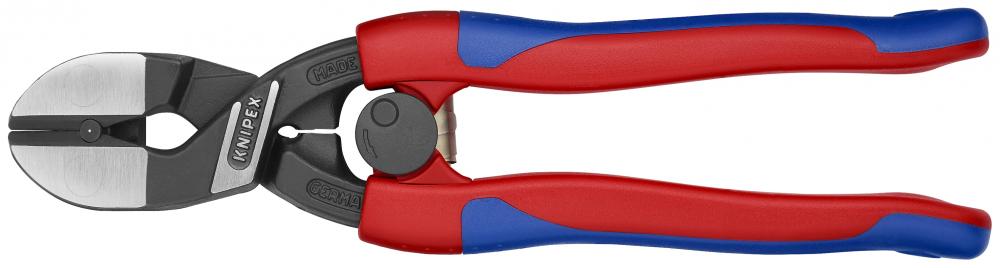

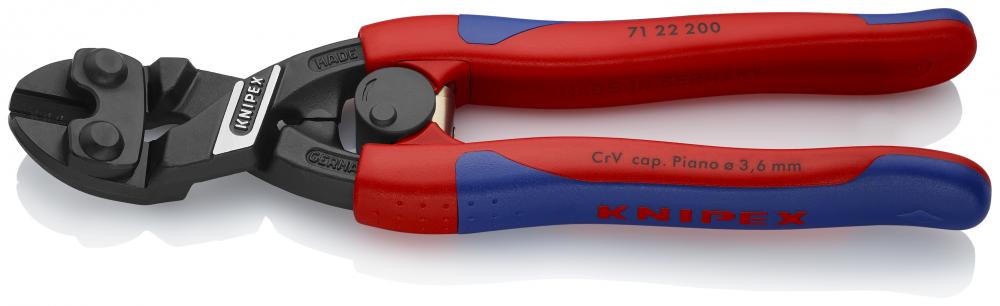

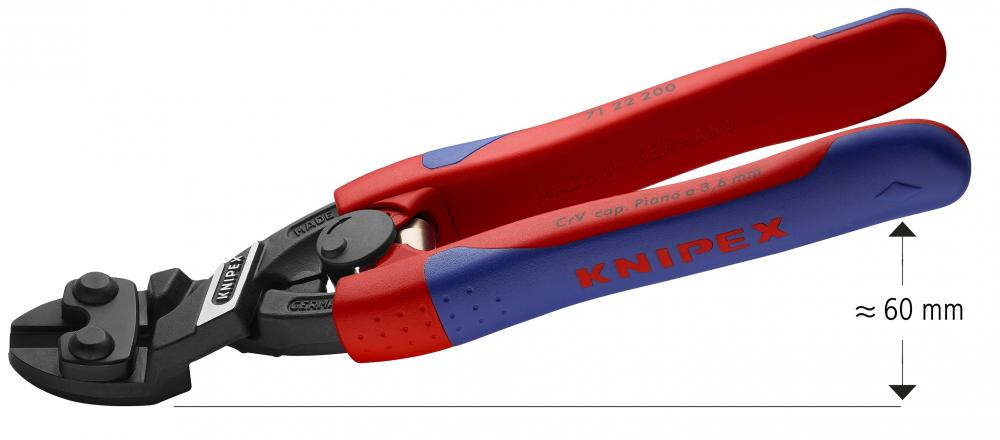

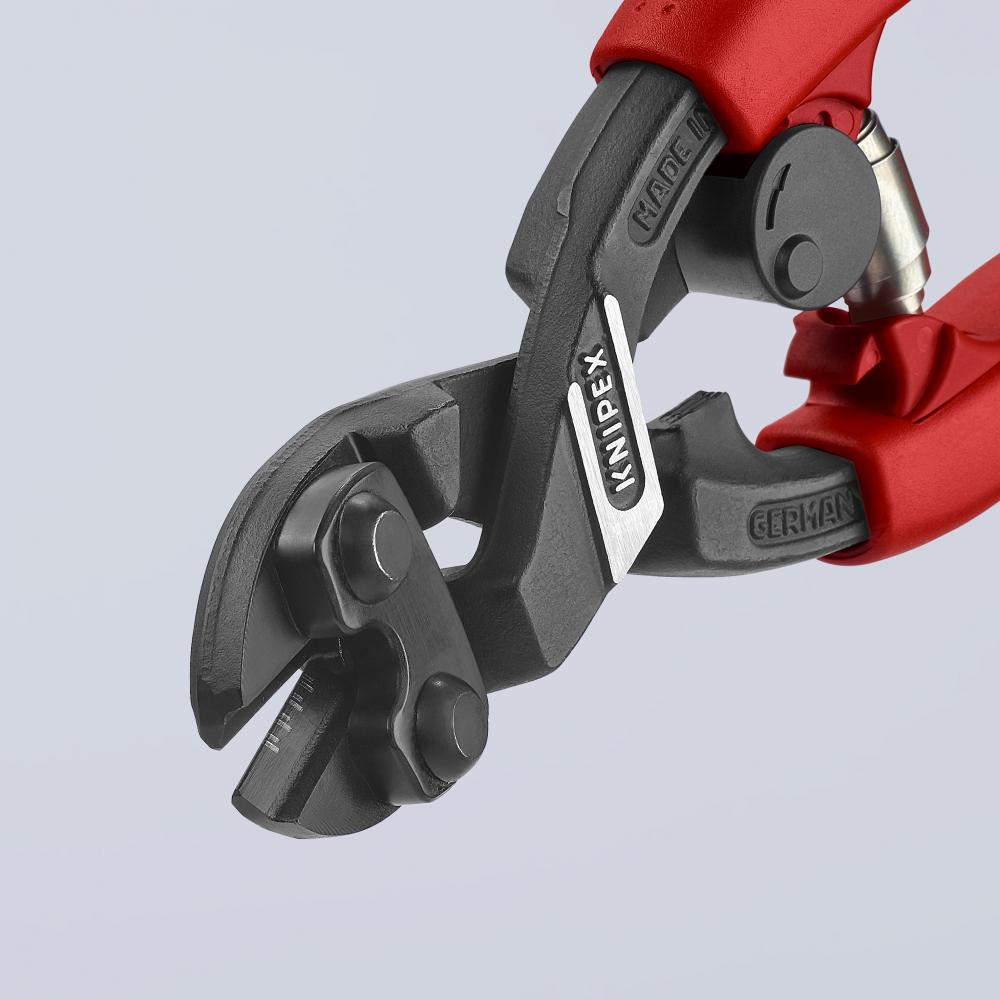

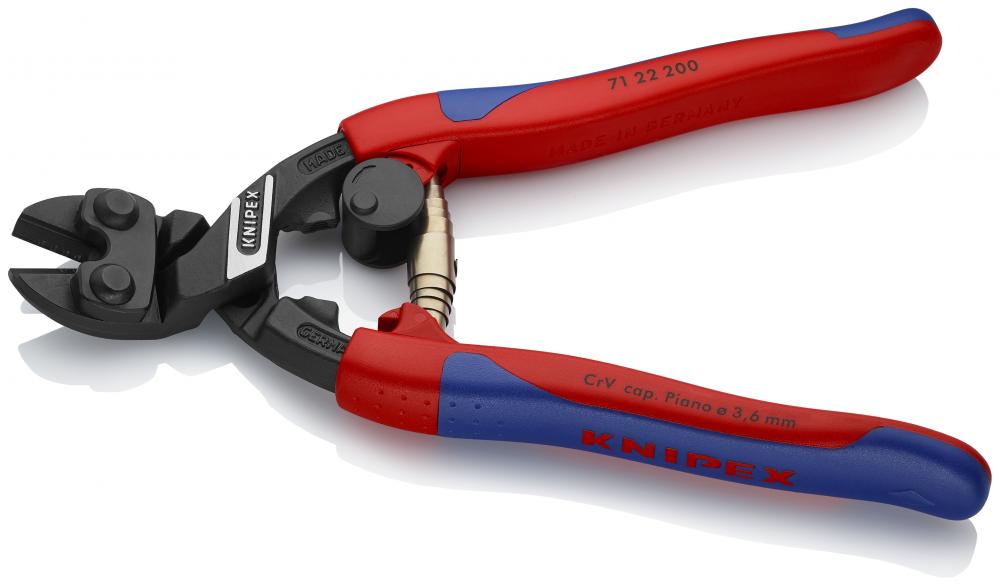

8" CoBolt® High Leverage 20° Angled Compact Bolt Cutters
Call For Price
- Part Number: 71 22 200
- UPC: 00843221008246
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (8)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Bolt Cutters
1000 Volt Insulated:
No
Angled Head:
20 degree
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
5/32"
Cutting Capacity - Medium Hard Wire (Nail):
13/64"
Cutting Capacity - Piano Wire:
9/64"
Cutting Capacity - Soft Wire:
1/4"
Cutting Capacity Hard Wire Steel Wire:
5/32"
Cutting Capacity Medium Hard Wire Nail:
13/64"
Cutting Capacity Piano Wire:
9/64"
Cutting Capacity Soft Wire:
1/4"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Bevel
Data Sheet Filename:
7122200_en.pdf
ECCN:
EAR99
Handle Length:
5 1/2"
Handle Type:
Slim multi-component
Harmonized Tariff Code:
8203.40.3000
Included Products/Items:
Surface Finish: Black atramentized
Item Height (inches):
15/16"
Item Height inches:
15/16"
Item Length (inches):
8
Item Length inches:
8"
Item Quantity:
1
Item Weight (lbs):
0.82
Item Weight lbs:
0.82
Item Width (inches):
2 1/8"
Item Width inches:
2 1/8"
Joint Type:
Rivet
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium heavy-duty steel, forged, oil-hardened
Nomintal Length mm:
200
Package Height (inches):
1.25"
Package Height inches:
1.25"
Package Length (inches):
8.45"
Package Length inches:
8.45"
Package Weight (lbs):
0.865
Package Weight lbs:
0.865
Package Width (inches):
2.65"
Package Width inches:
2.65"
Packaging Height mm:
30 mm
Packaging Length mm:
210 mm
Packaging Width mm:
65 mm
Prop 65 Conflict:
View
Reach:
contains SVHC
RoHS:
not applicable
Spare Part:
71 19 200 01
Sub Brand Name:
CoBolt®
Surface Finish:
Black atramentized
Tool Attributes:

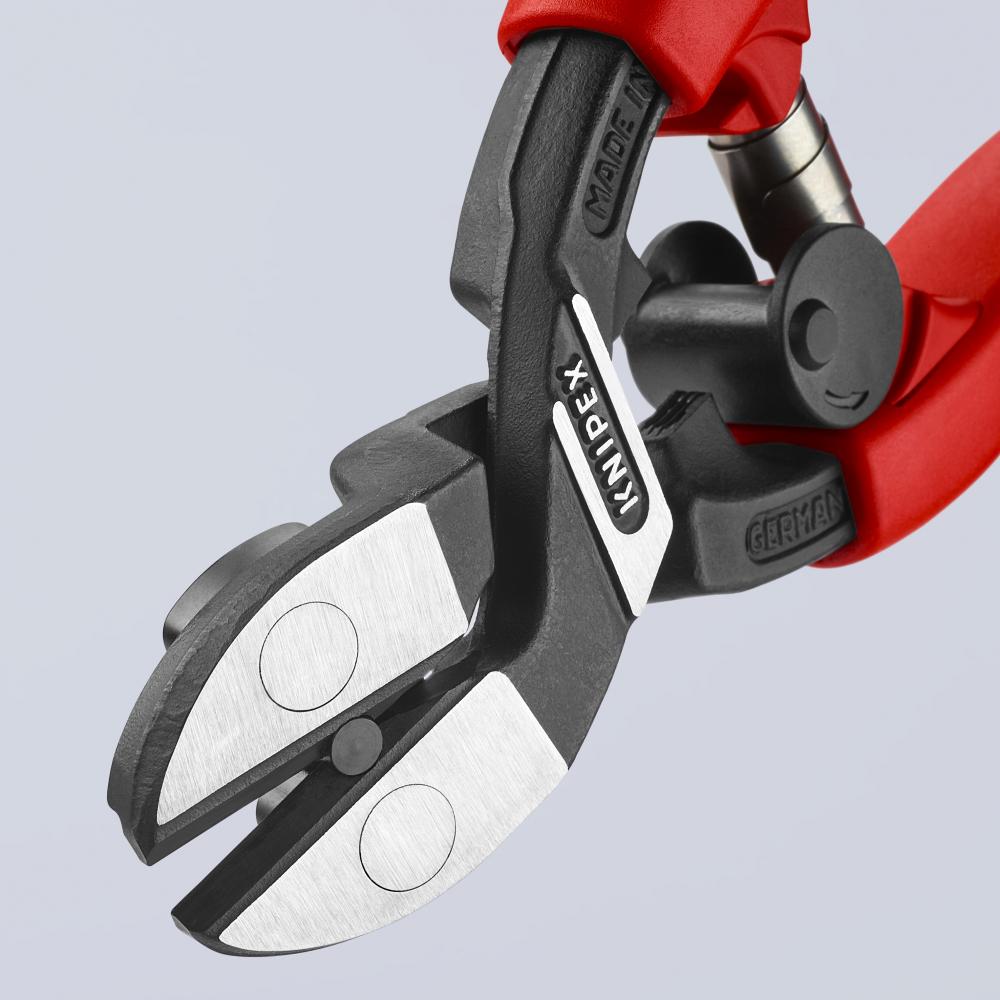

20 degree angled head with single-sided joint bar and diagonal cutting edge for flush cutting; with space for gripping.
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.

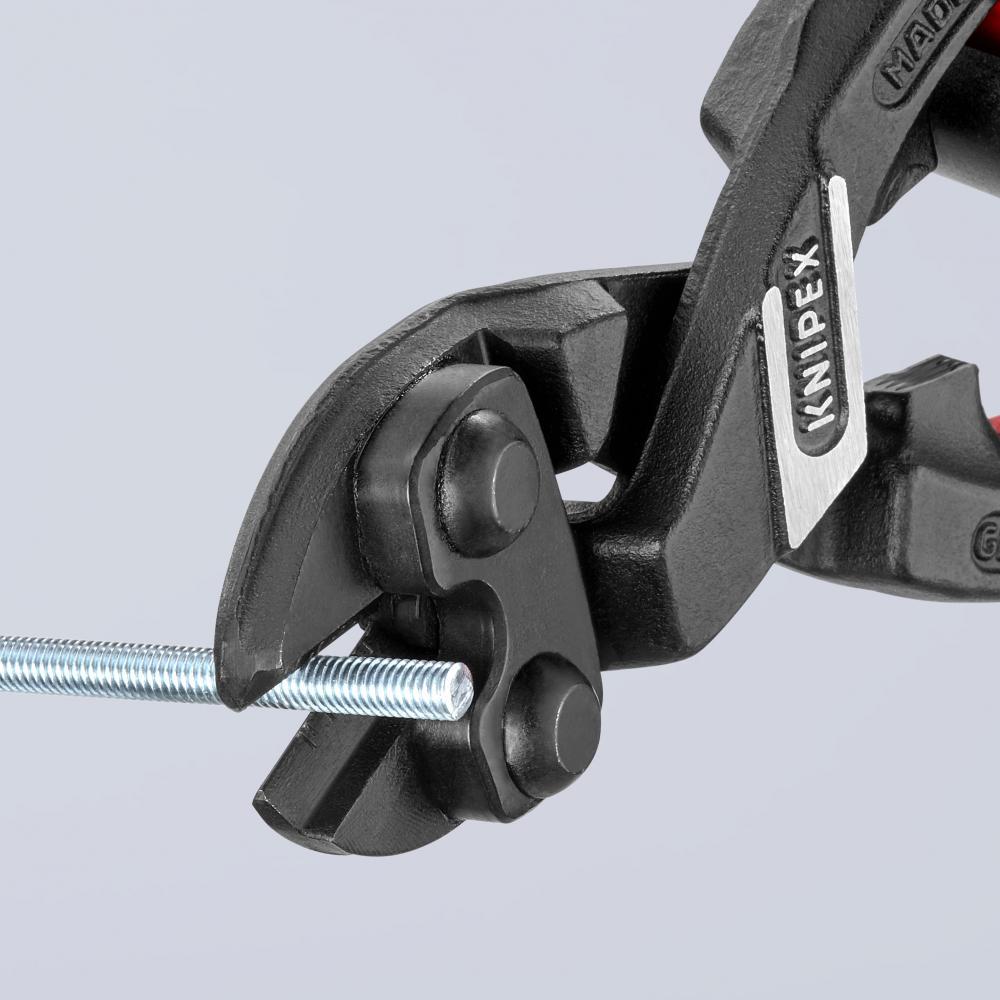

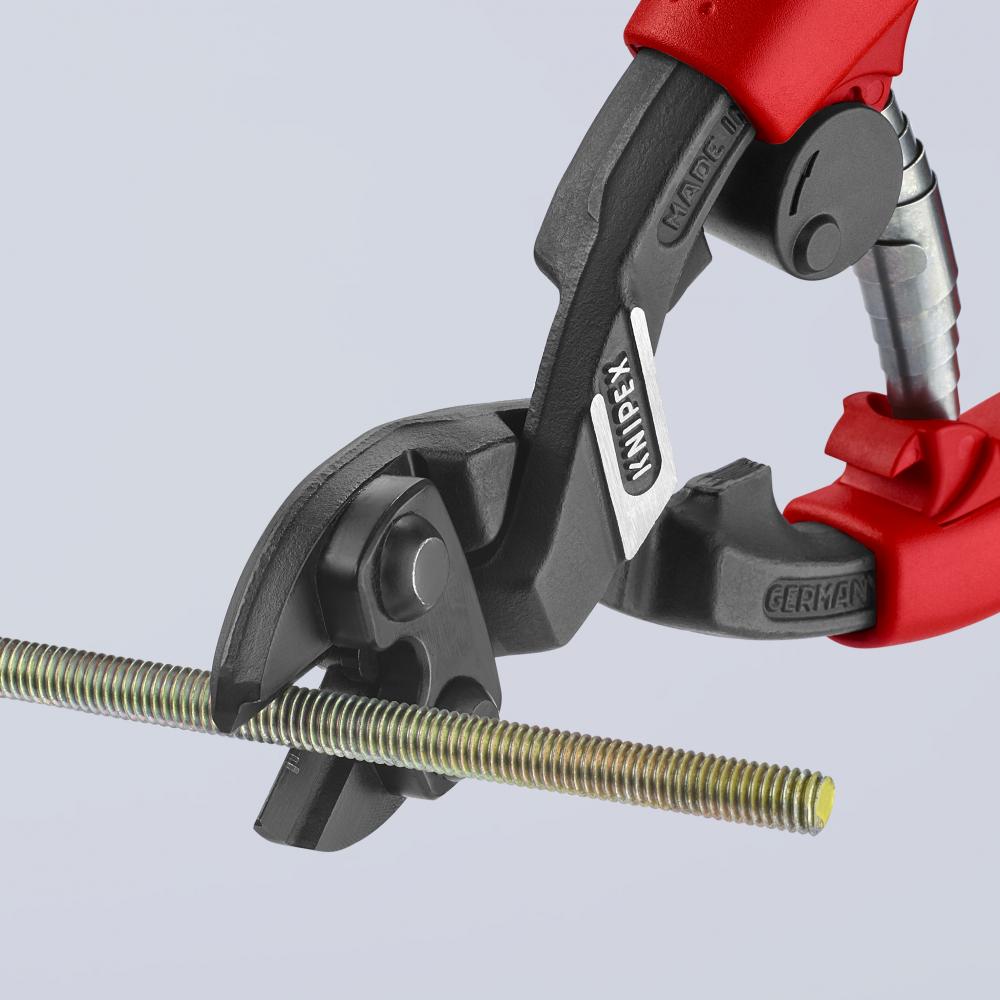

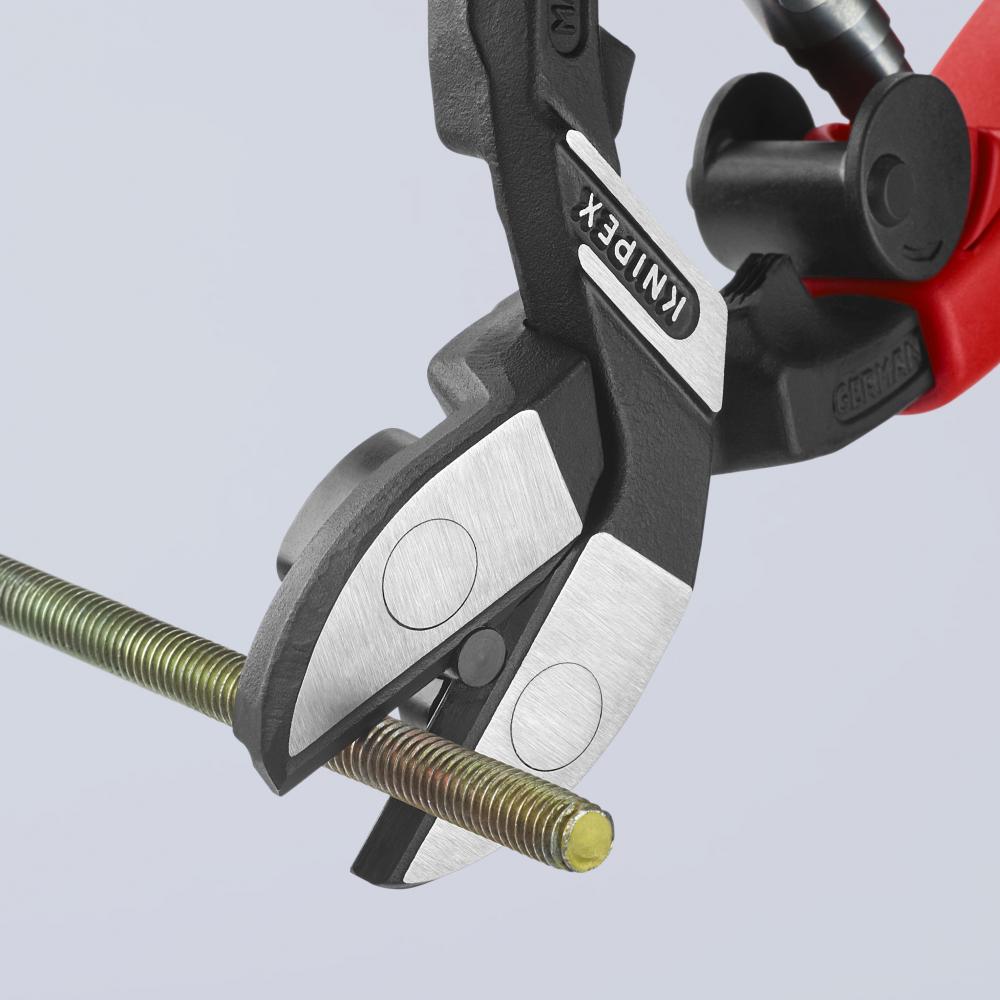

Cuts materials like bolts, nails, rivets, etc. up to 1/4" dia.
Cutting edge hardness approx. 64 HRC.
Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters.

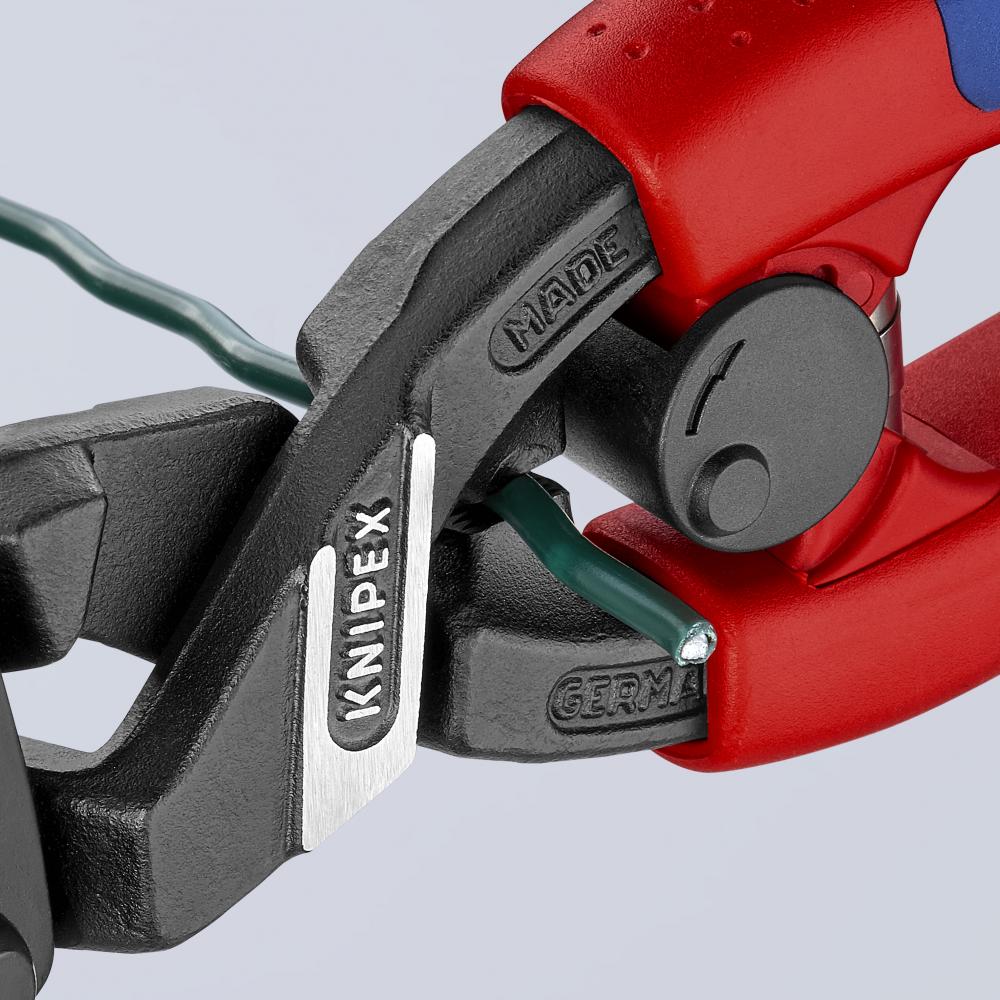

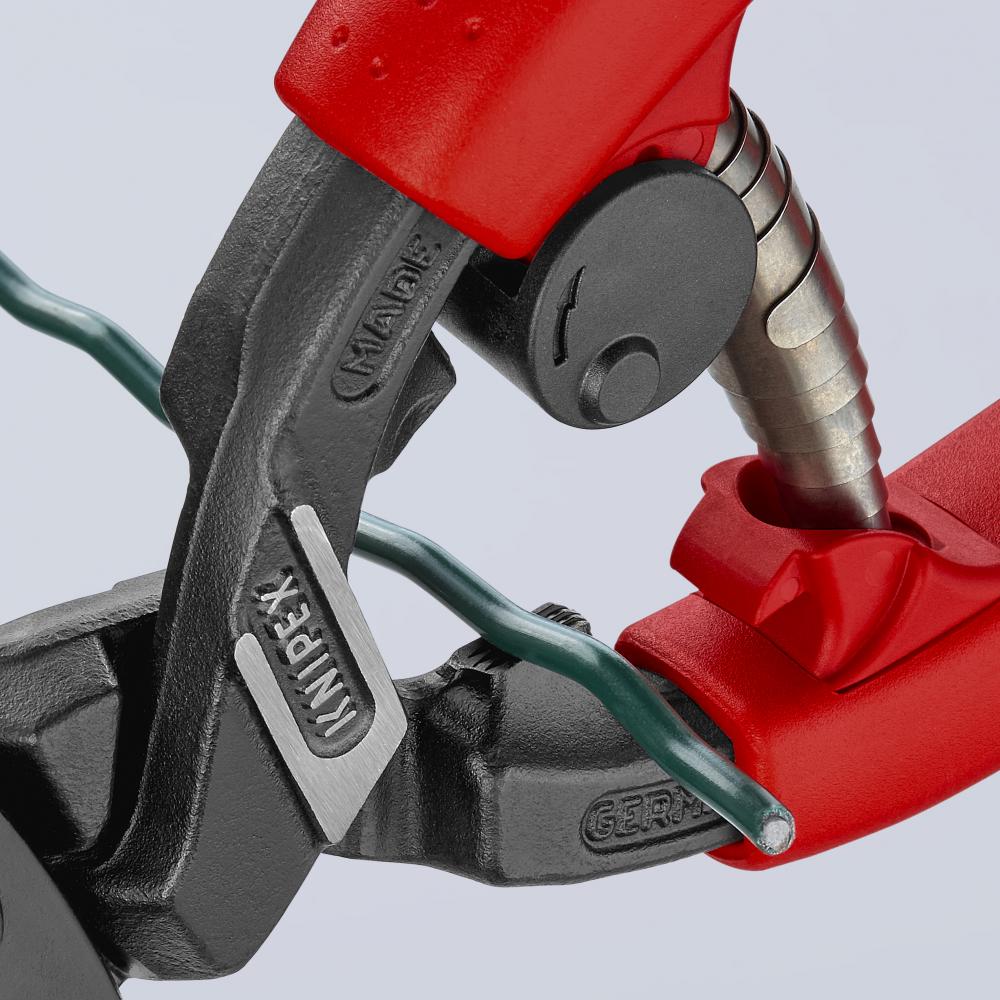

Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64"

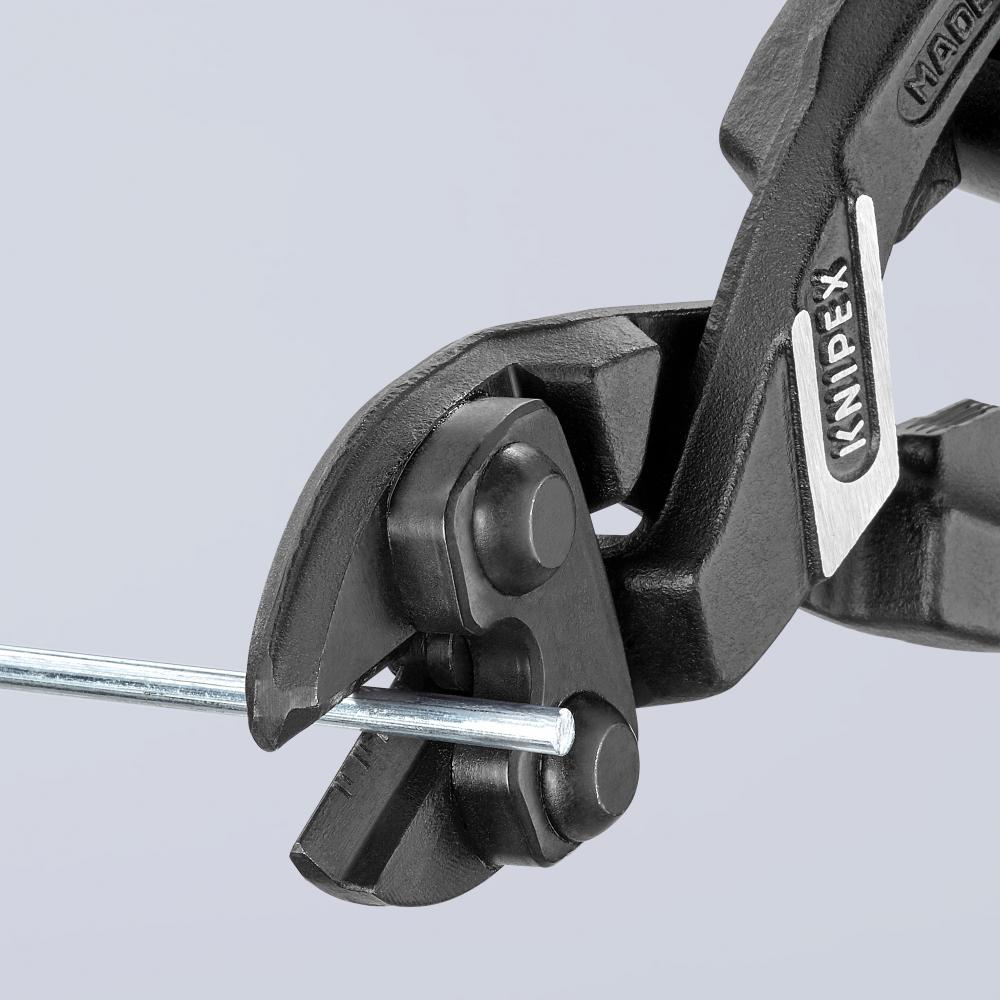

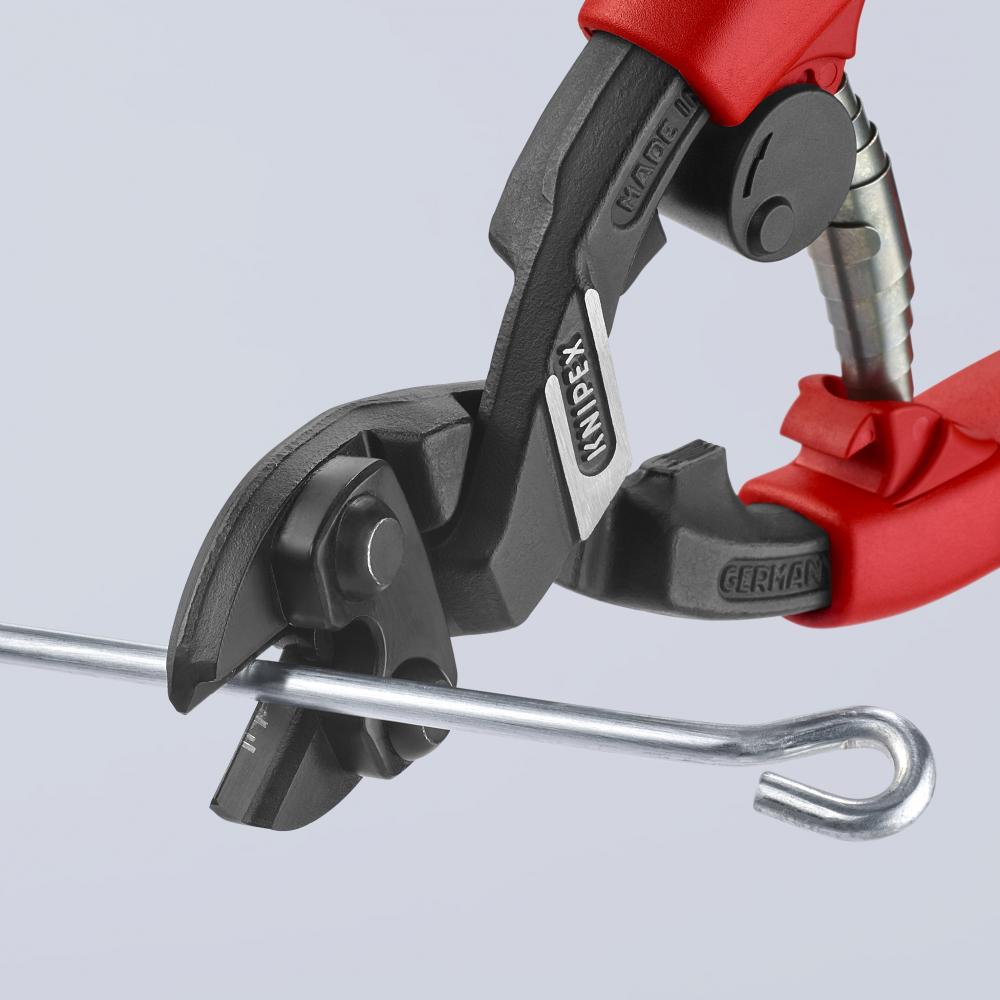

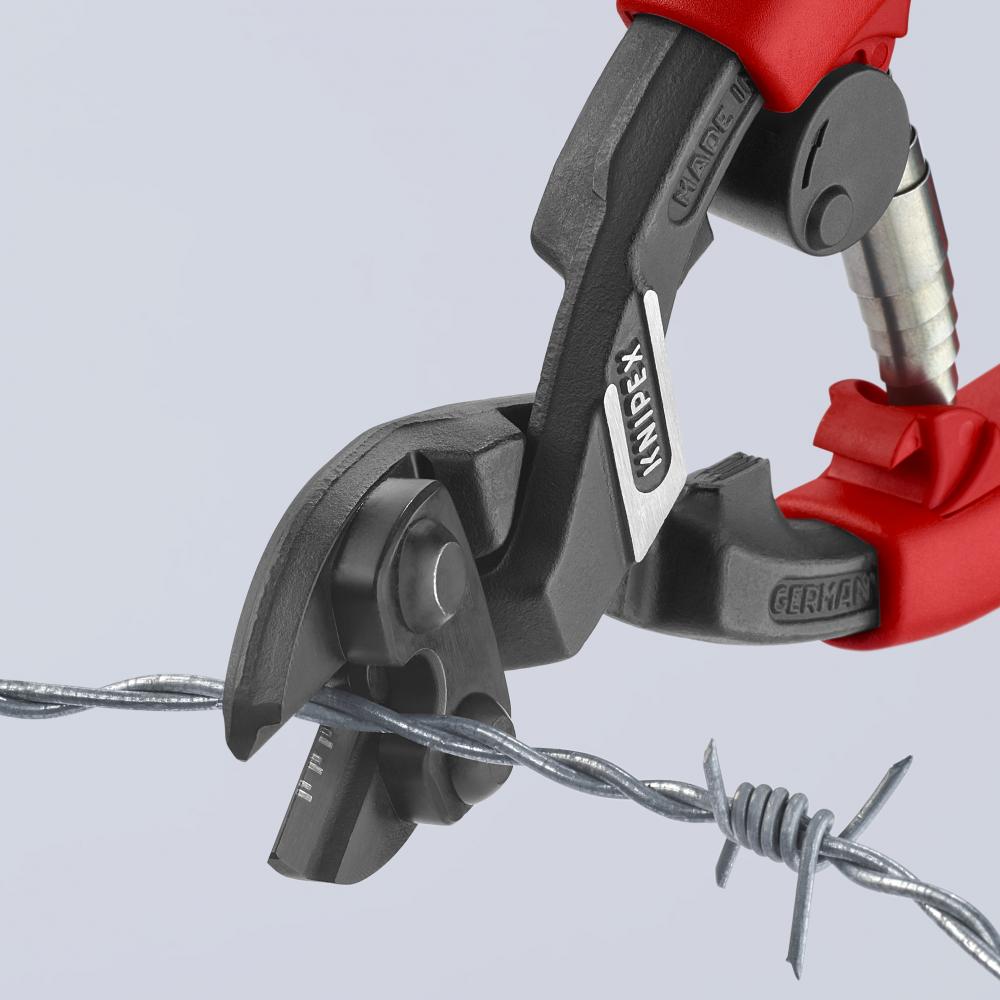

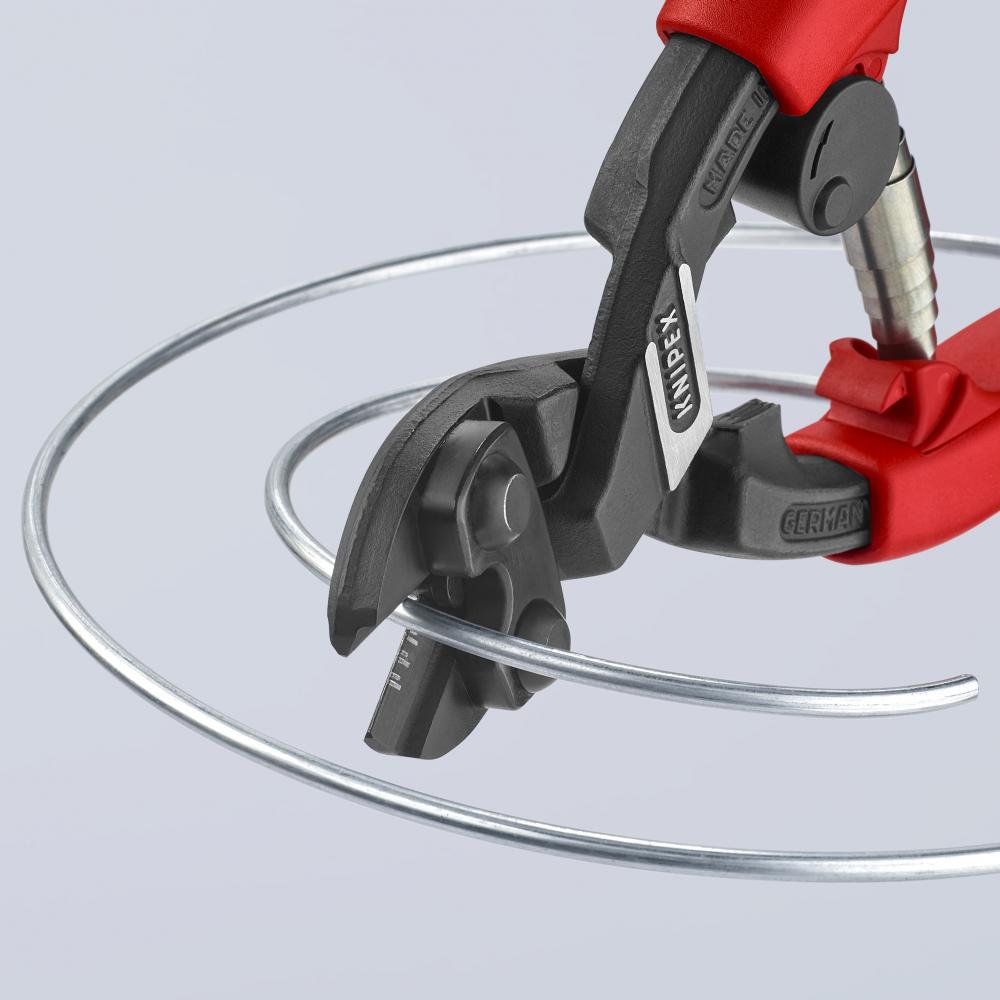

Induction hardened edges cut soft, hard and piano wire.

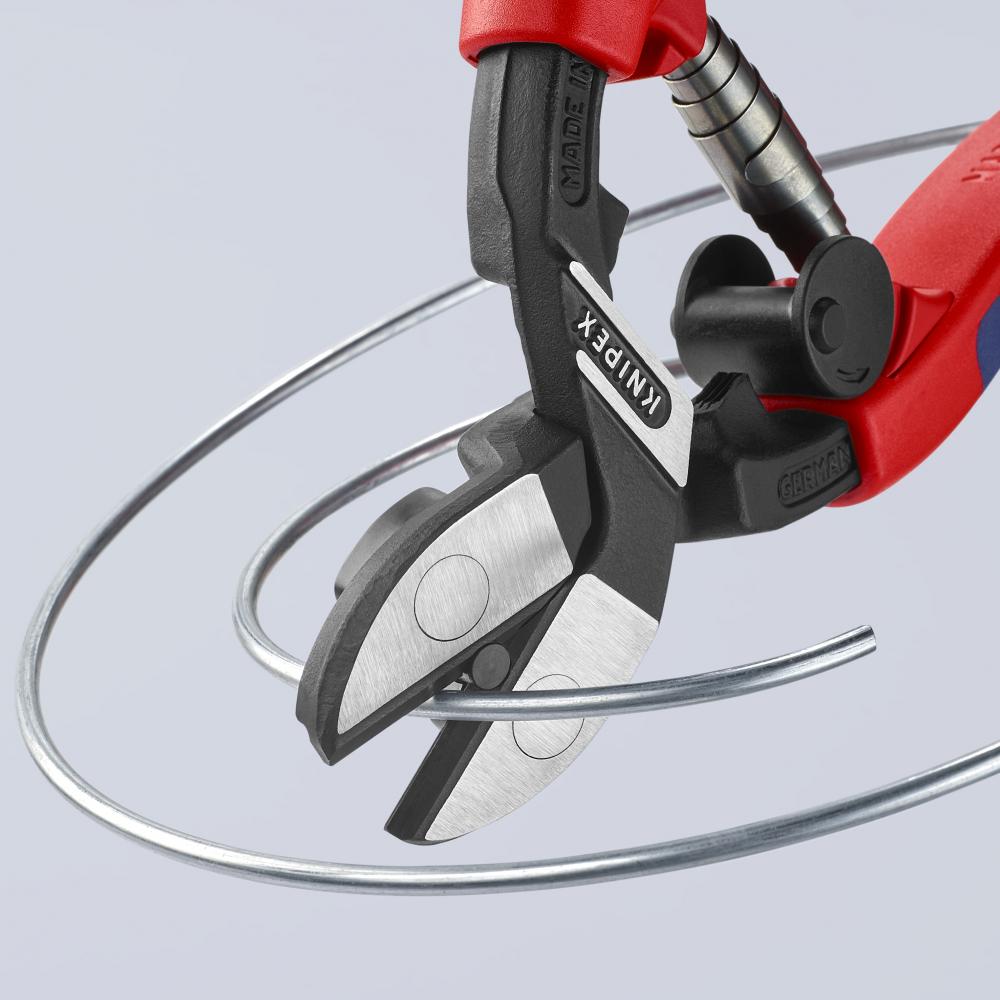

Micro-structured cutting edges allow easy cutting of large cross-sections.

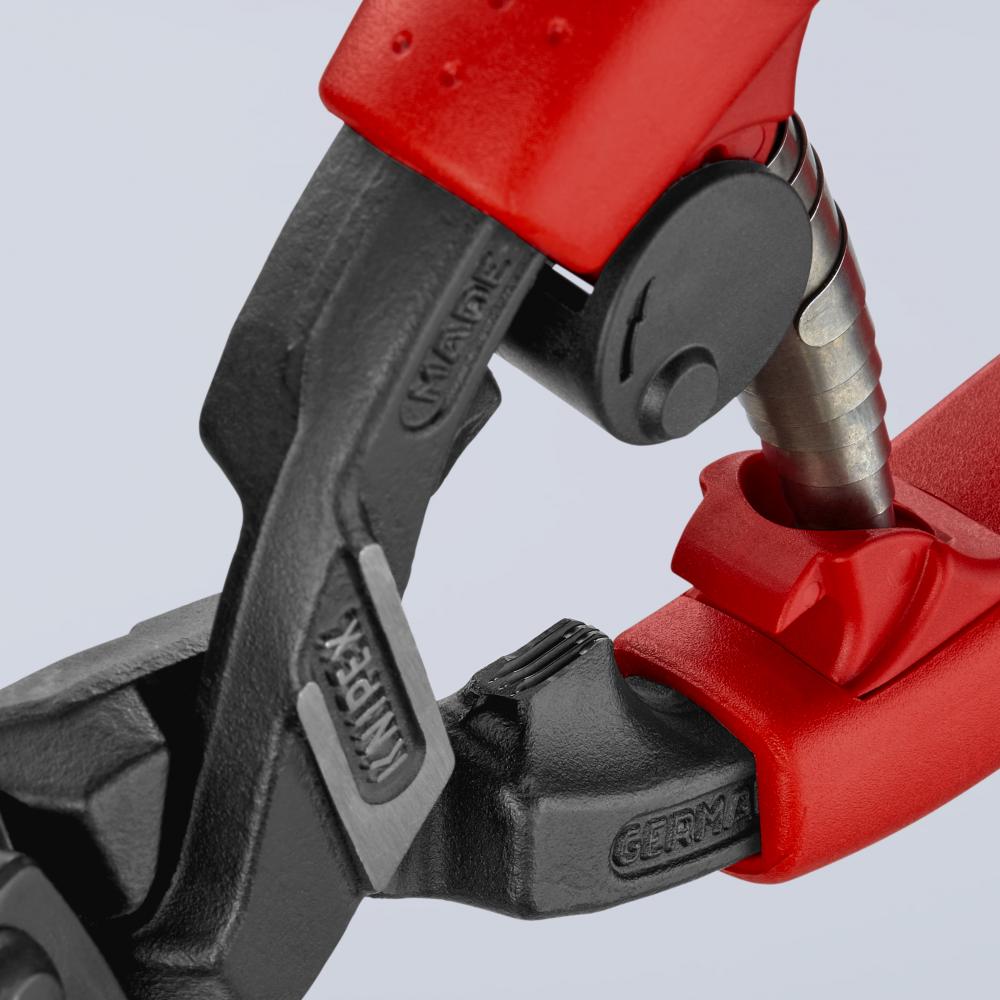

Opening spring and locking device are integrated in the handles for comfortable work and protected transport.
The cutting force is about 20 times higher than hand force applied.
The lever-action mechanism ensures an extremely favorable lever ratio with very little friction.
Tool Height mm:
24 mm
Tool Length mm:
200 mm
Tool Weight grams:
375 g
Tool Width mm:
62 mm
Unit Of Measure:
Each
UNSPSC:
27111512
UNSPSC Number:
27111512
UOM Qty:
1
UPC Code:
843221008246
Other Details

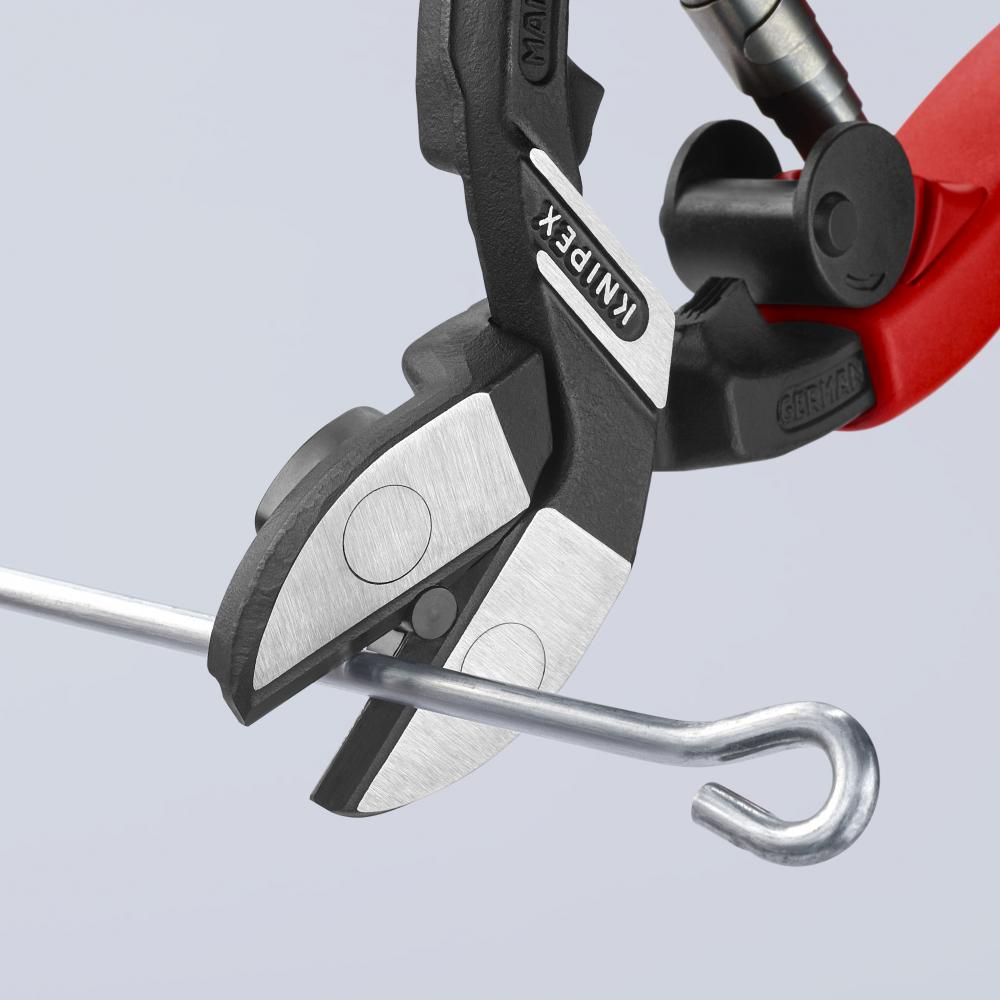

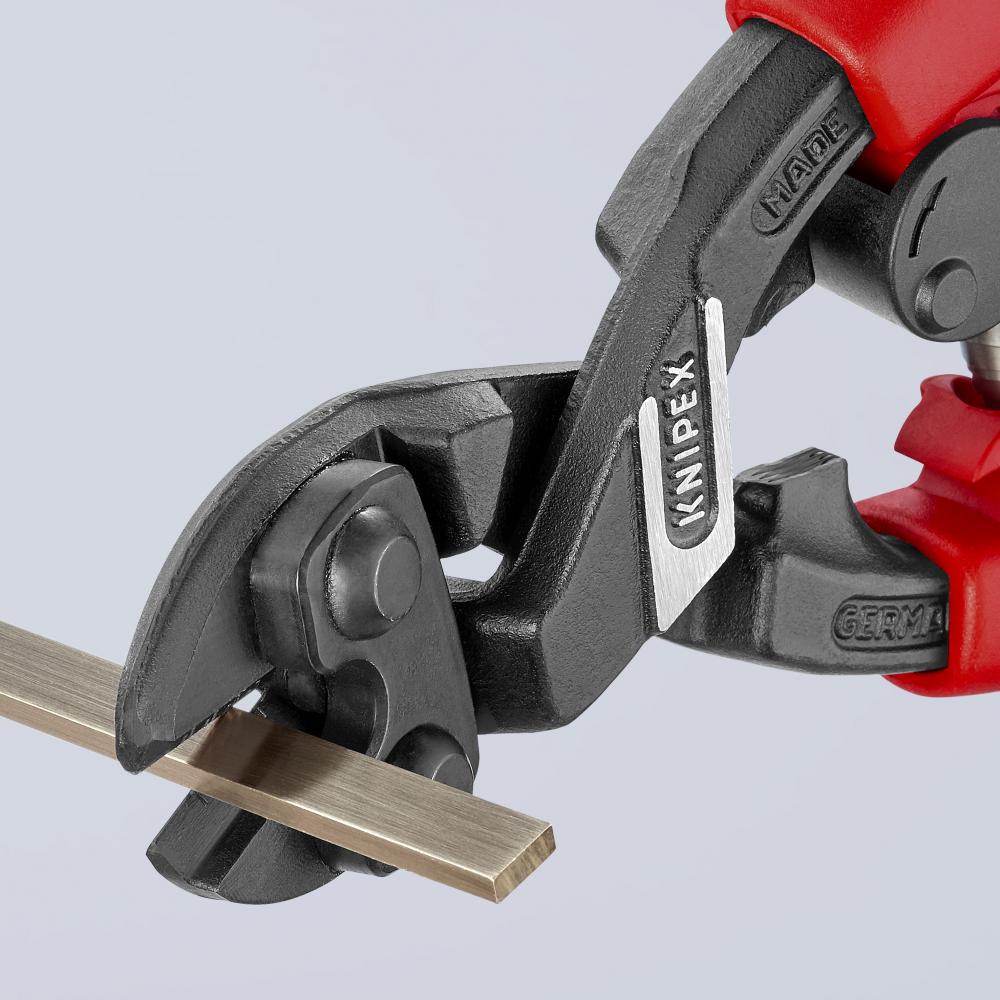

20˚ angled head with single-sided joint bar and diagonal cutting edge for flush cutting; with space for gripping
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened

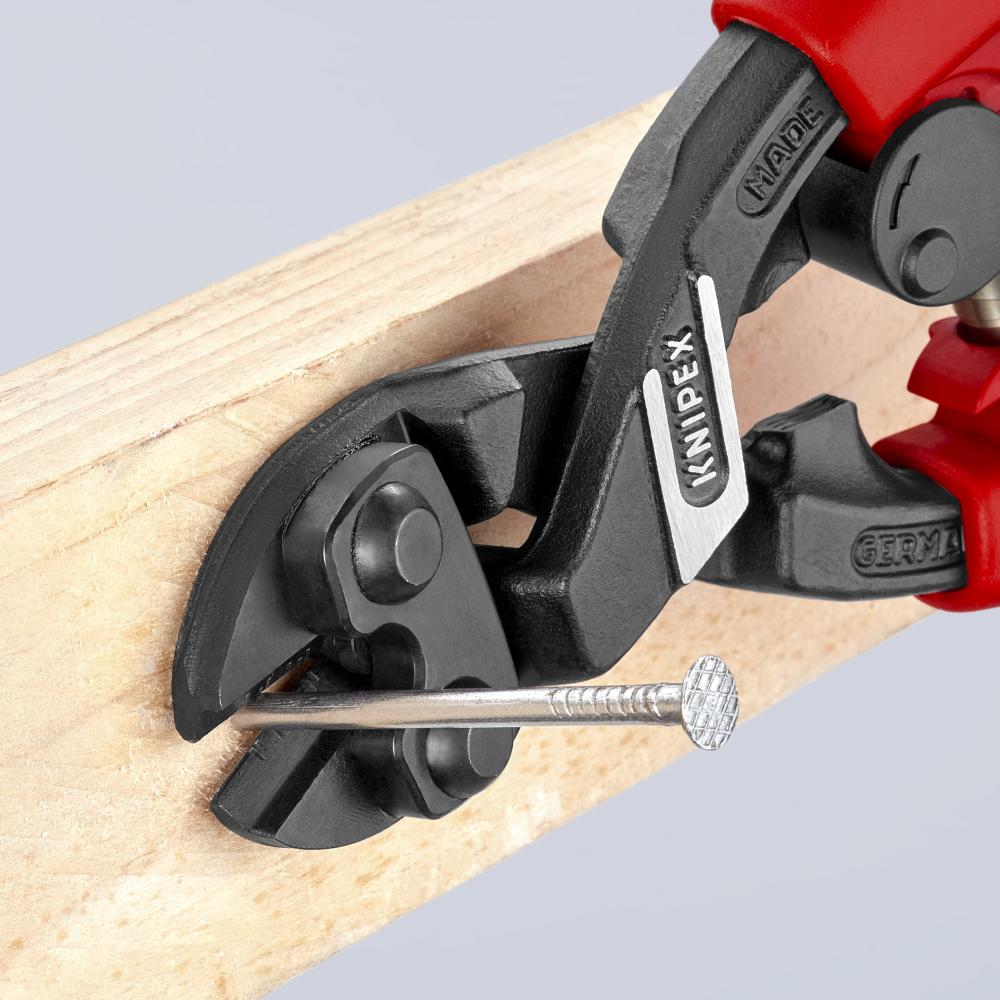

Cuts materials like bolts, nails, rivets, etc. up to 1/4" (6.0 mm) diameter
Exceptional cutting performance with minimum effort because of lever action design
Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters
Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64"
Induction hardened cutting edges (approx. 64 HRC) for cutting soft, hard and piano wire
Micro-structured cutting edges allow easy cutting of large cross-sections
Opening spring and locking device are integrated in the handles for comfortable work and protected transport
Straight blade
