![8" Angled Retaining Ring Pliers for Retaining Rings on Shafts](/vendors/8243/large/4521200-00-3.jpg "8" Angled Retaining Ring Pliers for Retaining Rings on Shafts")

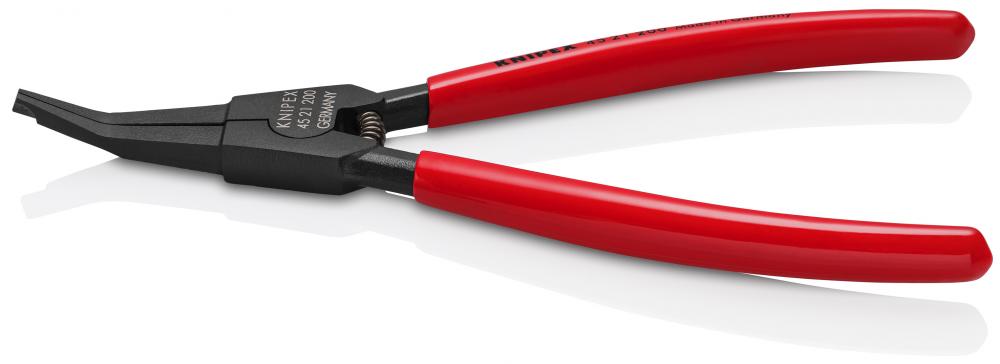

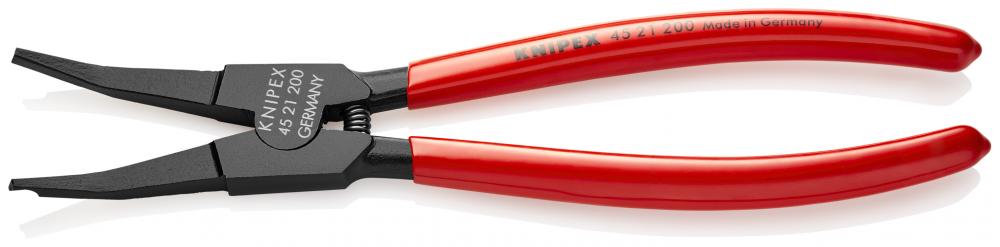

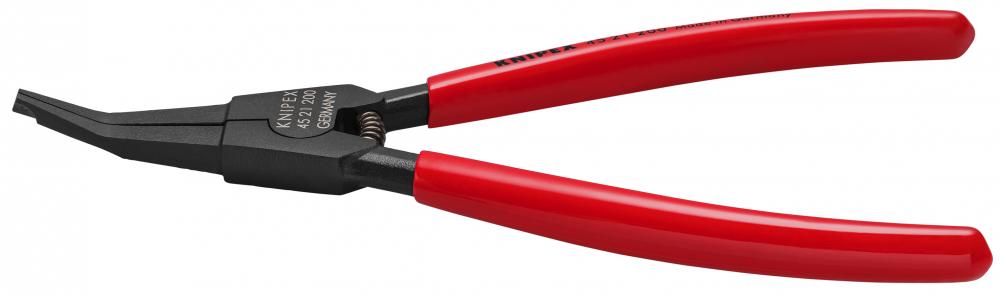

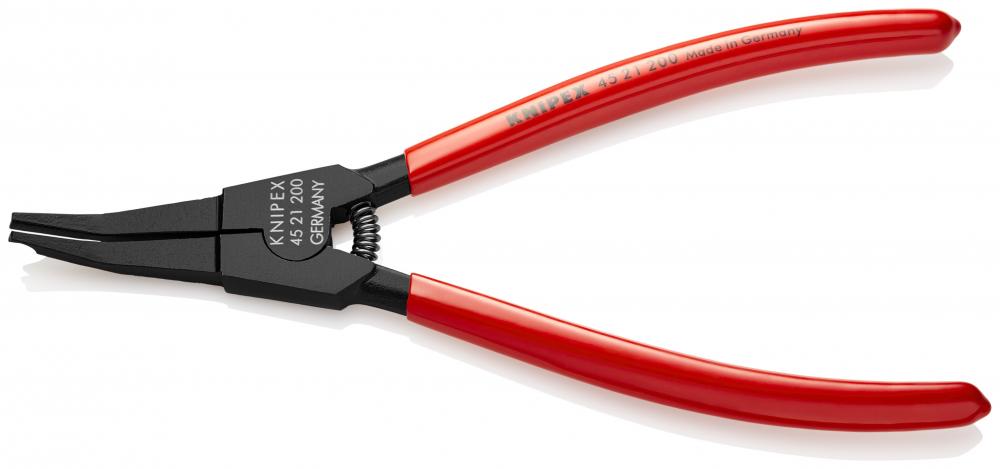

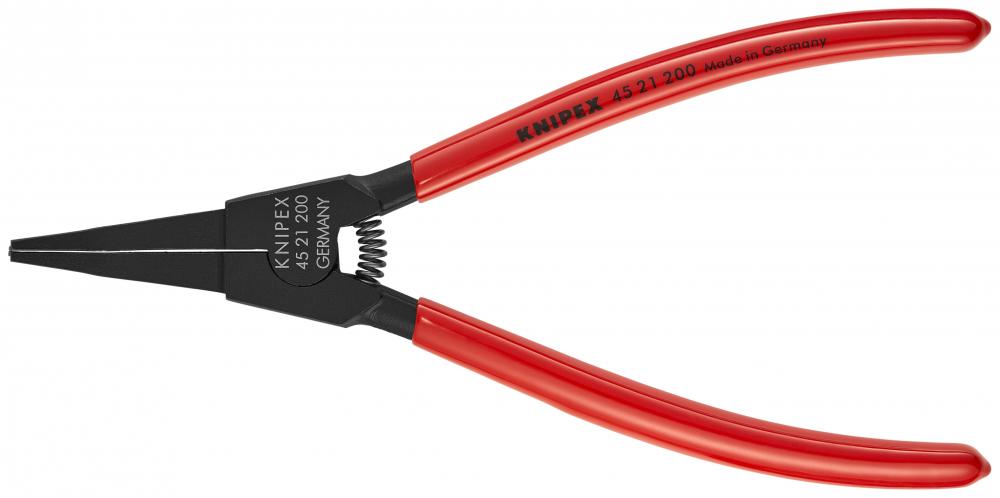

8" Angled Retaining Ring Pliers for Retaining Rings on Shafts
Call For Price
- Part Number: 45 21 200
- UPC: 00843221004798
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Retaining and Lock Ring Pliers
1000 Volt Insulated:
No
Angled Head:
30 degree
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
4521200_en.pdf
ECCN:
EAR99
Handle Length:
4 3/4"
Handle Type:
Plastic coating
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Surface Finish: Black-oxide
Item Height (inches):
2/3"
Item Height inches:
2/3"
Item Length (inches):
8
Item Length inches:
8"
Item Quantity:
1
Item Weight (lbs):
0.415
Item Weight lbs:
0.415
Item Width (inches):
1 9/16"
Item Width inches:
1 9/16"
Joint Type:
Rivet
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium electric steel, forged, oil-hardened
Nomintal Length mm:
200
Other Surface Finish:
Burnished
Package Height (inches):
1.4"
Package Height inches:
1.4"
Package Length (inches):
9.3"
Package Length inches:
9.3"
Package Weight (lbs):
0.471
Package Weight lbs:
0.471
Package Width (inches):
2.6"
Package Width inches:
2.6"
Packaging Height mm:
48 mm
Packaging Length mm:
230 mm
Packaging Width mm:
83 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Black-oxide
Tip Width:
3/32"
Tool Attributes:
Chrome vanadium electric steel; forged, oil-hardened.

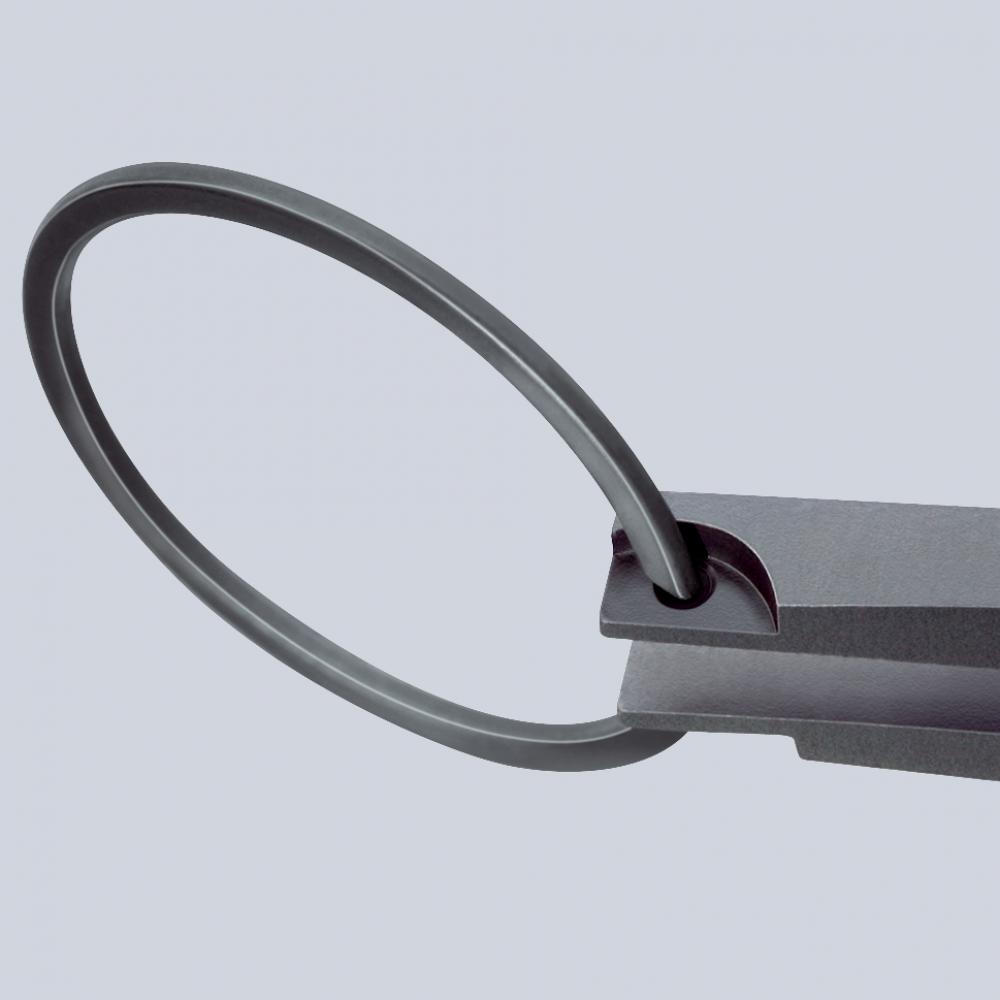

For fitting horseshoe-shaped spring retaining rings and circlips without grip holes - 30 degree angled tips
For shaft retaining devices.
For snap rings larger than 15/32" dia. for securing drive shaft in the gearbox of a motor vehicle.
Minimum ring split gap of the rings 3/32".

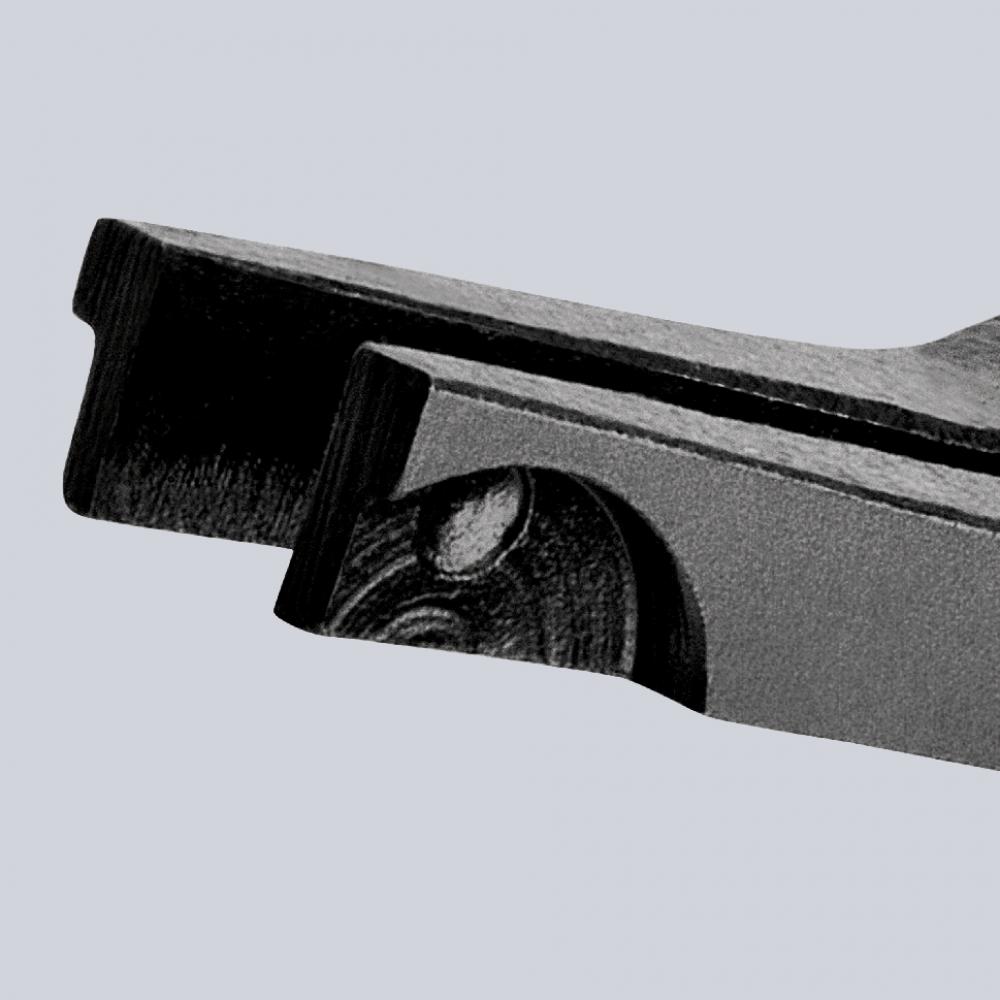

With centering hole.
With opening spring.
Tool Height mm:
13 mm
Tool Length mm:
200 mm
Tool Weight grams:
186 g
Tool Width mm:
92 mm
Unit Of Measure:
Each
UNSPSC:
27112140
UNSPSC Number:
27112140
UOM Qty:
1
UPC Code:
843221004798
Other Details
Angled jaws with centering hole; for snap rings larger than 15/32" (12.0 mm) dia., e. g. for securing drive shaft in the gearbox of a motor vehicle
Chrome vanadium electric steel; forged, oil-hardened
For fitting horseshoe-shaped spring retaining rings and circlips without grip holes - 30˚ angled tips
For shaft retaining devices
Minimum ring split gap of the rings 3/32"
With opening spring
