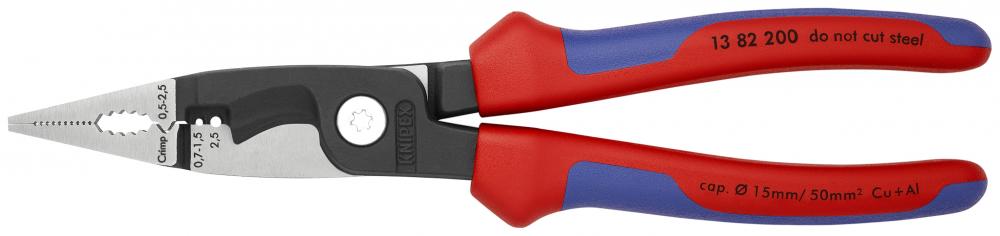

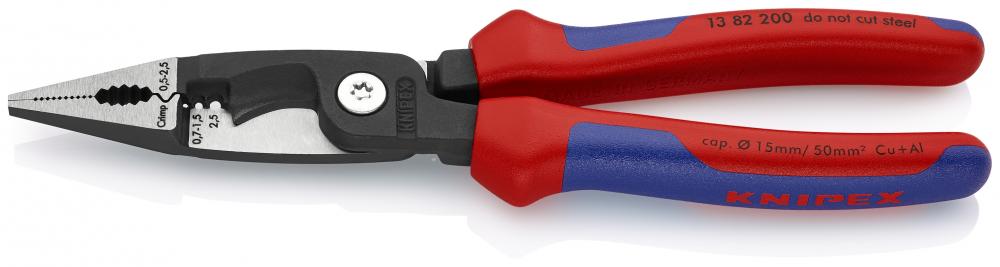

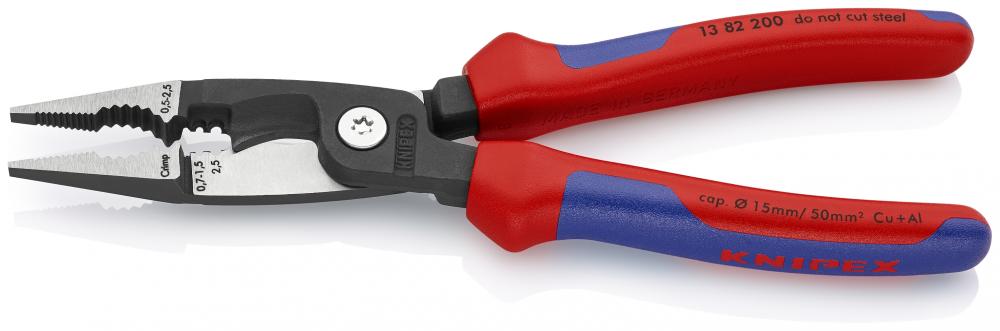

8" 6-in-1 Electrical Installation Pliers-Metric Wire
Call For Price
- Part Number: 13 82 200 SB
- UPC: 00843221019518
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (8)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Linemans Pliers
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Crimping Positions:
1
Crimping Profile:
Mandrel crimp
Cutting Capacity - Cu and Al conductor:
9/16"
Cutting Capacity Cu And Al Conductor:
Up to 19/32" dia
Cutting Edge Shape:
Shear
Data Sheet Filename:
1382200sb_en.pdf
ECCN:
EAR99
Gripping Surface:
Smooth tip and serrated jaws
Handle Length:
4 1/2"
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Gripping Surface: Smooth tip and serrated jaws
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
8
Item Length inches:
8"
Item Quantity:
1
Item Weight (lbs):
0.58
Item Weight lbs:
0.58
Item Width (inches):
1 13/16"
Item Width inches:
1 13/16"
Jaw Type:
Flat
Joint Type:
Bolted
Joint Type 2:
Fixed Joint
Material Type:
High-grade special tool steel, forged, multi stage oil-hardened
Other Surface Finish:
Black atramentized
Package Height (inches):
0.95"
Package Height inches:
0.95"
Package Length (inches):
10.1"
Package Length inches:
10.1"
Package Weight (lbs):
0.625
Package Weight lbs:
0.625
Package Width (inches):
3.35"
Package Width inches:
3.35"
Packaging Height mm:
92 mm
Packaging Length mm:
344 mm
Packaging Width mm:
115 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tool Attributes:
6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs
Crimp die for end sleeves (ferrules) 0.5 to 2.5 mm(2)
Cutting capacity - up to 9/16" for Cu and Al multi-conductor
Serrated gripping surfaces and pipe grip for gripping flat and round material
Slim head dimensions for easier access
Suitable for stripping 0.75 to 1.5 mm2 and 2.5mm2
Tool Height mm:
20 mm
Tool Length mm:
200 mm
Tool Weight grams:
300 g
Tool Width mm:
115 mm
Unit Of Measure:
Each
UNSPSC:
27112151
UNSPSC Number:
27112151
UOM Qty:
1
UPC Code:
843221019518
Other Details

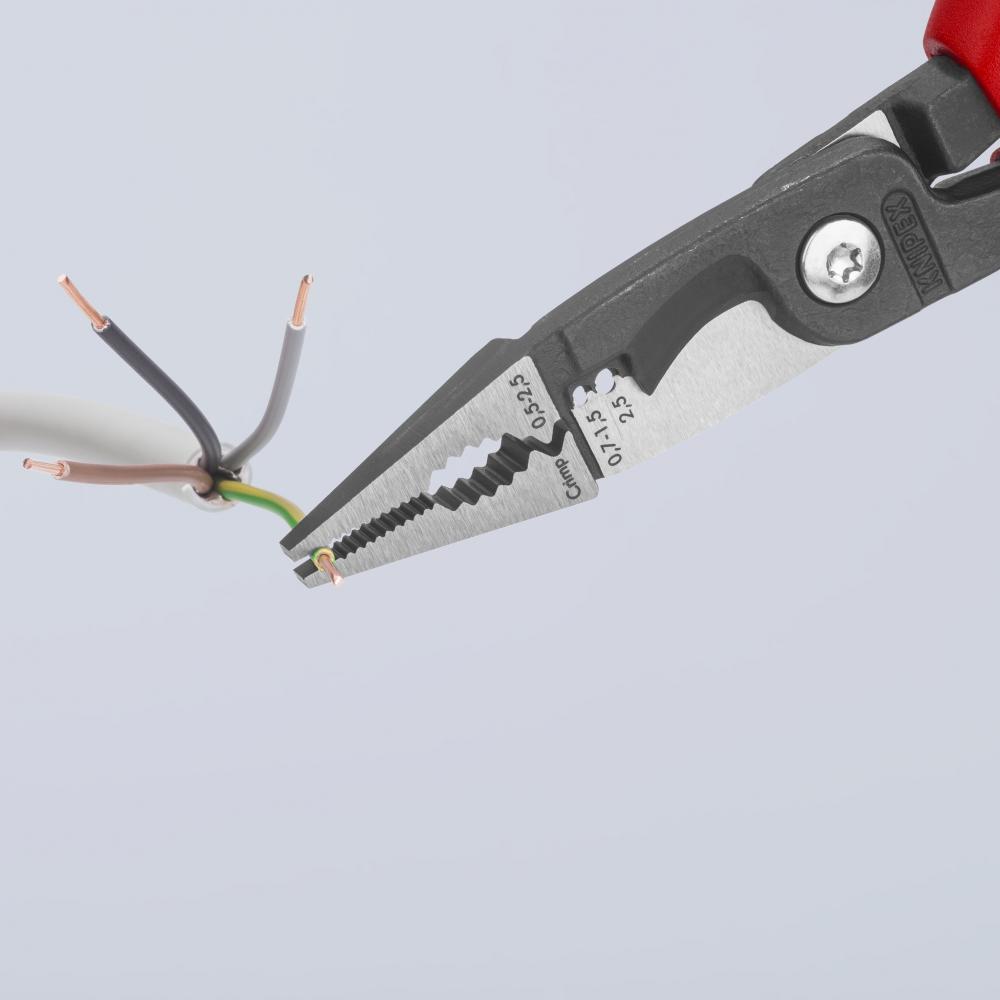

6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs
Bolted joint: precise, zero-backlash operation of pliers

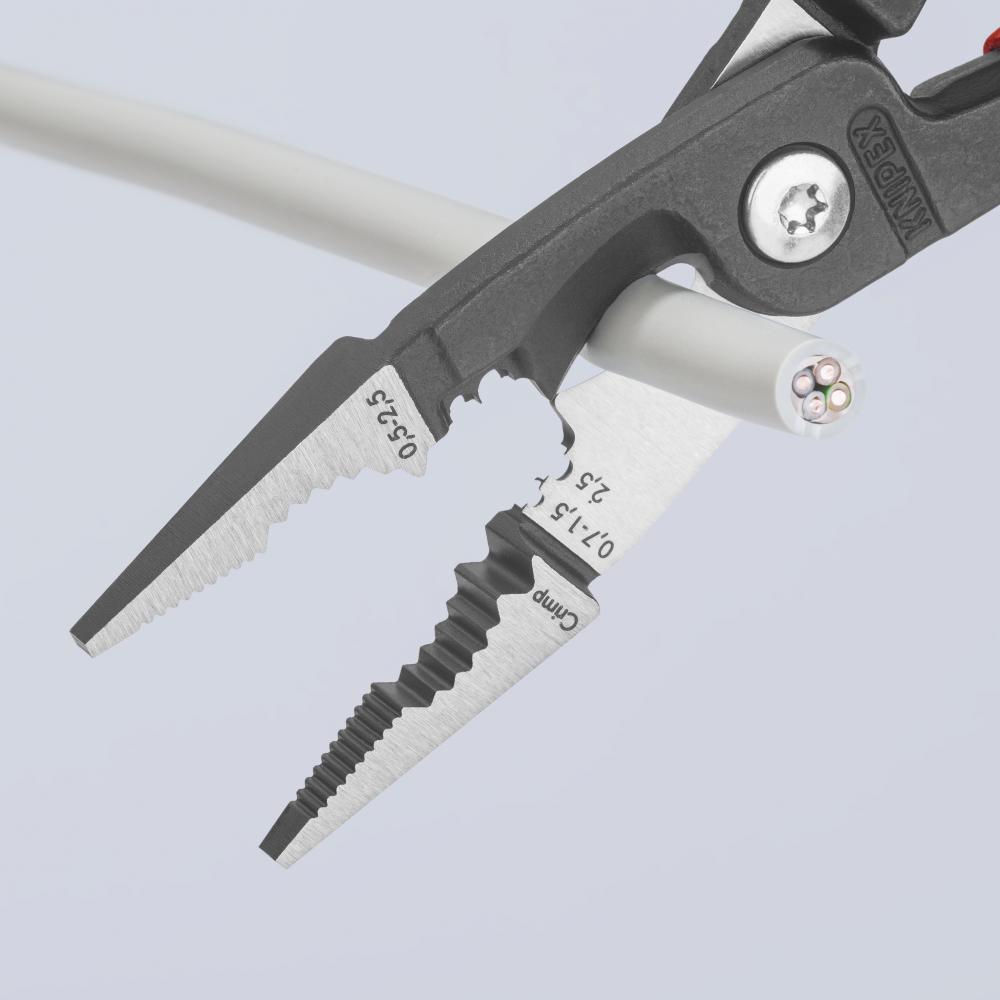

Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 19/32" dia. (5 x 2.5 mm² / dia. 5 mm)
Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes

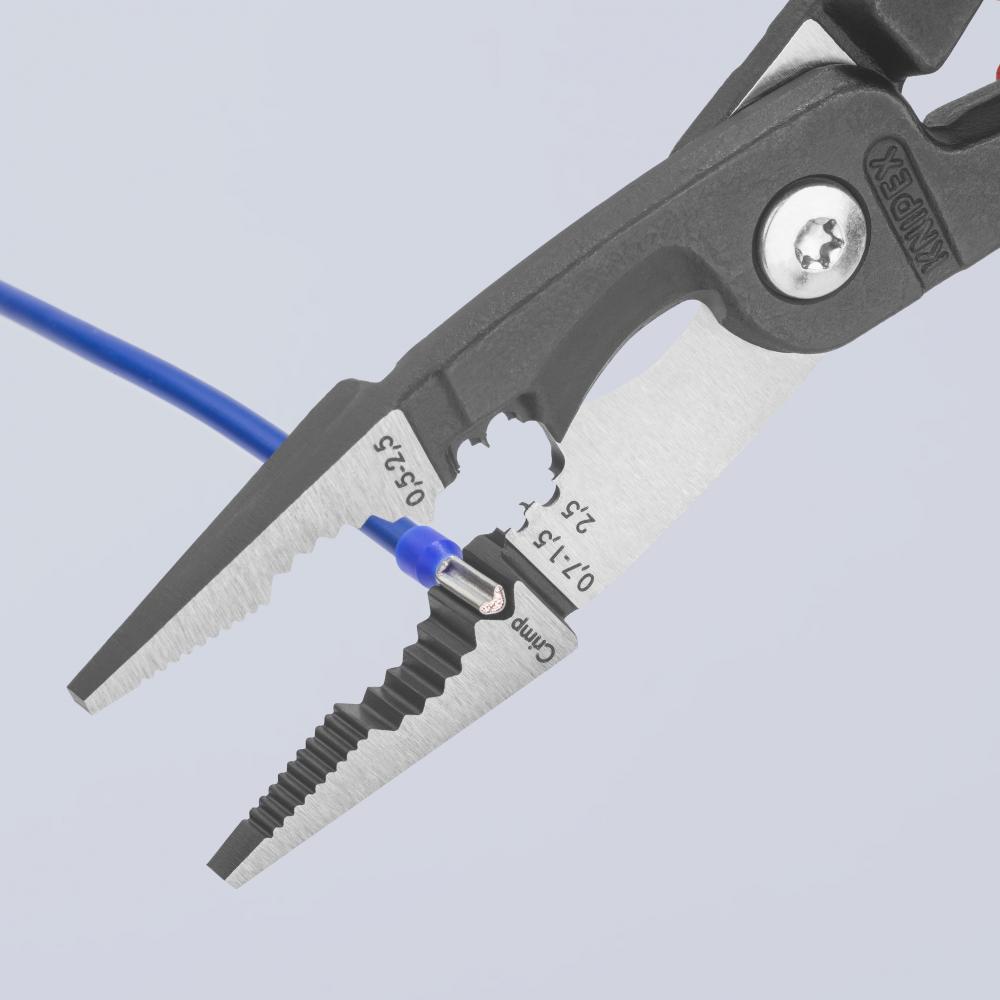

Crimp die for end sleeves (ferrules) 0.5 to 2.5 mm(2)
Crimp die for end sleeves (ferrules) 0.5 – 2.5 mm²
High-grade special tool steel; forged, multi stage oil-hardened
Slim head dimensions for easier access

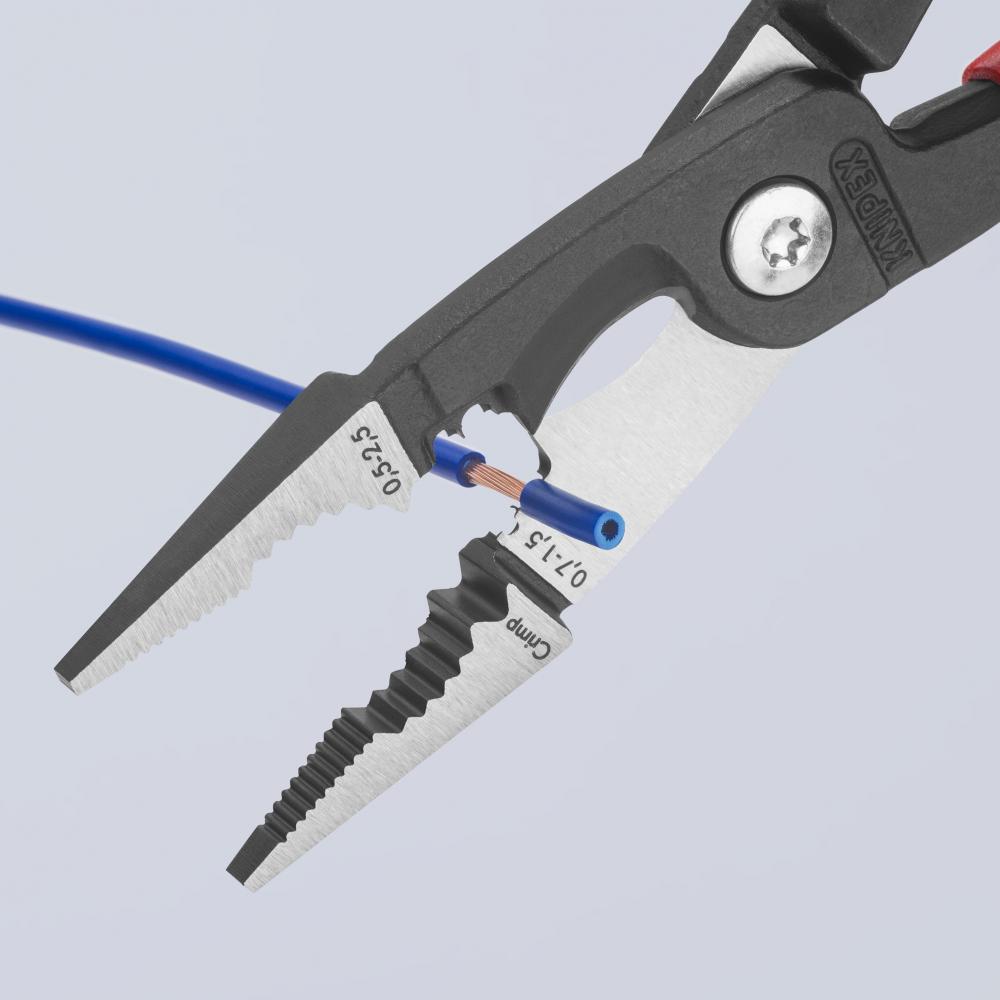

Stripping holes for 0.75 - 1.5 mm² and 2.5 mm²
