![7" Automatic Stripping Pliers for Control Cable](/vendors/8243/large/1274180SB-00-3.jpg "7" Automatic Stripping Pliers for Control Cable")

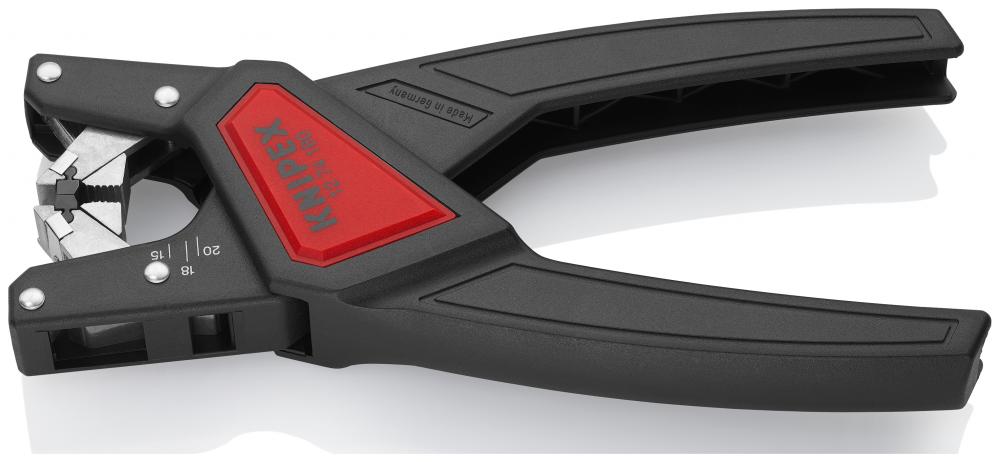

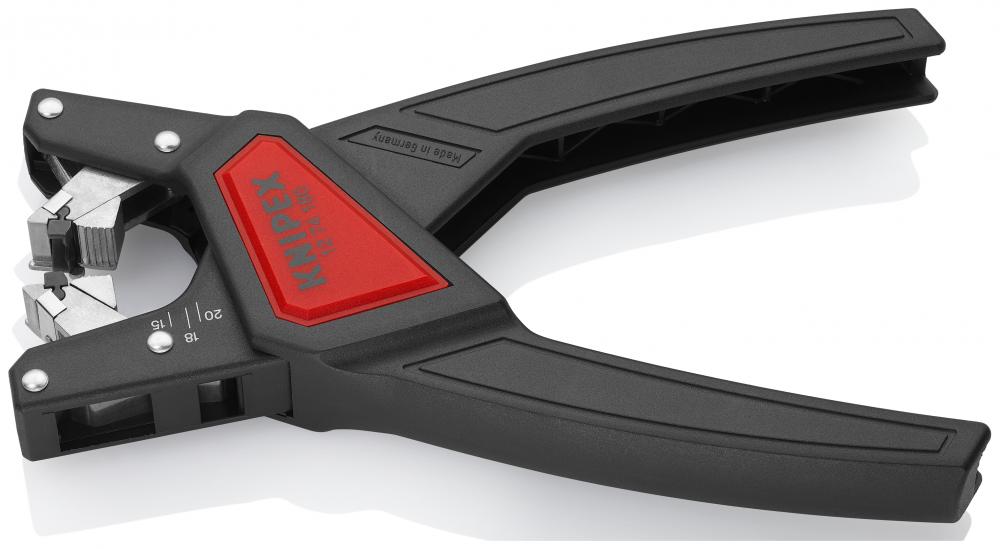

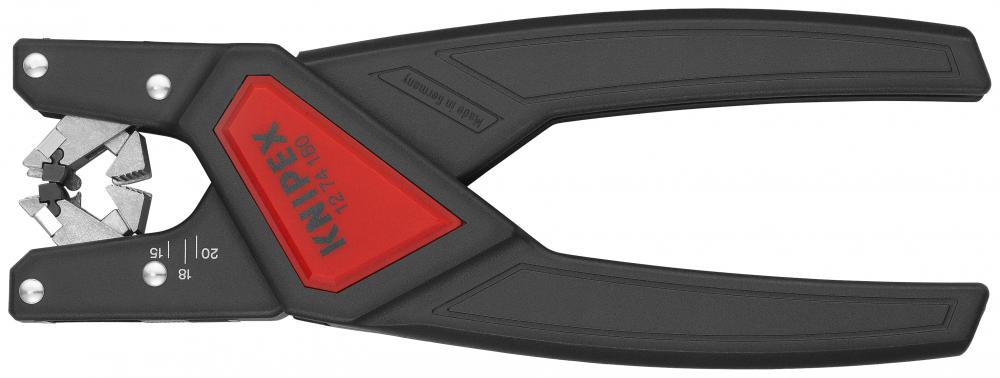

7" Automatic Stripping Pliers for Control Cable
Call For Price
- Part Number: 12 74 180 SB
- UPC: 00843221023461
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (11)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Wire Strippers and Cable Slitters
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Black
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
1274180sb_en.pdf
ECCN:
EAR99
Handle Type:
Bare plastic
Harmonized Tariff Code:
8211.92.4060
Included Products/Items:
Handle Type: Bare plastic
Item Height (inches):
1 1/8"
Item Height inches:
1 1/8"
Item Length (inches):
7
Item Length inches:
7"
Item Quantity:
1
Item Weight (lbs):
0.273
Item Weight lbs:
0.273
Item Width (inches):
2 7/8"
Item Width inches:
2 7/8"
Joint Type 2:
Fixed Joint
Material Type:
Blades: special tool steel, oil-hardened
Other Material Type:
Handles: fiberglass reinforced plastic
Package Height (inches):
1.01"
Package Height inches:
1.01"
Package Length (inches):
10.04"
Package Length inches:
10.04"
Package Weight (lbs):
0.313
Package Weight lbs:
0.313
Package Width (inches):
3.21"
Package Width inches:
3.21"
Packaging Height mm:
28 mm
Packaging Length mm:
255 mm
Packaging Width mm:
80 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Spare Part:
12 79 31
Stripping Capacity:
4.4 to 7.5 mm
Tool Height mm:
28 mm
Tool Length mm:
175 mm
Tool Weight grams:
145 g
Tool Width mm:
80 mm
Unit Of Measure:
Each
UNSPSC:
27112151
UNSPSC Number:
27112151
UOM Qty:
1
UPC Code:
843221023461
Other Details

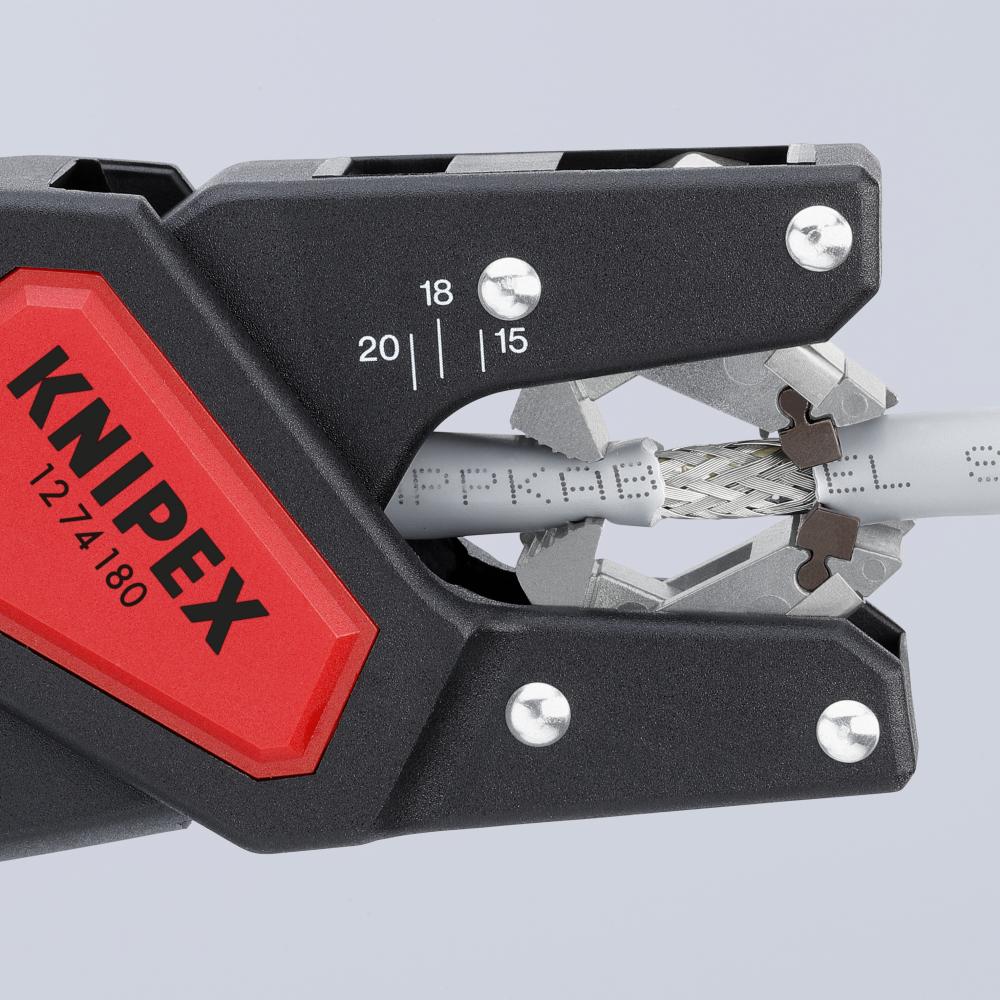

Allows cable to pass through center of pliers for mid-line strip or stripping longer lengths
Automatic adjustment to cable diameters between 4.4 and 7.5 mm
Blades are made of special tool steel, oil-hardened
Body is made of fiberglass-reinforced plastic
Effortless stripping: for multi-core cables with uneven cross-section

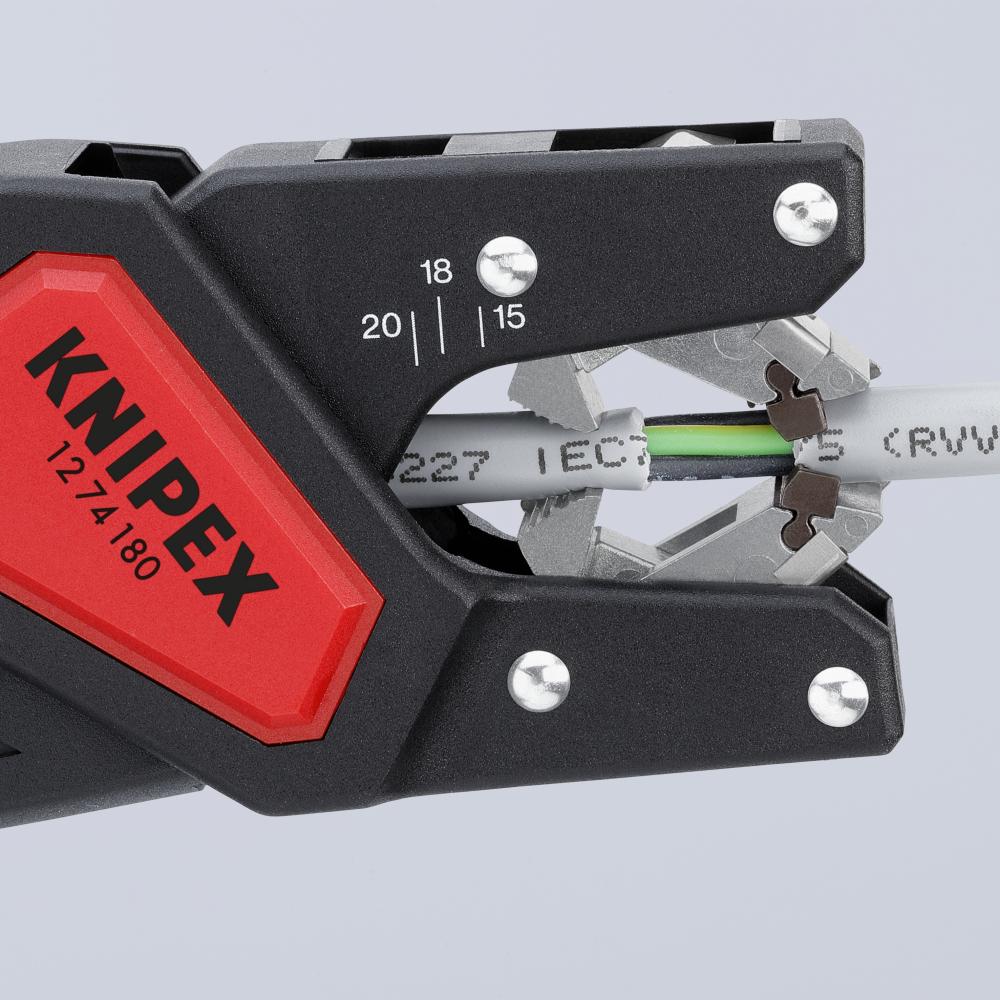

For control and sensor cables / actuator cables, also for stripping flexible 3-core feed cables and extension cable
Long stripping lengths possible
No damage to the inner conductor or shield braid
Spare blades part number 12 79 31
Suitable for highly flexible PUR and PVC cable sheathing and rubber leads such as H05, etc.
