![7 1/4" Twinforce® Diagonal Super Cutters](/vendors/8243/large/7372180-01-3.jpg "7 1/4" Twinforce® Diagonal Super Cutters")

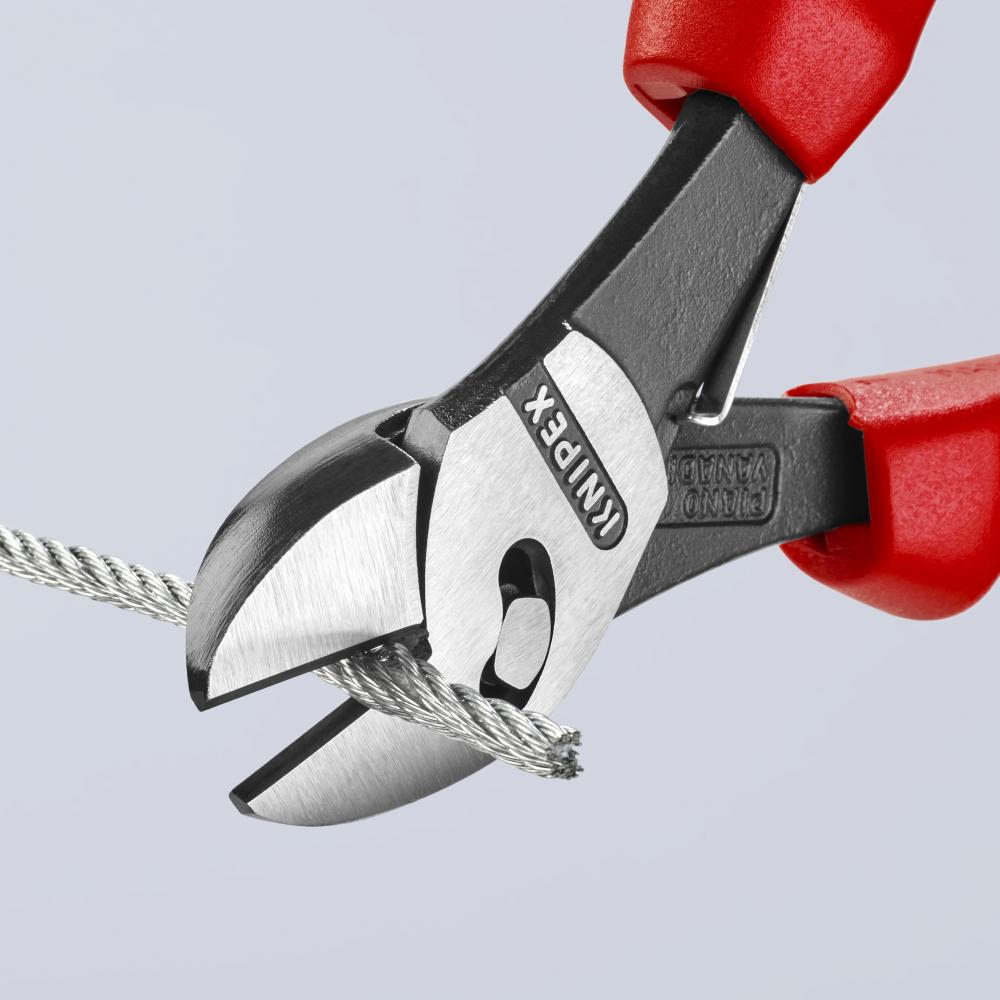

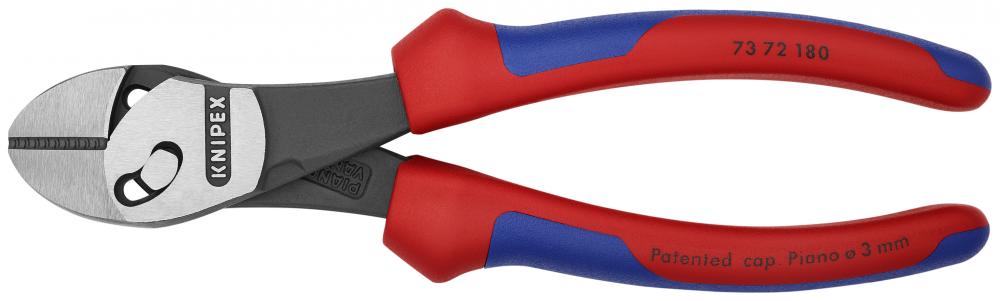

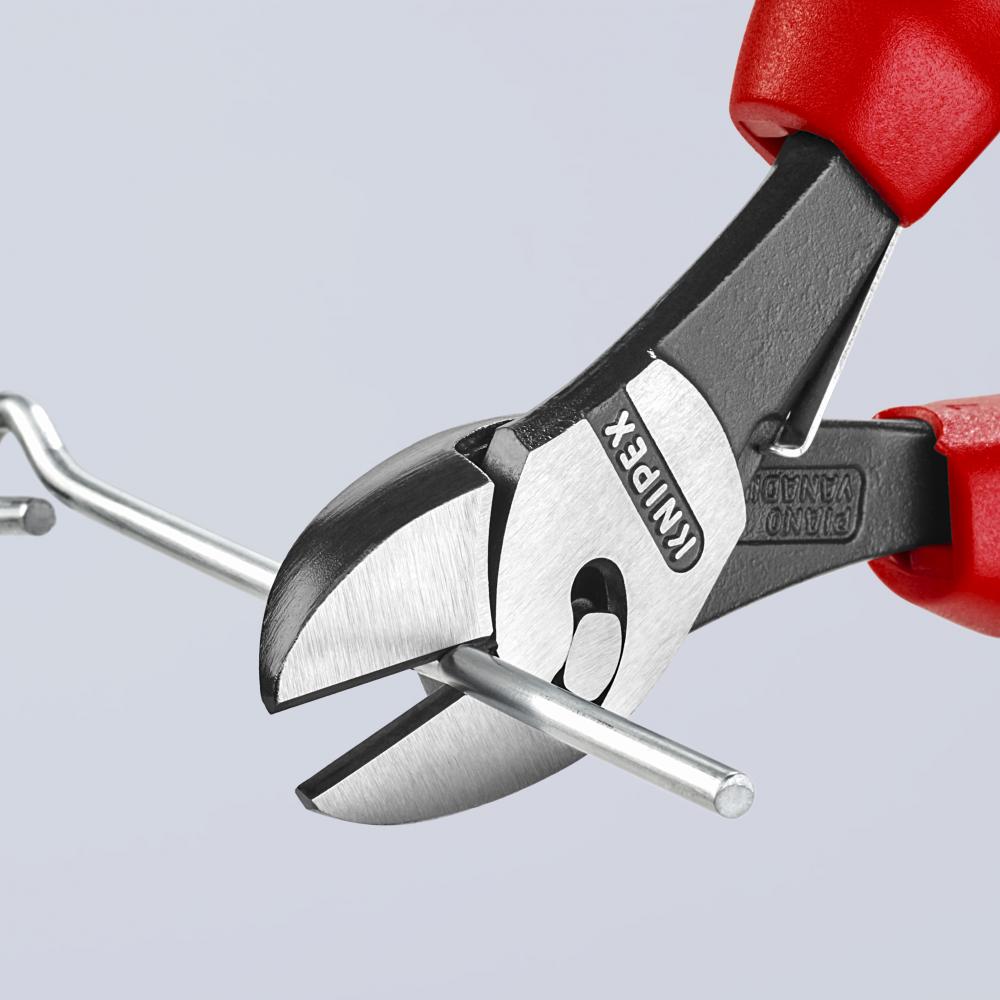

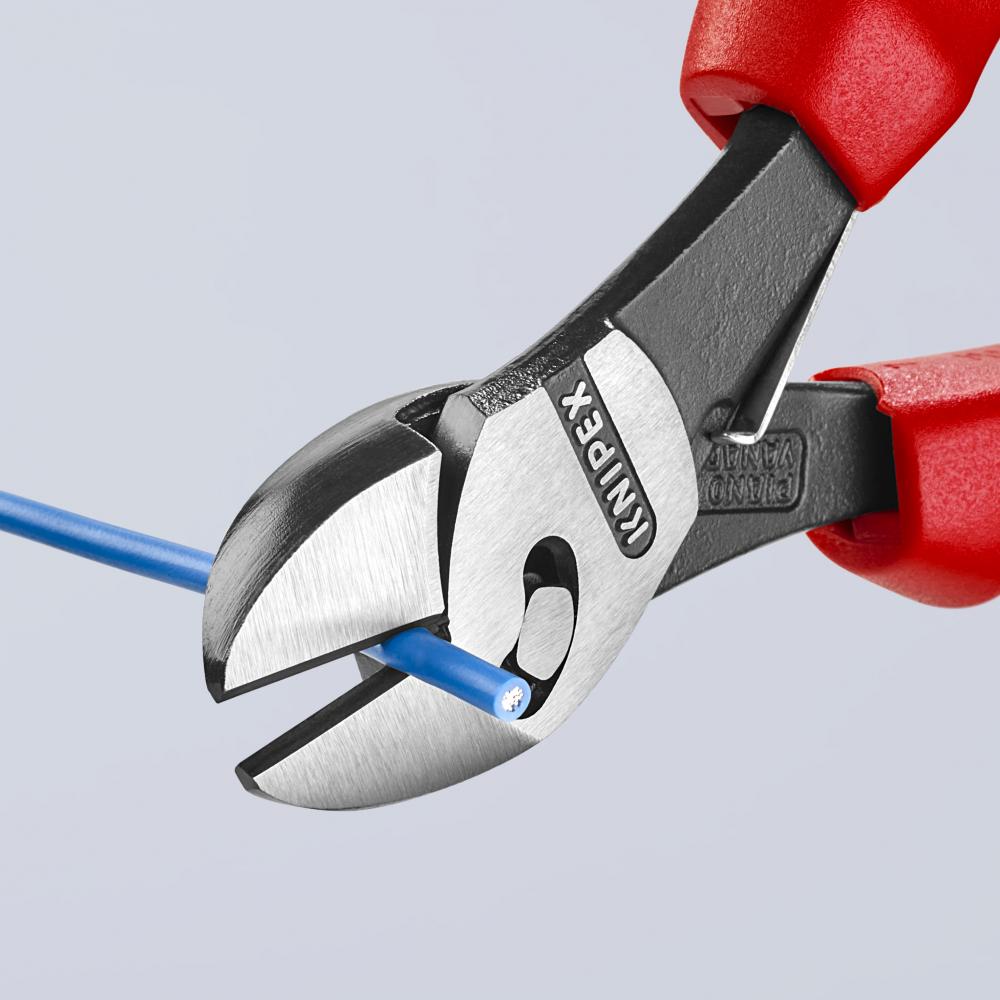

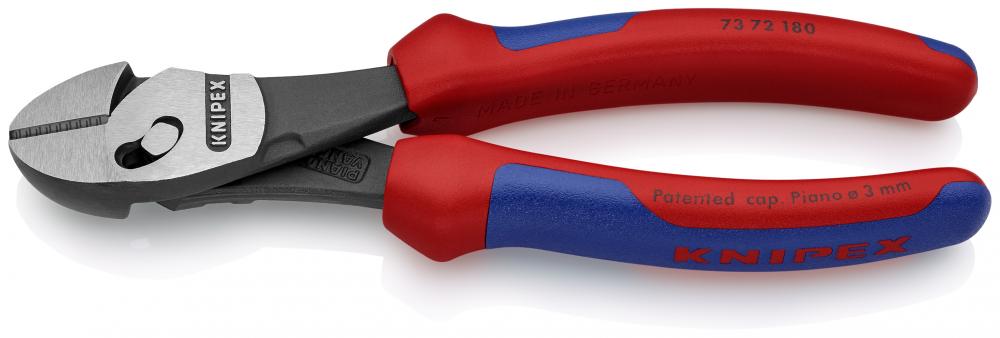

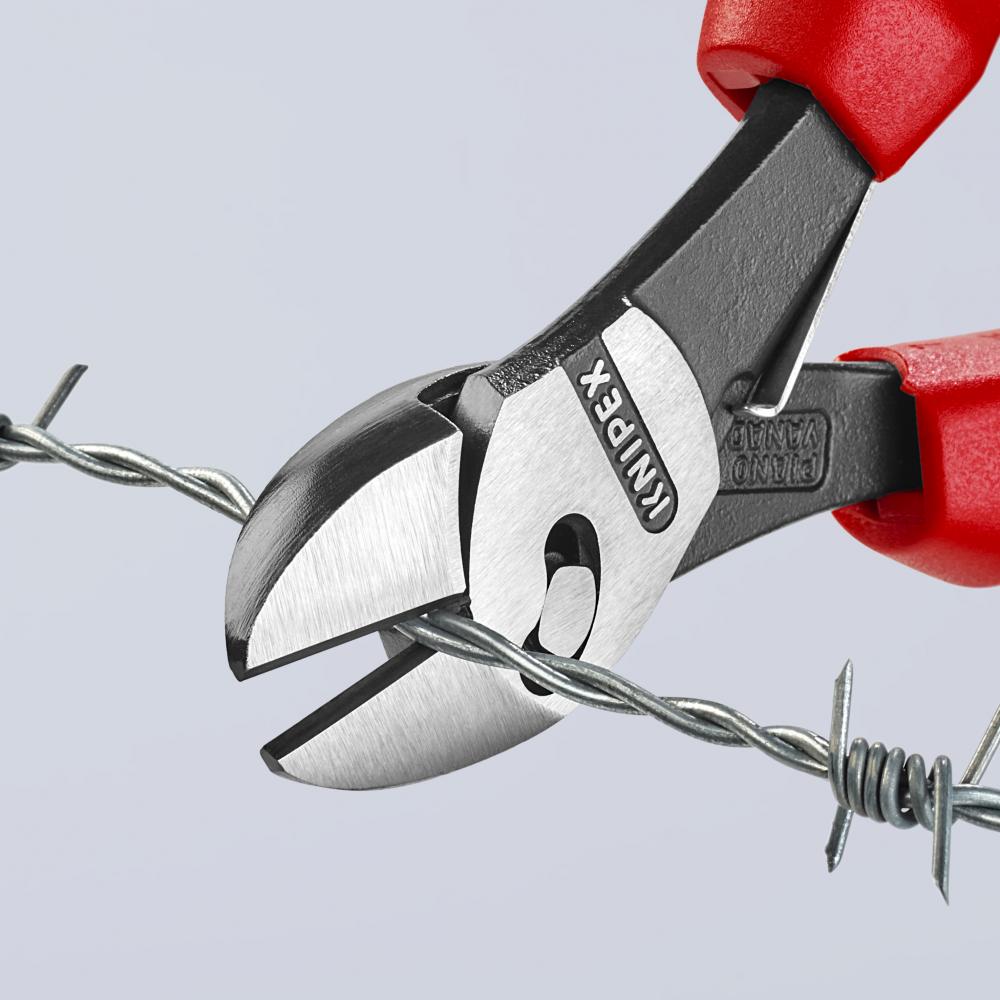

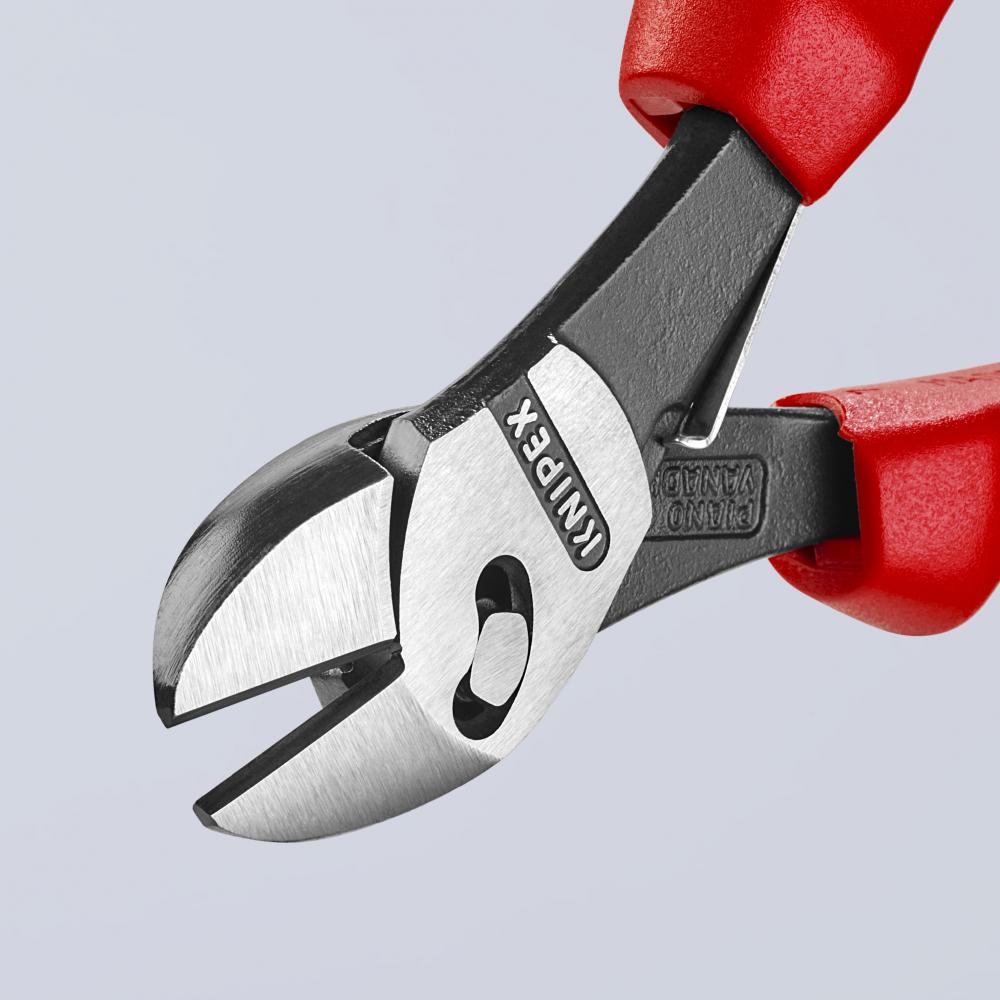

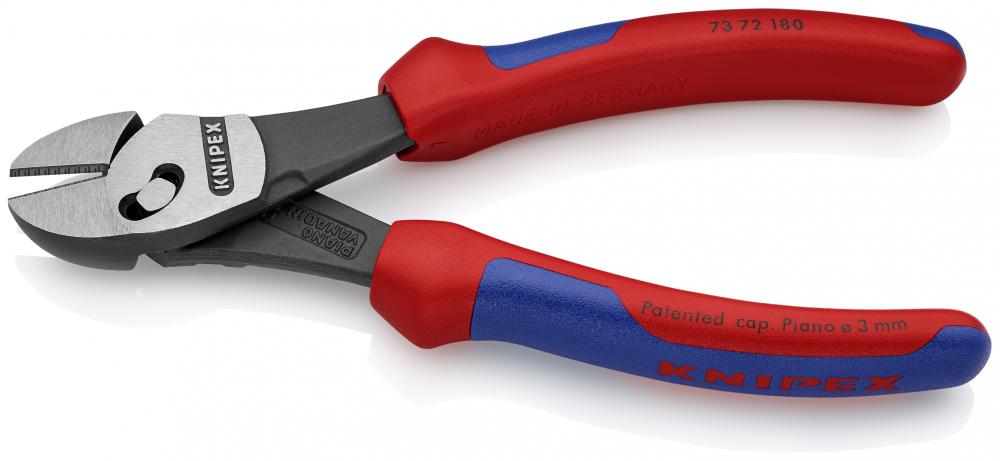

7 1/4" Twinforce® Diagonal Super Cutters
Call For Price
- Part Number: 73 72 180 BK
- UPC: 00843221019570
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Cu and Al conductor:
15/32"
Cutting Capacity - Hard Wire (Steel Wire):
1/8"
Cutting Capacity - Medium Hard Wire (Nail):
3/16"
Cutting Capacity - Piano Wire:
1/8"
Cutting Capacity - Soft Wire:
7/32"
Cutting Capacity Hard Wire Steel Wire:
1/8"
Cutting Capacity Medium Hard Wire Nail:
3/16"
Cutting Capacity Piano Wire:
1/8"
Cutting Capacity Soft Wire:
7/32"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Bevel
ECCN:
EAR99
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Polished
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
7.25
Item Length inches:
7 1/4"
Item Quantity:
1
Item Weight (lbs):
0.64
Item Weight lbs:
0.64
Item Width (inches):
2 1/16"
Item Width inches:
2 1/16"
Joint Type:
Forged-in axle
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium heavy-duty steel, forged, oil-hardened
Other Surface Finish:
Black atramentized
Packaging Height mm:
93 mm
Packaging Length mm:
369 mm
Packaging Width mm:
115 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Sub Brand Name:
Twinforce®
Surface Finish:
Polished
Tool Attributes:
Cutting capacity - up to 7/32" for soft wire, up to 3/16: for medium, up to 1/8" for hard and up to 1/8" for piano wire
Double hinge design by reapplying the tool to the cut
Great for rough and very fine cutting
High leverage diagonal cutter with patented double joint
Tool Height mm:
87 mm
Tool Length mm:
180 mm
Tool Weight grams:
280 g
Tool Width mm:
115 mm
Unit Of Measure:
Each
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
1
UPC Code:
843221019570
Other Details
Chrome vanadium heavy-duty steel; forged, oil-hardened
Cuts 50% easier than KNIPEX high leverage diagonal cutters of the same size
Cutting capacity - up to 7/32" for soft, up to 3/16" for medium, up to 1/8" for hard, and up to 1/8" for piano wire
For comfortable cutting, repetitive cutting or extremely hard cutting jobs
For rough or very fine cutting
High degree of stability and zero backlash due to precisely milled forged-in axle
Ideal transmission of force due to double-hinged design
Reliably cuts all types of wire, including steel tape
Superior high leverage diagonal cutter with patented double joint
