![7 1/4" Strix® Insulation Strippers with Cable Shears](/vendors/8243/large/1362180-00-3.jpg "7 1/4" Strix® Insulation Strippers with Cable Shears")

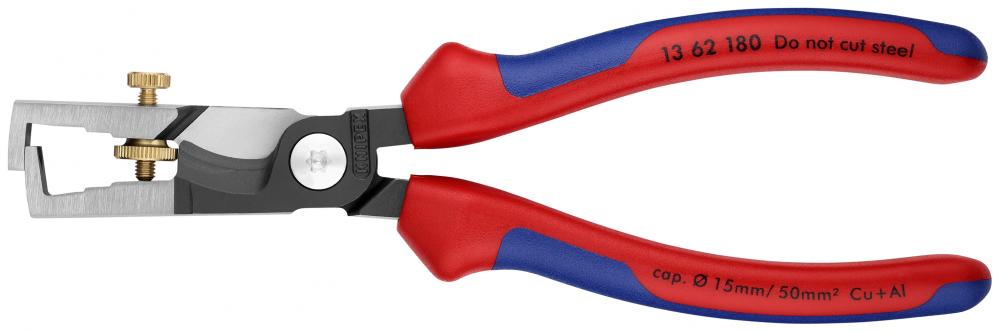

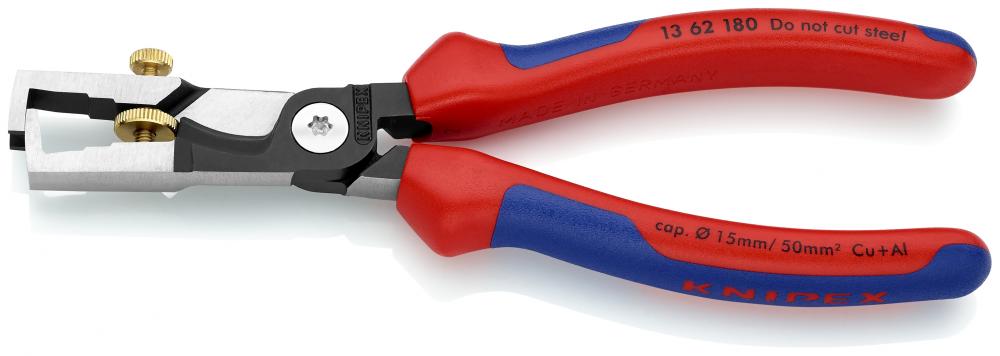

7 1/4" Strix® Insulation Strippers with Cable Shears
Call For Price
- Part Number: 13 62 180
- UPC: 00843221023089
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Wire Strippers and Cable Slitters
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Cu and Al conductor:
9/16" (15 mm)
Cutting Capacity Cu And Al Conductor:
9/16" (15 mm)
Cutting Edge HRC:
Approx. 57 HRC
Cutting Edge Shape:
Shear
Data Sheet Filename:
1362180_en.pdf
ECCN:
EAR99
Handle Type:
Multi-component
Harmonized Tariff Code:
8211.92.4060
Included Products/Items:
Surface Finish: Polished
Item Height (inches):
3/4"
Item Height inches:
3/4"
Item Length (inches):
7.25
Item Length inches:
7 1/4"
Item Quantity:
1
Item Weight (lbs):
0.438
Item Weight lbs:
0.438
Item Width (inches):
2"
Item Width inches:
2"
Joint Type:
Bolted
Joint Type 2:
Fixed Joint
Material Type:
High-grade special tool steel, forged, multi stage oil-hardened
Other Surface Finish:
Black atramentized
Packaging Height mm:
53 mm
Packaging Length mm:
295 mm
Packaging Width mm:
96 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Stripping Capacity:
5.0 mm
Stripping Capacity - AWG:
8
Sub Brand Name:
Strix®
Surface Finish:
Polished
Tool Attributes:
Adjustable joint for maximum precision

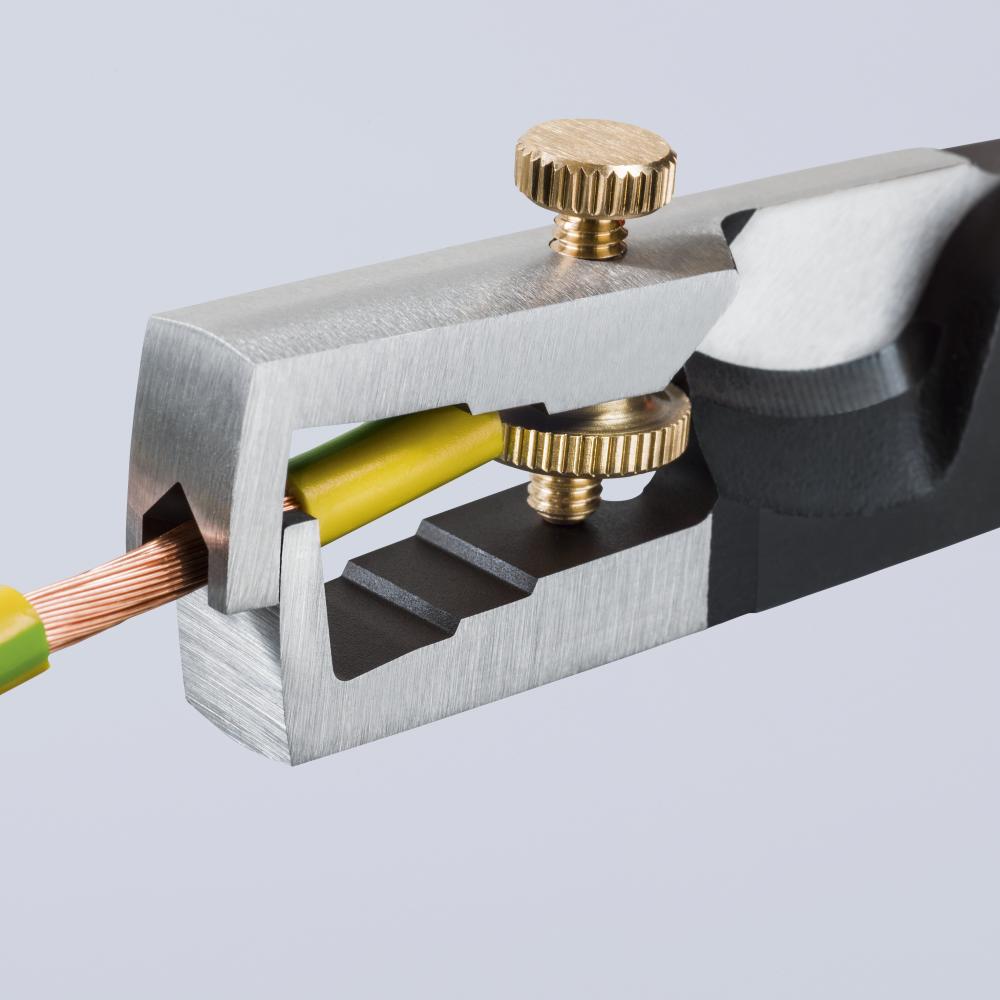

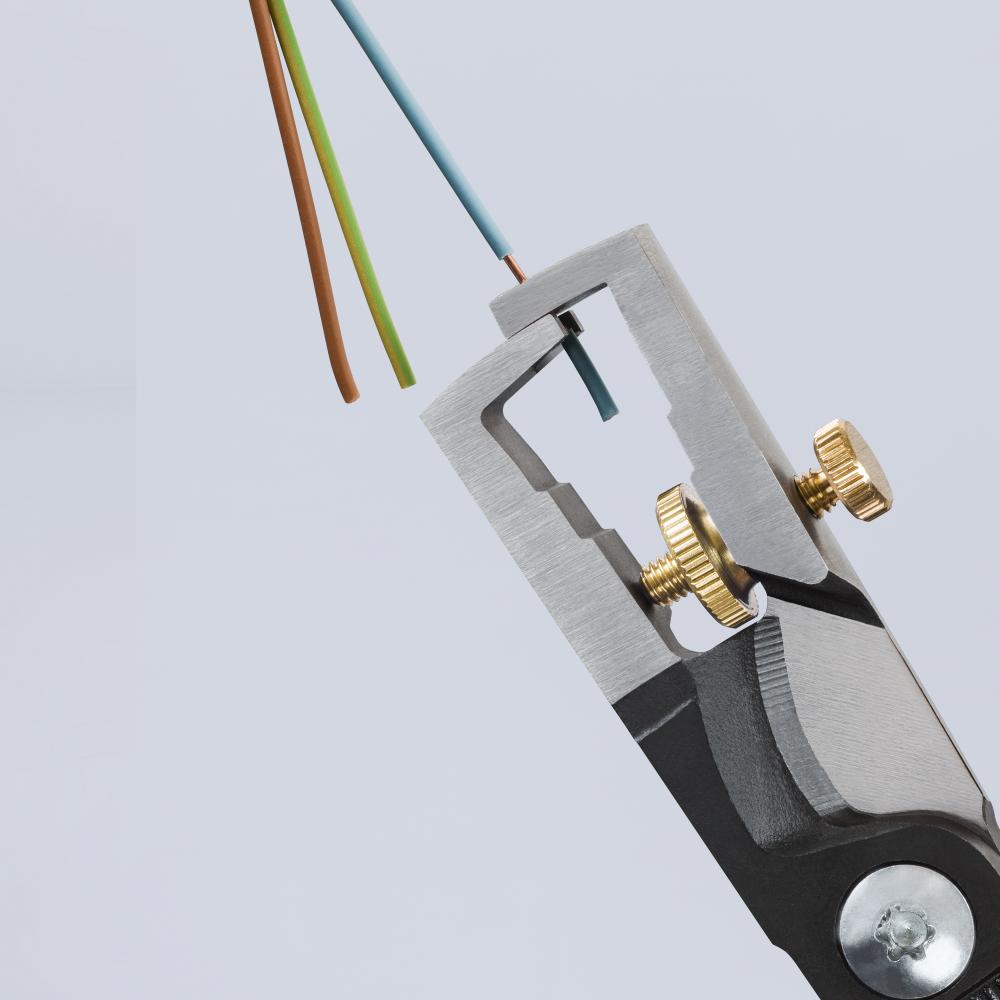

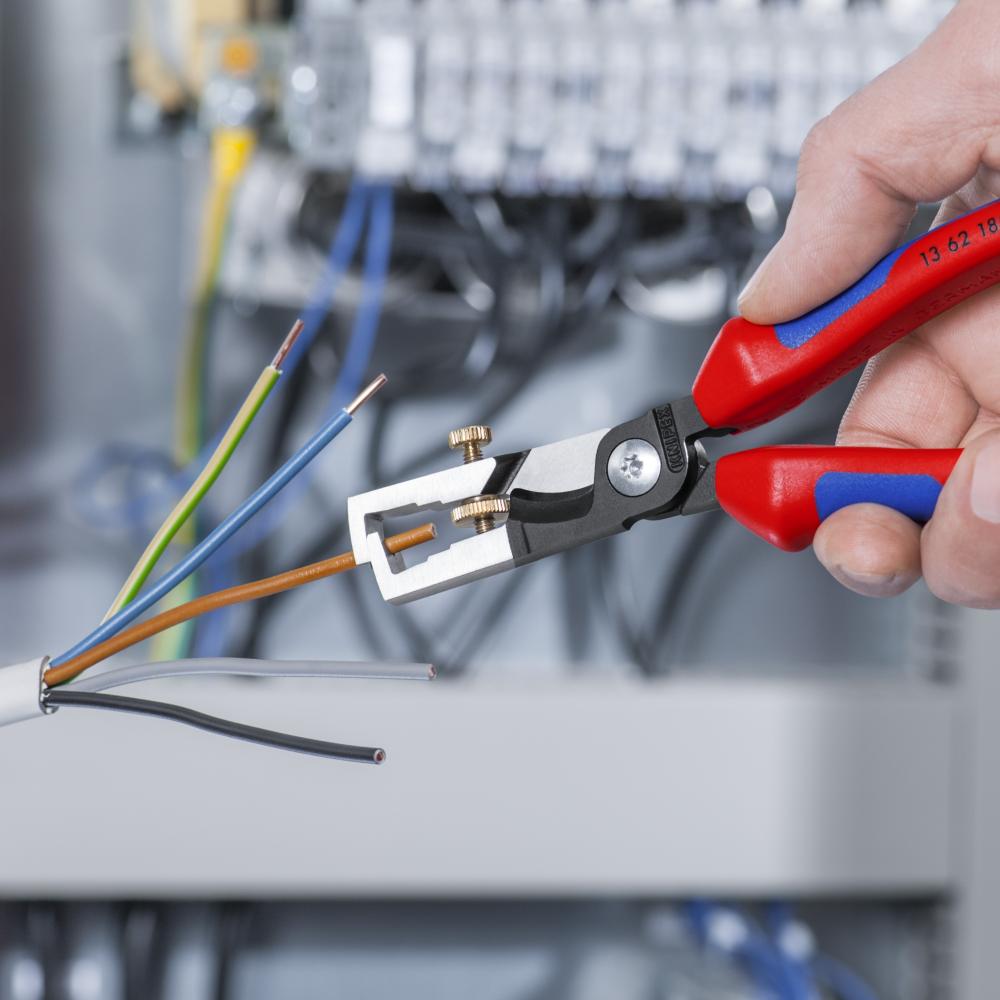

For stripping single, multiple and fine stranded conductors
Graduated jaw is a visual guide when stripping wire in standard lengths of 7/16" (11 mm) and 5/8" (16 mm)
Induction hardened cable cutter for up to 9/16" (15 mm) diameter

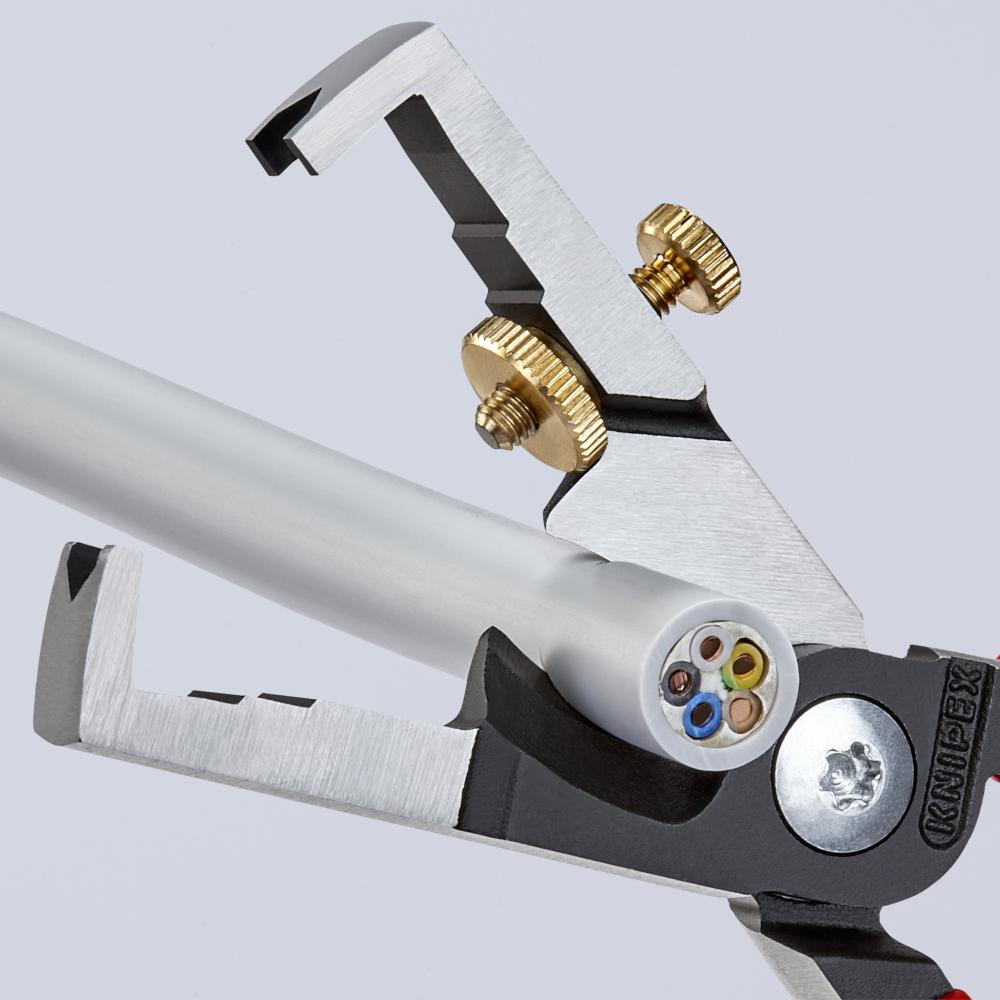

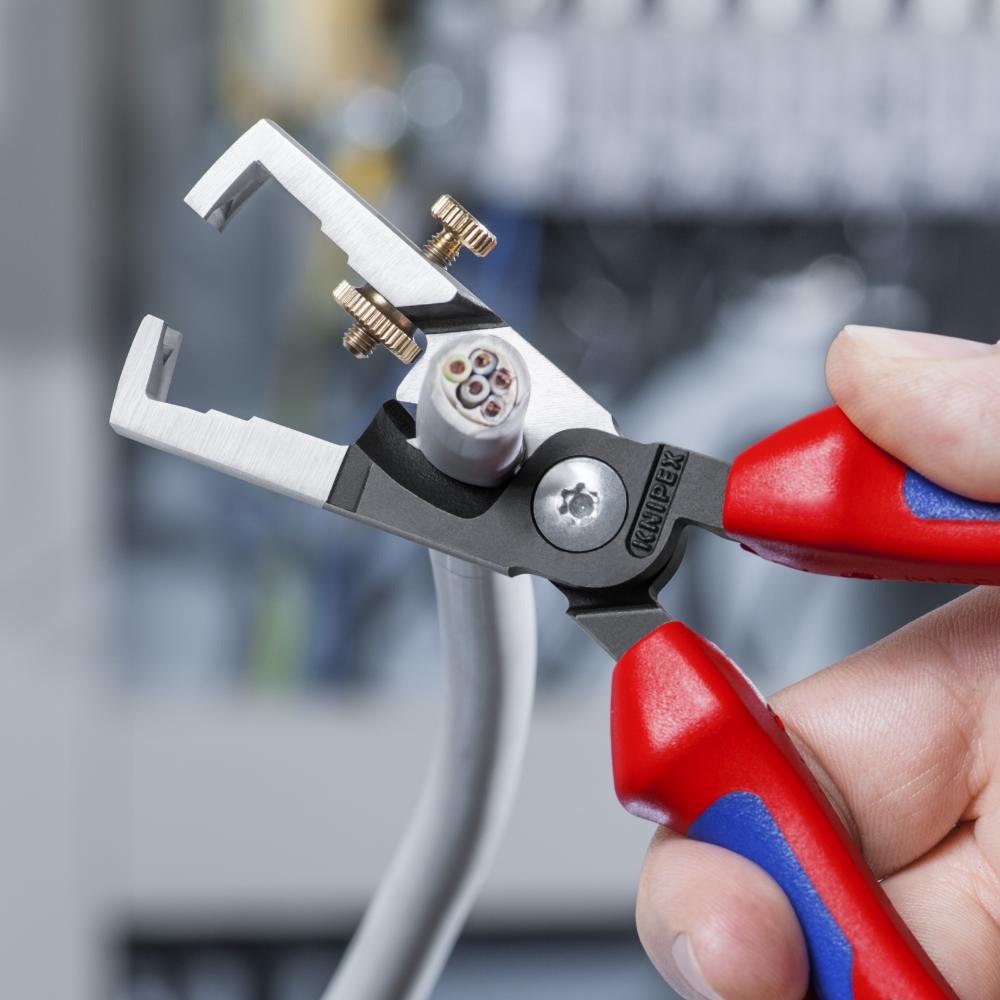

Integrated cable shears for clean cutting of copper and aluminum cables without crunching
Universal adjustment of the wire stripping blades with knurled screw
V-shaped stripping prism for up to 8 AWG (8.4 mm@)
Tool Height mm:
27 mm
Tool Length mm:
180 mm
Tool Weight grams:
200 g
Tool Width mm:
52 mm
Unit Of Measure:
Each
UNSPSC:
27112151
UNSPSC Number:
27112151
UOM Qty:
1
UPC Code:
843221023089
Other Details
For stripping single, multiple and fine stranded conductors with plastic and rubber insulation up to a max. Ø 5 mm or 10 mm2 conductor cross-section
Graduated jaw is a visual guide when stripping wire in standard lengths of 7/16" (11 mm) and 5/8" (16 mm)
Insulation strippers with Cable Shears – two essential electrical installation tools in one pair of pliers
Integrated cable shears for clean cutting of copper and aluminum cables without crushing
Slim design allows for easy access into confined areas
Universal adjustment of the wire stripping blades with knurled screw
