![7 1/4" Self-Adjusting Crimping Pliers For Wire Ferrules](/vendors/8243/large/975314-02-3.JPG "7 1/4" Self-Adjusting Crimping Pliers For Wire Ferrules")

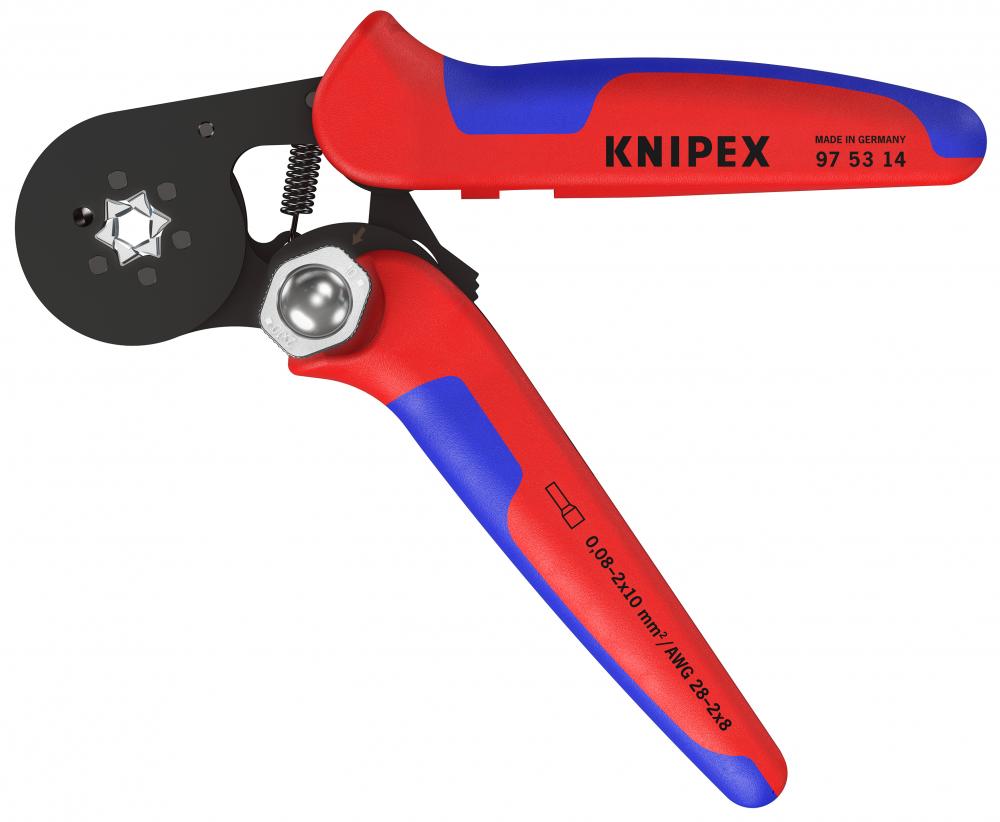

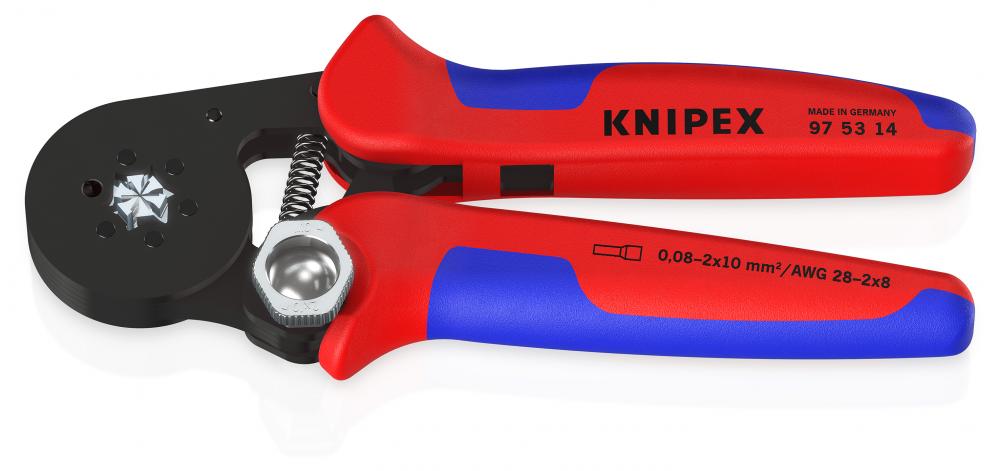

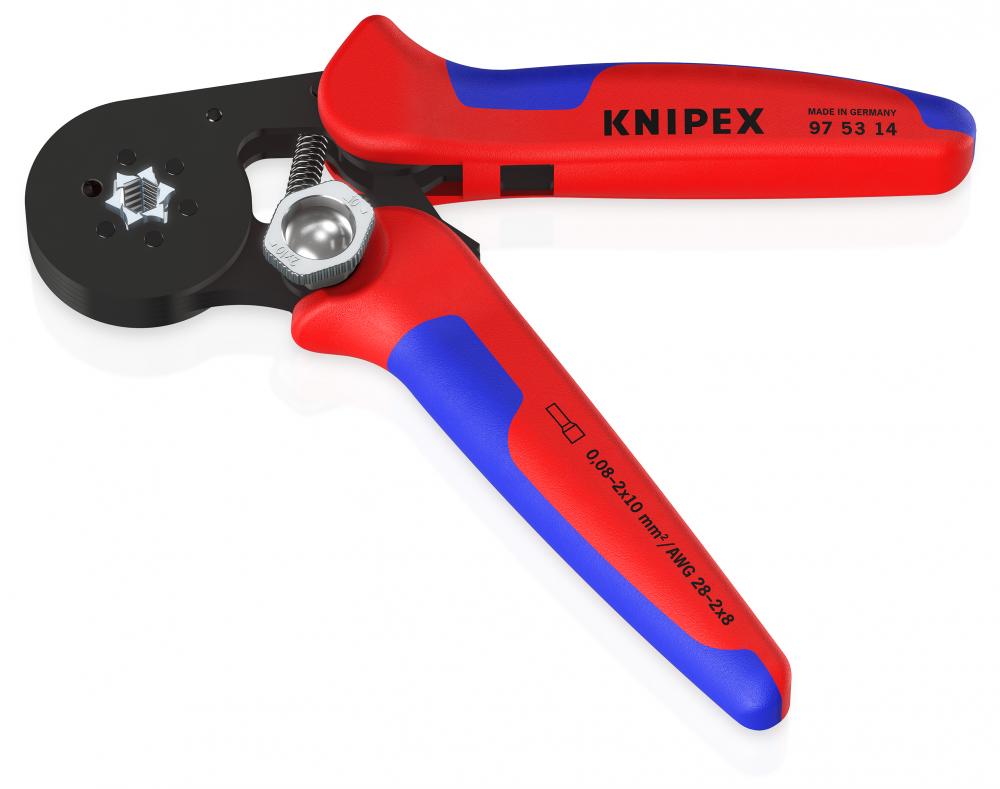

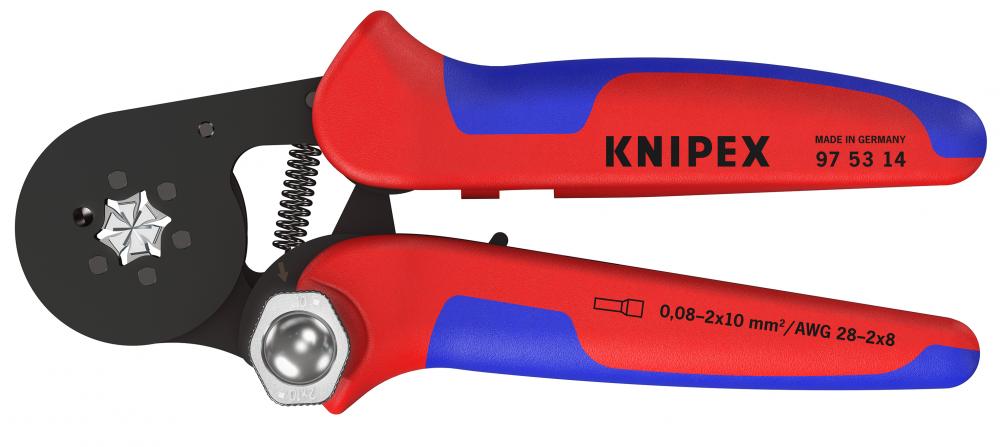

7 1/4" Self-Adjusting Crimping Pliers For Wire Ferrules
Call For Price
- Part Number: 97 53 14
- UPC: 00843221006211
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Crimping Tools
Industrial Subtype:
Cable and Wire Crimping Tools
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Chemical:
Diisononyl Phthalate
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Crimping Capacity:
Up to 6 AWG (0.08 mm2) for single wire and up to 8 AWG (16 mm2) for twin wire
Crimping Capacity - AWG:
Up to 6 AWG (single); Up to 8 AWG (twin)
Crimping Capacity - mm2:
Up to 0.08 mm2 (single); Up to 16 mm2 (twin)
Crimping Positions:
1
Crimping Profile:
Automatic hexagonal crimp
Data Sheet Filename:
975314_en.pdf
ECCN:
EAR99
ESD Indicator:
No
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Surface Finish: Black-oxide
Item Height (inches):
1"
Item Height inches:
1"
Item Length (inches):
7
Item Length inches:
7 1/4"
Item Quantity:
1
Item Weight (lbs):
0.981
Item Weight lbs:
0.9
Item Width (inches):
2 13/16"
Item Width inches:
2 13/16"
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium electric steel, oil-hardened
Other Surface Finish:
Burnished
Package Height (inches):
1.1"
Package Height inches:
1.1"
Package Length (inches):
7.6"
Package Length inches:
7.6"
Package Weight (lbs):
0.98
Package Weight lbs:
0.98
Package Width (inches):
3.3"
Package Width inches:
3.3"
Packaging Height mm:
21 mm
Packaging Length mm:
180 mm
Packaging Width mm:
75 mm
Prop 65 Conflict:
View
Prop 65 Language Indicator:
View
Prop 65 Warning English:
View
Reach:
contains SVHC
RoHS:
not applicable
Spring Loaded:
No
Surface Finish:
Black-oxide
Terminal Type:
End Ferrules-Single|End Ferrules-Twin
Tool Attributes:
Capacity - 0.08 to 10 mm2 and 28 to 7 AWG
Chrome vanadium electric steel in special quality, oil-hardened
Expanded capacity of hexagonal crimping up to 10 mm²
For crimping end sleeves
Handles with multi-component covers
Hexagonal compression for confined connection dimensions
High operation comfort thanks to handy shape and low weight
Narrow handle width and improved ergonomics
Optimum transmission of force due to toggle lever for fatigue-reduced operation
Pliers burnished
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
Self-adjusting crimping pliers for end sleeves (ferrules) with lateral access

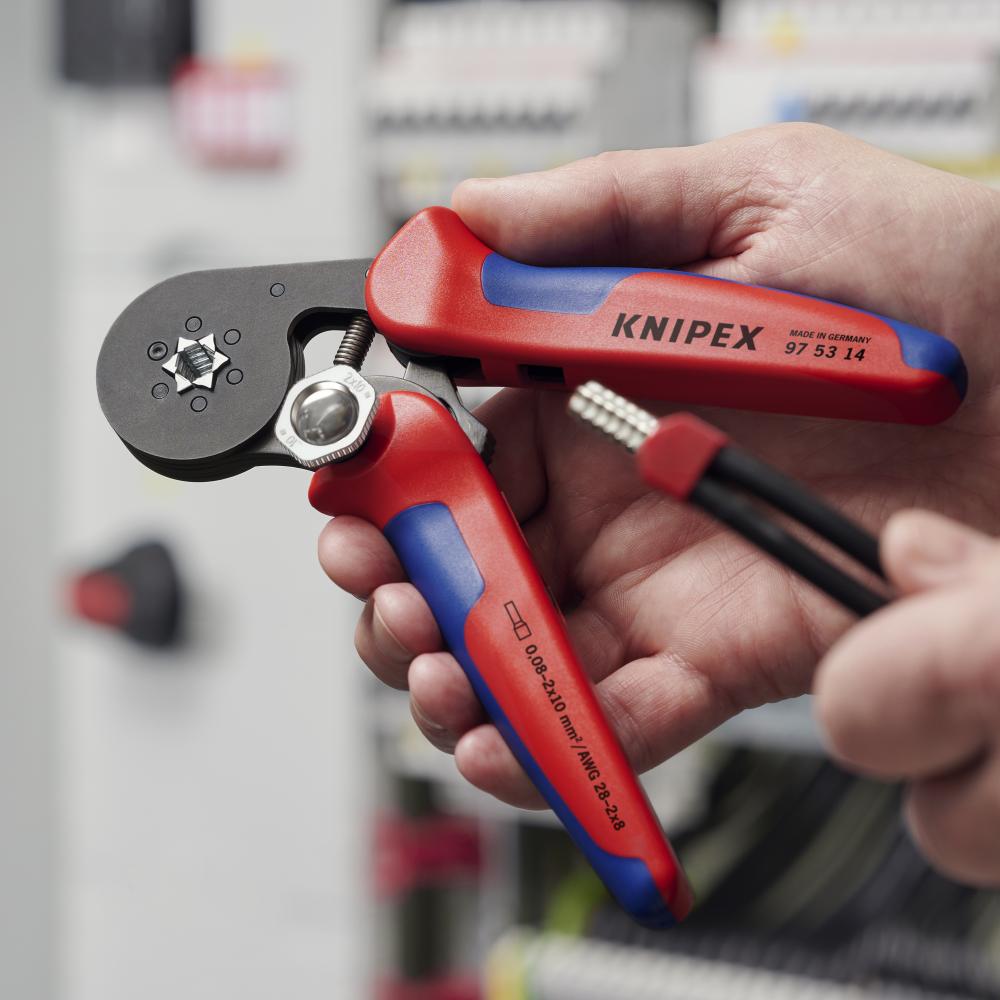

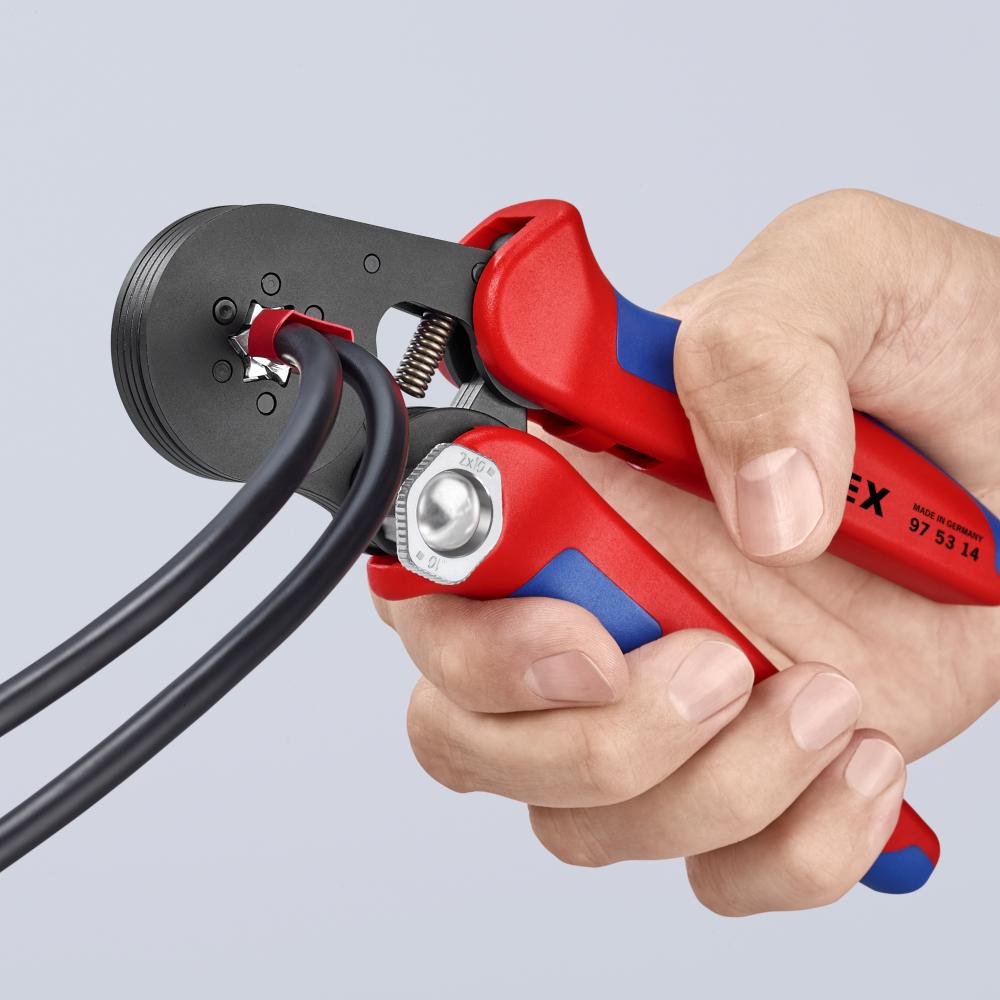

Suitable in particular for all twin end sleeves (ferrules) up to 2 x 4 mm² or 2 x AWG 10
These tools have been set precisely (calibrated) in the factory
Tool Height mm:
21 mm
Tool Length mm:
180 mm
Tool Weight grams:
445 g
Tool Width mm:
75 mm
Unit Of Measure:
Each
UNSPSC:
27112147
UNSPSC Number:
27112147
UOM Qty:
1
UPC Code:
843221006211
Other Details

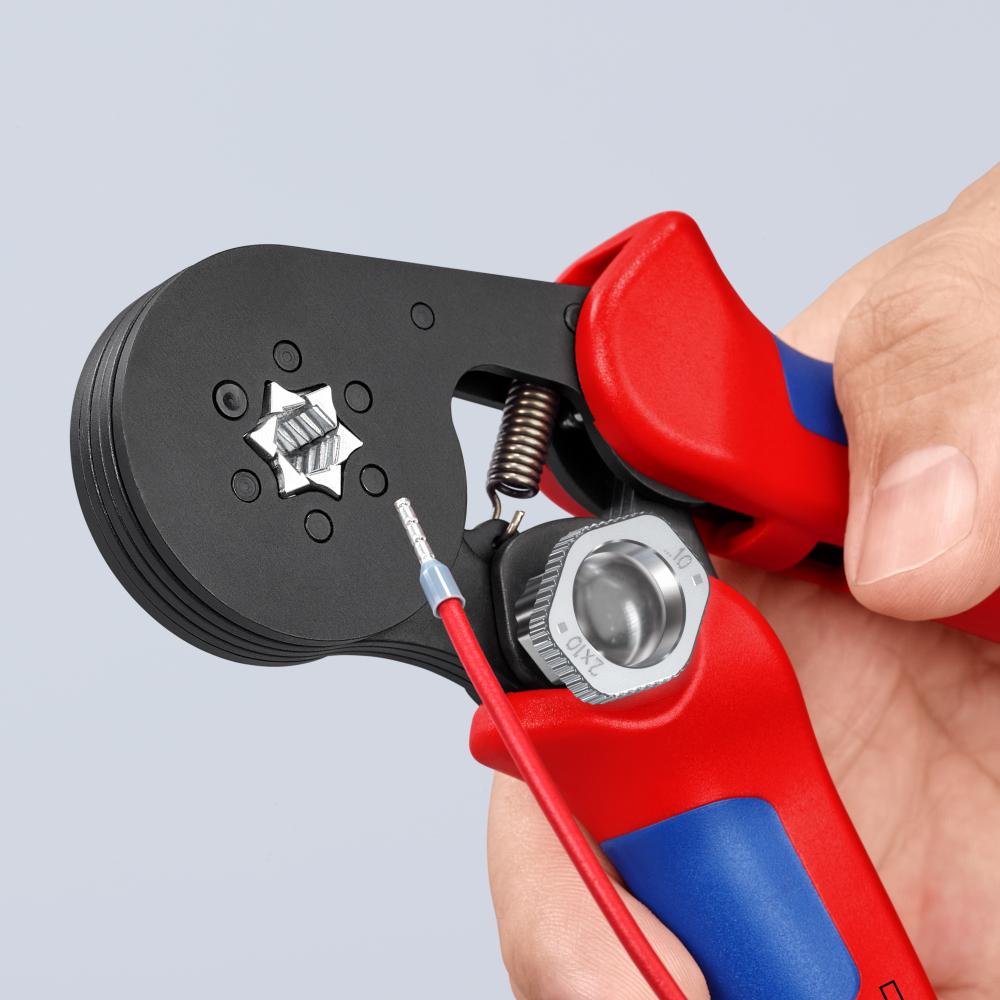

Automatic self-adjusting to the size of the end ferrule

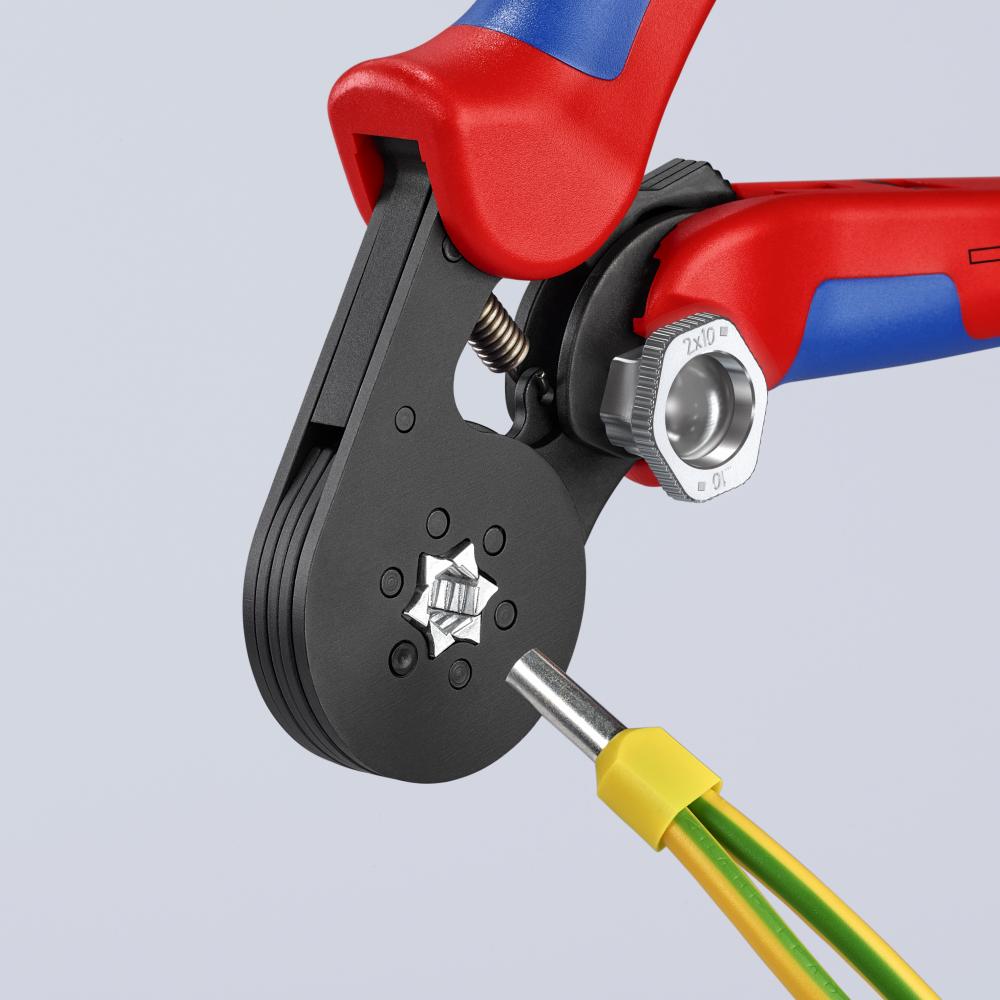

Crimping capacity from 28 - 6 AWG for single wire end ferrules and up to 2 x 8 AWG for twin wire end ferrules
Crimping pressure has been precisely calibrated in the factory
For crimping end ferrules according to DIN 46228 parts 1 + 4
Handles with multi-component grips

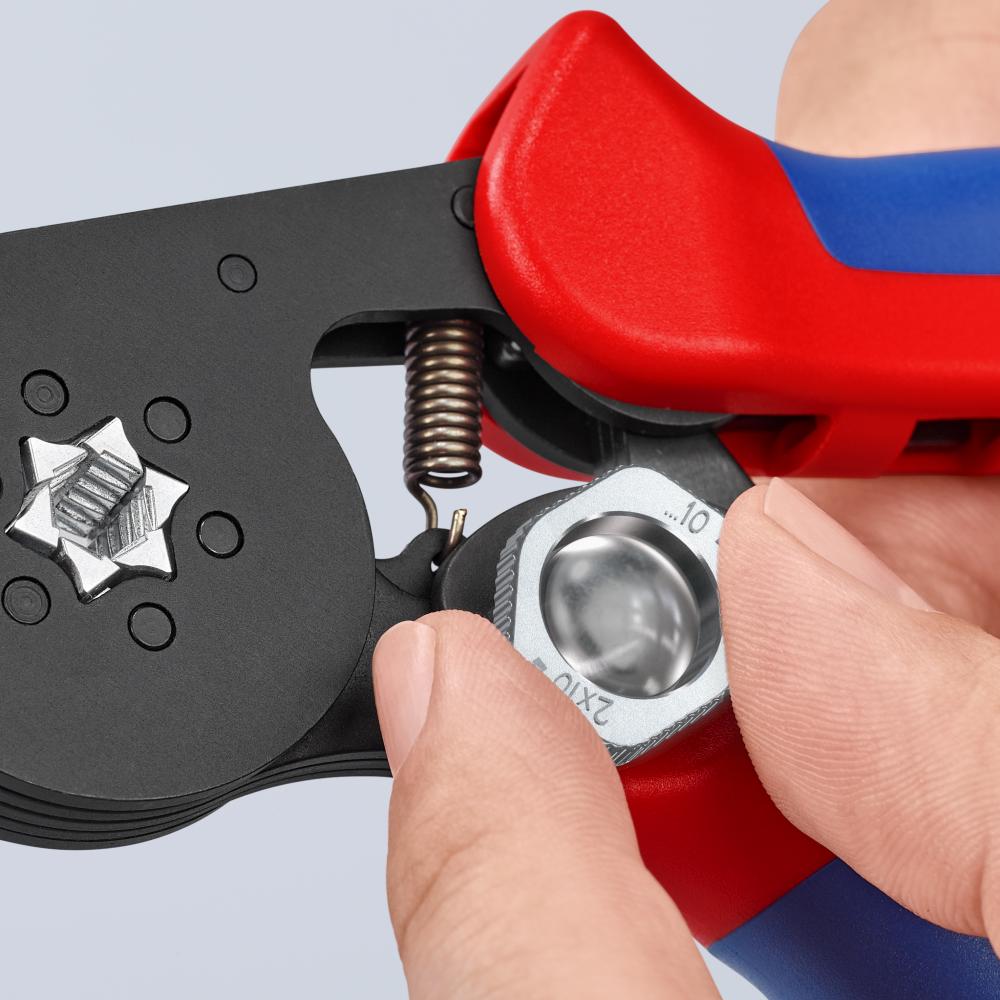

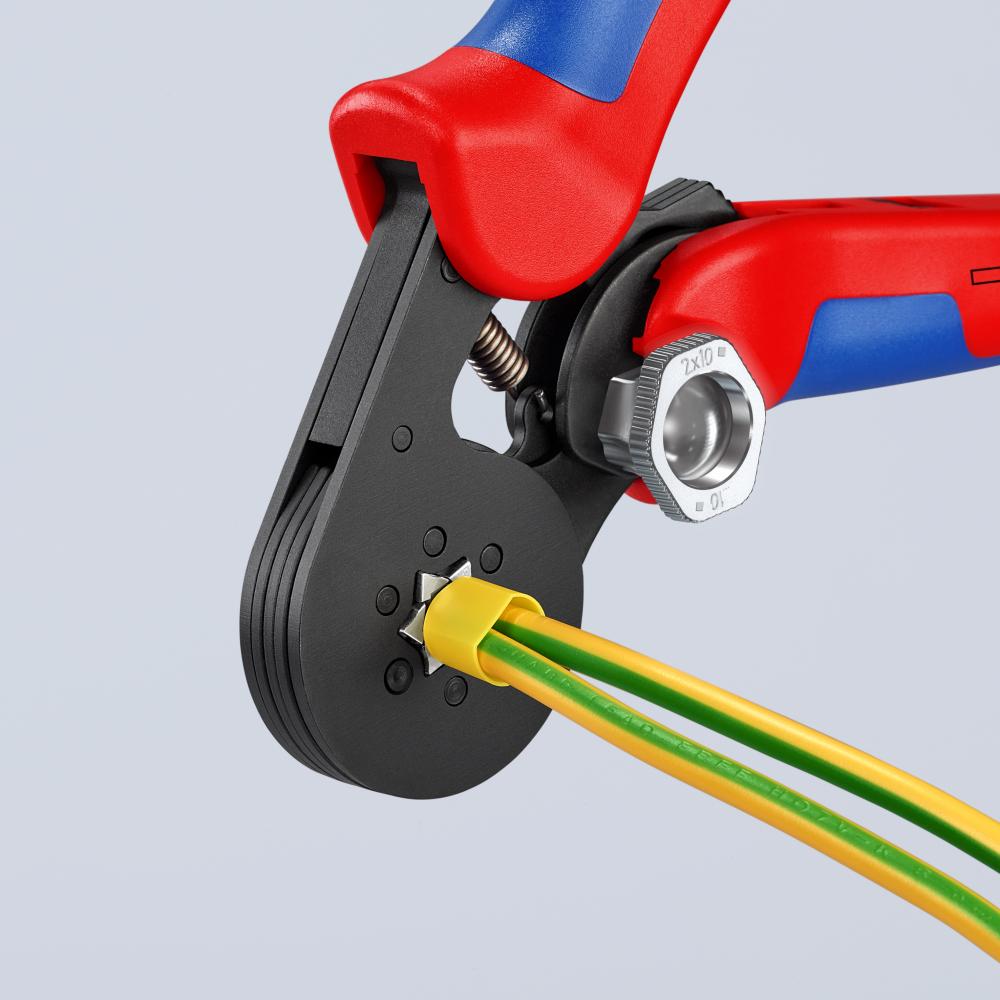

Increased crimping capacity up to 6 AWG for single wires and up to 8 AWG for twin end ferrules. The adjusting wheel can be rotated between the two positions
Optimum transmission of force due to toggle lever for fatigue-reduced operation
Provides a repetitive and high quality crimp due to a complete crimping cycle with the ratcheting mechanism

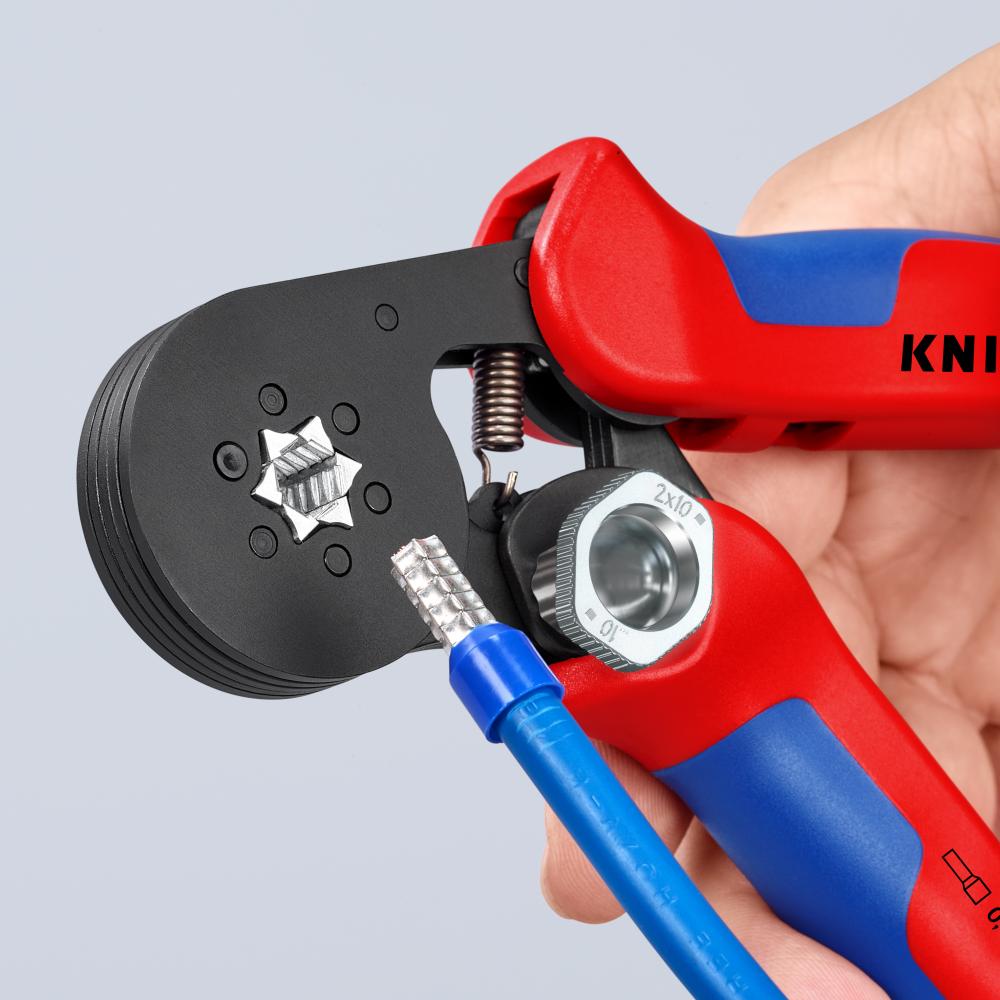

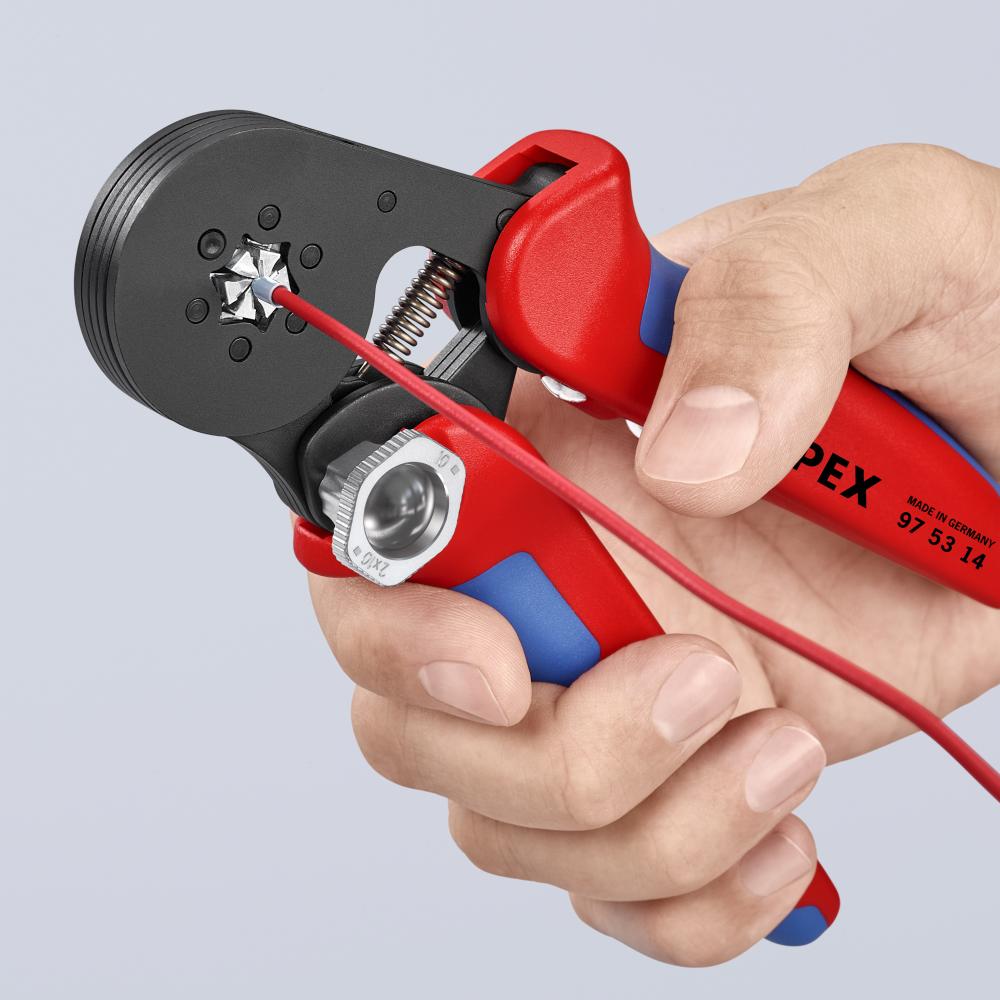

Self-adjusting hexagonal crimping pliers for end ferrules with side access
Special quality chrome vanadium electric steel, oil-hardened
