![7 1/4" High Leverage Combination Pliers-1000V Insulated](/vendors/8243/large/0206180-01-3.jpg "7 1/4" High Leverage Combination Pliers-1000V Insulated")

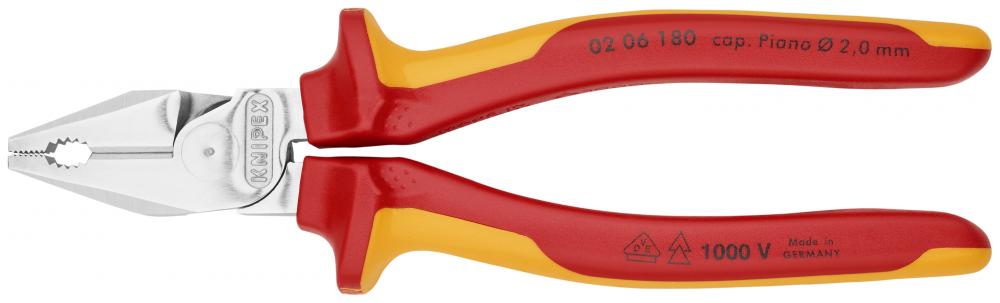

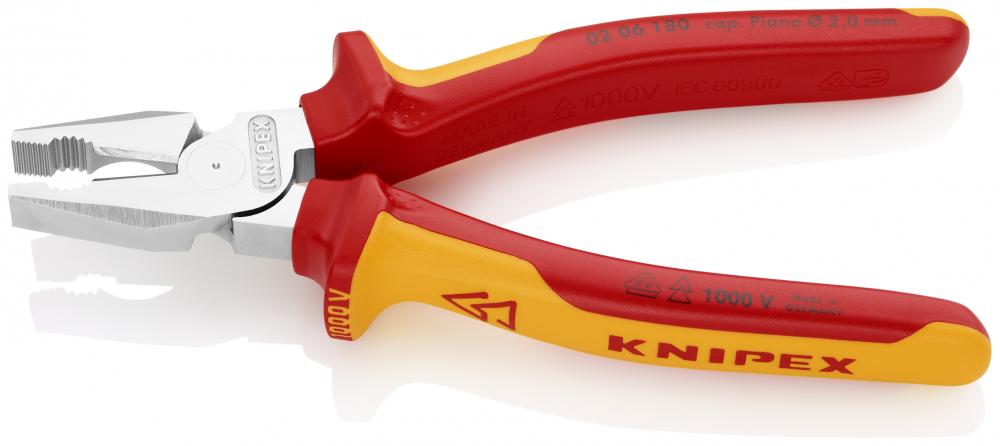

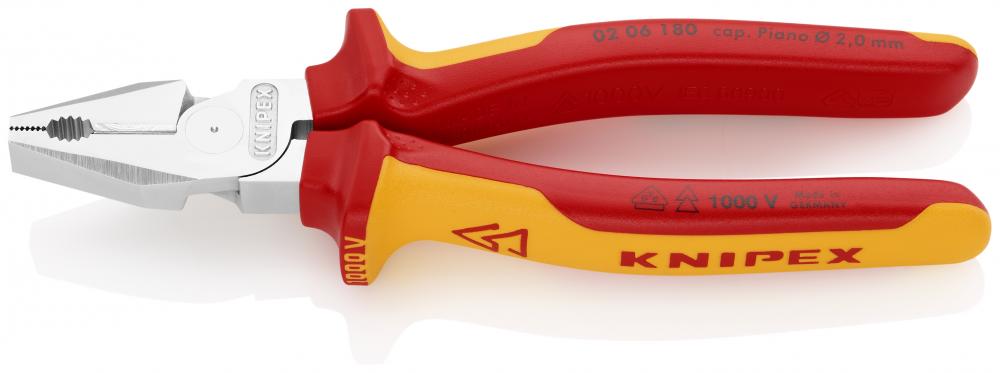

7 1/4" High Leverage Combination Pliers-1000V Insulated
Call For Price
- Part Number: 02 06 180
- UPC: 00843221003616
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Linemans Pliers
1000 Volt Insulated:
Yes
Brand Name:
KNIPEX
Color:
Red/Yellow
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Cu and Al conductor:
5 AWG
Cutting Capacity - Hard Wire (Steel Wire):
3/32"
Cutting Capacity - Piano Wire:
5/64"
Cutting Capacity Cu And Al Conductor:
5 AWG
Cutting Capacity Hard Wire Steel Wire:
3/32"
Cutting Capacity Piano Wire:
5/64"
Cutting Edge HRC:
Approx. 63 HRC
Cutting Edge Shape:
Bevel
Data Sheet Filename:
0206180_en.pdf
ECCN:
EAR99
Gripping Surface:
Serrated
Handle Length:
4"
Handle Type:
1000V Insulated, multi-component, VDE
Harmonized Tariff Code:
8203.20.6030
IEC:
IEC 60900
Included Products/Items:
Gripping Surface: Serrated
Item Height (inches):
1 1/8"
Item Height inches:
1 1/8"
Item Length (inches):
7.25
Item Length inches:
7 1/4"
Item Quantity:
1
Item Weight (lbs):
0.555
Item Weight lbs:
0.555
Item Width (inches):
2 1/16"
Item Width inches:
2 1/16"
Joint Type:
Rivet
Joint Type 2:
Fixed Joint
Material Type:
High-grade special tool steel, forged, multi stage oil-hardened
Nomintal Length mm:
180
Package Height (inches):
1.2"
Package Height inches:
1.2"
Package Length (inches):
7.5"
Package Length inches:
7.5"
Package Weight (lbs):
0.6
Package Weight lbs:
0.6
Package Width (inches):
2.5"
Package Width inches:
2.5"
Packaging Height mm:
30 mm
Packaging Length mm:
191 mm
Packaging Width mm:
65 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Chrome Plated
Tool Attributes:
35% less effort required than with conventional combination pliers due to high leverage
All insulated tools meet the requirements of ASTM F1505
Cutting capacity - up to 1/8" for hard wire, up to 1/16" for piano wire and up to 7/64" for Cu and Al multi conductor
Gripping zones for flat and round material
High leverage means less force required because the rivet is closer to the cutting edge
Long cutting edge for thicker cables

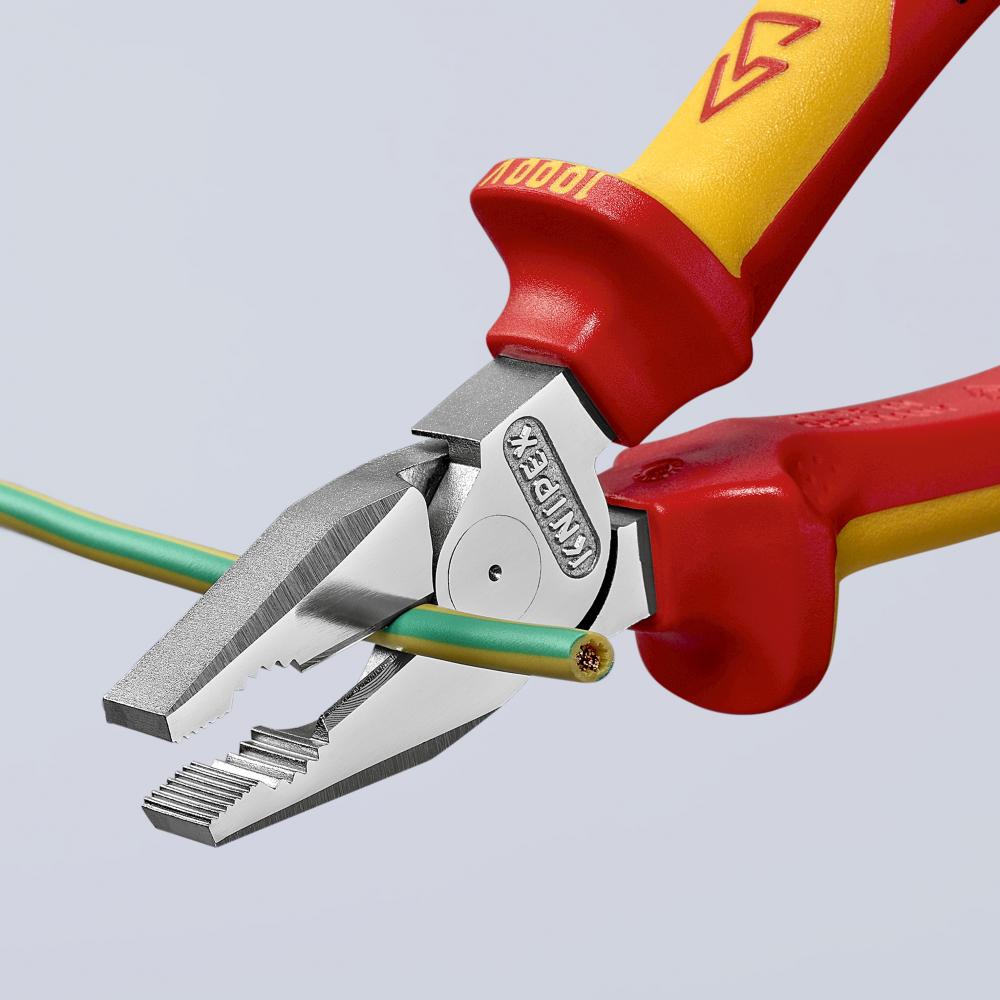

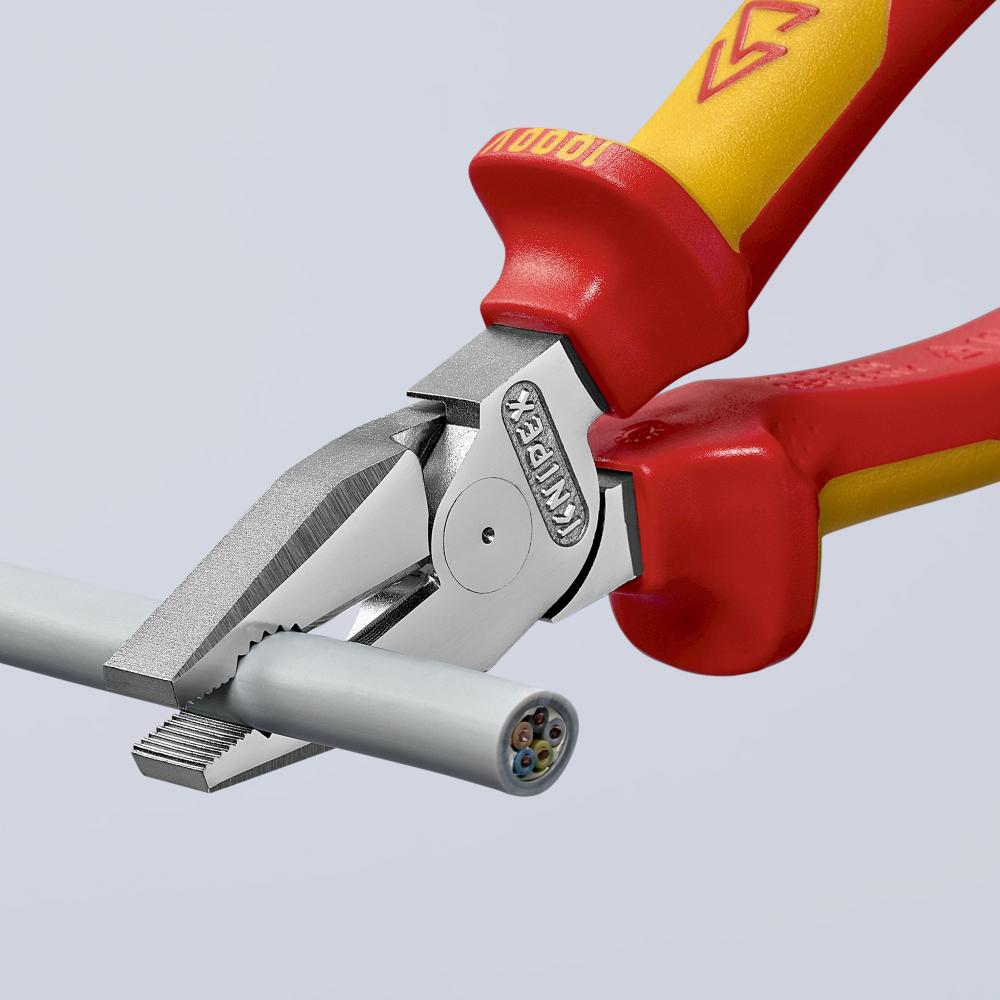

Used for cutting, gripping, bending and pulling wire
Tool Height mm:
20 mm
Tool Length mm:
180 mm
Tool Weight grams:
247 g
Tool Width mm:
56 mm
Unit Of Measure:
Each
UNSPSC:
27112139
UNSPSC Number:
27112139
UOM Qty:
1
UPC Code:
843221003616
Other Details
1000V multi-component grips, VDE-tested
35% less effort required than with conventional combination pliers due to high leverage
Cutting edge hardness (approx. 63 HRC) for heavy-duty cutting
Easier cutting, powerful gripping, bending and pulling

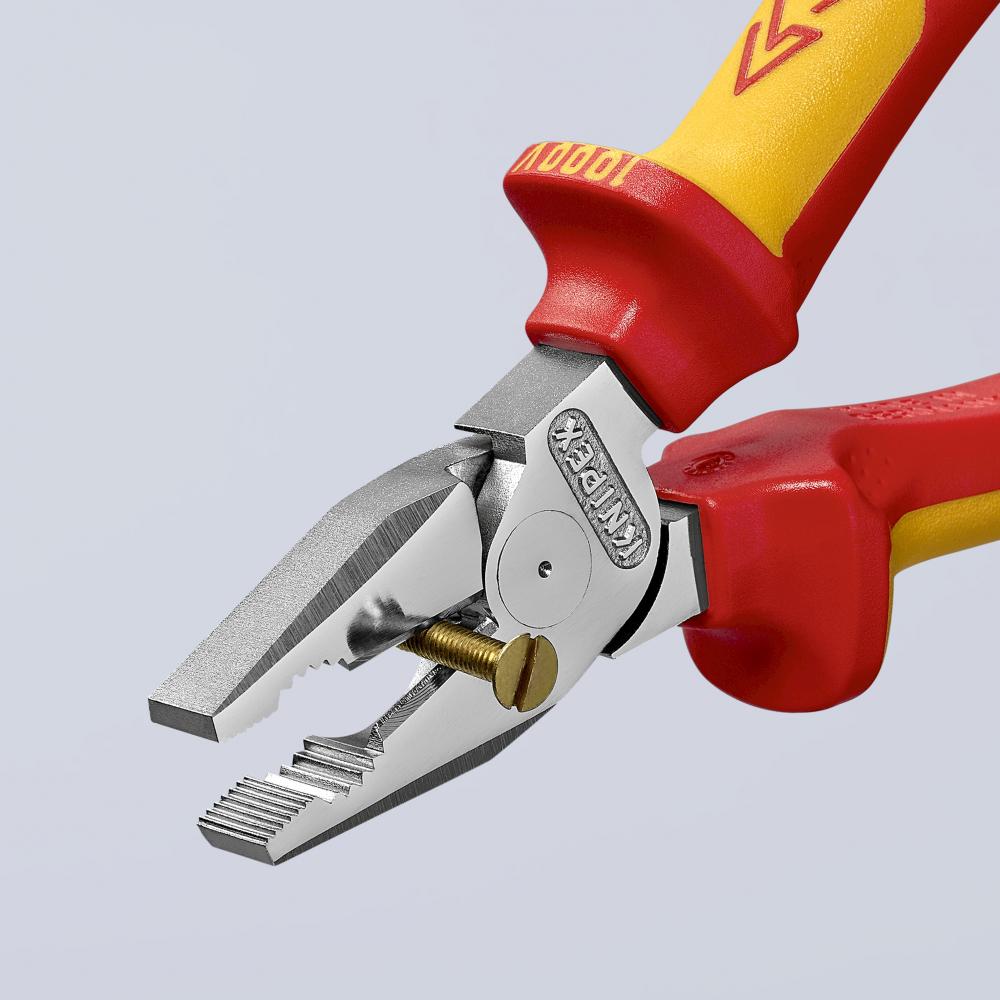

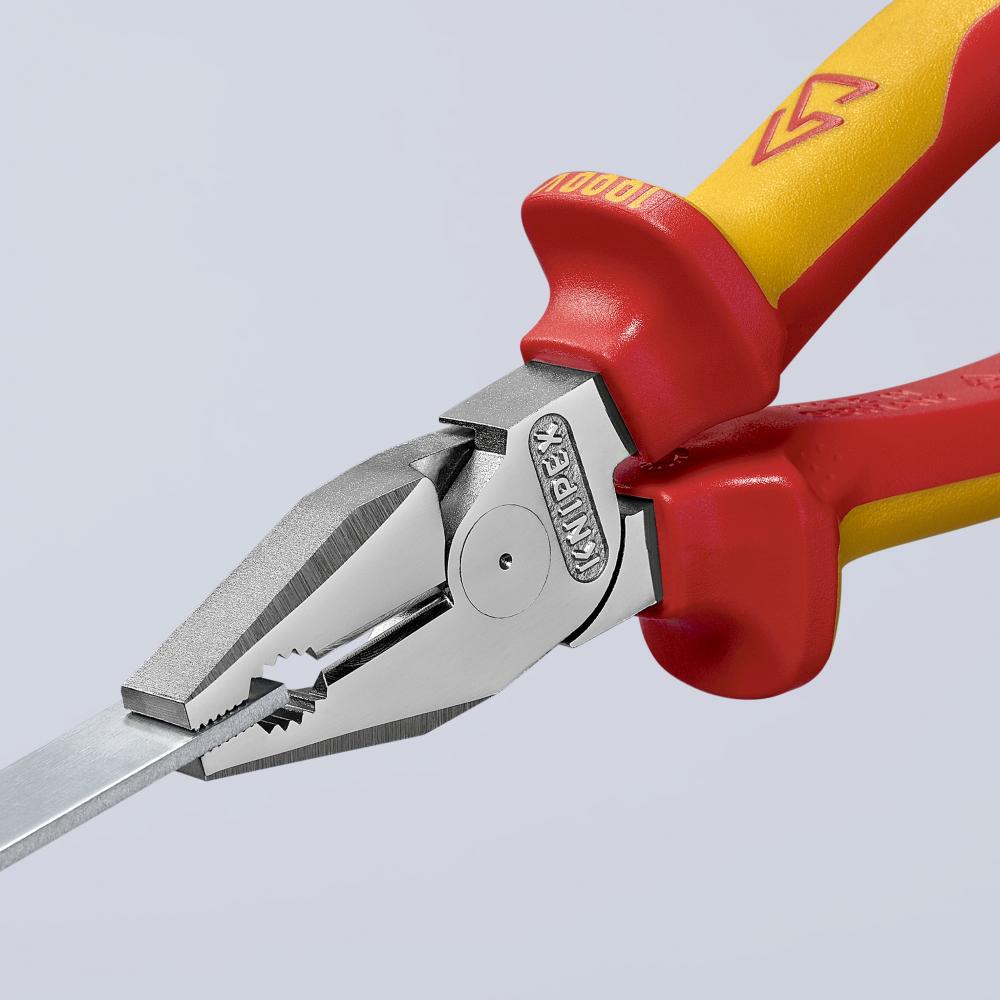

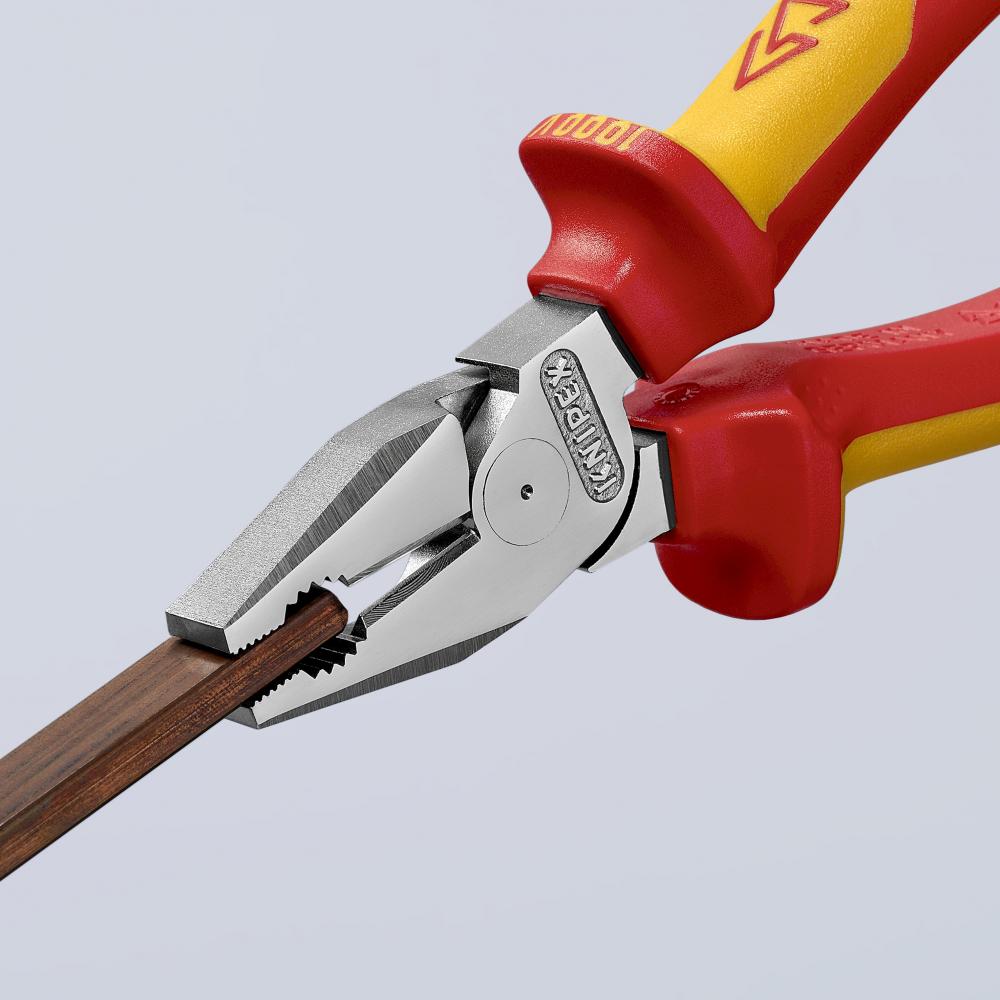

Gripping zones for flat and round material for a variety of uses
High-grade special tool steel; forged, multi stage oil-hardened
Long cutting edges for thicker cables
